Ventis HEI170 Wood Fireplace Insert - 65,000 BTU

Starting at:
$2,559.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 2-4 Weeks What Does Lead Time Mean | Why Buy From Us?

Available
+

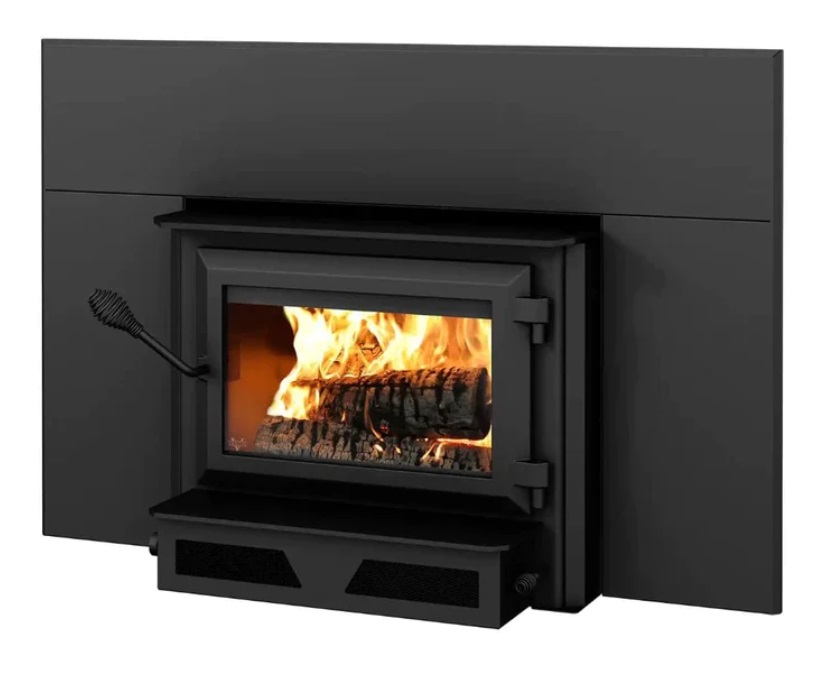

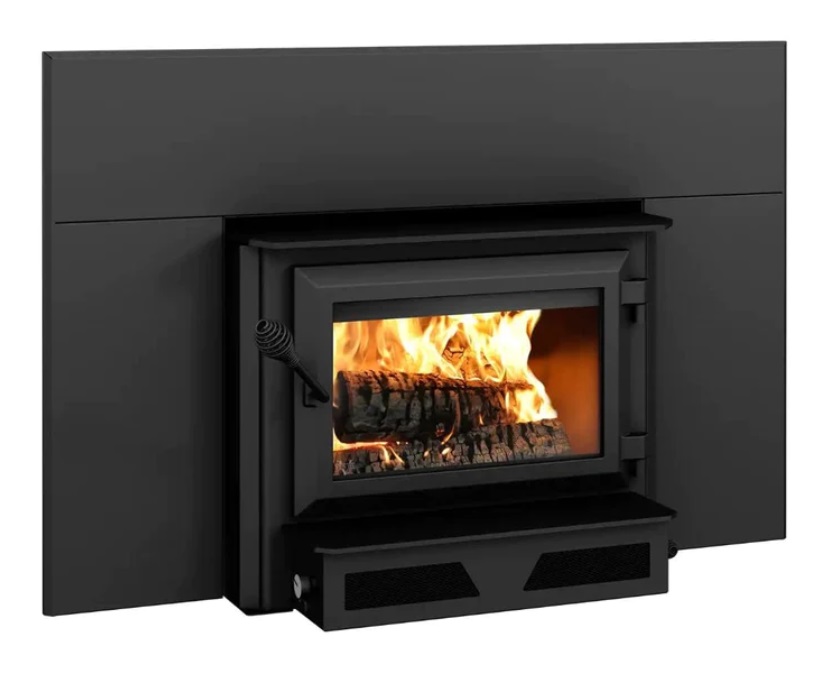

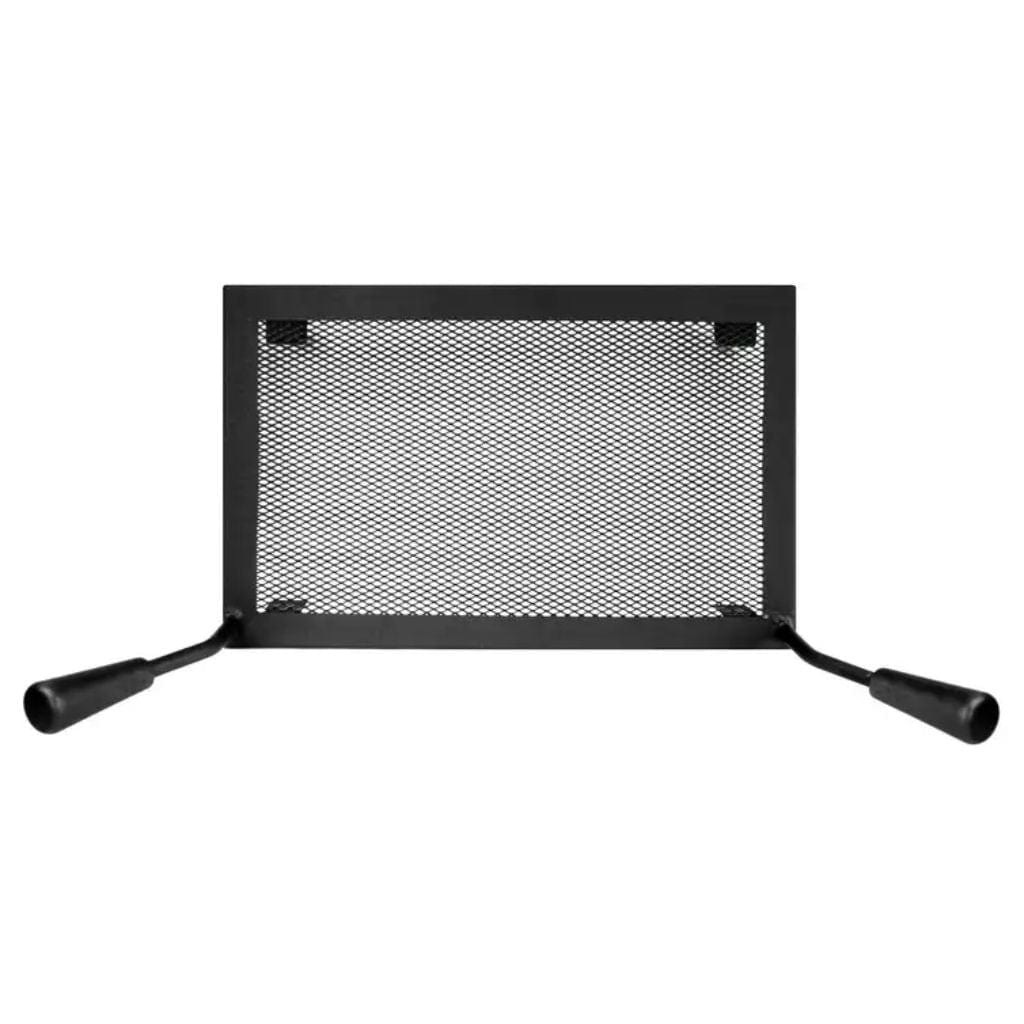

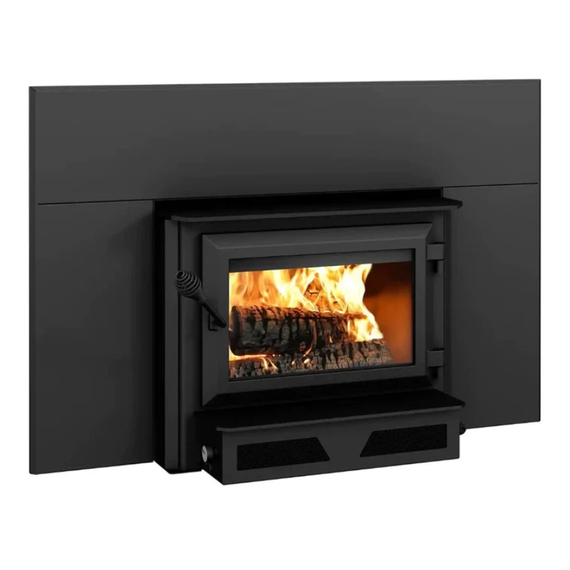

The Ventis 27" HEI170 Wood Fireplace Insert is an excellent choice for those seeking to heat smaller spaces to 1,800 square feet. The unit's single cast iron door gives it a touch of sophistication, while the optional fire screen allows you to enjoy the sounds and sights of burning wood, enhancing the overall experience.

This wood-burning insert uses non-catalytic combustion technology, ensuring that the wood burns efficiently with minimal emissions. The stainless steel enhanced secondary air system promotes even more efficient burning. It's EPA 2020 certified, meeting the highest environmental standards.

The HEI170 wood-burning insert has a maximum burn period of 6 hours and can deliver up to 65,000 BTU/H of heat. This makes it a cost-effective solution for anyone looking to heat their homes during the colder months. With its sleek design, efficient technology, and reliable heating capabilities, the Ventis HEI170 wood-burning insert is an excellent investment for any homeowner seeking a practical and effective heating solution for their space.

  • Medium size wood insert suitable for smaller spaces
  • EPA certified at only 1.26 g/h
  • Solidity and manufacturing quality
  • Stainless steel heat shield added to the firestop
  • Non-catalytic combustion technology
  • Installation authorized on the Island of Montreal
  • Cast iron door
  • 144 CFM blower

Required option:

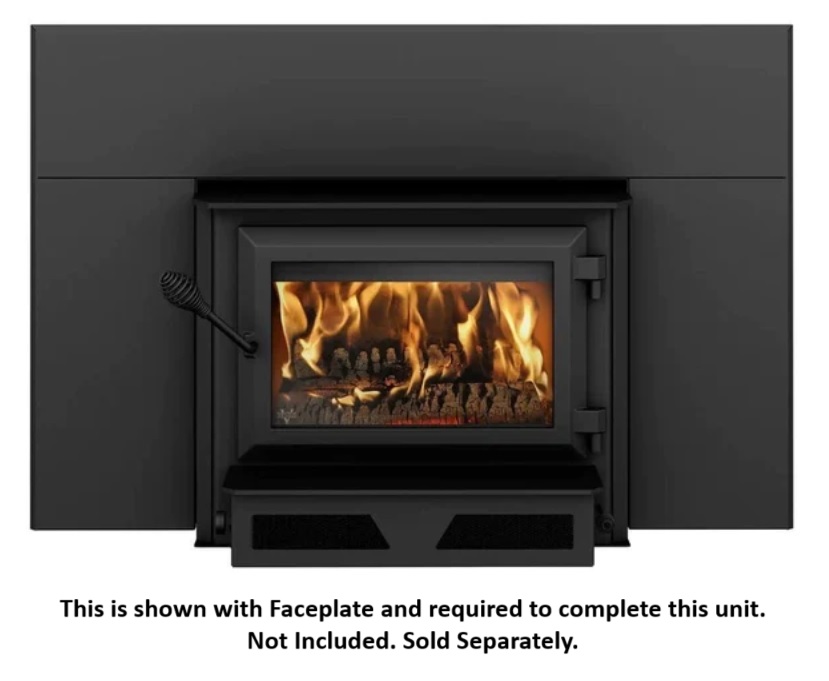

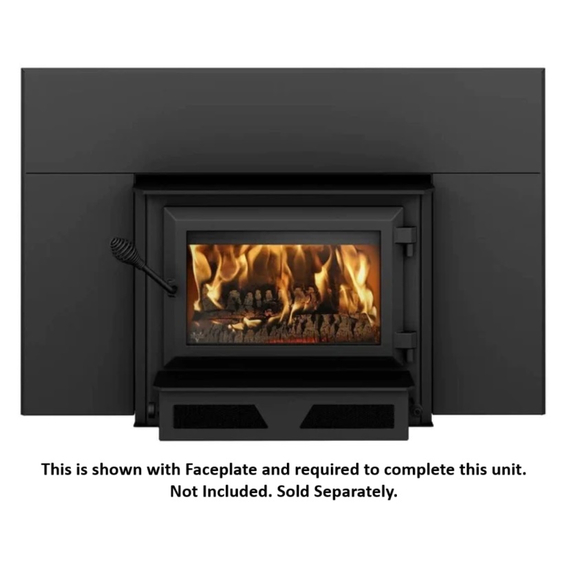

  • Choose one faceplate to complete this unit. Not Included, Sold Separately.

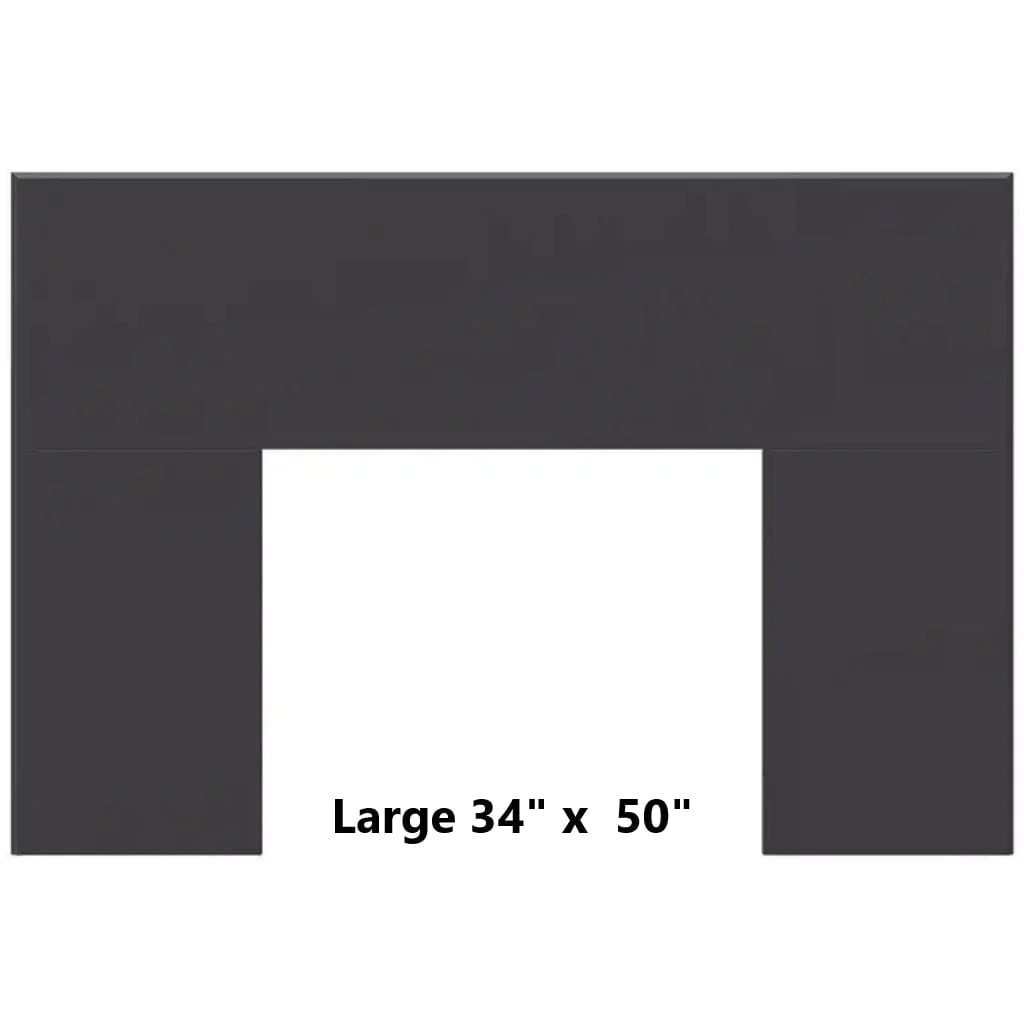

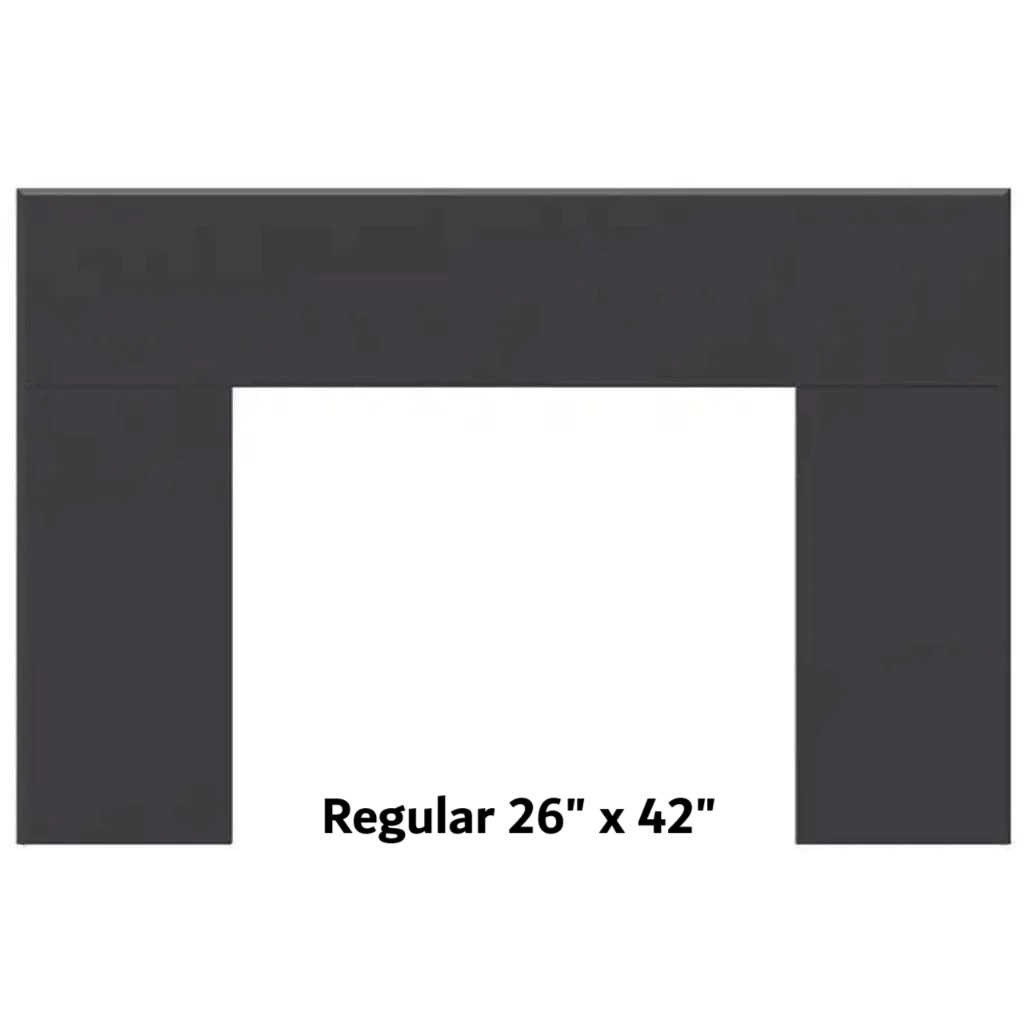

  • Regular faceplate (VBA1555) or Large faceplate (VBA1556).

Product Specifications:

 Color:  Black
 Fuel Type:  Dry cordwood (16" recommended)
 Combustion Technology:  Non-catalytic
 Recommended Heating Area:  500 - 1,800 ft²
 Overall Firebox Volume:  1.9 ft³
 Maximum Burn Time:  6 Hours
 EPA Loading Volume:  1.44 ft³
 Maximum Heat Output-Dry Cordwood:  65,000 BTU/h
 Minimum Overall Heat Output Rate:  15,650 BTU/h (4.6 kW)
 Maximum Overall Heat Output Rate:  23,300 BTU/h (6.83 kW)
 Average Efficiency-Dry Cordwood (HHV):  70 %
 Average Efficiency-Dry Cordwood (LHV):  75 %
 Optimum Efficiency:  78 %
 Optimum Heat Transfer Efficiency:  74 %
 Average Particulate Emission Rate:  1.26 g/h
 Average CO:  58 g/h
 Maximum Log Length:  18"
 Recommended Log Length:  16"
 Log Positioning:  Over width
 Flue Spigot Diameter:  6"
 Door Opening Dimensions (W x H):  17 1/4" x 8 3/4"
 Firebox Dimensions (W x D):  19 5/8" x 13 1/2"
 Firebox Volume:  1.9 ft³
 Glass Viewing Area (W x H):  15 5/8" x 9 1/4"
 Glass Type:  Ceramic glass
 Door Type:  Single, glass with cast iron frame

Downloads:

The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.

Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.

Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.

This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.

All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.



Warranty Application
Description Parts Labour
 Combustion chamber (welds only) and cast iron door frame.  Lifetime  3 Years
 Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate.  Lifetime  S.O.
 Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports.  7 Years  N/A
 Glass retainers, handle assembly, and air control mechanism.  5 Years  3 Years
 Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle.  5 Years  N/A
 Standard blower, heat sensors, switches, rheostat, wiring, and other controls.  2 Years  1 Years
 Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options.  1 Years  N/A
 Firebricks.  N/A  N/A
 All parts replaced under the warranty.  90 Days  N/A



Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
