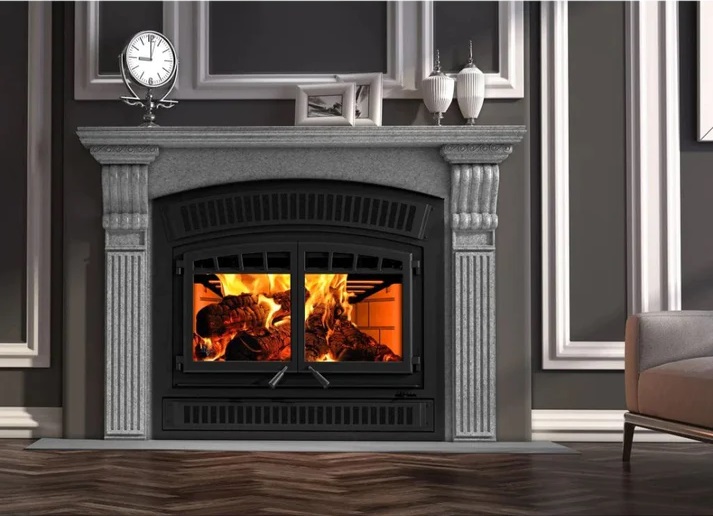

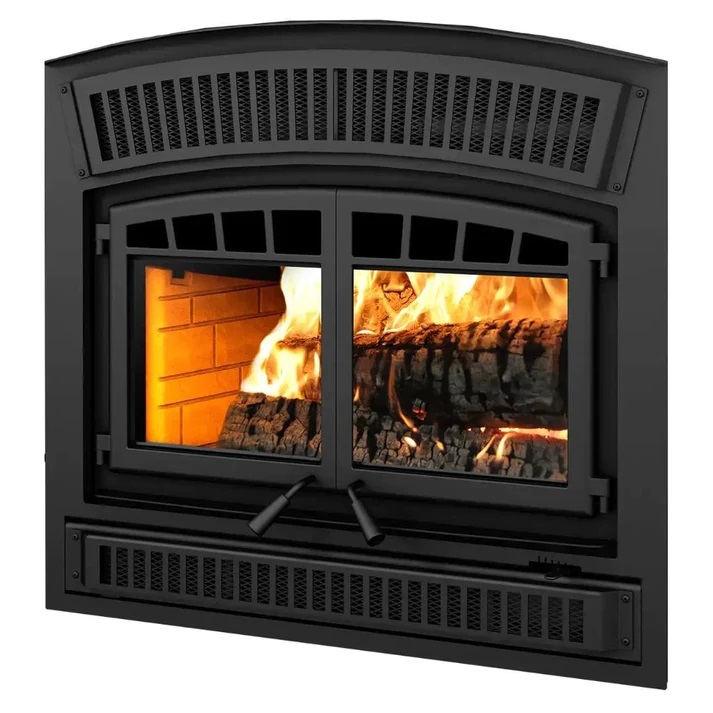

The Ventis 45" HE350 Zero Clearance High-Efficiency Wood Fireplace is not only an attractive addition to any living space, but it is also a high-performance heating device. With the capability to burn up to 10 hours and hold up to 60 pounds of hardwood, this fireplace provides ample warmth and comfort. Its spacious firebox can hold up to 25 inches of a log, making it a convenient choice for longer burning sessions.
One of the unique features of the Ventis HE350 is its automatic air intake mechanism. This mechanism allows the fire to quickly reach the ideal temperature, and then switch to a slower burn mode, ensuring that the fire remains hot and steady throughout its use.
In addition to its functionality, the Ventis HE350 is also a visually stunning centerpiece for any room. The fireplace's two enormous double glass doors provide an unparalleled viewing area, making the dancing flames and glowing embers the focal point of the space. With its combination of beauty and efficiency, the Ventis HE350 is sure to enhance any home.
- Designed mainly for heating large spaces
- Patented design of the intelligent air control mechanism
- Luxurious effect created by an eye-catching fireplace
- Large glass surface
- EPA 2020 certified
- Non-catalytic combustion technology
- Installation authorized on the Island of Montreal
- Firestop made of high density insulation board
- 176 CFM blower included
- 8" Ventis stainless steel anchor plate included

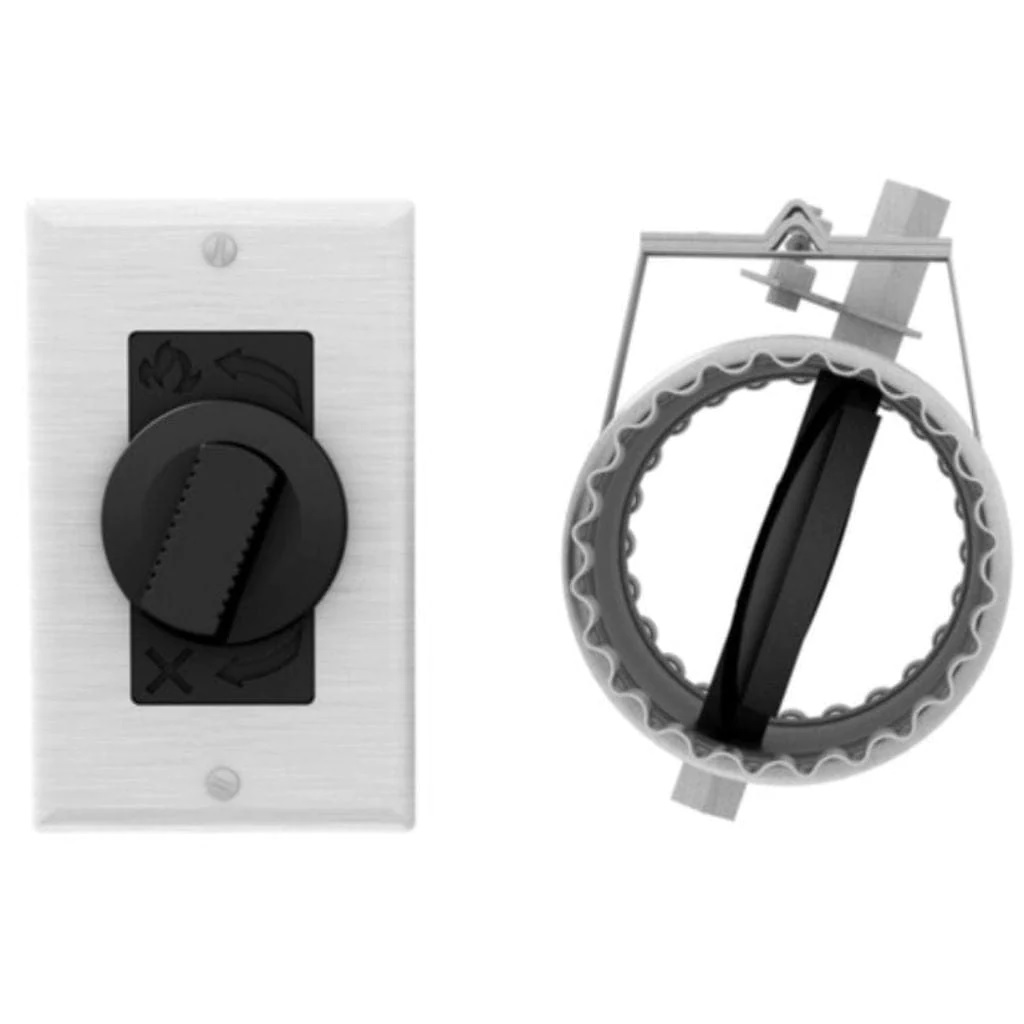

- Fresh air intake adapter included
Required Option:

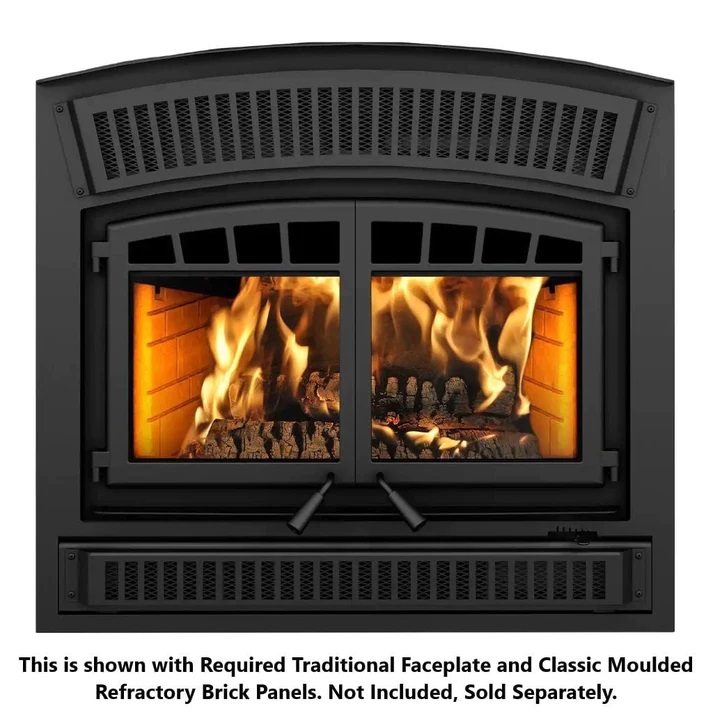

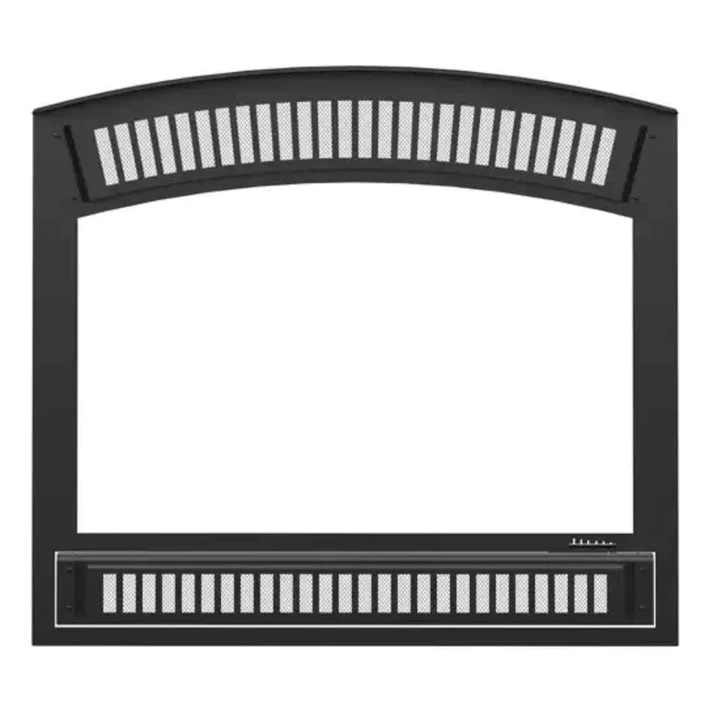

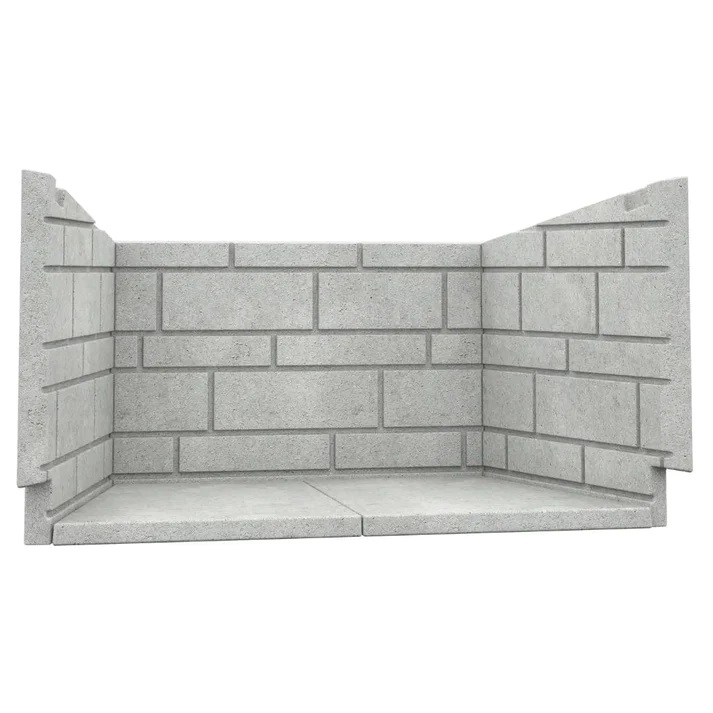

- (VBA1540) Traditional faceplate and (AC02360) Classic molded refractory brick panels required to complete this unit. Not Included, Sold Separately.
Product Specifications:
| Color: | Black |
| Fuel Type: | Dry cordwood (16" recommended) |
| Combustion Technology: | Non-catalytic |
| Recommended Heating Area: | 1,000 - 2,800 ft² |
| Overall Firebox Volume: | 4.28 ft³ |
| Maximum Burn Time: | 11 Hours |
| EPA Loading Volume: | 4.28 ft³ |
| Maximum Heat Output-Dry Cordwood: | 95,000 BTU/h |
| Minimum Overall Heat Output Rate: | 16,900 BTU/h (5.0 kW) |
| Maximum Overall Heat Output Rate: | 43,000 BTU/h (12.6 kW) |
| Average Efficiency-Dry Cordwood (HHV): | 64 % |
| Average Efficiency-Dry Cordwood (LHV): | 69 % |
| Optimum Efficiency: | 70 % |
| Optimum Heat Transfer Efficiency: | 69 % |
| Average Particulate Emission Rate: | 1.6 g/h |
| Average CO: | 159.0 g/h |
| Maximum Log Length: | 25" |
| Recommended Log Length: | 16" |
| Log Positioning: | Over width |
| Chimney Diameter (Inner): | 8" |
| Door Opening Dimensions (W x H): | 33" x 12 3/4" |
| Firebox Dimensionis (W x D) Behind Andiron: | 25 3/8" x 17 7/8" |
| Minimum Chimney Height (From Base of Fireplace): | 15' |
| Glass Viewing Area (W x H): | 29 3/4" x 13 1/2" |
| Glass Type: | Ceramic glass |
| Door Type: | Double, glass with cast iron frame |
Downloads:
The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.
Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.
Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.
This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.
All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.
| Warranty Application |
| Description | Parts | Labour |
| Combustion chamber (welds only) and cast iron door frame. | Lifetime | 3 Years |
| Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate. | Lifetime | S.O. |
| Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports. | 7 Years | N/A |
| Glass retainers, handle assembly, and air control mechanism. | 5 Years | 3 Years |
| Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle. | 5 Years | N/A |
| Standard blower, heat sensors, switches, rheostat, wiring, and other controls. | 2 Years | 1 Years |
| Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options. | 1 Years | N/A |
| Firebricks. | N/A | N/A |
| All parts replaced under the warranty. | 90 Days | N/A |
Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
