Grand Canyon Quaking Aspen with See-Through Stainless Steel Burner

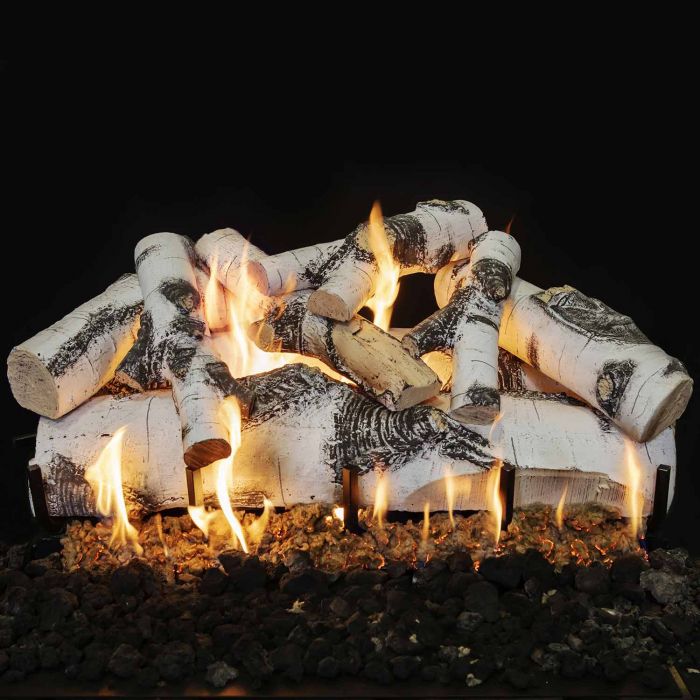

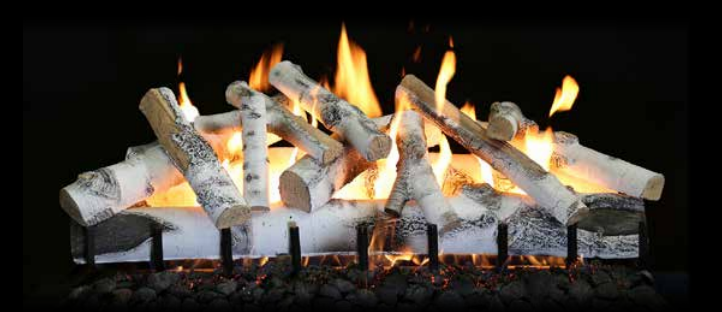

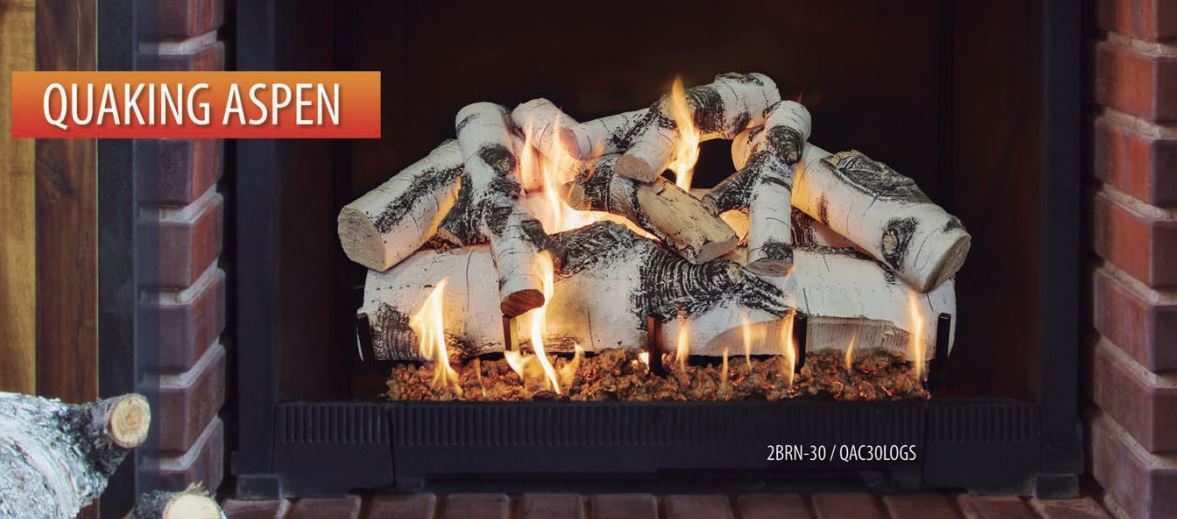

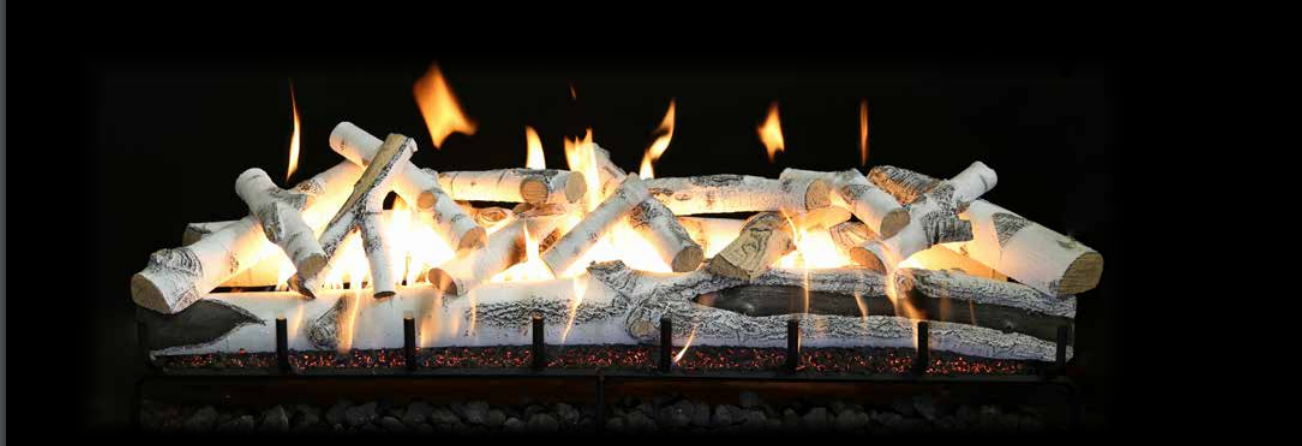

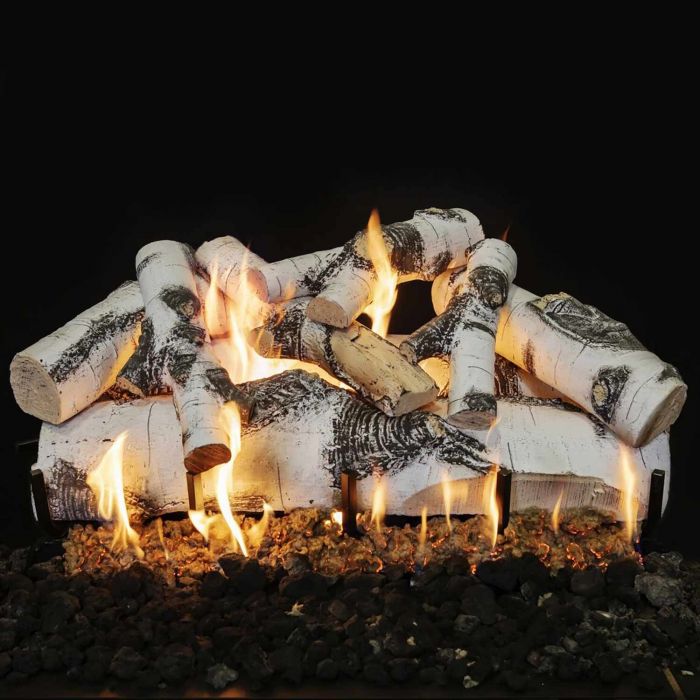

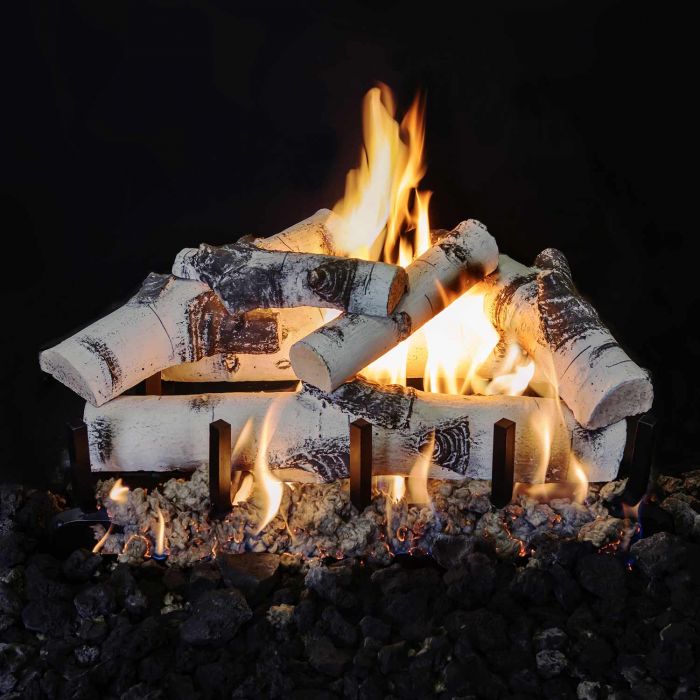

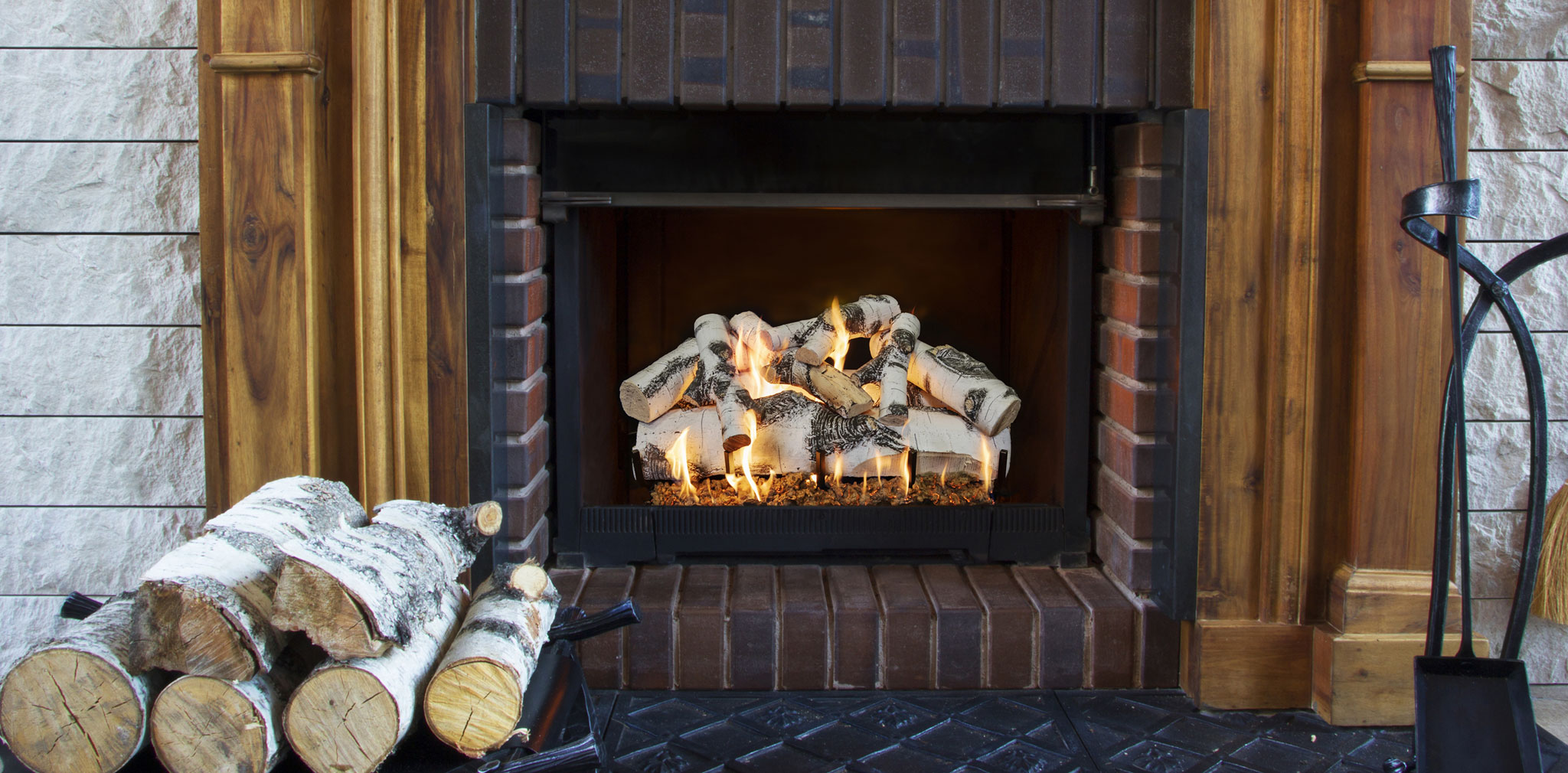

The Grand Canyon Quaking Aspen Log Set is designed to bring the natural beauty of quaking aspen trees to your outdoor fireplace. Each log is carefully crafted to replicate the light bark and distinct textures of real aspen wood, giving your fireplace an authentic, rustic look. Whether the fire is burning or not, the realistic detail of these logs adds a touch of nature to your outdoor space.

Paired with an outdoor 2 burner and valve system, this log set delivers beauty and performance. The dual burners create a realistic flame pattern, with fire flickering through and around the logs, making it look like a true wood-burning fire. The valve system allows for easy adjustment of the flame height and heat output, giving you full control to set the right mood, whether you want a soft, subtle flame or a more robust fire. Designed for durability and outdoor use, this combination of the Quaking Aspen Log Set and 2 burner system ensures your fireplace looks great and operates efficiently in any outdoor setting.

Please Note: Vented gas fireplace logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

Burners:

2-Burner See-Though Stainless Steel: Perfect for outdoor use, offering a powerful dual burner setup. It features a main rear burner and a dual-action front ember burner, delivering an even flame and radiant heat. Built with 100% stainless steel, it's durable and meets ANSI standards. It’s easy to install with ½” piping, and the concealed pilot ensures a clean look. The burner is convertible from natural gas (NG) to liquid propane (LP) and includes lava rock, embers, and fittings. Available in various sizes (18”-60”), it’s designed for longevity with a lifetime warranty.

3 Burner See-Through Stainless Steel: The 3-Burner See-Through Stainless Steel system is ideal for outdoor use, offering an even flame with three burners: a rear burner for even heat distribution, a dual-action middle burner, and a dedicated ember glow burner. Made from 100% stainless steel and built to ANSI standards, it ensures durability and long-lasting performance. It includes lava rock, embers, and connection fittings for a complete setup. The burner is convertible from natural gas (NG) to liquid propane (LP) and features concealed pilot mounting brackets for a sleek appearance. Available in sizes from 18” to 42”, it has a lifetime warranty for peace of mind.

Valves and Control:

Safety Pilot: The Safety Pilot is a standing pilot system designed for reliable safety. With a low-profile design, it’s simple to install and operate manually. It works with both Natural Gas (NG) and Liquid Propane (LP), handling up to 90,000 BTUs and a maximum inlet pressure of 14” W.C. It’s built to withstand temperatures up to 300°F.

Millivolt Quick Mount Kit: The Millivolt Quick Mount Kit features a low-profile design and a standing pilot system. It provides simple on/off control and is compatible with both Natural Gas (NG) and Liquid Propane (LP). It supports a maximum inlet pressure of 14” W.C., with BTU ratings of 70,000 for NG and 110,000 for LP. The valve is rated for temperatures up to 175°F.

Modulation Millivolt Kit: The Modulating Millivolt Kit features a standing pilot system with variable flame height control. Its low-profile design ensures easy installation. It operates with both Natural Gas (NG) and Liquid Propane (LP), managing up to 120,000 BTUs and a maximum inlet pressure of 14” W.C. The valve is rated for temperatures up to 225°F, providing flexible and efficient flame adjustment.

Remote Control: The GCRK system offers basic on/off operations with a convenient RF transmitter and receiver. It features an LCD temperature display for easy monitoring and comes with batteries and a wall plate for quick installation.

Features:

• Available in eight different sizes including: 18 Inch | 21 Inch | 24 Inch | 30 Inch | 36 Inch | 42 Inch | 48 Inch | 60 Inch
• Available as a natural gas or propane burning log set for indoor vented fireboxes only
• Beautifully handcrafted and hand-painted
• Made from refractory ceramic with a lifetime warranty on the logs
• To ensure years of enjoyment, the materials are guaranteed to withstand high temperatures
• Burner distributes up to a MAX 87,000 BTUs with the larger sizes.
• Choice of several burner styles from where you can achieve the most realistic burn pattern
• Depending on your valve choice, many options are available to control your vented Grand Canyon gas log.
• Fittings, lave rock, embers, flex line, and damper clamp are all included for easy installation.

Specifications:

• Log Set Type: Vented See-Through
• Log Set Style: Quaking Aspen
• Fuel Type: Natural Gas or Propane
• Available Sizes: 18" | 24" | 30" | 36" | 42" | 48" | 60"
• Material: Refractory Ceramic
• Burner Type: 2-Burner or 3-Burner (Stainless Steel)
• Control Options: Remote Kit or Wall Switch
• Includes: Lava Rock, Fittings, Flex Line, Embers
• Certification: ANSI Z21.60-2012

Downloads:

• Grand Canyon Outdoor Products Catalog
• 2-Burner and 3-Burner ANSI Manual
• 2-Burner and 3-Burner See-Through Stainless Steel Installation and Operation Manual
• Millivolt Installation Manual
• Modulating Millivolt Installation and Operation Manual
• Safety Pilot Manual
• 2-Burner See-Through Specification
• 3-Burner See-Through Specification
• Quaking Aspen 18-Inch Log Placement
• Quaking Aspen 24-Inch Log Placement
• Quaking Aspen 30-Inch Log Placement
• Quaking Aspen 36-Inch Log Placement
• Quaking Aspen 42-Inch Log Placement
• Quaking Aspen 48-Inch Log Placement
• Quaking Aspen 60-Inch Log Placement
• Product Warranty
