Grand Canyon Arizona Weathered Oak Vented Jumbo Slim Log Set with Indoor Slimline Burner

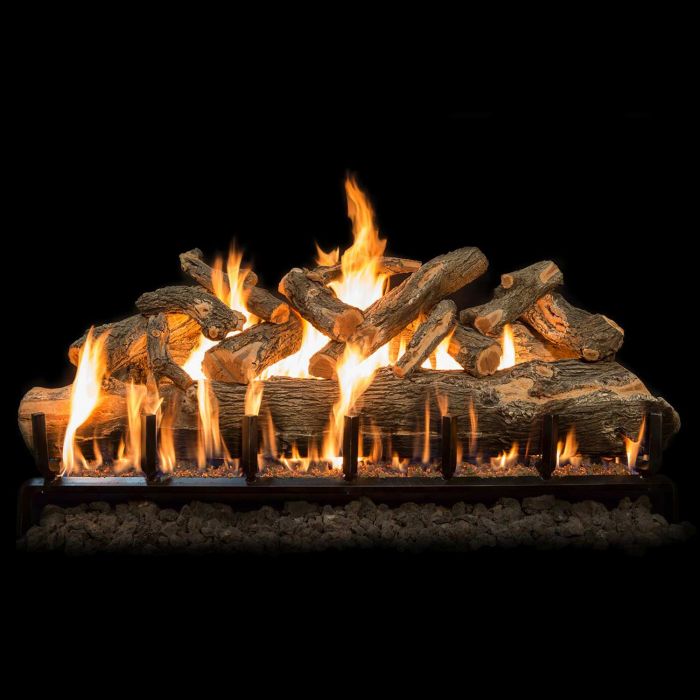

The Grand Canyon Arizona Weathered Oak Vented Jumbo Slim Log Set is designed for those who want the beauty and realism of large oak logs but need a slimmer profile to fit in a more compact fireplace or hearth. These logs feature the same natural, weathered oak look, with intricate textures and knots that capture the rugged beauty of real wood. The slim design makes this set perfect for fireplaces where space is limited, but you still want that bold, authentic log appearance. This set comes with the Jumbo Slimline Burner, which is engineered to fit perfectly with the slimmer logs while still delivering an impressive flame. It’s a vented system, so it’s meant for use in fireplaces with a chimney or flue, and it produces tall, lively flames that wrap around the logs, giving you that natural, wood-burning fire effect. The flames look vibrant and realistic, spreading across the log set in a way that enhances the overall warmth and ambiance of your space.

The included valve makes controlling the flame height easy, so you can customize the fire to your preference. Whether you want a gentle, low flame or a larger, roaring fire, you can adjust it with just a turn. This combination of the slimline log set and burner is ideal for smaller fireplaces that need a space-saving solution without sacrificing the authentic look of a full, high-quality fire.

Please Note: Vented gas fireplace logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.

Burners:

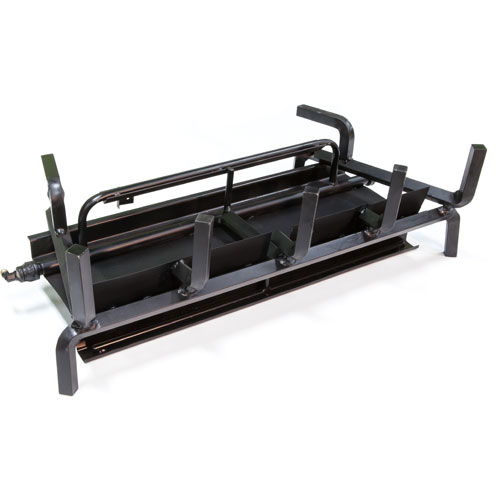

Jumbo Slimline Burner:  offers versatile sizing options from 24” to 120”, with depths of 21” for Jumbo and 18” for Slimline models. Featuring an even distribution rear burner, dual-action middle burner, and dedicated ember glow burner, it ensures optimal heat and visual appeal. Built with a durable stainless steel chassis, it is ANSI-certified for indoor use and has a lifetime warranty. The burner includes 3/4” piping, 1” bar stock, and lava rock media. It is convertible from natural gas to LP and includes concealed pilot mounting brackets for a sleek, seamless look.

Valves and Control:

Safety Pilot: The Safety Pilot is a standing pilot system designed for reliable safety. With a low-profile design, it’s simple to install and operate manually. It works with both Natural Gas (NG) and Liquid Propane (LP), handling up to 90,000 BTUs and a maximum inlet pressure of 14” W.C. It’s built to withstand temperatures up to 300°F.

High Capacity Safety Pilot: The High Output Safety Pilot is a standing pilot system designed for high-efficiency performance. It supports both Natural Gas (NG) and Liquid Propane (LP), managing up to 124,000 BTUs and 200,000 BTUs, respectively. It features a maximum inlet pressure of 14” W.C. and operates manually for on/off control. With a temperature rating of 250°F, it ensures reliable and safe operation.

Millivolt Quick Mount Kit: The Millivolt Quick Mount Kit features a low-profile design and a standing pilot system. It provides simple on/off control and is compatible with both Natural Gas (NG) and Liquid Propane (LP). It supports a maximum inlet pressure of 14” W.C., with BTU ratings of 70,000 for NG and 110,000 for LP. The valve is rated for temperatures up to 175°F.

Modulation Millivolt Kit: The Modulating Millivolt Kit features a standing pilot system with variable flame height control. Its low-profile design ensures easy installation. It operates with both Natural Gas (NG) and Liquid Propane (LP), managing up to 120,000 BTUs and a maximum inlet pressure of 14” W.C. The valve is rated for temperatures up to 225°F, providing flexible and efficient flame adjustment.

High Capacity Millivolt: The High Capacity Millivolt system is designed for high-volume output with a standing pilot system. It offers on/off control and supports both Natural Gas (NG) and Liquid Propane (LP). It can handle up to 370,000 BTUs for NG and 560,000 BTUs for LP, with a maximum inlet pressure of 14” W.C. The valve is rated for temperatures up to 175°F, providing robust and efficient performance.

Battery Electronic Ignition: The Battery Electronic Ignition system uses a non-standing pilot with 2-D cell battery-powered electronic ignition. It supports on/off operations and works with both Natural Gas (NG) and Liquid Propane (LP). The system handles a maximum inlet pressure of 14” W.C., with BTU ratings of 88,000 for NG and 110,000 for LP. The valve is rated for temperatures up to 175°F.

Electronic Ignition System: The Electronic Ignition System features a non-standing pilot with 24V electronic ignition. It includes an in-wall design and comes with a 6’-10’ pilot assembly. Designed for on/off operations, it supports both Natural Gas (NG) and Liquid Propane (LP). The system handles a maximum inlet pressure of 14” W.C., with BTU ratings of 200,000 for NG and 110,000 for LP. The valve is rated for temperatures up to 175°F.

Remote Control: The GCRK system offers basic on/off operations with a convenient RF transmitter and receiver. It features an LCD temperature display for easy monitoring and comes complete with batteries and a wall plate for quick installation.

Features:

• These gas logs are available in sizes of 24", 30", 36", 42", 48", and 60", providing flexibility to fit various fireplace enclosures.
• Built with heavy-duty refractory cement and reinforced with steel fiber, these logs offer exceptional durability and longevity.
• Each log is hand-painted with meticulous attention to detail, ensuring a highly realistic and lifelike appearance.
• This unit is designed for use in vented fireplace enclosures only and requires a damper clamp for proper operation.
• The refractory construction enhances fuel efficiency, helping to lower operational costs.
• This set includes the gas logs only; the burner system is not included and must be purchased separately.
• These gas logs are versatile enough for both indoor and outdoor use.
• They are compatible with the Jumbo Slimline Burner and the Jumbo Slimline Stainless Steel Burner.

Specifications:

• Log Set Style: Arizona Weathered Oak Jumbo Slimline
• Fuel Type: Natural Gas or Propane
• Available Sizes: 24", 30", 36", 42", 48", 60"
• Burner Type: Jumbo Slimline Burner, Stainless Steel Chassis
• Controls: Remote Kit or Wall Switch
• Certification: ANSI Z21.60-2012, CSA2.26-2012

Downloads:

• Grand Canyon Indoor Products Catalog
• Jumbo Slimline Burner Installation and Operation Manual
• Electronic Ignition System Manual
• Millivolt Installation Manual
• Modulating Millivolt Installation and Operation Manual
• Safety Pilot Manual
• High Capacity Millivolt Manual
• Jumbo Slimline Burner Specification
• Arizona Weathered Oak  Jumbo Slimline 24-Inch Log Position
• Arizona Weathered Oak  Jumbo Slimline 30-Inch Log Position
• Arizona Weathered Oak  Jumbo Slimline 36-Inch Log Position
• Arizona Weathered Oak  Jumbo Slimline 42-Inch Log Position
• Arizona Weathered Oak  Jumbo Slimline 48-Inch Log Position
• Arizona Weathered Oak  Jumbo Slimline 60-Inch Log Position
• Product Warranty
