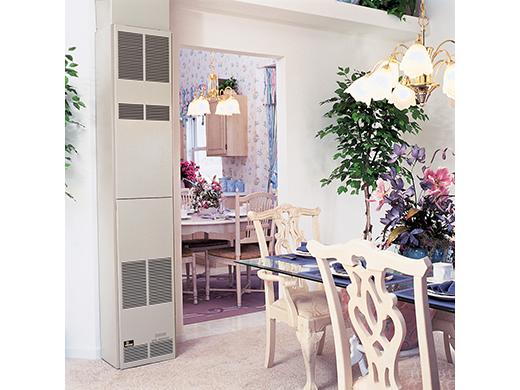

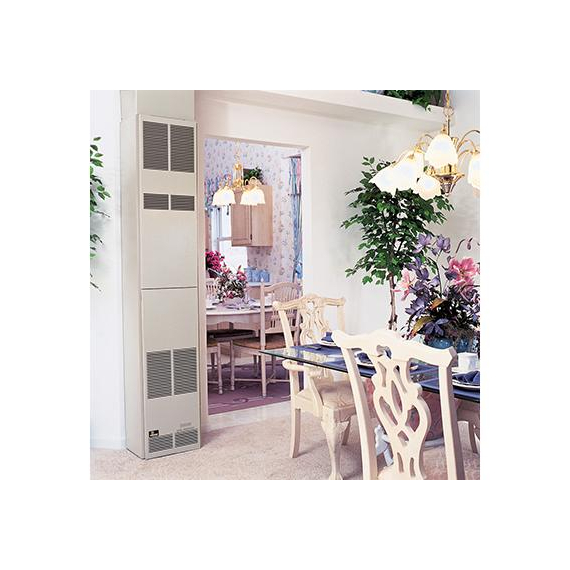

FAW55SPPX Natural Gas B-Vent Counterflow Wall Furnace
Winter is fast approaching, looking for good quality heaters? The FAW55SPPX wall furnace installs on an inside or outside wall. It can also be installed flush to the wall or recessed (up to 4 inches) into the wall. If you plan on recessing this unit into the wall, side outlets cannot be used. The optional side (SOK-1, SOR-1) and rear (ROK-1) accessory outlets allow heat to disperse from the side of the rear of the furnace cabinet into adjacent rooms.
This system is installed as a direct vent system, up and out the roof, using a concentric pipe configuration. The outer pipe draws in fresh outside air, while the inner pipe exhausts the combustion gas or by-products out. It is meant for larger rooms to heat larger areas and uses a minimum amount of floor space. The heat comes out at floor level so you get even distribution of warmth throughout the room.
The FAW-55-SPPX has a standing pilot. A thermostat is not included with this furnace. This is a 24V furnace and can be used with either a Wireless Remote Wall Thermostat (TRW) or a Wall Thermostat Millivolt Reed Switch (TMV) [each sold separately].
- A licensed gas technician is required for installation of this product. Please check your local regulations as some areas may require inspection after the installation of gas products. It is highly recommended that you use your own gas technician or gas provider for any repairs.
Product Specifications:
- Model: FAW55SPPXNAT
- Input BTU/HR (KW/H): 55,000
- Fuel Type: Natural Gas
- Type of Venting: B-Vent
- Ignition Type: Standing Pilot
- Dimensions (inc) W x D x H: 16” x 11 5/16” x 82 3/8”
- Weight (lbs.): 135
- WARRANTY: 10-year limited warranty on the combustion chamber. All other parts carry a one-year limited warranty.
- Safety Controls: Pilot and Main Burners Include Automatic Shut-of
Venting required:
- Size of Flue Collar: 4" Oval
- Size of Flue with Oval to Round Adapter: 4" Round
Minimum Vent Opening in Ceiling:
- Oval Type "B" Flue Pipe: 4-1/2" x 9-1/4"
- Round Type "B" Flue Pipe: 6 1/2" diameter
Product Manual:
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
