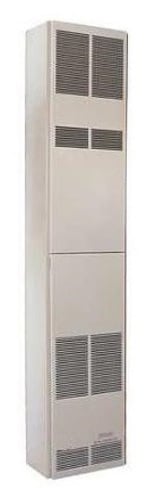

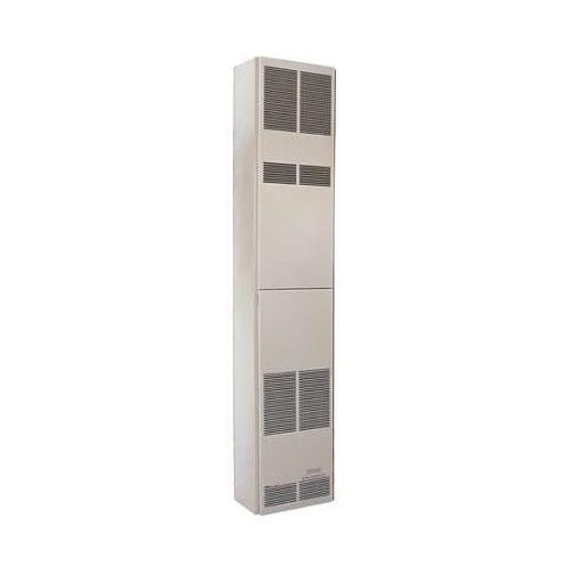

FAW55SPPX Liquid Propane B-Vent Counterflow Wall Furnace

Starting at:
Short description:
  • Total comfort for a fraction of the cost of electric heat
  • The sealed combustion chamber maintains indoor air quality
  • Peace-of-mind safety features built into each furnace
  • Front panels remove easily for cleaning and servicing
  • Counterflow blower circulates warm air at floor level
  • Multi-Room heating capacity with optional outlet kits

Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 1 Week Question Why Buy From Us?


Winter is fast approaching, looking for good quality heaters? The FAW55SPPX wall furnace installs on an inside or outside wall. It can also be installed flush to the wall or recessed (up to 4 inches) into the wall. If you plan on recessing this unit into the wall, side outlets cannot be used. The optional side (SOK-1, SOR-1) and rear (ROK-1) accessory outlets allow heat to disperse from the side of the rear of the furnace cabinet into adjacent rooms.

This system is installed as a direct vent system, up and out the roof, using a concentric pipe configuration. The outer pipe draws in fresh outside air, while the inner pipe exhausts the combustion gas or by-products out. It is meant for larger rooms to heat larger areas and uses a minimum amount of floor space. The heat comes out at floor level so you get even distribution of warmth throughout the room.

The FAW-55-SPPX has a standing pilot. A thermostat is not included with this furnace. This is a 24V furnace and can be used with either a Wireless Remote Wall Thermostat (TRW) or a Wall Thermostat Millivolt Reed Switch (TMV) [each sold separately].

  • A licensed gas technician is required for installation of this product. Please check your local regulations as some areas may require inspection after the installation of gas products. It is highly recommended that you use your own gas technician or gas provider for any repairs.


Specifications Product Specifications:

  • Model: FAW55SPPXLP
  • Input BTU/HR (KW/H): 55,000
  • Fuel Type: Liquid Propane
  • Type of Venting: B-Vent
  • Ignition Type: Standing Pilot
  • Dimensions (inc) W x D x H: 16” x 11 5/16” x 82 3/8”
  • Weight (lbs.): 135
  • WARRANTY: 10-year limited warranty on the combustion chamber. All other parts carry a one-year limited warranty.
  • Safety Controls: Pilot and Main Burners Include Automatic Shut-off

Venting required:

  • Size of Flue Collar: 4" Oval
  • Size of Flue with Oval to Round Adapter: 4" Round

Minimum Vent Opening in Ceiling:

  • Oval Type "B" Flue Pipe: 4-1/2" x 9-1/4"
  • Round Type "B" Flue Pipe: 6 1/2" diameter

Empire Comfort Systems Inc. warranties this space heating product to be free from defects at the time of purchase and for the periods specified below. Space heating products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. All warranty repairs must be accomplished by a qualified gas appliance technician.


Limited Lifetime Parts Warranty with a Five-Year Limited Labor Warranty – Combustion Chamber and Heat Exchanger

If the combustion chamber or heat exchanger (see parts list) fails because of defective workmanship or material, Empire will repair or replace at Empire’s option. Within five years from the date of purchase, Empire will pay reasonable labor to have the defective part repaired or replaced at Empire’s option.

Limited Five-Year Parts & Labor Warranty – All Other Components (Except Thermostats)

Should any part fail because of defective workmanship or material within five years from the date of purchase, Empire will repair or replace at Empire’s option. Within five years from the date of purchase, Empire will pay reasonable labor to have that defect repaired at Empire’s option.

Limited One-Year Parts Warranty – Remote Controls, Thermostats, Accessories, and Parts

Should any remote control, thermostat, accessory, or other part fail because of defective workmanship within one year from the date of purchase, Empire will repair or replace at Empire’s option.

Duties of the Owner

The appliance must be installed by a qualified installer and operated in accordance with the instructions furnished with the appliance. A bill of sale, cancelled check, or payment record should be kept to verify purchase date and establish warranty period. Ready access to the appliance for service

What Is Not Covered

Damages that might result from the use, misuse, or improper installation of this appliance. Travel, diagnostic costs and freight charges on warranted parts to and from the factory. Claims that do not involve defective workmanship or materials. Unauthorized service or parts replacements. Removal and reinstallation cost. Inoperable due to improper or lack of maintenance.

How To Get Service

To make a claim under this warranty, please have your receipt available and contact your installing dealer. Provide the dealer with the model number, serial number, type of gas, and purchase verification. The installing dealer is responsible for providing service and will contact the factory to initiate any warranted parts replacements. Empire will make replacement parts available at the factory. Shipping expenses are not covered. If, after contacting your Empire dealer, service received has not been satisfactory, contact: Consumer Relations Department, Empire Comfort Systems Inc., PO Box 529, Belleville, Illinois 62222, or send an e-mail to [email protected] with “Consumer Relations” in the subject line.

Your Rights Under State Law

This warranty gives your specific legal rights, and you may also have other rights, which vary from state to state.
