DuraVent 8" DuraPlus Oil Furnace Kit
A complete solution, the DuraVent 8" DuraPlus Oil Furnace Kit makes it easier to install a chimney system that is specifically made for oil furnace applications effectively and safely. This kit contains several necessary parts to guarantee your 8" DuraPlus system is connected securely and by the code when used in an oil furnace.

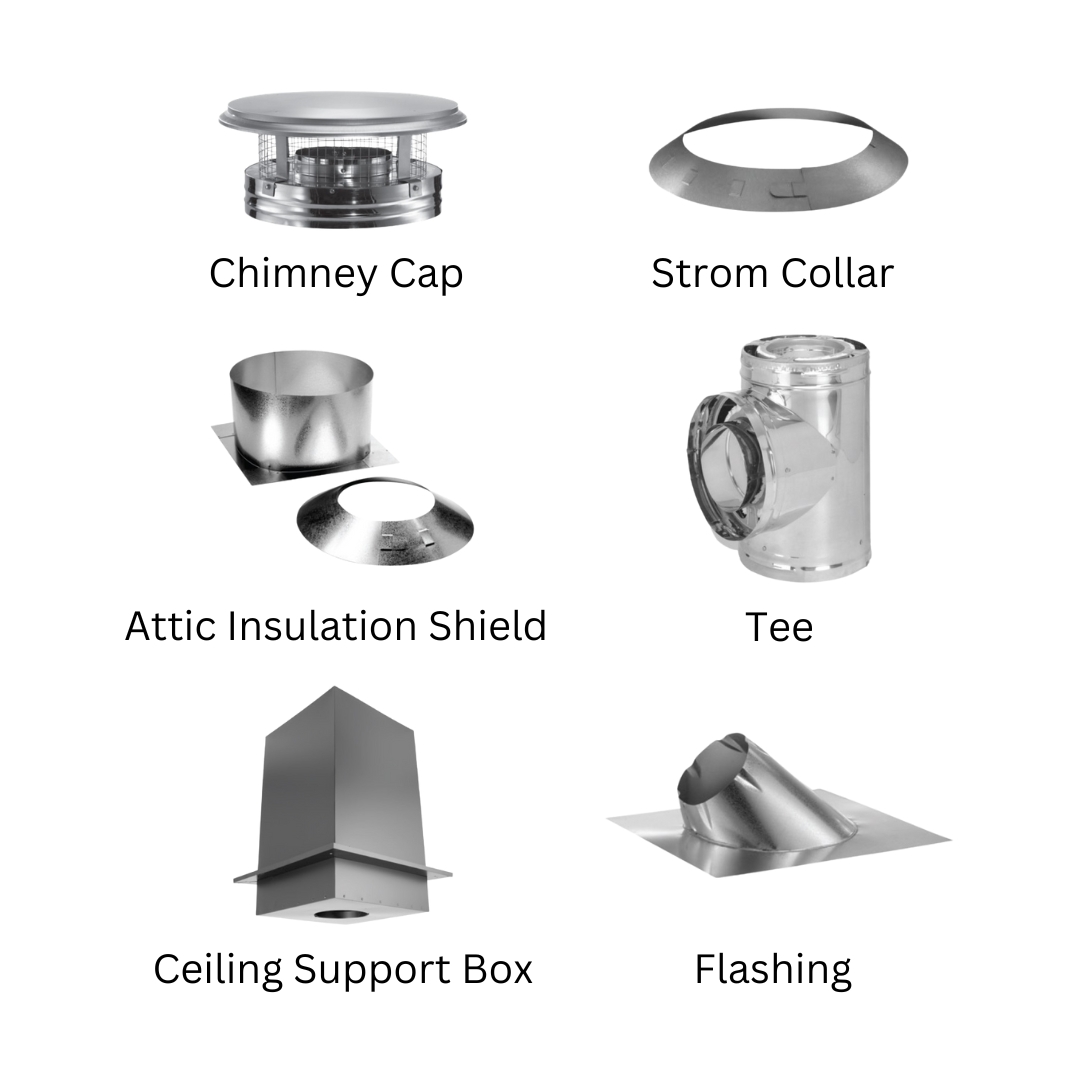

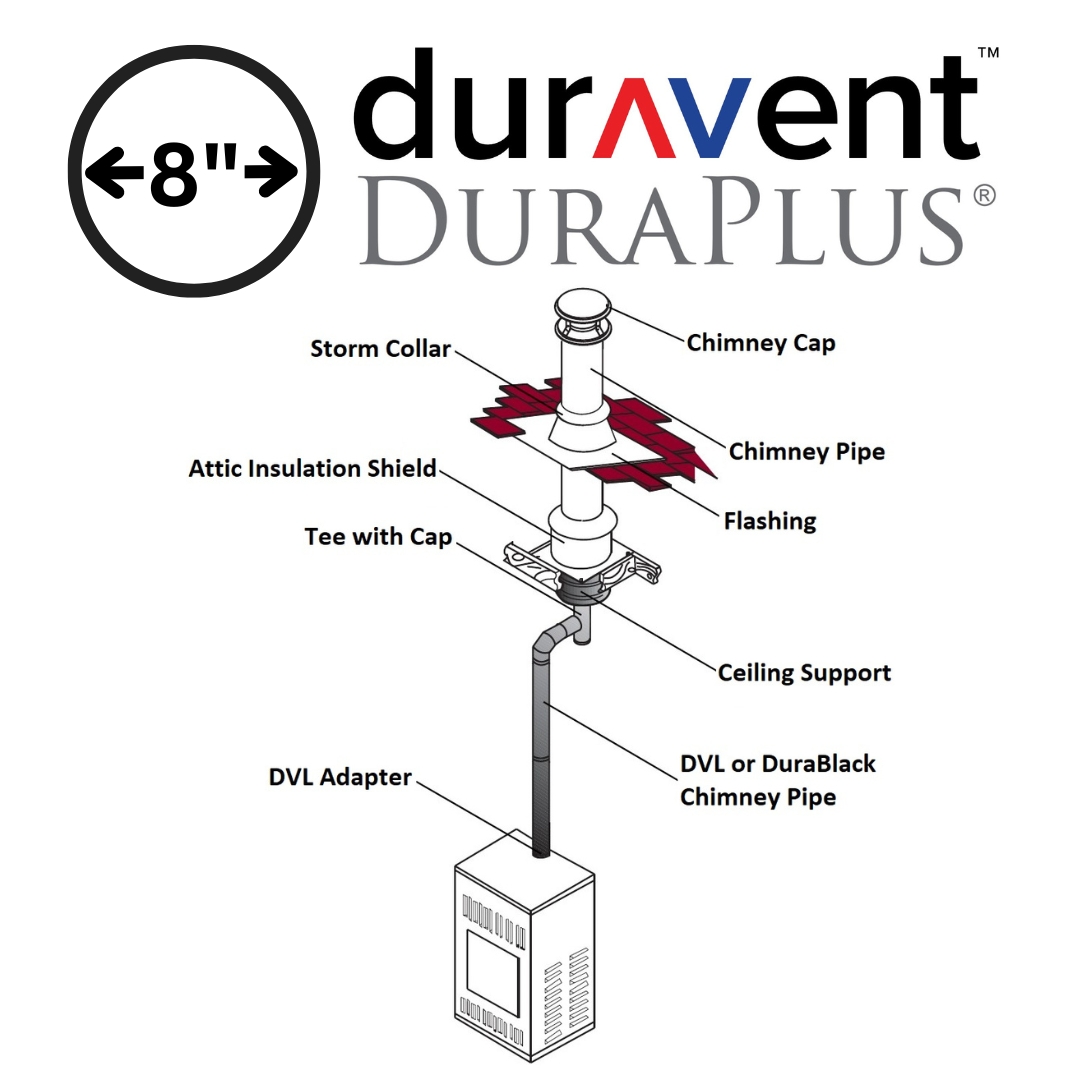

Essential parts that come with this kit are:

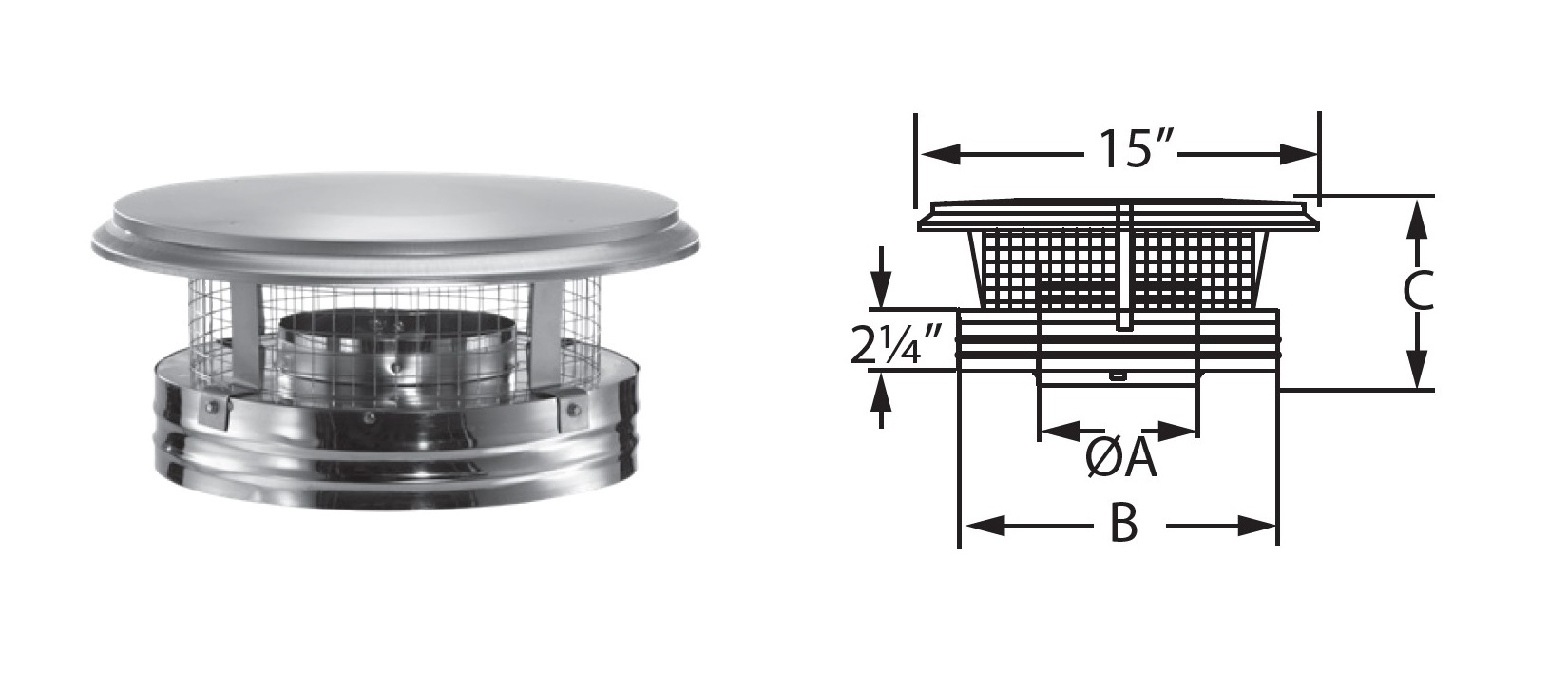

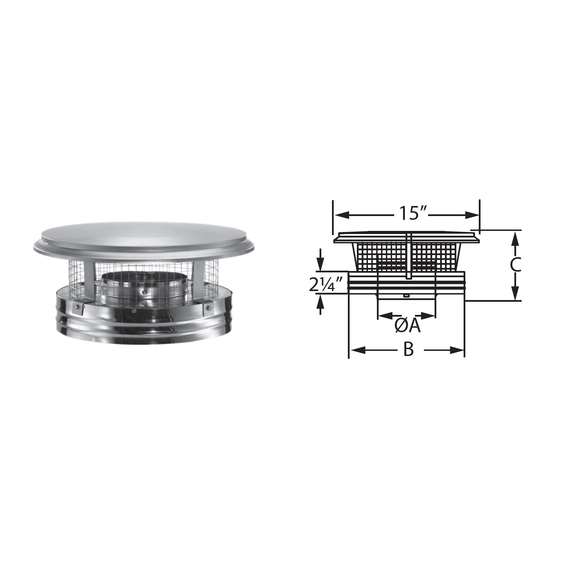

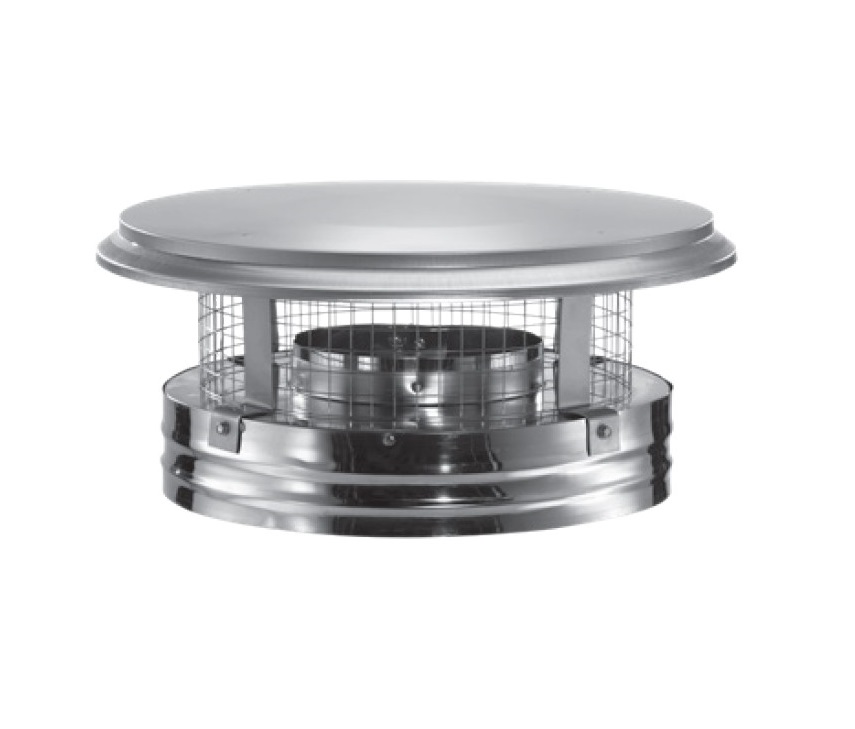

1. 8" DuraPlus Chimney Cap: The chimney cap acts as a barrier to keep debris, weather, and other outside elements out of the chimney while allowing for sufficient ventilation.

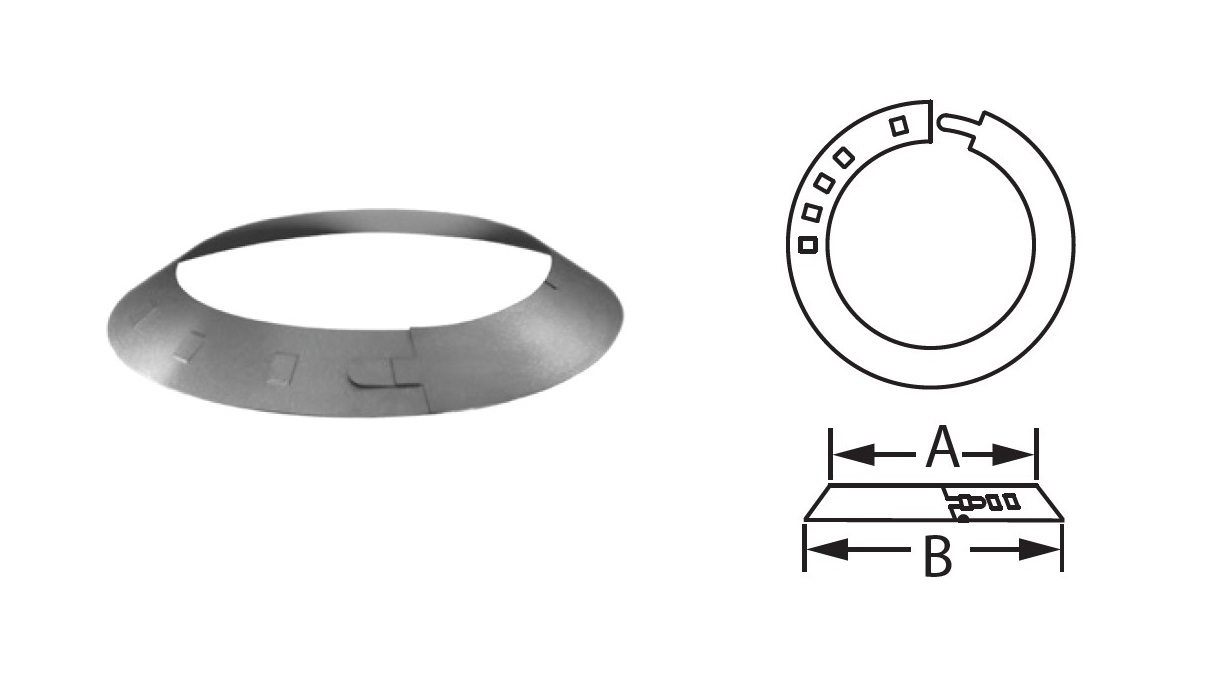

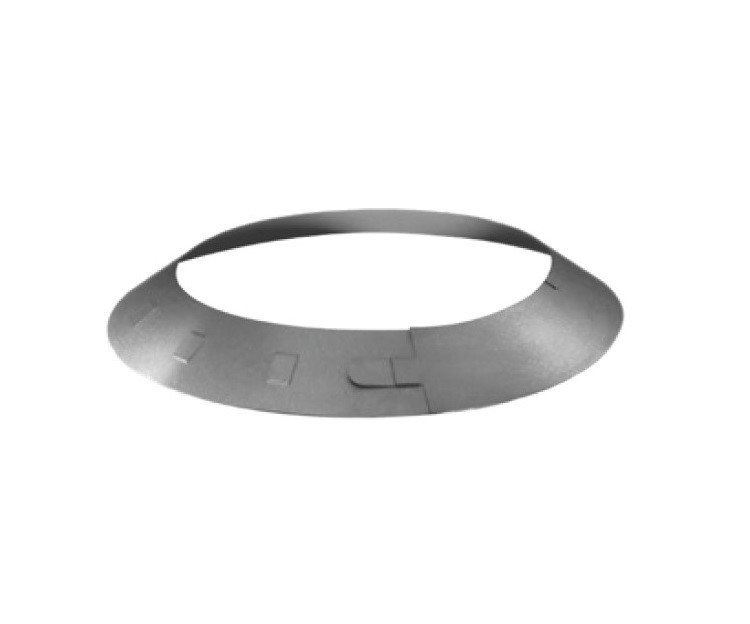

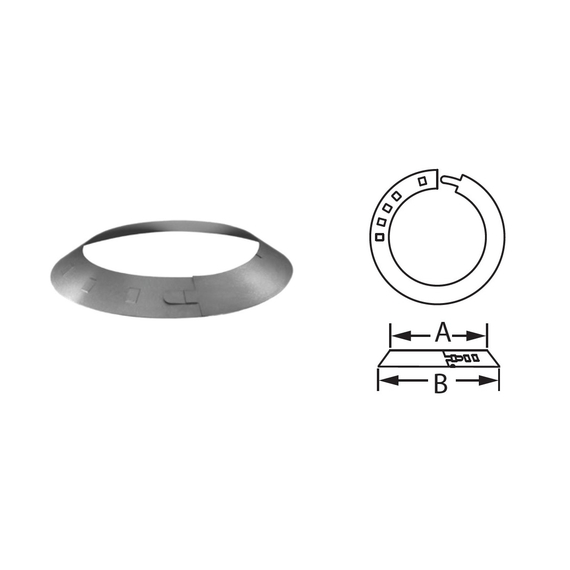

2. 8" DuraPlus Storm Collar: The storm collar strengthens the chimney's resistance to bad weather by creating a watertight seal around it and offering extra security.

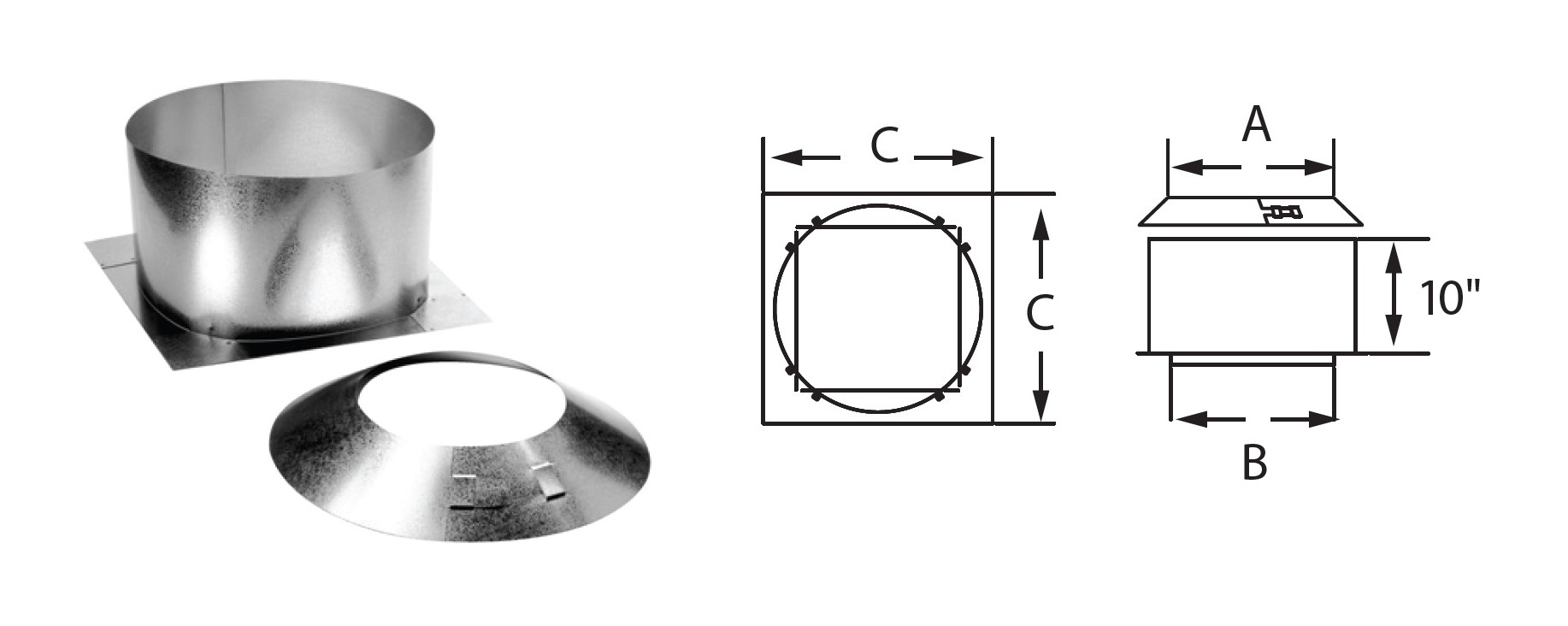

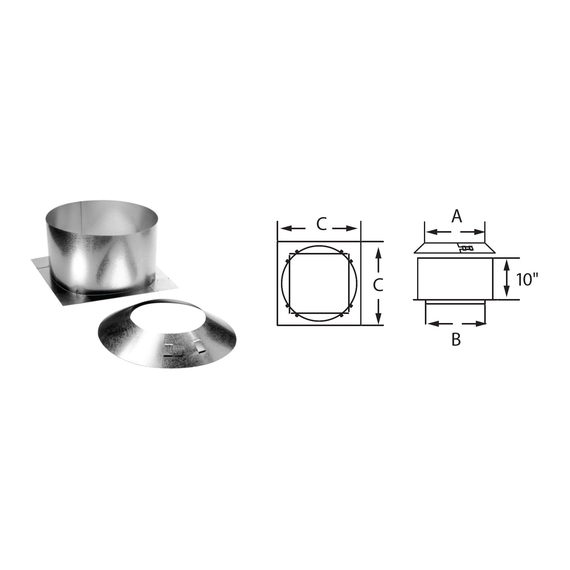

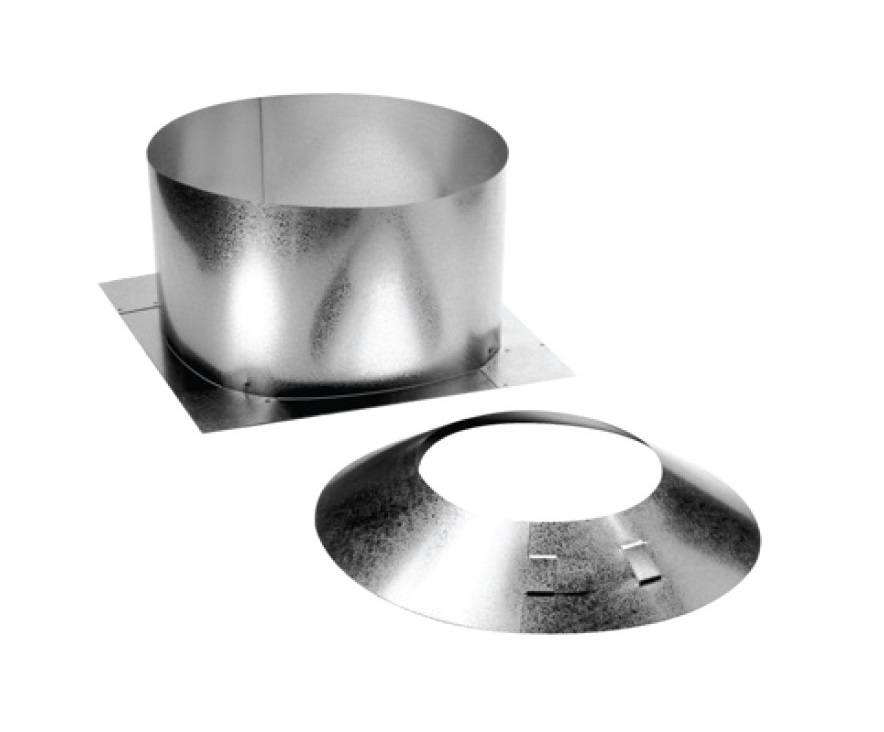

3. 8" DuraPlus Attic Insulation Shield: The attic insulation shield, specifically for oil furnace applications, prevents heat transfer to explosive objects in the attic, guaranteeing safety and adherence to insulation regulations.

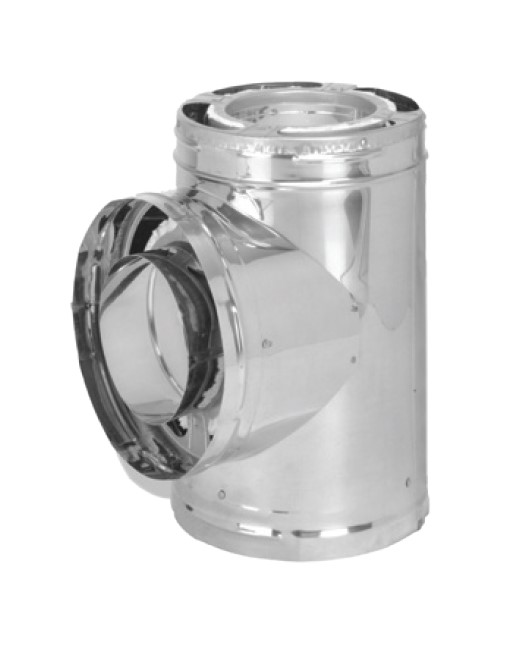

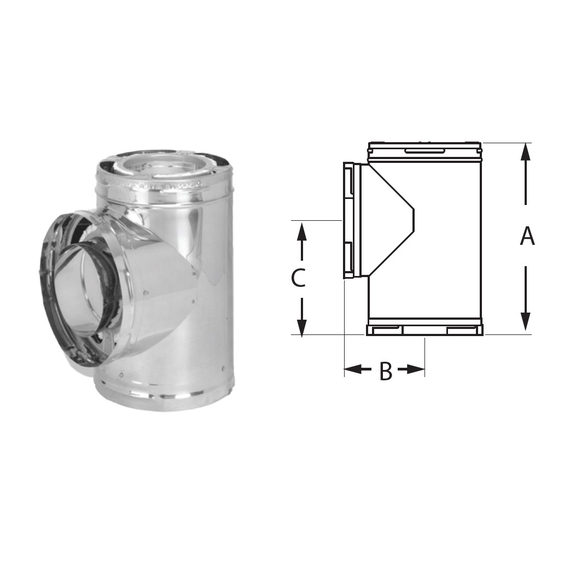

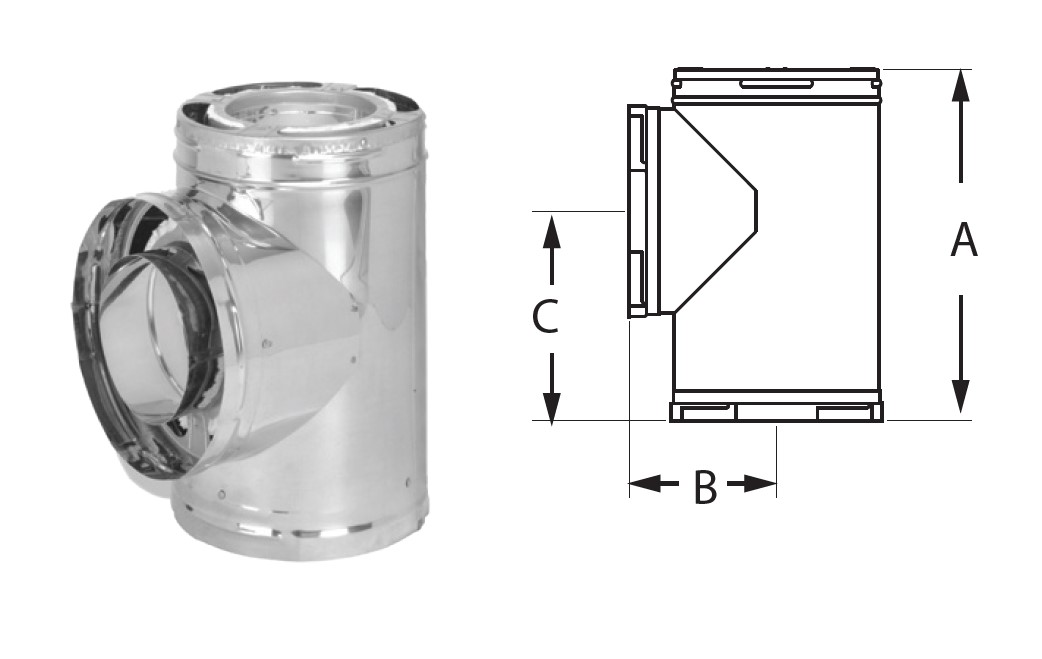

4. 8" DuraPlus Tee with Cap: For oil furnace installations, the tee with cap is an essential part since it facilitates the connection of the chimney to the furnace, permits appropriate venting, and offers simple access for maintenance.

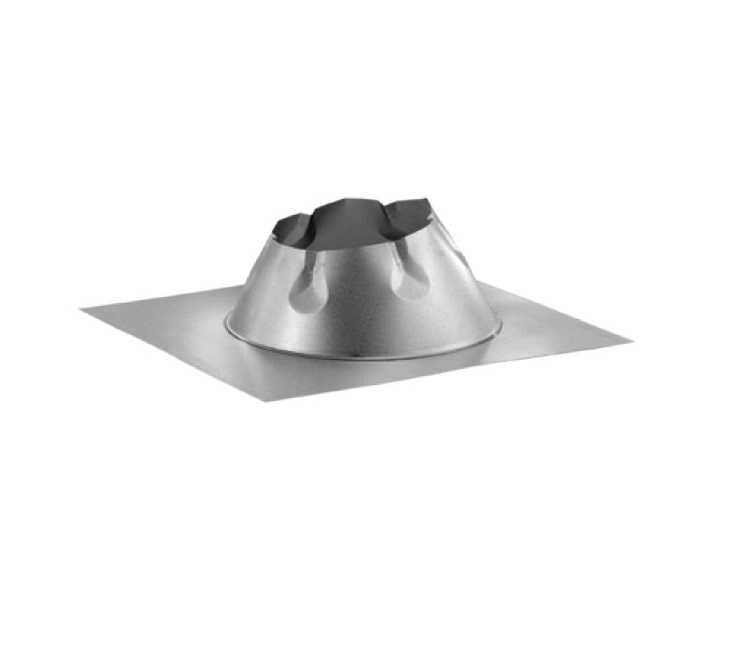

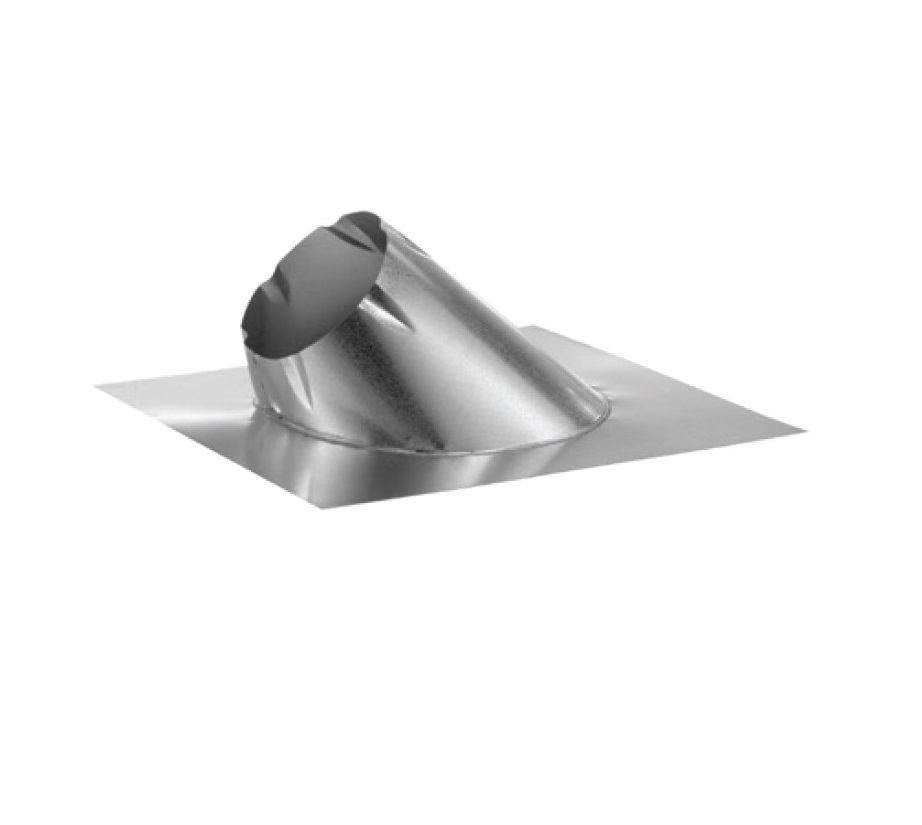

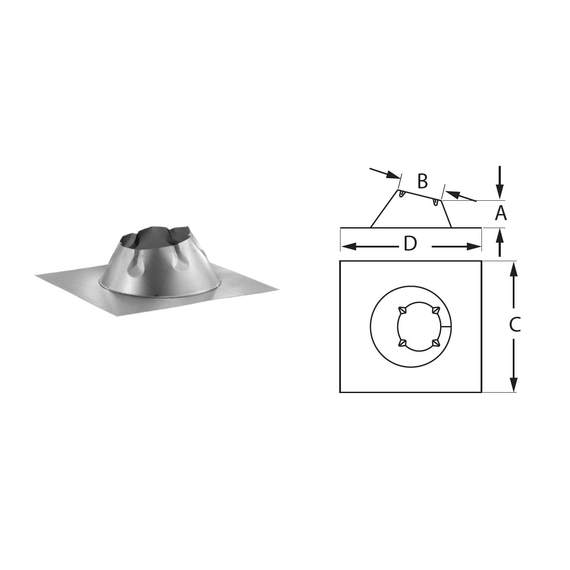

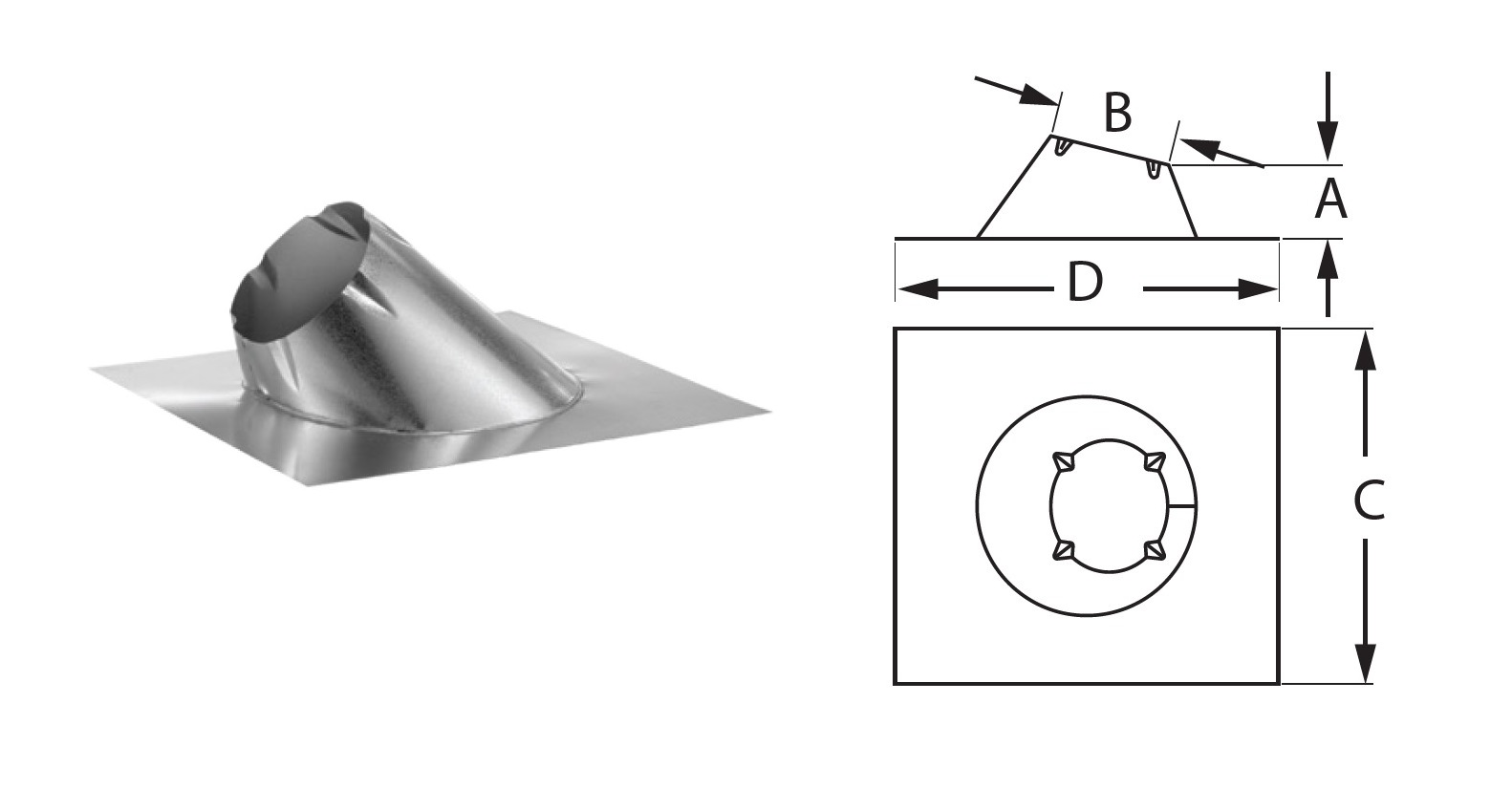

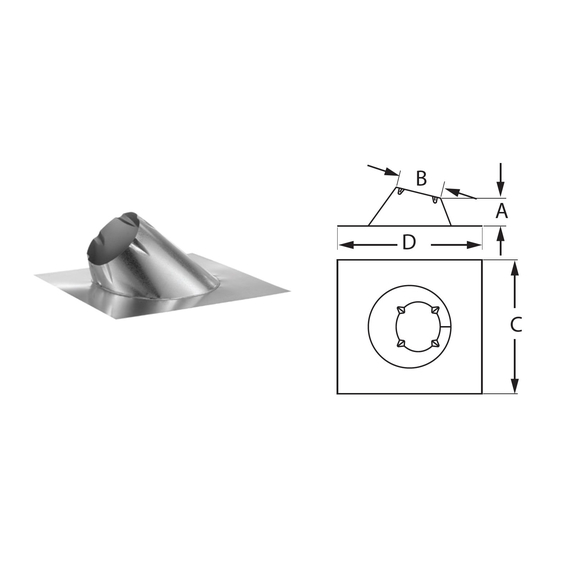

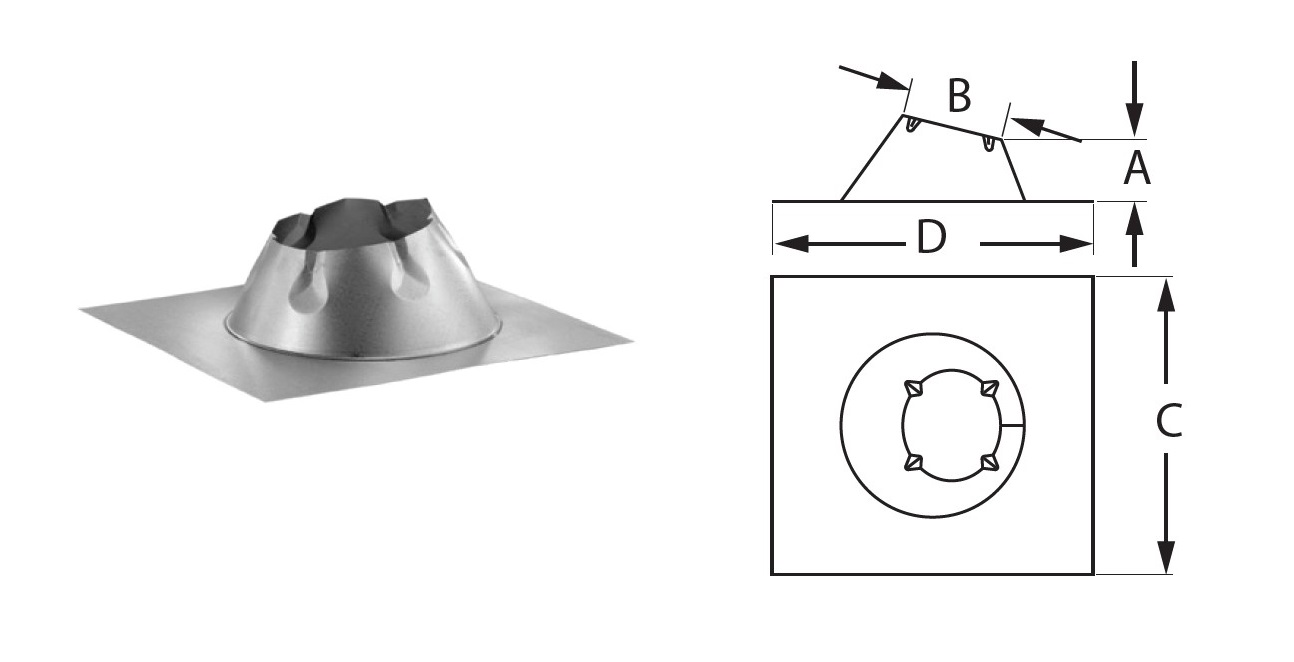

5. 8" DuraPlus Flashing: The flashing acts as a weatherproof barrier to stop water from penetrating the area around the chimney, enhancing overall waterproofing and maintaining the structural integrity of the chimney system.

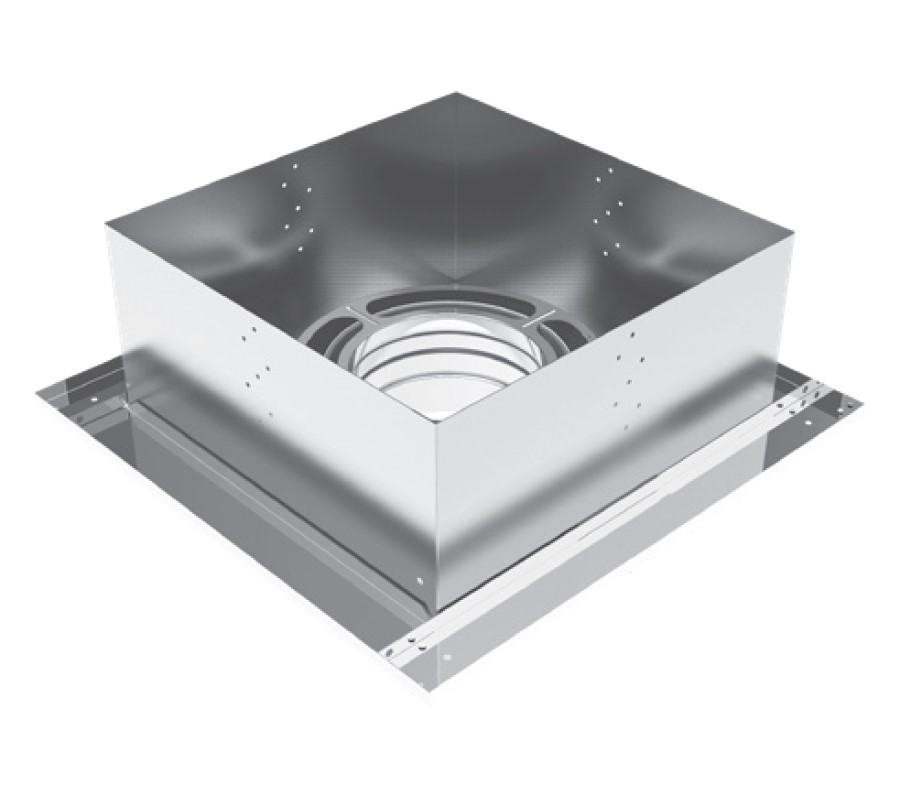

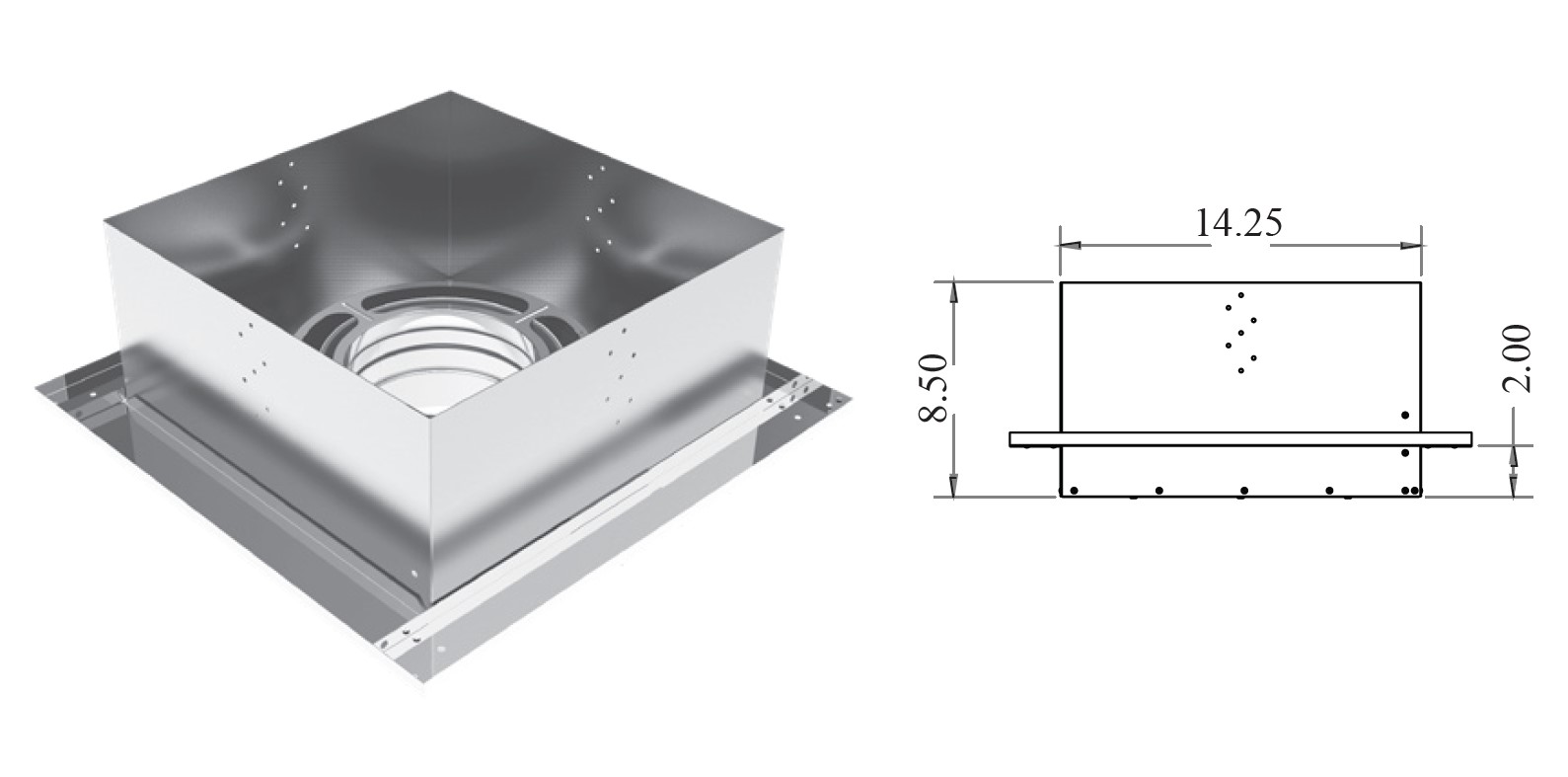

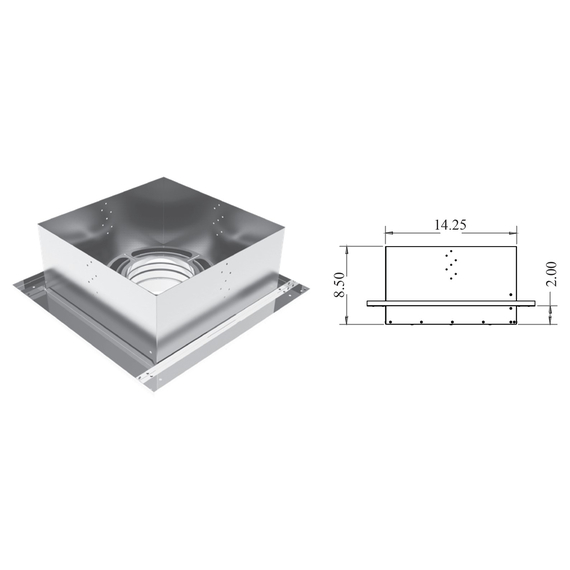

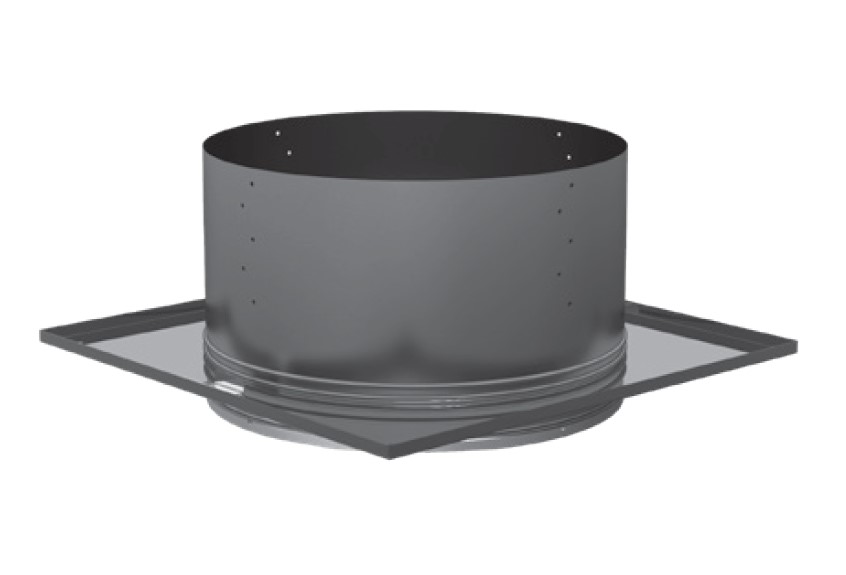

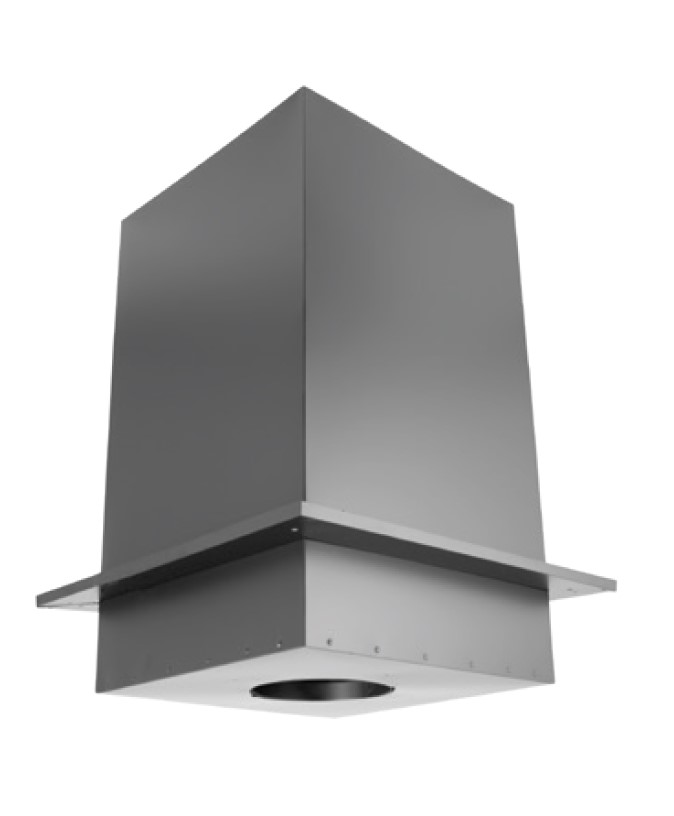

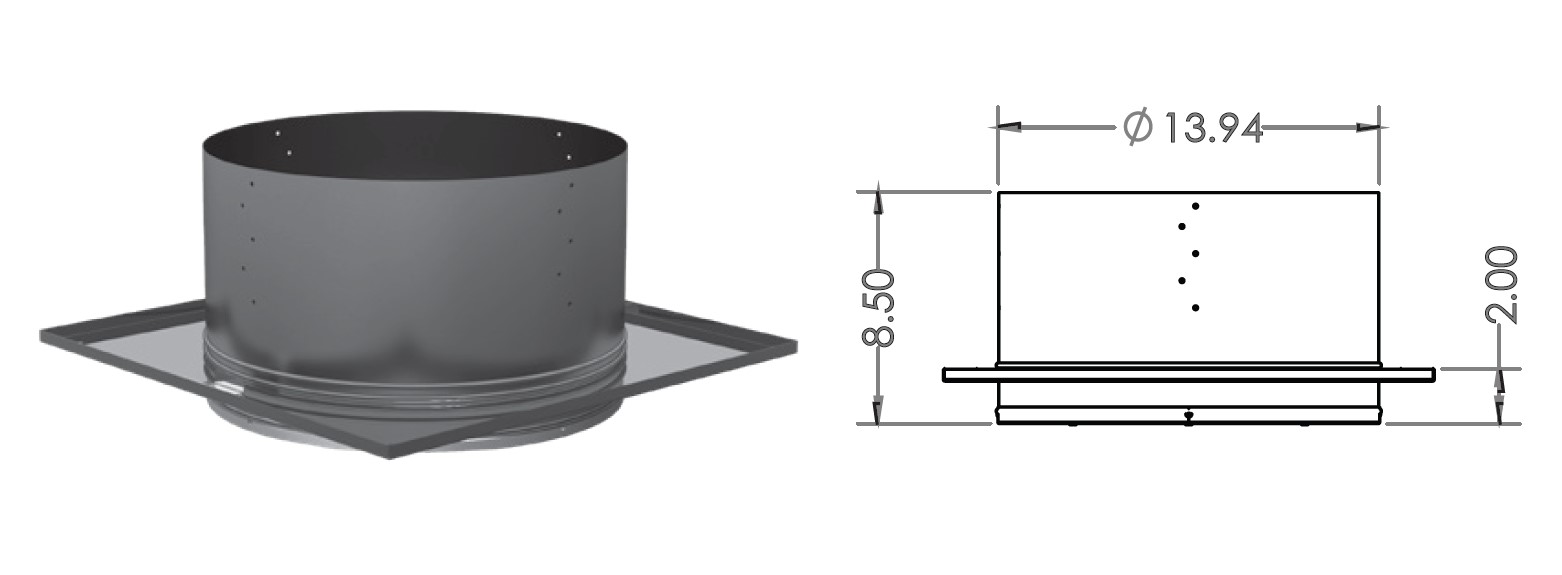

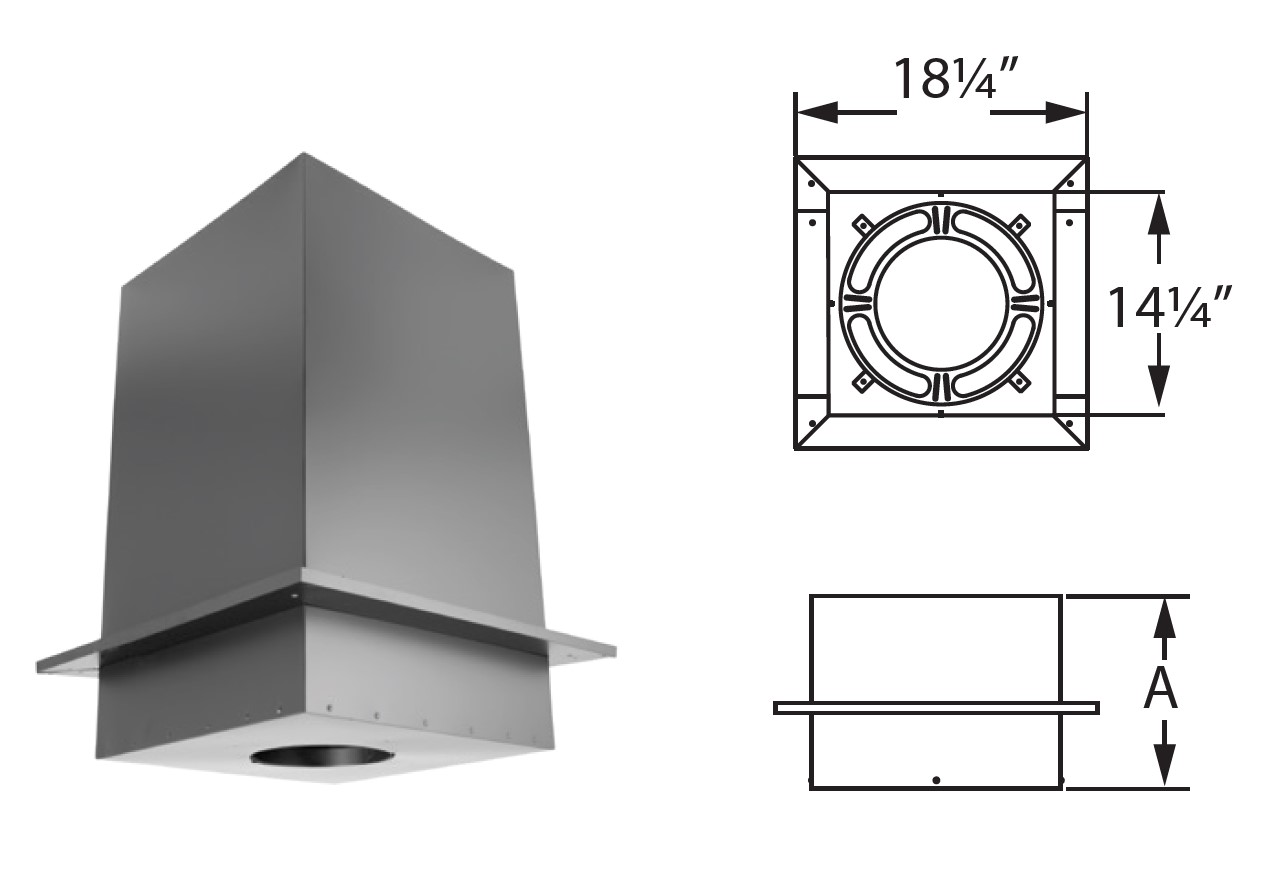

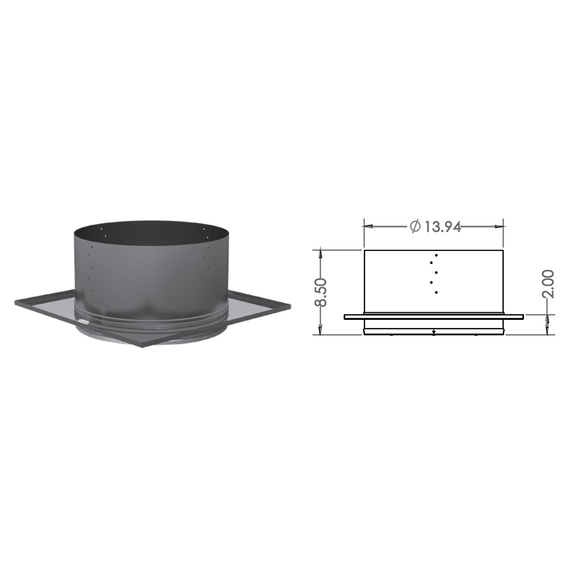

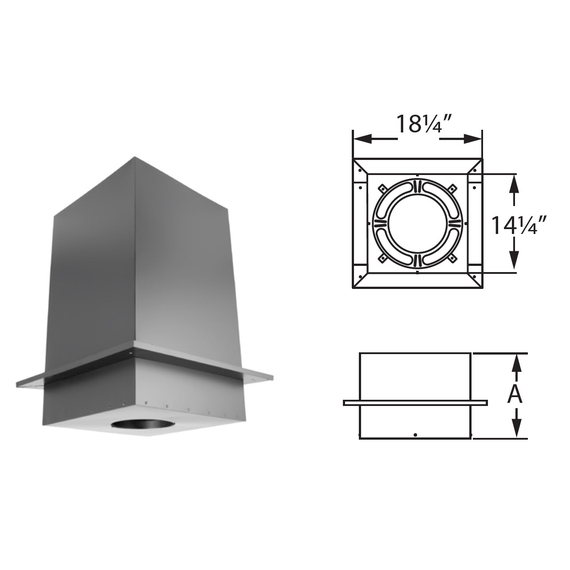

6. 8" DuraPlus Ceiling Support Box: Besides facilitating the chimney system's passage through ceilings and providing stability and structural support, the ceiling support box ensures a secure connection and adherence to safety guidelines.
The DuraVent 8" DuraPlus Oil Furnace Kit is a specialized solution for installing a chimney safely for oil furnace applications. DuraVent's kit, which combines supporting, insulating, and protective components, demonstrates its dedication to offering a dependable and legal chimney system that works with oil furnace configurations.
Features:
- Triple-wall chimney
- Clean, smooth exterior finish
- 2" clearance to combustibles
- Outer diameter is 4" larger than inner diameter
- Free-floating inner 430-alloy liner maintains structural integrity in chimney fires
- For uses with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas
Specifications:
- Size: 8" Inner Diameter
- Material: Stainless Steel | Aluminum | Galvanized
- Fuel Type: Coal, Oil, Wood, Gas
- UL Listed: UL-103-HT
- Vent Construction: Triple Wall
- Type: Kit
How to Install DuraPlus Chimney Pipe Kits for an Oil Furnace?
Choosing the right installation method for your oil furnace pipe kit ensures the highest level of safety, efficiency, and longevity for your heating system. By following these comprehensive steps, you’ll be taking a proactive approach to safeguard your home, enhance appliance performance, and guarantee long-term peace of mind. The DuraPlus Oil Furnace Kit is available in 6-Inches, 7-Inches and 8-Inches.
Why an DuraPlus Oil Furnace Pipe Kit is the Smart Choice
- Enhanced Safety: Proper installation of an oil furnace pipe kit provides the necessary clearance and support to prevent fires and protect your home. It’s engineered to meet stringent safety standards, offering reliable operation for your peace of mind.
- Efficiency Boost: By following the recommended guidelines, your furnace can operate at peak efficiency, minimizing energy loss and reducing heating costs.
- Versatile Fit: This kit is designed to be compatible with a range of appliances and building structures, ensuring flexibility whether you’re working with existing layouts or new constructions.
Step-by-Step Installation Guide
- Position Your Appliance Correctly: Ensure the flue outlet collar is optimally placed between rafters or joists. Following the manufacturer’s instructions precisely guarantees proper alignment and maximum efficiency.
- Frame the Support Opening: Mark the center of the flue outlet on the ceiling using a plumb bob, and cut a square or round hole for the Support Box. Proper framing ensures the stability and safety of the chimney.
- Install the Support Box: Slip the Support Box into the opening, making sure it extends at least 2 inches below the ceiling for adequate support. Secure it with 8-penny nails or screws, ensuring a firm and level attachment.
- Frame Openings Above the Support Box: For multi-story installations, frame openings in each ceiling or floor hold the Firestop Radiation Shields and Attic Insulation Shields. Properly framed openings ensure the chimney maintains safe clearances throughout its path.
- Cut the Roof Opening: Make a roof opening at least 4 inches larger than the chimney’s diameter for a minimum 2-inch clearance. This space is critical to maintaining a safe, well-ventilated chimney system.
- Install the Firestop Radiation Shield: Essential for safety, the Firestop Radiation Shield should be installed at each floor penetration. It provides a barrier against heat and helps prevent the spread of fire, making it a crucial component in any multi-story installation.
- Assemble Chimney Sections: Securely lock the chimney sections together with the twist-lock mechanism. Optional sheet metal screws can reinforce connections, but these should not penetrate the inner liner to maintain system integrity.
- Install the Attic Insulation Shield: If the chimney passes through an attic, the Attic Insulation Shield is vital for keeping debris and insulation away from the chimney, protecting your home from potential fire hazards.
- Attach Flashing: Whether in new construction or an existing roof, installing the flashing properly is essential for a leak-proof, durable seal. Make sure to maintain the 2-inch clearance around the chimney and secure the flashing with roofing nails, sealing all nail heads to prevent leaks.
- Finish the Top: Apply a non-hardening sealant around the chimney where the Storm Collar meets the flashing, ensuring a watertight seal. The Chimney Cap, which is easy to remove for cleaning, protects the chimney from debris and weather.
- Enclose Chimneys Passing Through Occupied Spaces: Maintaining at least a 2-inch clearance to combustibles, enclose the chimney with appropriate materials like sheetrock or plywood for a clean, professional look. Wall Straps can help maintain proper spacing, ensuring safety compliance.
By opting for a high-quality oil furnace pipe kit and adhering to these installation steps, you’re investing in a solution that maximizes safety, efficiency, and long-term performance. This proactive approach not only ensures your furnace runs efficiently but also provides robust protection against potential hazards. Take control of your home’s safety and comfort with a professionally installed oil furnace pipe kit—your home deserves nothing less.
