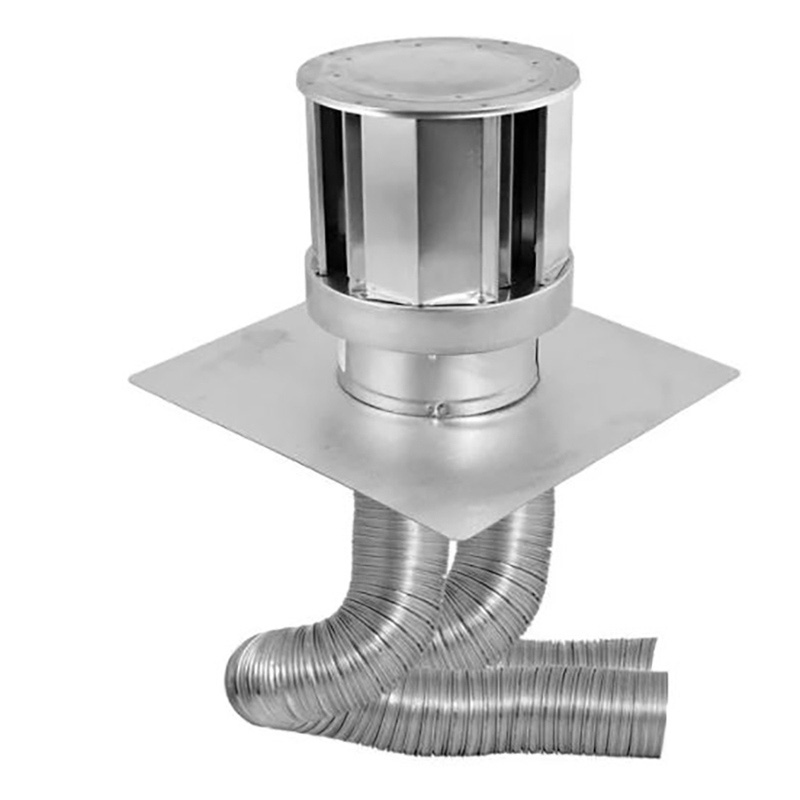

DirectVent Pro Co-Linear Flex Kit 4" x 35ft And 3" x 35ft

The DirectVent Pro 46DVA-CL34 Co-Linear Flex Kit – is the ideal solution for transforming your masonry chimney into a direct vent for gas and propane stoves, heaters, and fireplaces. This comprehensive kit ensures a seamless and efficient installation of a direct vent co-linear insert while offering reliability, durability, and versatility.

Features:

Masonry Chimney Conversion: Designed specifically for converting a masonry chimney into a direct vent co-linear system, providing a convenient and effective solution for your heating appliance.

High-Wind Cap: Choose your preferred high-wind termination cap, ensuring optimal performance even in challenging weather conditions. The 12 3/8" High-Wind Cap guarantees superior protection against external elements.

Dual Flex Runs (35ft each): The kit includes two aluminum flex lengths, color-coded for easy identification. The red flex (4" x 35') serves as the exhaust, while the other flex (3" x 35') functions as the air intake. This dual-flex configuration ensures efficient and balanced airflow for your direct vent system.

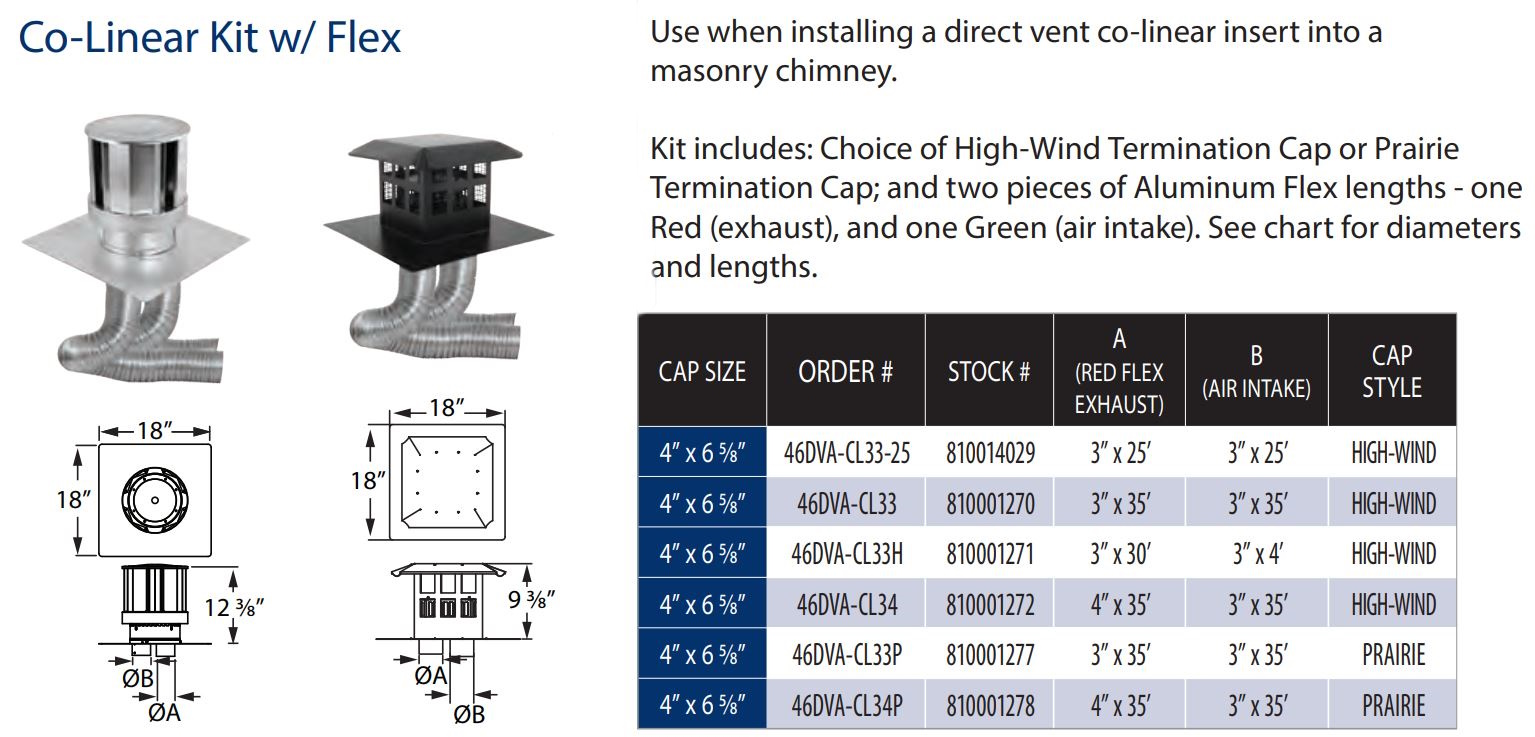

Specifications:

• Model: 46DVA-CL34
• Flex Line: 2 x 35 Feet
• Cap Size: 12 3/8"
• Cap Style: High-Wind
• Top Plate: 18" x18"
• Flex Exhau st (Red): 4" x 35'
• Air Intake: 3" x 35'

Applications:

Suitable for direct vent gas and propane stoves, heaters, and fireplaces, the kit meets the diverse needs of various heating appliances.

Clearances:

Follow the clearances specified by the appliance manufacturer to ensure safe and compliant installation.

Listings:

This Co-Linear Flex Kit is UL, CSA, or Warnock Hersey listed, assuring you of its compliance with industry standards for safety and quality.

Warranty:

Enjoy peace of mind with the limited-lifetime warranty, providing long-term protection and support for your investment.

Upgrade your masonry chimney with the DirectVent Pro 46DVA-CL34 Co-Linear Flex Kit, combining functionality, durability, and ease of installation for a reliable direct vent solution.

Downloads:

• DirectVent Pro 46DVA-CL34 Co-Linear Flex Kit Installation Manual

DirectVent Pro Chimney Liner System Installation Guide

If you're considering the installation of a DirectVent Pro Chimney Liner System, it's crucial to follow specific precautions to ensure safety and compliance. This engineered product has been meticulously designed and tested for use with approved direct vent gas appliances, guaranteeing efficiency and reliability. Below are essential details and steps to guide you through a successful installation.

Installation Precautions:

The DuraVent Direct Vent Chimney Liner System is a specialized product with strict installation guidelines. Deviating from these instructions may void the warranty and pose serious fire, health, or safety hazards. Key precautions include avoiding the installation of damaged components, unauthorized modifications, or the use of non-approved parts.

Safety Precautions for the Installer:

Before commencing the installation, ensure your safety with protective gear such as gloves and safety glasses. Exercise caution when working with ladders or on rooftops, and be aware of electrical wiring locations in walls and ceilings.

Planning Your Installation:

Careful planning is essential for a successful installation. The Direct Vent Chimney Liner System is designed for use in existing masonry or zero-clearance chimneys, providing flexibility for various direct vent gas appliances. Measure the required flex length, ensuring it reaches from the appliance outlet to the termination cap. Remember to maintain clearances to prevent fire hazards and comply with local building codes.

Installation in Masonry or Zero Clearance Chimney:

Follow these steps for a proper installation in a masonry or zero-clearance chimney:

1. Measure and record dimensions for the total Flex Liner length required.
2. Use a Flex Puller to guide the Flex Liner down the chimney, ensuring it doesn't sag below the appliance outlet.
3. Connect additional lengths of Flex Liner if needed, using Flex Couplings.
4. Secure the Flex Liner at the top of the chimney with a Baseplate, ensuring a level surface.
5. Connect the Flex Liner ends to the Co-Linear to Co-Axial Adaptor.
6. Attach the Vertical Termination Cap to the Adaptor.
7. Connect the Flex Liners to the appliance using Co-Linear Flex Connectors or a Co-Axial to Co-Linear Appliance Connector.

General Maintenance:

Perform a semiannual inspection of the venting system, checking for corrosion, blockages, and evidence of excessive condensate. Regular maintenance ensures the system's longevity and efficient performance.

Frequently Asked Questions for DirectVent Pro Chimney Liner System Installation

Q: Can I install the DirectVent Pro Chimney Liner System myself, or should I hire a professional installer?
A: While some homeowners may have the skills for a DIY installation, it's highly recommended to hire a professional installer. This ensures compliance with safety standards, local building codes, and proper handling of the specialized components to guarantee a safe and efficient installation.

Q: What safety precautions should I take during the installation process?
A: Safety is paramount. Always wear protective gear such as gloves and safety glasses. Exercise caution when working on ladders or rooftops, and be aware of electrical wiring locations in walls and ceilings to prevent accidents.

Q: Can the DirectVent Pro Chimney Liner System be used for all types of direct vent gas appliances?
A: Yes, the system is designed for use with approved direct vent gas appliances. However, it's crucial to check the compatibility with your specific appliance by referring to the manufacturer's guidelines and the DirectVent Pro Chimney Liner System Installation Guide.

Q: What are the key planning considerations for a successful installation?
A: Careful planning is essential. Measure the required flex length, ensuring it reaches from the appliance outlet to the termination cap. Consider clearances to prevent fire hazards and comply with local building codes. Detailed planning ensures a smooth installation process.

Q: How often should I perform maintenance on the DirectVent Pro Chimney Liner System?
A: Regular maintenance is crucial for the system's longevity and efficient performance. Perform a semiannual inspection for corrosion, blockages, and evidence of excessive condensate. Adhering to a maintenance schedule helps identify and address potential issues promptly.

Remember, these questions provide general guidance, and for specific details, always refer to the DirectVent Pro Chimney Liner System Installation Guide and the guidelines provided by your appliance manufacturer.
