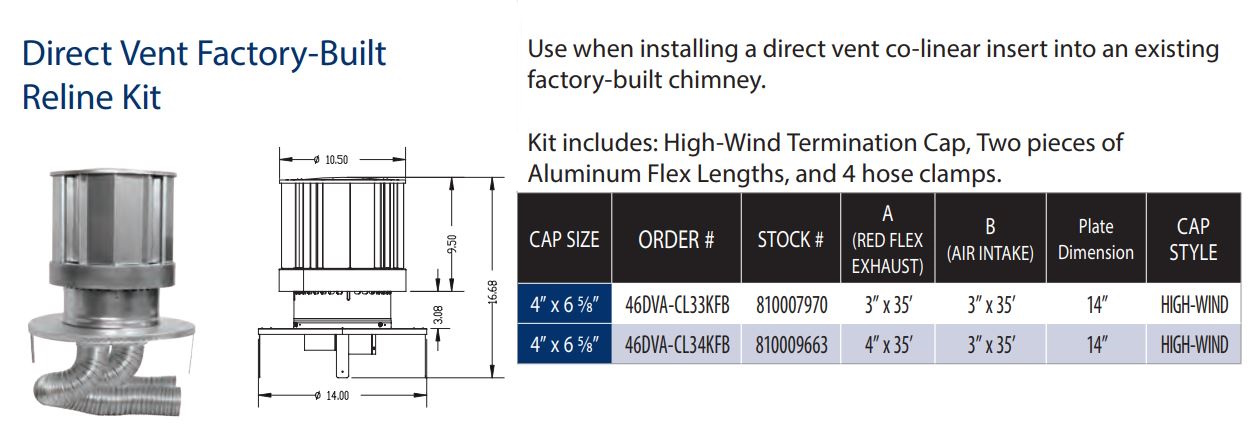

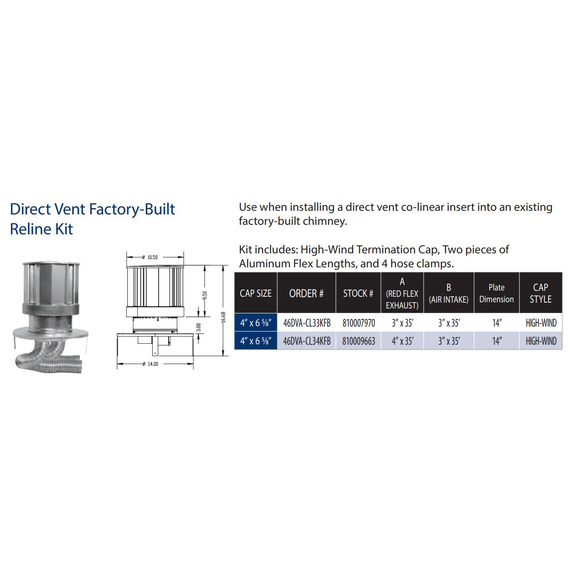

The DirectVent Pro 46DVA-CL33KFB Co-Linear Flex Kit – a comprehensive solution designed for seamless installation when incorporating a direct vent co-linear insert into an existing factory-built chimney. This kit, featuring 3" x 35ft and 3" x 35ft aluminum flex lengths, ensures a straightforward and efficient upgrade for gas and propane stoves, heaters, and fireplaces. With the 3x3 Co-Linear Reline Kit AL Flex, including a High Wind Termination Cap and 4 hose clamps, this package delivers reliability, durability, and ease of installation.
Factory-Built Chimney Upgrade: Specifically crafted for the installation of a direct vent co-linear insert into an existing factory-built chimney, this kit streamlines the process and enhances the performance of your heating appliance.
High-Wind Termination Cap: Customize your installation with the included High-Wind Termination Cap, ensuring optimal performance even in adverse weather conditions. This cap, measuring 3x4 inches, provides superior protection against external elements, making it a resilient choice for year-round use.
Dual Flex Runs (35ft each): The kit includes two aluminum flex lengths, color-coded for easy identification. The 3" x 35ft flex serves as the exhaust, while the 3" x 35ft flex functions as the air intake. This dual-flex configuration promotes efficient and balanced airflow, optimizing the overall performance of your direct vent system.
Comprehensive Reline Kit: The 3x3 Co-Linear Reline Kit AL Flex comprises all the necessary components for a successful installation, including two aluminum flex lengths and 4 hose clamps. This comprehensive package ensures that you have everything needed for a hassle-free upgrade.
Reliability and Durability: Crafted with durability in mind, the components of the DirectVent Pro 46DVA-CL33KFB Co-Linear Flex Kit are built to withstand the demands of regular use. Count on reliable and robust materials to support your direct vent system for the long term.
Whether you're a homeowner seeking an efficient heating solution or a professional installer looking for a reliable kit, the DirectVent Pro 46DVA-CL33KFB Co-Linear Flex Kit provides the functionality, durability, and ease of installation required for a successful chimney upgrade. Upgrade with confidence and enjoy the benefits of a modern direct vent system.
M&G DuraVent proudly introduces the industry's first UL-listed relining system designed specifically for factory-built chimneys. Our co-linear direct vent relining system is an optimal choice when installing a direct vent insert into an existing factory-built chimney. Proper relining of the chimney is crucial for ensuring optimal performance and safety when integrating an insert into an existing factory-built chimney or b vent.
Note: The plate must exceed the current pipe or conduit size. Fold brackets to match the existing diameter to securely fasten the high-wind termination cap.
Choose M&G DuraVent for a reliable and certified relining solution, ensuring the safety and efficiency of your factory-built chimney when incorporating a direct vent insert.
Applications:
Suitable for direct vent gas and propane stoves, heaters, and fireplaces, the kit meets the diverse needs of various heating appliances.
Clearances:
Follow the clearances specified by the appliance manufacturer to ensure safe and compliant installation.
Listings:
This Co-Linear Flex Kit is UL, CSA, or Warnock Hersey listed, assuring you of its compliance with industry standards for safety and quality.
Warranty:
Enjoy peace of mind with the limited-lifetime warranty, providing long-term protection and support for your investment.
Upgrade your masonry chimney with the DirectVent Pro 46DVA-CL33KFB Co-Linear Flex Kit, combining functionality, durability, and ease of installation for a reliable direct vent solution.
Upgrade your heating system with the DuraVent Direct Vent Conversion Kits designed for both factory-built Class A metal chimneys and masonry chimneys. These comprehensive instructions are applicable to ensuring a safe and efficient conversion. Please follow these guidelines meticulously to guarantee optimal performance and safety.
Verification of Approval:
Confirm the compatibility of DuraVent Direct Vent Chimney Conversion system with your specific brand of gas appliance. Refer to the manufacturer's rating plate and instruction manual.
Check for testing and listing by major agencies such as UL, AGA, Omni, or Warnock Hersey.
Safety and Warranty Considerations:
Read all instructions carefully before initiating the installation to avoid potential fire hazards and ensure compliance with safety standards.
Failure to follow these instructions may void the warranty. Refer to the appliance manufacturer’s instructions for specific venting and clearance to combustible requirements, as these may vary between appliances.
Installation Precautions:
The DuraVent Direct Vent System is an engineered product designed for use with approved direct vent gas appliances.
Avoid voiding the warranty and prevent serious hazards by refraining from actions such as installing damaged components, making unauthorized modifications, or using unapproved parts.
Ensure compliance with local building codes before commencing the installation.
Before converting to direct vent, have the existing installation inspected by a qualified chimney sweep or professional installer. The existing chimney system must be in serviceable and functionally sound condition.
General Overview:
Two types of direct vent conversion systems are described: one through an existing factory-built metal chimney going through the ceiling and the other through the wall of an existing masonry chimney.
Follow the appropriate set of instructions based on your specific situation.
Factory-Built Metal Chimney Conversion:
Remove the existing chimney cap.
Measure and cut a 4-inch flex pipe to the calculated length, adding 3 inches.
Connect the flex pipe to the selected Top Adapter using (3) sheet metal screws.
Pass the flex pipe down through the center of the chimney system.
Center the adapter on the top of the chimney pipe and secure it with sheet metal screws.
Drill (4) 1/8-inch diameter holes through the adapter into the chimney top, ensuring it is the metal part.
Twist-lock the Termination Cap onto the Adapter.
Pull the flex pipe down through the ceiling support box until it protrudes approximately 3 inches.
Connect the flex pipe to the Retro Connector and secure the two parts with (3) Sheet Metal Screws.
Push the flex pipe back up into the ceiling support box, center the Retro Connector, and attach it to the support box or decorative sleeve with the provided Sheet Metal Screws.
These detailed instructions guide you through the process of converting your chimney to a Direct Vent System. For specific diagrams and figures, refer to the accompanying visual aids in the complete installation manual.
Q: Can I convert my existing chimney to a Direct Vent System using the DuraVent Conversion Kit myself, or do I need a professional installer?
A: While some homeowners may possess the skills for a DIY installation, it's highly recommended to engage a professional installer. This ensures compliance with safety standards, local building codes, and proper handling of specialized components for a safe and efficient conversion.
Q: How do I verify if the DuraVent Direct Vent Chimney Conversion System is compatible with my gas appliance?
A: Confirm compatibility by checking the manufacturer's rating plate and instruction manual. Additionally, ensure the system is tested and listed by major agencies such as UL, AGA, Omni, or Warnock Hersey, as indicated in the guidelines.
Q: What safety precautions should I consider during the installation process?
A: Prioritize safety by carefully reading all instructions to avoid potential fire hazards. Follow safety standards, wear protective gear, and be cautious when working with ladders or rooftops. Comply with the appliance manufacturer's instructions for venting and clearance requirements.
Q: Can the DuraVent Direct Vent System be used with any gas appliance, or are there specific requirements?
A: The system is engineered for use with approved direct vent gas appliances. Ensure compliance by adhering to the manufacturer's guidelines and specific requirements outlined in the DuraVent Direct Vent Chimney Conversion System Installation Guide.
Q: What steps should I take to convert a factory-built metal chimney through the ceiling using the Conversion Kit?
A: Follow the step-by-step instructions outlined in the Installation Guide. Key steps include removing the existing chimney cap, measuring and connecting the flex pipe to the Top Adapter, passing the flex pipe down through the chimney, securing components with sheet metal screws, and attaching the Termination Cap.
Q: Are there specific maintenance requirements for the Direct Vent System after conversion?
A: Regular maintenance is crucial for longevity and performance. Conduct a semiannual inspection for corrosion, blockages, and excessive condensate. Adhere to a maintenance schedule outlined in the installation manual to ensure optimal functionality.
Remember, these questions provide general guidance. For specific details and visual aids, always refer to the DirectVent Pro Chimney Liner System Installation Guide and the guidelines provided by your appliance manufacturer.
