Carrollton 230 GL Wood Insert | Country Stove 230SI
The purpose of the Country Stove Carrollton 230 GL Wood Insert is to improve the classic appeal of your fireplace while adding efficiency and warmth to your house. For homeowners looking to replace their old masonry fireplace with a more effective, environmentally friendly heating option, this wood insert is ideal. The Carrollton 230 GL boasts a sophisticated heat distribution system along with a wide glass viewing window that lets you appreciate the beauty of a real wood fire. It is made of sturdy steel. With the ability to accommodate logs up to eighteen inches long, the insert offers prolonged warmth on chilly winter evenings.
This wood insert's high-efficiency blower makes sure that the heat is distributed evenly throughout your living area. It is also easier to maintain because clean-burning technology produces less emissions and less creosote buildup. The Carrollton 230 GL Wood Insert from Country Stove is a fashionable as well as a useful addition. It becomes a main point in your house with its huge glass door and sleek black finish, which offer sophistication to any environment. This wood insert is a great option if you want to save money on heating or just enjoy the atmosphere of a wood fire.
Features:
- Thermal Fin heat exchanger creates 32% more surface area than a standard insert design resulting in more heat entering the room.
- Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
- The tall opening provides an expansive view of the burning fire.
- Ceramic glass for extra strength and optimum heat transfer.
- Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
- Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
- High-density firebrick retains heat longer, resulting in increased efficiency.
- One-touch control ensures easy operation and comfort.
- Standard 150 CFM variable speed blower quickly moves heat from the insert into your room.
- Choose from several sizes of surround panel kits to match your opening size (1-required)
- Choose between a steel or cast-iron warming top (1 required).
- Optional decorative door trim Brushed Nickel or Nickel allows customization to your style.
- EPA-certified and Washington State-approved for clean and efficient operation.
- Limited Lifetime Warranty

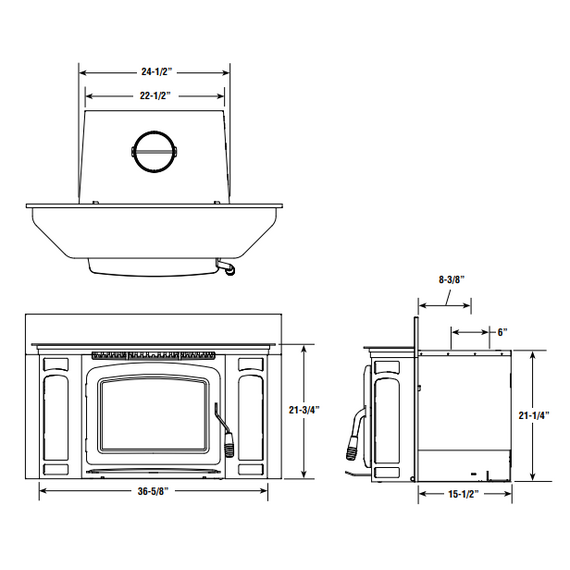

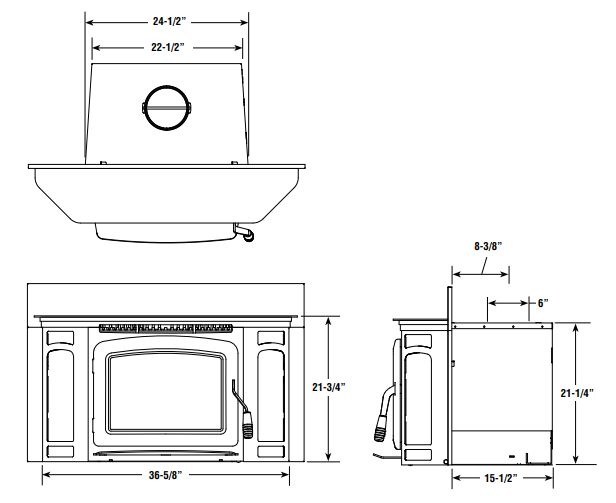

Specifications:
- Front Width: 36 5/8"
- Reat Width (Rear Taper Width): 24 1/2" (22 1/2"
- Front Height: 21 3/4"
- Rear Height: 21 1/4"
- Depth Into Fireplace: 15 1/2"
- Weight: 390lbs
- Flue Size: 6”
- Log Length: 16” W x 18” D Max.
- Firebox: 17” W x 19” D x 12-1/2” H Max. Volume = 2.3 cu. ft.
- Glass Viewing Area: 16-1/2” W x 11-5/16” H
- EPA Test Load: 28,200 BTUs/hr.
- Cord Wood: 76,000 BTUs/hr.
- Maximum Burn Times: 8 hours
- Heating Capacity: 1200 to 2200 sq. ft.
- EPA Grams Per Hour: 1.7 gr/hr
- EPA Phase II and Washington State: Approved
Downloads:
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
