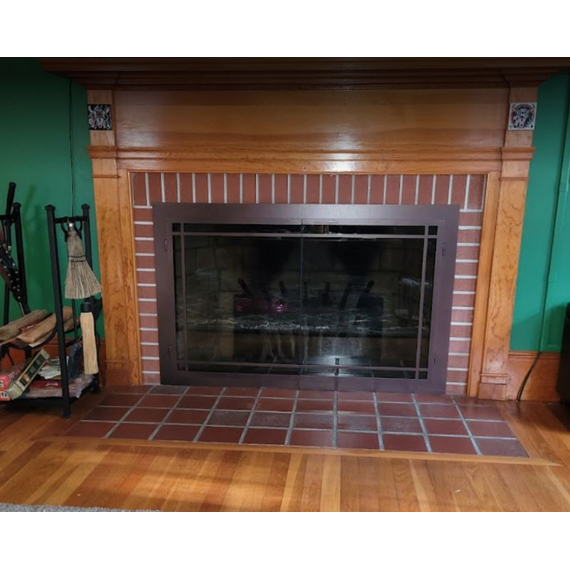

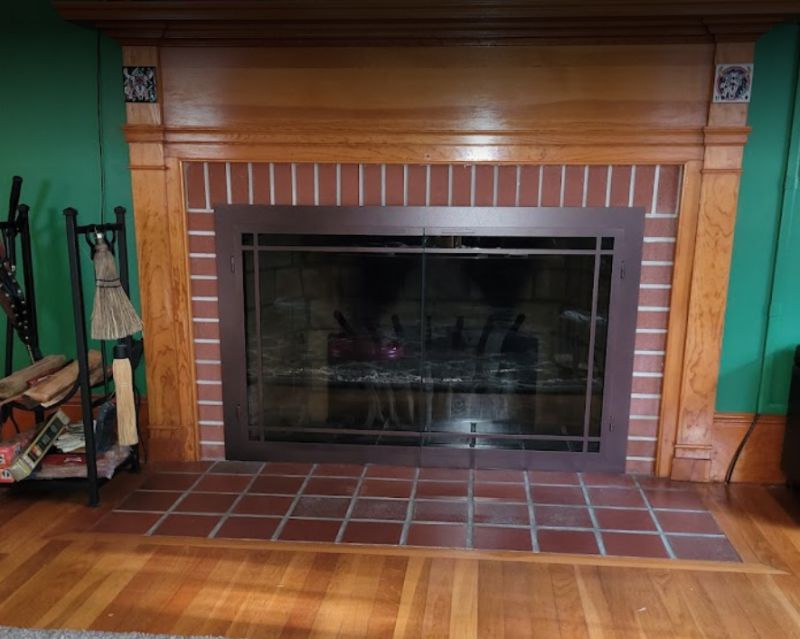

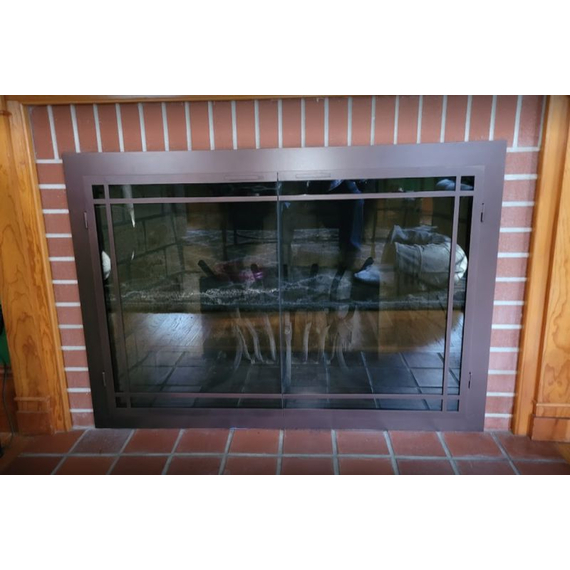

Window Pane Design Colridge Masonry Fireplace Door Overlap Fit

ATTENTION: This is a fixed size door. The overall size of the door is based off of the opening dimensions you enter. In some cases the overall size of the door is not large enough for some openings, and will not provide enough overlap.

The overall size of the door should be at least 2.5" wider and 1.5" taller than the opening dimensions of your fireplace. The overall door dimensions are listed directly above the product price, and will change after opening measurements are entered. If you are unsure if this door will work for your opening, give us a call and we will assist you.



Starting Price Shown - Calculate Your Price By Entering The Exact Measurements
Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.

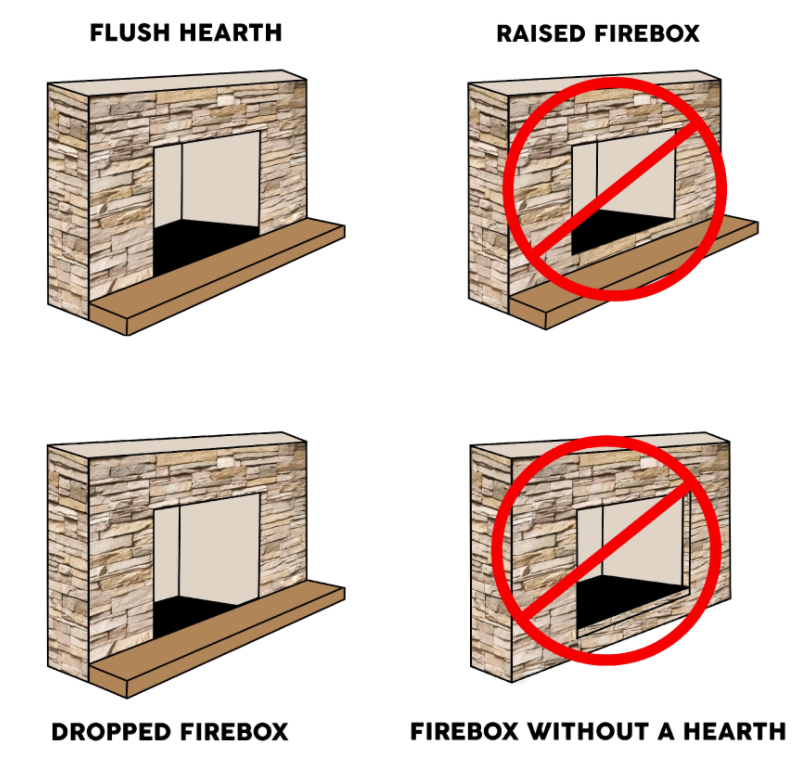

OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the fireplace door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Product Code: 3524

Overall Dimension: 35" x 24-1/2"

$1,299.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable. Flanges are recommended for rough or irregular fireplaces!
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+

The Colridge masonry fireplace door with window pane design is a 7 gauge steel enclosure made to fit most masonry fireplaces openings on the market. Created to make a statement in any living space, this glass fireplace door is incredibly eye-catching, yet simple in design. As far as customization options go, you have your choice of several finish choices to coordinate with your home's decor. Cabinet style or bi-fold doors are equipped with tempered safety glass in your choice of clear or bronze-tinted glass. Your Colridge fireplace door can be made with or without a damper. We offer a large array of designer handles for you to choose from, as well as the opportunity to upgrade to mesh protection.


Colridge Masonry Fireplace Door Overlap Fit Door Features Product Features:

  • Fireplace door ships for free; please allow 4 to 6 weeks for production
  • 5-year warranty on workmanship and material only; 1-year glass warranty
  • This custom enclosure is available only as an overlap fit
  • The heavy steel frame is 2  1/2 inches wide by 3/16 inch deep
  • Draft assembly is available as an option

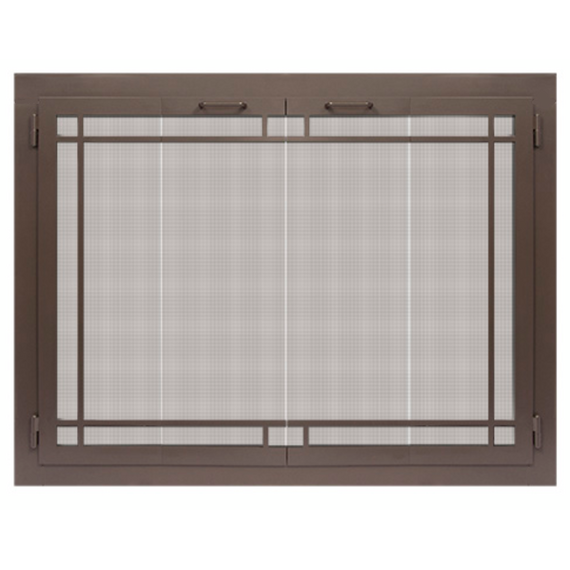

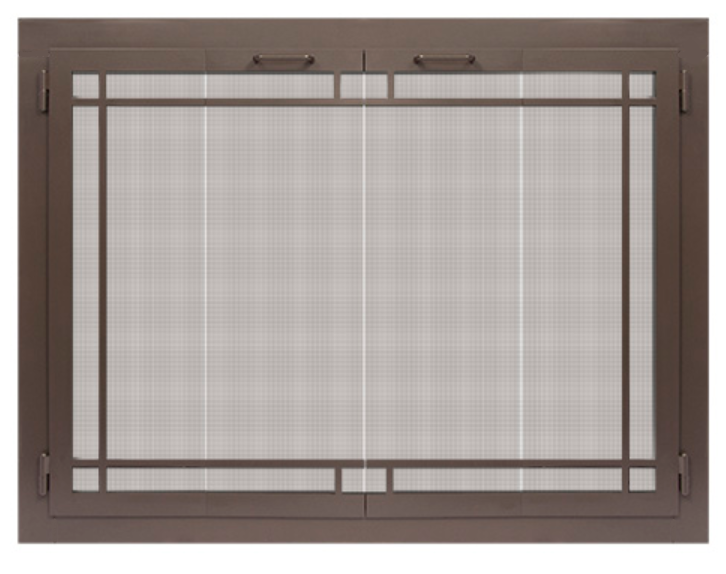

  • Door features an attractive Window Pane design
  • Cabinet or trackless bi-fold doors feature 1/4 inch tempered safety glass
  • Choose from a clear or grey tinted glass
  • Discreet Bullet style hinges
  • Choose from 3 different handle styles
  • Mesh protection is not included, but upgrades are available
  • Door comes fully assembled with included mounting hardware
  • NOTICE: In order to burn a fire with the doors closed, the temperature of the fire cannot exceed 400°. The flames must always be 6 inches away from the glass.



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Colridge Masonry Fireplace Door Overlap Fit Door Specifications Product Specifications:

  • Door Fit: Overlap
  • Door Type: Cabinet Doors | Trackless Bi-Fold Doors
  • Material: 2-1/2" Wide x 3/16" Deep 7 Gauge Flat Steel Frame
  • Overlap: Depends On Fireplace Opening Size = Deduct your fireplace opening sizes from the overall frame size listed and then divide that number by 2. That gives you the approximate overlap this door will have.
  • Glass: 1/4" Tempered Glass
  • Glass Tint: Grey | Clear
  • Ceramic Glass: N/A
  • Mesh Screens: Not Included (Optional)
  • Damper: None | Draft Assembly
  • Airtight Option: N/A
  • Handle Style: Designer
  • Hinge Style: Bullet
  • Mounting: Hardware Included

How To Install Fireplace Door

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
