Corner Bar Iron Ceramic Glass Masonry Fireplace Door Cascade With Center Bars

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 38"W and Up To 36"H

=:

$5,692.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 5-7 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
WRITE I AGREE
Available
+

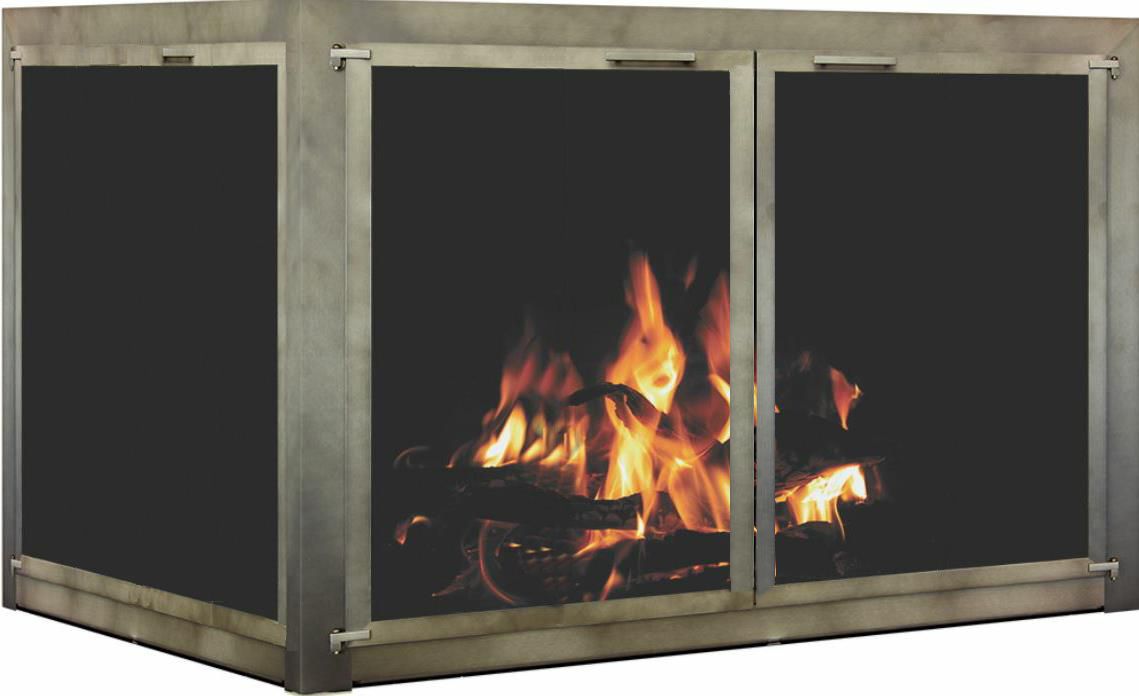

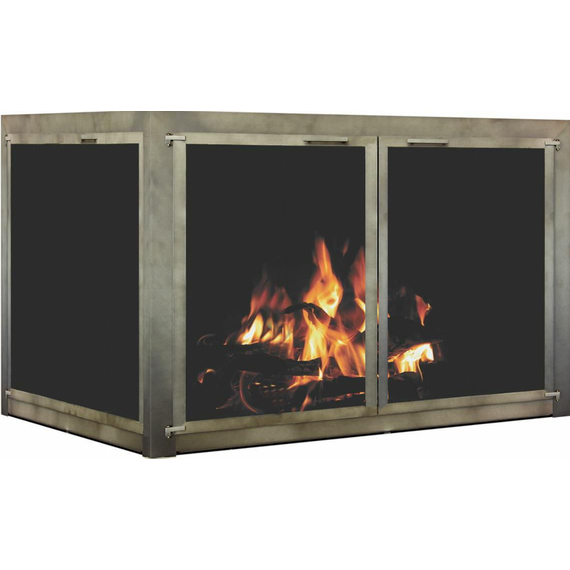

The Cascade bar iron corner fireplace door with ceramic glass is a beautiful masonry upgrade for multi-sided fireplaces. Made of 3/16 inch flat steel, this is a durable enclosure with plenty of customizations that allow you to coordinate it with your home decor! Choose on inside or overlap fit, cabinet or trackless bi-fold type doors, and select from a variety of gorgeous finishes. Handles on this masonry fireplace door are also customizable, along with the damper style and spark protection you prefer. Lifetime closure latch is made of solid brass, and the standard overlap is approximately 1 inch. Since the Cascade Masonry Corner Fireplace Door comes with mounting hardware for easy installation, you will have the exact look you desire in no time. Proudly made in the USA! Free shipping!


Cascade Masonry Frameless Corner Fireplace Door Features Product Features and Benefits:

  • Enjoy free shipping on this product; please allow 4 to 6 weeks for production and transit time
  • 5-year warranty on door frame; 1-year warranty on tempered glass
  • Available as an inside or overlap fit door
  • cabinet style doors with center bar
  • Flat steel frame is 2 inches wide and 3/16 inch deep
  • Check out the videos for the available door finishes

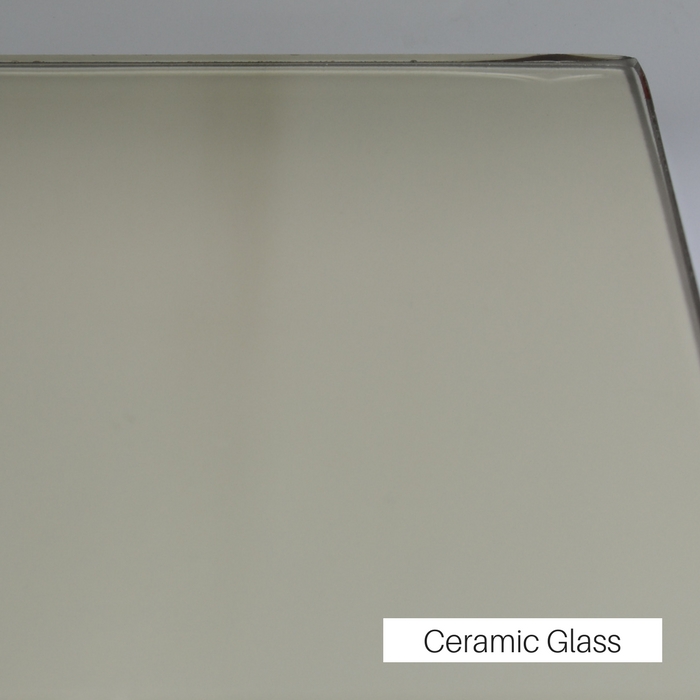

  • 3/16" Ceramic Glass
  • Cabinet mesh is optional with additional styles available
  • Damper options
  • 3 handle styles to choose from
  • All mounting hardware included



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Cascade Masonry Frameless Corner Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry Corner
  • Door Fit: Overlap | Inside
  • Door Type: Cabinet (Twin) Doors | Trackless Bi-Fold Doors
  • Material: 2" Wide x 3/16" Deep Flat Steel Frame
  • Approximate Overlap: 1" (all 4 sides)
  • Recessed Depth: 2 Inch = The Portion Of The Door That Fits Inside The Opening When Installed As Overlap Fit! - Does NOT Apply To Sliding Mesh And Gate Mesh Doors
  • Glass: 1/4" Tempered Safety Glass (1-year warranty)
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Spark Protection: Optional
  • Damper: No Damper | Hidden Damper
  • Handle Style: Square | Wire | Contemporary
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Additional: Solid Brass Lifetime Closure Latch
  • NOTE: Front width (Long Side) can not be longer than 36" as hinges can't hold the weight of larger doors. Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
