Brookfield Prefab Glass Corner Fireplace Enclosure Overlap Fit

You may need to remove the track to install the fireplace door, so measure accordingly. You will need to measure the fireplace opening in three different places, both vertically and horizontally to the nearest 1/16". Enter the smallest size into the price calculator.



When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. Do the same for the short side. We need for both the exact minimum width. Next, measure the height of the opening. We need the exact minimum height.


DO NOT make adjustments to sizes, we need the EXACT OPENING size

Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-5 Weeks Question | Why Buy From Us?

If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].

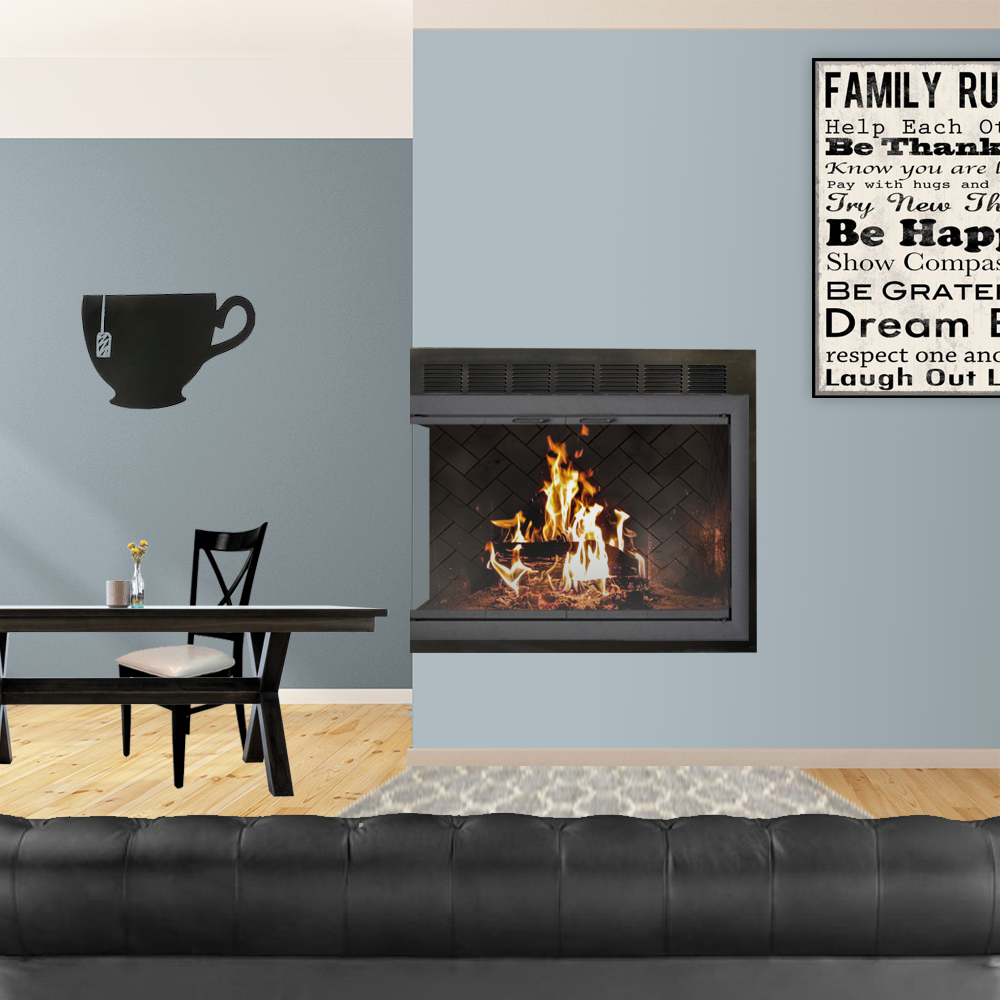

Corner fireplaces are a great addition to any home and coincidentally, this prefab corner fireplace door is a great addition to that fireplace! We love how the Brookfield looks and that as an overlap fit fireplace door, it works for corner fireplaces that aren’t really standard.

With this zero clearance fireplace door you’ll love the customizations! You can even check out the videos at the bottom of the page to get a better idea of what your finish options really look like. After all, sometimes a swatch of color and a name just doesn’t do the trick! There are other customizations too, like tinted glass, door styles and handle options. By the time you’re done, this glass fireplace door will be as unique as you!

With this Design Specialties fireplace door you can upgrade to include mesh protection. Why would you? Well, mesh protection keeps your home and loved ones safe from sparks that might escape the firebox. It’s an important, though sometimes overlooked, feature of any corner fireplace! Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

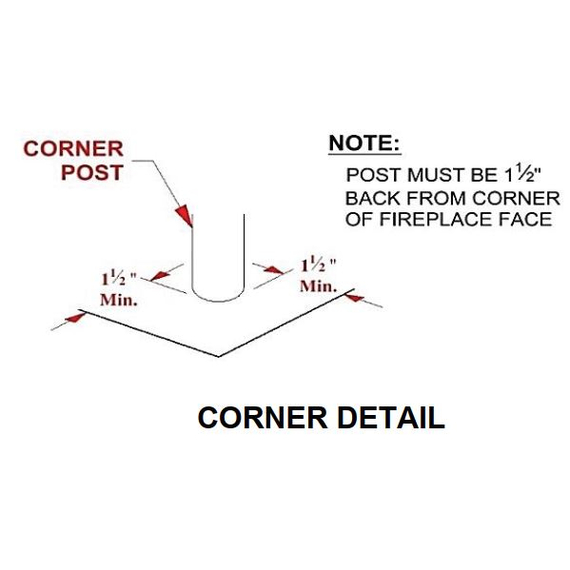

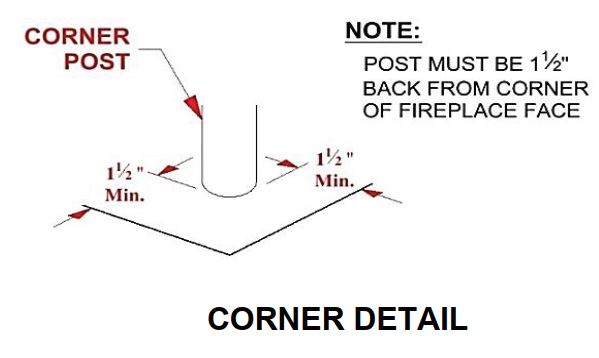

Many ZC Corner and peninsula fireplaces have metal posts in the corners. In this case, the doors may need to be ordered as individual doors and can not have glass corners.


Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Brookfield Zero Clearance Corner Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Prefab Wood Fireplaces or Prefab Wood Fireplaces Converted To Vented Gas Logs
  • Door Fit: Overlap
  • Door Type: Bi-Fold Doors | Cabinet Doors
  • Material: 1 3/4" Wide x 11/16" Deep Extruded Aluminum Frame
  • Recessed Depth: 3/8 Inch = The Portion Of The Door That Fits Inside The Opening When Installed As Overlap Fit!
  • Approximate Overlap (All 4 Sides): 3/8" Minimum | 3/4" Maximum
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tint: Clear | Black
  • Ceramic Glass: N/A
  • Mesh Screens: Not Included (Optional)
  • Handle Style: Simplicity | Contour | Infinity | Classic
  • Damper: N/A
  • Airtight Option: N/A
  • Mounting: Hardware Included

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
