Avaleria Masonry Custom Fireplace Door Overlap Fit

     Send us a PHOTO of your fireplace for a FREE quote

ATTENTION: This is a fixed size door. The overall size of the door is based off of the opening dimensions you enter. In some cases the overall size of the door is not large enough for some openings, and will not provide enough overlap.

The overall size of the door should be at least 2.5" wider and 1.5" taller than the opening dimensions of your fireplace. The overall door dimensions are listed directly above the product price, and will change after opening measurements are entered. If you are unsure if this door will work for your opening, give us a call and we will assist you.



Starting Price Shown - Calculate Your Price By Entering The Exact Measurements
Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.

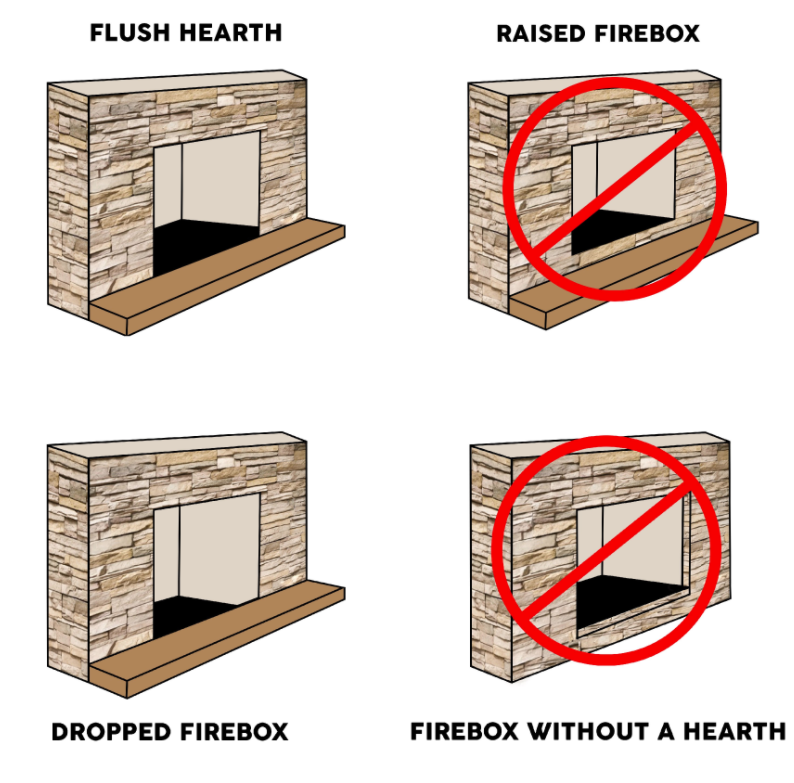

OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the fireplace door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Product Code: 3624

Overall Dimension: 36" x 24-1/2"

$899.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+ −
Brand: Custom Metal Company
Write a review

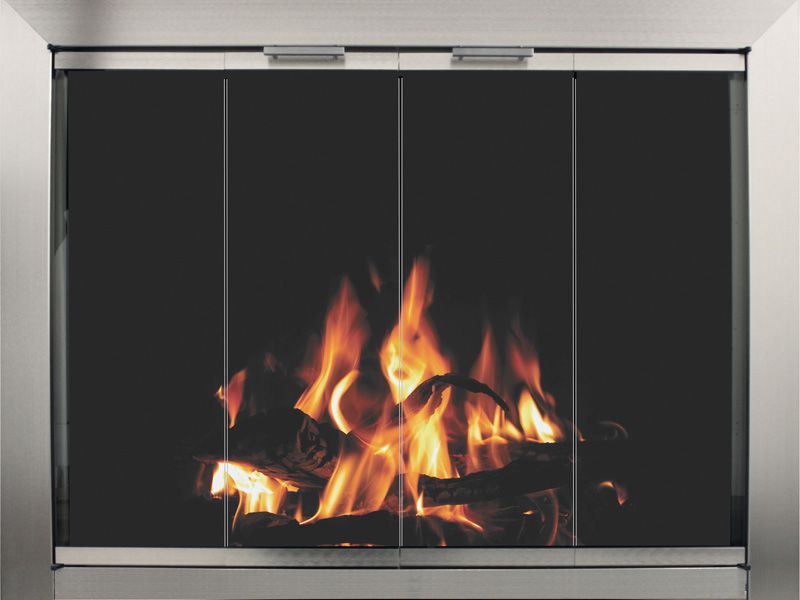

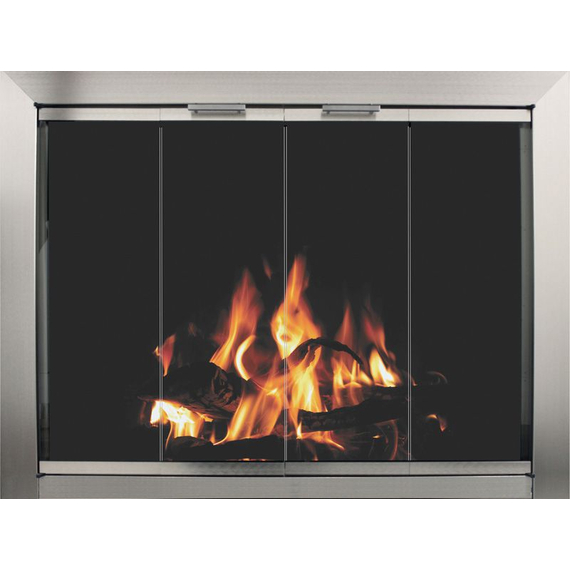

Add a New Dimension to Your Fireplace with Avaleria Fireplace Glass Door. The Avaleria Fixed Size Masonry Fireplace Door is the perfect combination of style, functionality, and safety. Designed for a seamless overlap fit, this made-to-order fireplace door enhances the beauty of your hearth while providing maximum coverage. The wide frame design ensures a perfect fit, even on uneven fireplace facings, making it a versatile choice for any home.

Features:

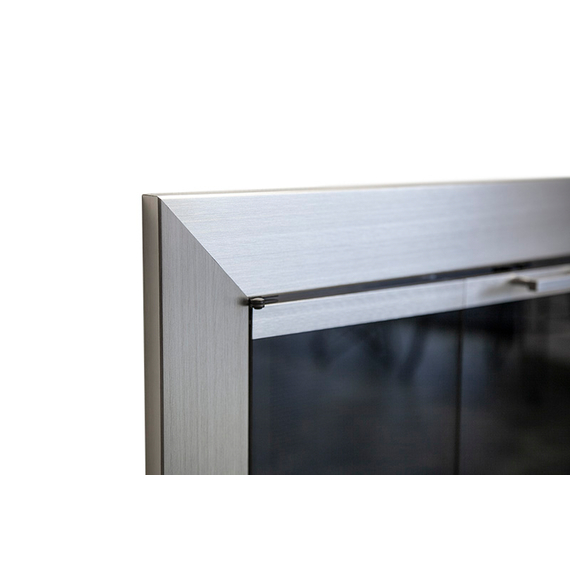

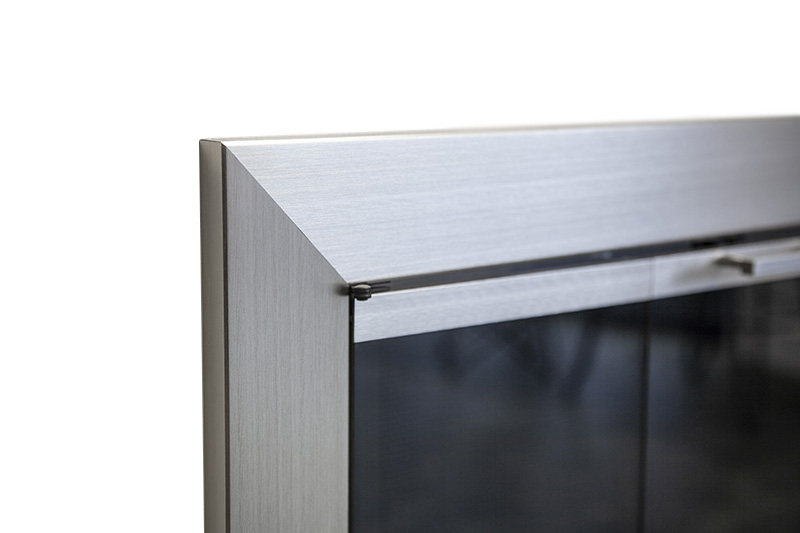

  • Frame Material: Durable extruded aluminum ensures longevity and strength.

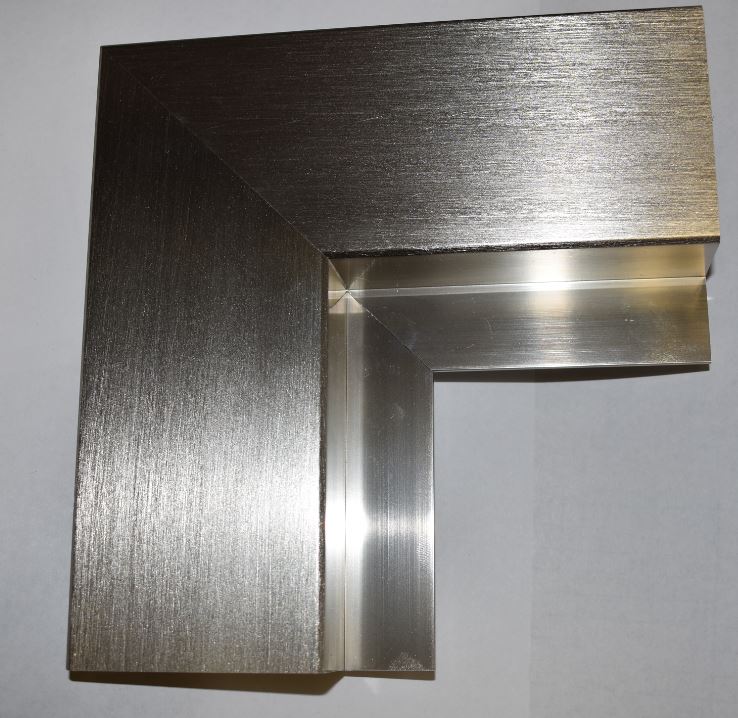

  • Frame Dimensions: 2 5/8” wide, 3/4” depth, and 13/16” recessed frame depth for maximum overlap.
  • Customization Options: Avaleria doors can be tailored to fit small to extra-large fireplace openings.
  • Glass Options: 1/8 inch thick tempered safety glass available in grey, bronze or clear tint.
  • Door Styles: Choose between trackless bi-fold or cabinet-style doors.
  • Handle Designs: Three premium comfort grip handle styles for easy opening and closing.
  • Optional Upgrades: Mesh protection to shield from sparks and embers, stainless steel hardware, hinges, and spark protection for exterior installations.

Additional Information:

  • Production Time: Please allow 4 to 6 weeks for production. Ships free.
  • Warranty: 5-year warranty on workmanship and 1-year warranty on tempered glass.
  • Finish Options: Explore heat-resistant powder coat or anodized finish colors.
  • Assembly: The door comes fully assembled with all necessary mounting hardware included.
  • Safety Note: For fires with the doors closed, the temperature must not exceed 400°, and flames must always be 6 inches away from the glass.

Upgrade Your Fireplace Today

The Avaleria Masonry Fireplace Door not only enhances the aesthetic appeal of your fireplace but also adds a layer of protection and safety for your home. With its wide frame, customizable options, and premium quality materials, the Avaleria is the perfect addition to any hearth.

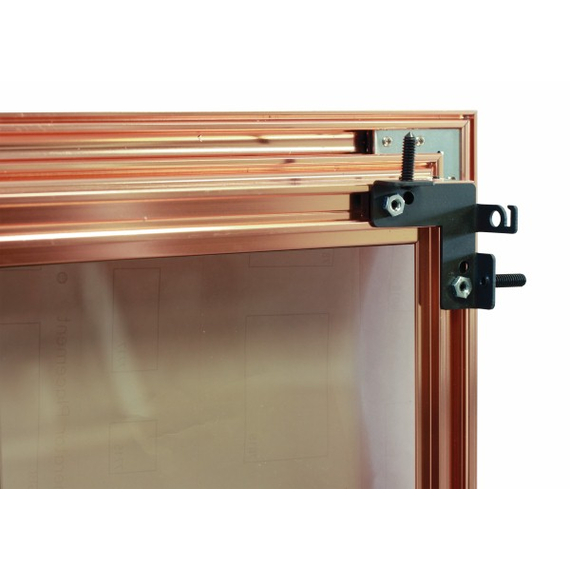

Please note, adding a curtain rod with mesh increases the depth by 2 inches into your firebox.

Experience the difference with the Avaleria Fixed Size Masonry Fireplace Door - where beauty meets functionality.

Specifications:

  • Fireplace Type: Masonry
  • Door Fit: Overlap Fit
  • Door Type: Trackless Bi-Fold Doors | Cabinet Doors

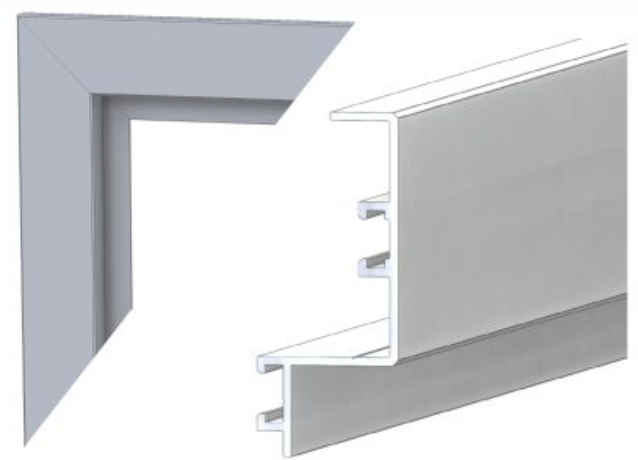

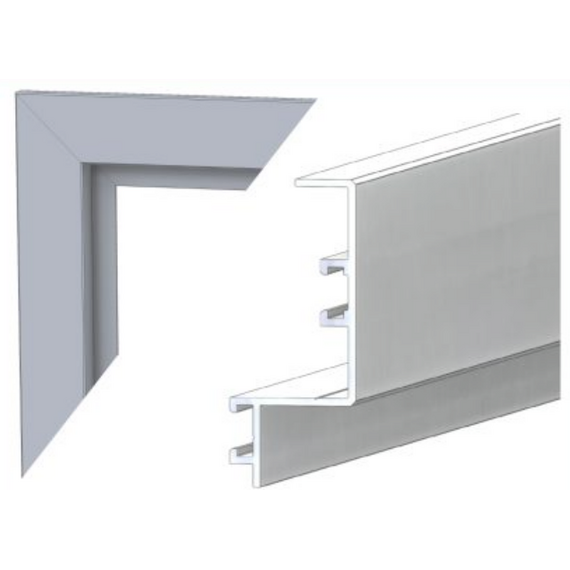

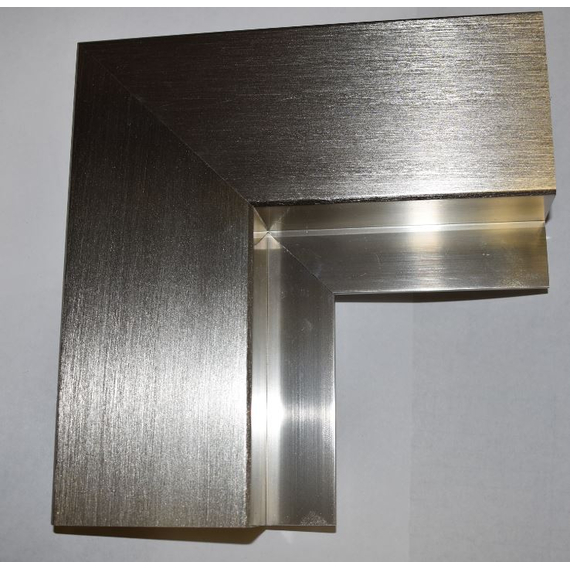

  • Material: 2 5/8" Wide x 3/4" Deep Extruded Aluminum Frame
  • Recessed Depth: 13/16" - The portion of the door that fits inside the opening when installed as an overlap fit - Does NOT apply to Sliding Mesh And Gate Mesh Doors
  • Overlap: Depends On Fireplace Opening Size = Deduct your fireplace opening sizes from the overall frame size listed and then divide that number by 2. That gives you the approximate overlap this door will have.
  • Glass: 1/8" Tempered Safety Glass (1-year warranty)
  • Glass Tints: Grey | Clear
  • Ceramic Glass: N/A
  • Damper: Not Available
  • Mesh Protection: Not Included (Optional)
  • Handles: Square | Wire | Contemporary
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included

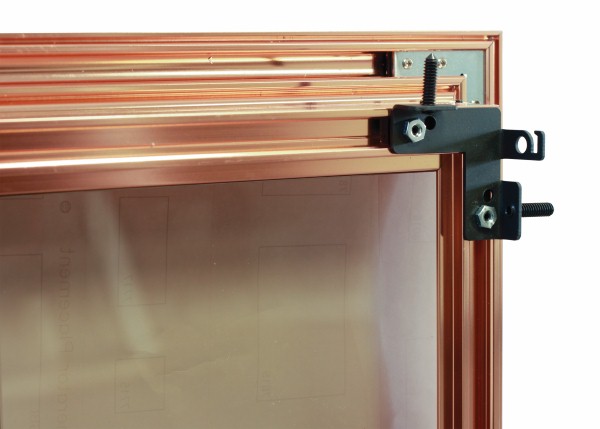

  • Please Note: Curtain rod with mesh will add 2 inches of depth (on top of the frame dimension) into your firebox.
  • Available Finishes: Color swatch page to see all of the different color variations up close.

Downloads:



Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
