Appalachian Overlay Masonry Fireplace Door Overlap Fit

ATTENTION: This is a fixed size door. The overall size of the door is based off of the opening dimensions you enter. In some cases the overall size of the door is not large enough for some openings, and will not provide enough overlap.

The overall size of the door should be at least 2.5" wider and 1.5" taller than the opening dimensions of your fireplace. The overall door dimensions are listed directly above the product price, and will change after opening measurements are entered. If you are unsure if this door will work for your opening, give us a call and we will assist you.



Starting Price Shown - Calculate Your Price By Entering The Exact Measurements
Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.

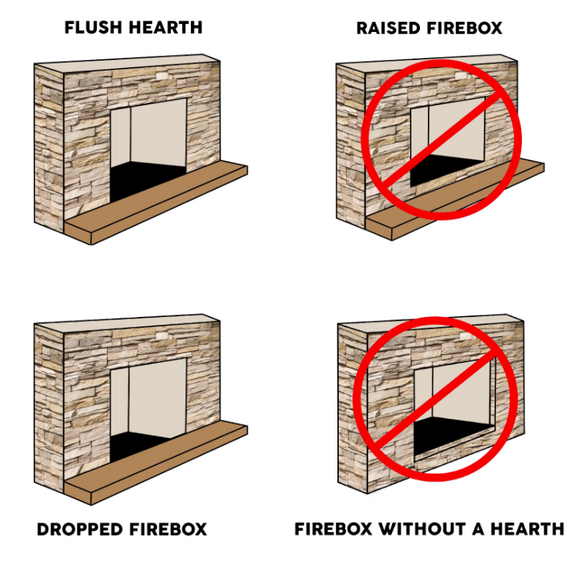

OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the fireplace door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Product Code: 3424

Overall Dimension: 34" x 24"

$1,421.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable. Flanges are recommended for rough or irregular fireplaces!
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+

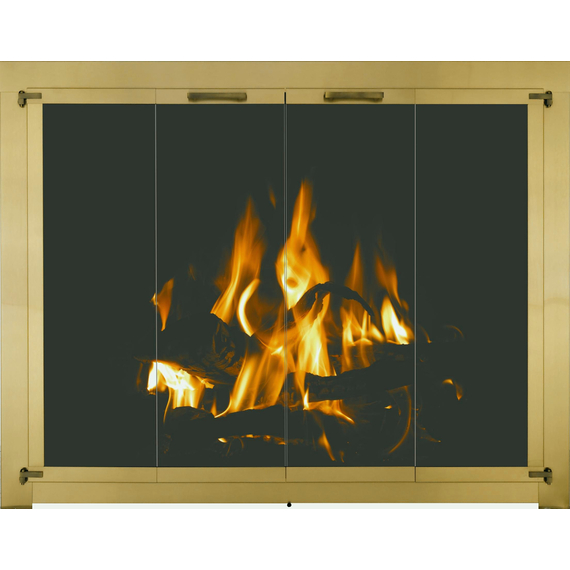

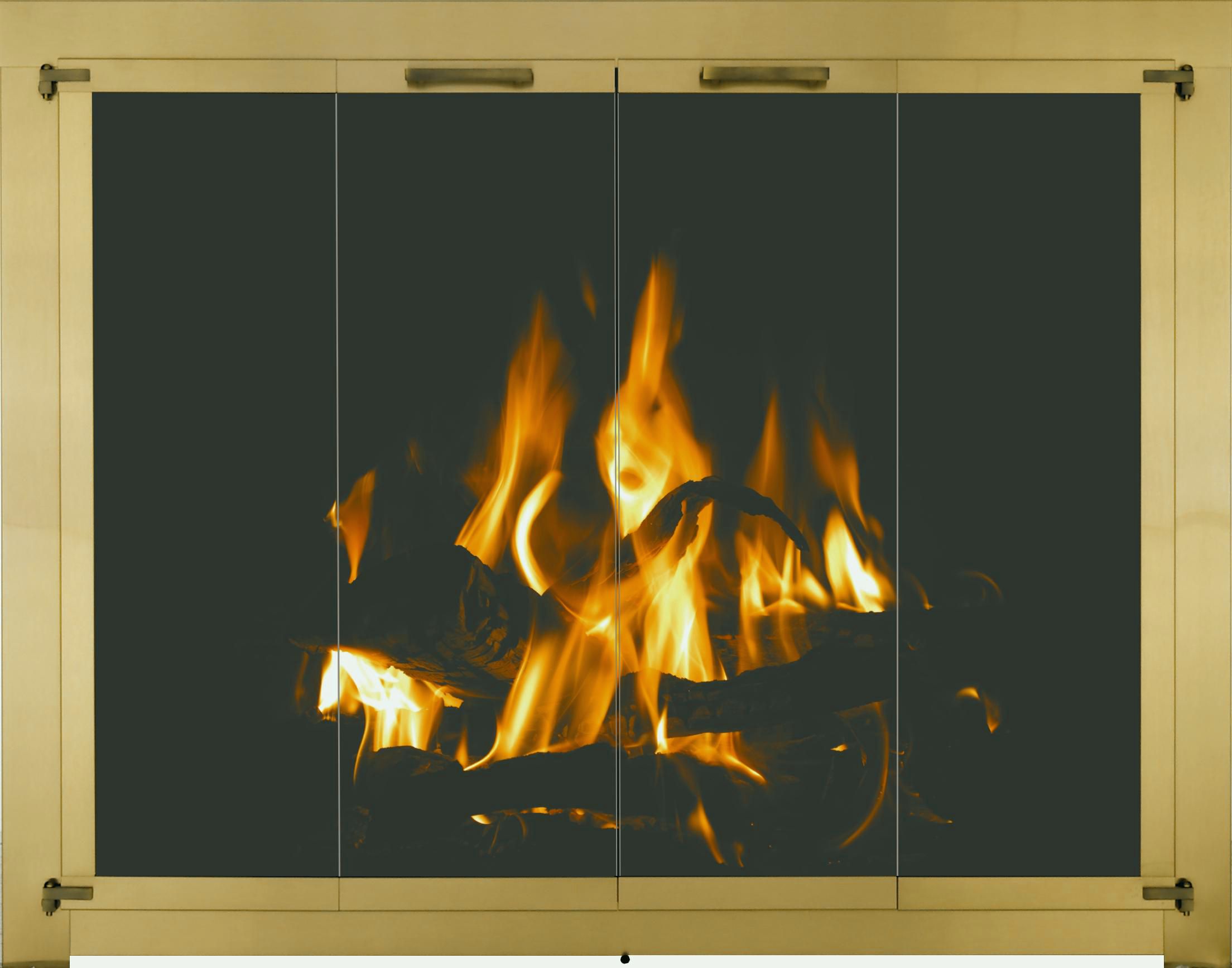

The Appalachian Overlay glass fireplace door gives you the option for a more brilliant color palette. With finishes such as satin brass, brushed chrome, and brushed copper, this attractive overlap fit masonry enclosure will compliment both traditional and contemporary decor themes alike. The 2-inch mainframe is constructed of 14 gauge steel to give you a rigid door that lasts a lifetime. Includes cabinet mesh doors to help keep the sparks inside while burning with the cabinet or bi-fold doors open. Choose square or contemporary style handles, and select the glass tint you prefer for your tempered glass. This wood-burning fireplace door is available with or without a damper.


Appalachian Overlay Masonry Fireplace Door Features Product Features:

  • The Appalachian Overlay door is for masonry fireplaces ONLY
  • This fireplace door ships for free; please allow 4 to 6 weeks for production and transit time
  • 5-year warranty on door frame; 1-year warranty on tempered glass
  • Available as only an overlap fit door, with or without a damper
  • 14 gauge steel frame is 2 inches wide and 3/4 inch deep
  • Check out the video to see the 7 brilliant overlay finish colors offered with this door
  • Cabinet or trackless bi-fold door options
  • Tempered glass is backed by a 1-year warranty and comes in clear or grey tint
  • Cabinet mesh protection included; other variations available
  • Your choice of easy-grip Square or Contemporary handles
  • Door comes fully assembled and ready to install with included hardware
  • NOTICE: In order to burn a fire with the doors closed, the temperature of the fire cannot exceed 400°. The flames must always be 6 inches away from the glass.



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Appalachian Overlay Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap
  • Door Type: Cabinet Doors | Trackless Bi-Fold Doors
  • Material: 2" Wide x 3/4" Deep 14 Gauge Steel Frame
  • Overlap: Depends On Fireplace Opening Size = Deduct your fireplace opening sizes from the overall frame size listed and then divide that number by 2. That gives you the approximate overlap this door will have.
  • Glass: 1/4" Tempered Glass
  • Glass Tint: Grey | Clear
  • Ceramic Glass: N/A
  • Mesh Protection: Cabinet Mesh Included
  • Handle Style: Square | Contemporary
  • Damper: None | Hidden
  • Airtight Option: N/A
  • Assembly: Fully Assembled
  • Mounting: Hardware Included

How To Install Fireplace Door

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
