Appalachian Corner Masonry Fireplace Enclosure

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 36"W and Up To 36"H

=:

$2,432.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
WRITE I AGREE
Available
+

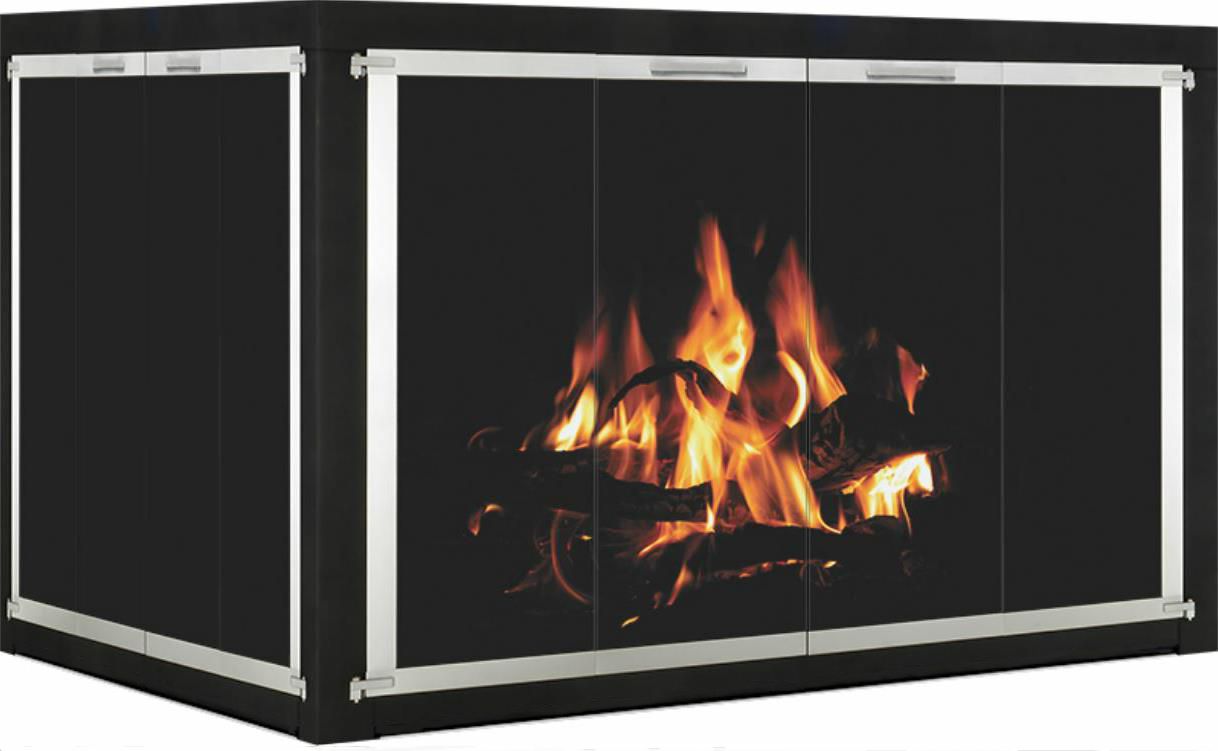

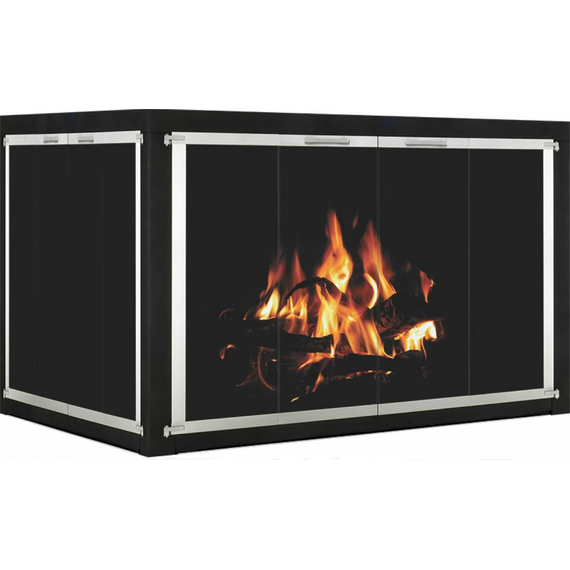

The Appalachian masonry corner fireplace door is a fantastic choice if you’re looking for a modern style with sleek lines! This enclosure has several customization options, including door fit, your choice of cabinet or bi-fold doors, glass tint, and cabinet mesh to protect your valuables and flooring! You can select from several finish colors to coordinate with your home's decor. For the handles and hinges, choose to keep the same finish color as the main frame, or offset the look a bit with a shiny overlay finish! Decide if you’d like a hidden damper or none at all, tell us more about hearth position, and we'll create this custom fireplace door to your exact measurements. Easy to install, the Appalachian corner door includes all of the mounting hardware you'll need. The 14 gauge steel construction will ensure that this enclosure will last for years. Proudly made in the USA! Free shipping!


Appalachian Masonry Corner Fireplace Door Features and Benefits Product Features and Benefits:

  • The Appalachian Corner Fireplace Door is for masonry fireplaces only
  • Enjoy free shipping on this product; please allow 4 to 6 weeks for production and transit time
  • 5 year warranty on door frame; 1 year warranty on tempered glass
  • Customize as an inside or overlap fit door
  • Cabinet style or bi-fold doors available for both long and short sides
  • Heavy duy 14 gauge steel frame is 2 inches wide and 3/4 inch deep
  • Check out the videos for the available door finishes
  • 1/4" Tempered Safety Glass available in clear, grey, or bronze tints
  • Cabinet mesh is optional with additional styles available
  • Damper options
  • 3 handle styles to choose from

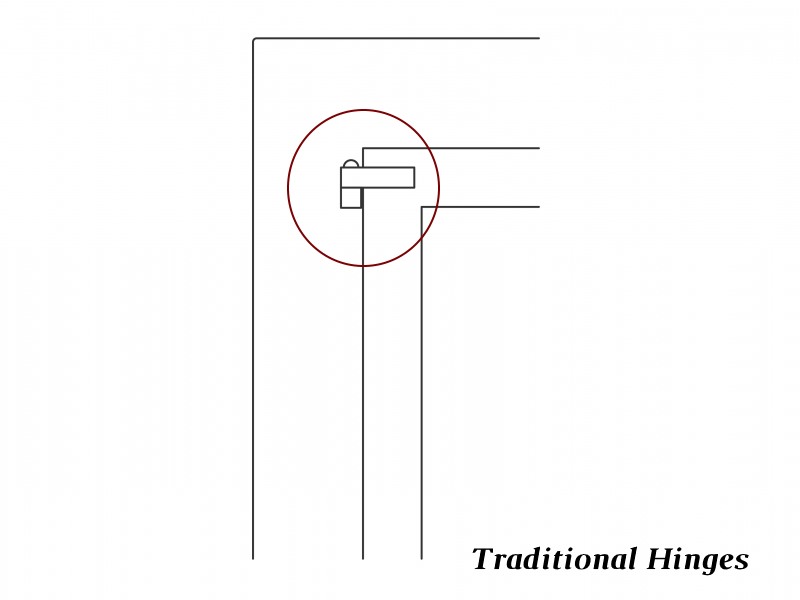

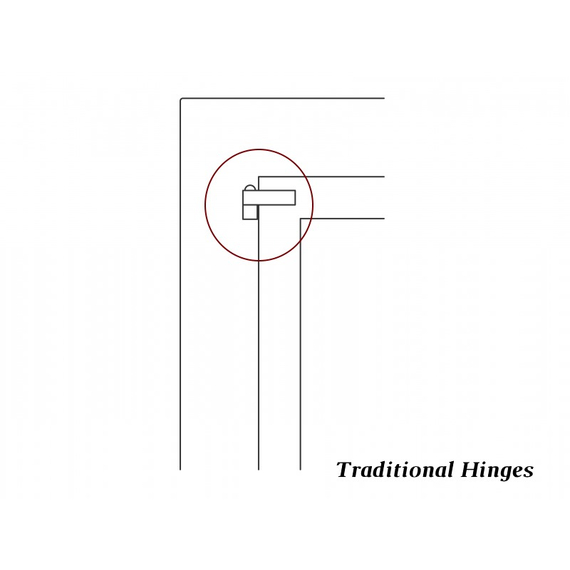

  • Handles and hinges can be customized to match or contrast the main frame finish

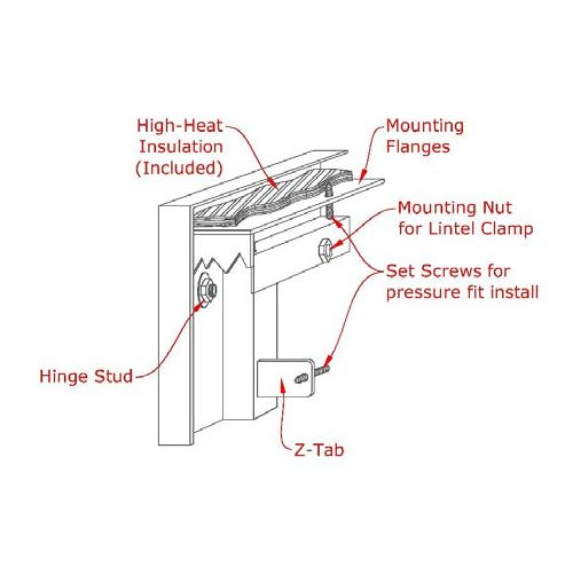

  • Corner fireplace door is fully assembled with all mounting hardware included



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Appalachian Masonry Corner Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry Corner
  • Door Fit: Overlap | Inside
  • Door Type: Cabinet (Twin) Doors | Trackless Full-Swing Bi-Fold

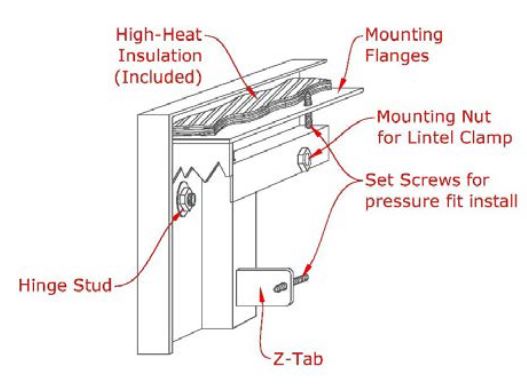

  • Material: 2" Wide x 3/4" Deep Heavy Duty 14 Gauge Formed Steel Frame
  • Approximate Overlap: 2" (all 4 sides)
  • Glass: 1/4" Tempered Safety Glass (1 year warranty)
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Mesh Screen: Cabinet Mesh Protection Optional
  • Handle Styles: Square | Wire | Contemporary
  • Damper: Available
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Curtain rod with mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
