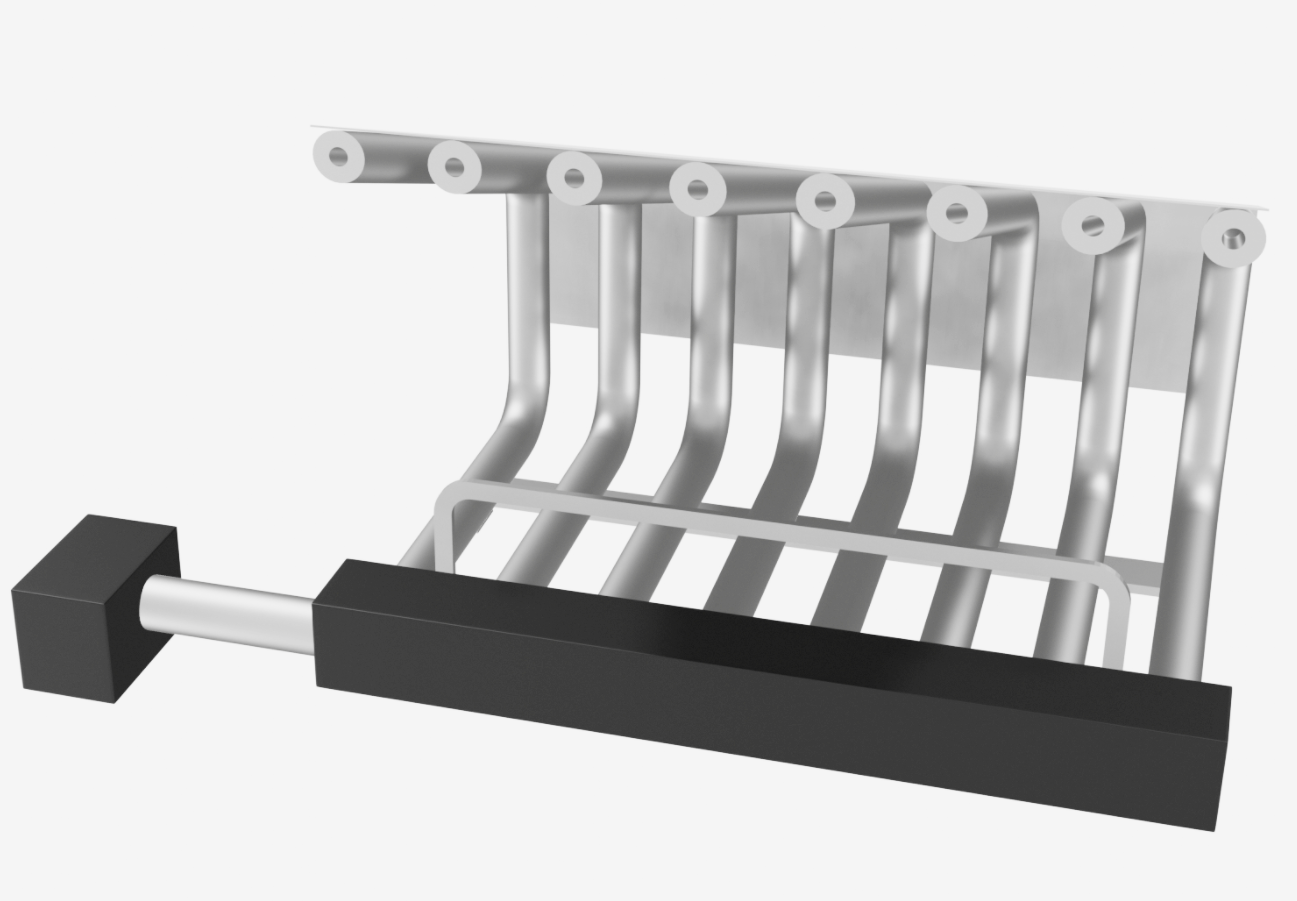

8 Tube Fireplace Heat Grate For Masonry Fireplaces
Free shipping
This 8-tube fireplace grate heater is ideal for most masonry fireplaces, providing an efficient way to increase heat output. Its smart design draws cool air from the bottom, reheats it, and distributes it back into the room for optimal warmth. For maximum efficiency, use it with the optional blower kit to boost heat output by up to 500°. Built for durability, the tubes also serve as a fireplace heat grate, allowing you to build your fire directly on top. Functioning as a complete fireplace heat exchanger, this versatile unit eliminates the need for additional fireplace accessories.
Product Specifications |
|
|---|---|
| Minimum Opening Dimensions | 44" W x 20-1/2" H x 20-1/2" D |
| Overall Dimensions | 39.25" W x 20" H x 20" D (Width includes blower and tubes) |
| Front Height | 20" |
| Rear Height | 13-1/2" |
| Front Width | 29-3/4" |
| Rear Width | 29-3/4" |
| Leg Height | 1-1/2" |
| Number of Tubes | 8 Heat Exchange Tubes |
| Tube Diameter | 1-3/4" |
| BTU Rating / Output | Up to 96,000 BTUs/hr (Supplemental heat circulation; output varies based on burn conditions) |
| Flex Pipe Connector | 8" to 18" Adjustable Flex Pipe (Used to connect blower) |

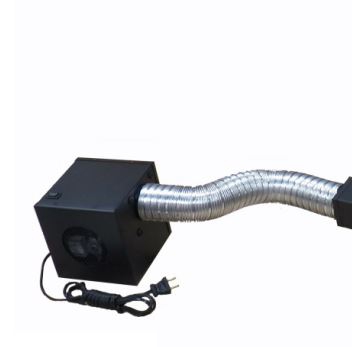

| Included Accessories | 148 CFM Blower with Variable Speed Control & Rear Heat Enhancer Plate |
