4 Sided Overlap Fit Phoenix Outdoor Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



4-SIDED OVERLAP FIT (for suspended openings)
When the fireplace door is larger than the opening on ALL 4-SIDES of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the firebox floor either to the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height. Make sure there is enough space for the frame to overlap on all sides of your fireplace opening!



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$1,005.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4 Weeks Question | Why Buy From Us?

I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Available
+

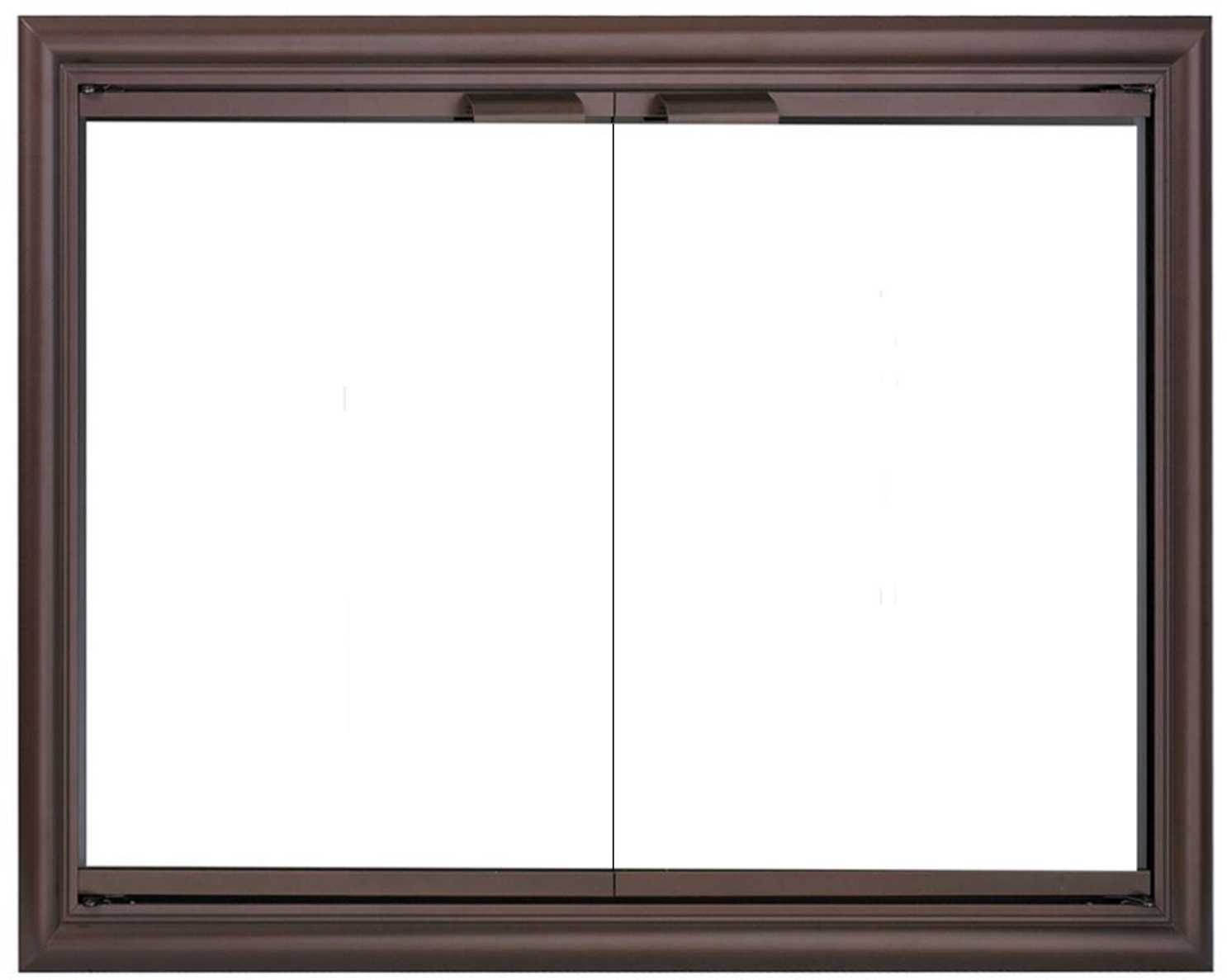

The 4 Sided Overlap Fit Phoenix Outdoor Masonry Fireplace Glass Door is the creation of Design Specialties, crafted and designed for outdoor masonry fireplaces only. With over 2 inches of all around frame you can set the design stage in your outdoor wood burning fireplace setting. The Phoenix offers many included customizing options to create your perfect outdoor fireplace setting.

You have over 20 color tone options, all in earthbound tones to match perfectly with your home decor. You can also choose to upgrade the pane design of your new fireplace door with one of three options offered as the Rectangle with Mission Window Pane, The Rectangle Sunrise Window Pane, or The Rectangle with Window Pane. Your choices for personalizing your new fireplace door don’t stop there though, you can choose which handle design best suits your needs, you have four color toned safety tempered glass options, and you have two outdoor stainless steel options; The stainless steel hinges are offered as an upgrade and recommended for outdoor use. You also have the upgrade choice between two stainless steel spark protection Stainless Steel Gate Mesh or the Stainless Steel Mesh Curtain. Your new 4-sided masonry fireplace glass door will arrive fully assembled and will ship for free, with a few restrictions, within the contiguous USA.

The Phoenix is crafted for masonry fireplaces with a raised, suspended, or ‘hole-in-the-wall’ termed fireplace openings. These openings allow your new fireplace door to overlap on all four sides. If you aren’t sure of the fireplace inside lingo or just don’t know which fireplace opening you have, we have many pictures above to guide your purchase. Or you can give us a call, send us a message, snap a photo, and we can find your perfect new fireplace together.




Please note:

  • This is a 4 SIDED OVERLAP FIT DOOR for masonry fireplaces only.
  • The sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox.
  • Cabinet mesh adds 3/4 inch.

Phoenix Outdoor Masonry Fireplace Door Features Product Features:

  • The Phoenix 4 Sided Overlap Fit Outdoor Fireplace Door is for masonry fireplaces without a hearth
  • Doors will overlap approximately 1  1/2 inches on all 4 sides
  • Fireplace door ships for free; please allow 4 weeks for production and transit time
  • 1-year warranty on workmanship; 2-year warranty on metalwork (excluding finish)
  • Lifetime warranty on the tempered glass panels
  • Fabricated with twin-style doors
  • The aluminum frame is 2  1/8 inches wide and 1/2 inch deep
  • Check out the videos for the available door finishes
  • 1/4 inch thick tempered safety glass can be tinted grey, clear, or bronze
  • Pick from 2 handle styles to complete the look of your fireplace door
  • Hidden damper not available for outdoor fireplace doors
  • Door comes fully assembled with all mounting hardware included
  • Stainless steel hardware and hinges.
  • Spark protection are available as upgrades for exterior installation



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Phoenix Outdoor Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry
  • Door Fit: 4 Sided Overlap Fit
  • Material: 2 1/8" Wide x 1/2" Deep Extruded Aluminum Frame
  • Hinges: Stainless Steel
  • Approximate Overlap: 1 1/2"
  • Recessed Depth: 1-1/8" - The portion of the door that fits inside the opening when installed as an overlap fit - Does NOT apply to Sliding Mesh And Gate Mesh Doors
  • Door Type: Cabinet Doors
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Mesh Screen: Not Included
  • Handle Style: Simplicity | Square
  • Damper: No Damper
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
