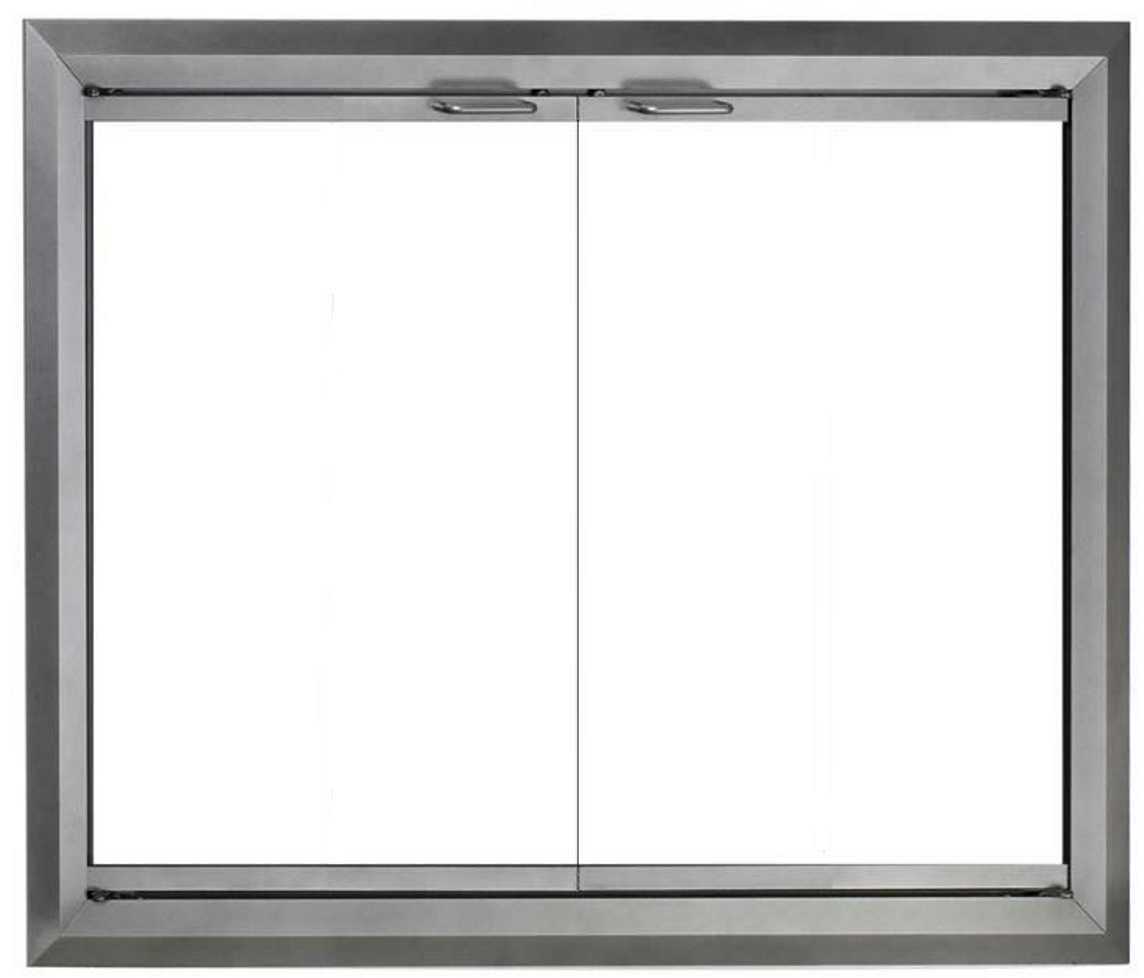

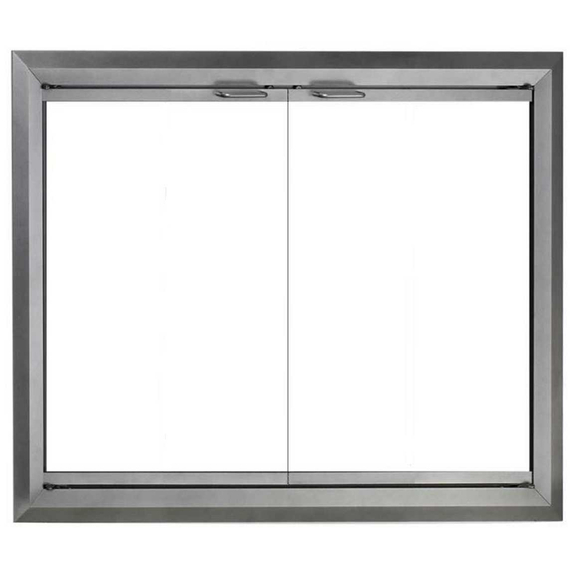

4 Sided Overlap Fit Apex Outdoor Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



4-SIDED OVERLAP FIT (for suspended openings)
When the fireplace door is larger than the opening on ALL 4-SIDES of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the firebox floor either to the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height. Make sure there is enough space for the frame to overlap on all sides of your fireplace opening!



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$1,005.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4 Weeks Question | Why Buy From Us?

I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Available
+

With over 2 inches of frame design the Apex Outdoor will highlight your patio setting in style. Created only for masonry fireplaces with a hole-in-the-wall design, the Apex is a perfect choice as you update your outdoor fireplace.

The work of the folks at Design Specialties, the Apex will be custom cut to fit your personal fireplace needs. Your fireplace will work with this design if it is the above mentioned hole-the-wall, also known as suspended or raised in fireplace terms. If you aren’t sure which style you have or aren’t up on your fireplace terms, we have many pictures above to help as you find your new perfect fireplace door. The 4 Sided Overlap Fit Apex Outdoor Masonry Fireplace Glass Door offers many included customizable choices, with over 20 color tone options, two door handle styles, and four tones of tempered safety glass the Apex will fit perfectly into your design style.

The Apex also offers the opportunity to upgrade the design with a full window motif offered in the Rectangle with Mission Window Pane, The Rectangle Sunrise Window Pane, or The Rectangle with Window Pane. Another highly recommended upgrade are one of the two spark protection offers, of the the Stainless Steel Gate Mesh or the Stainless Steel Mesh Curtain, created in stainless steel for outdoor use choosing spark protection will add to your peace of mind while you enjoy your fireplace setting.



Please note:

  • This is a 4 SIDED OVERLAP FIT DOOR for masonry fireplaces only.
  • The sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox.
  • Cabinet mesh adds 3/4 inch.

What You Need To Know If Door Is Used Outdoors
Aluminum doors intended for outdoor use will have most components other than the outer frame and door frames made from stainless steel. Not all components are stainless however and some staining due to corrosion will occur. Fireplace doors used outdoors with stainless components will function as intended if kept clean and the moving components oiled occasionally. Manufacturer is not responsible for tarnishing or discoloration due to environmental factors.


Apex Masonry Fireplace Door Features and Benefits Product Features and Benefits:

  • The Apex 4 Sided Overlap Fit Outdoor Fireplace Door is for masonry fireplaces without a hearth
  • Doors will overlap approximately 1  1/2 inches on all 4 sides
  • Fireplace door ships for free; please allow 4 weeks for production and transit time
  • 1-year warranty on workmanship; 2-year warranty on metalwork (excluding finish)
  • Lifetime warranty on the tempered glass panels
  • Fabricated with twin doors

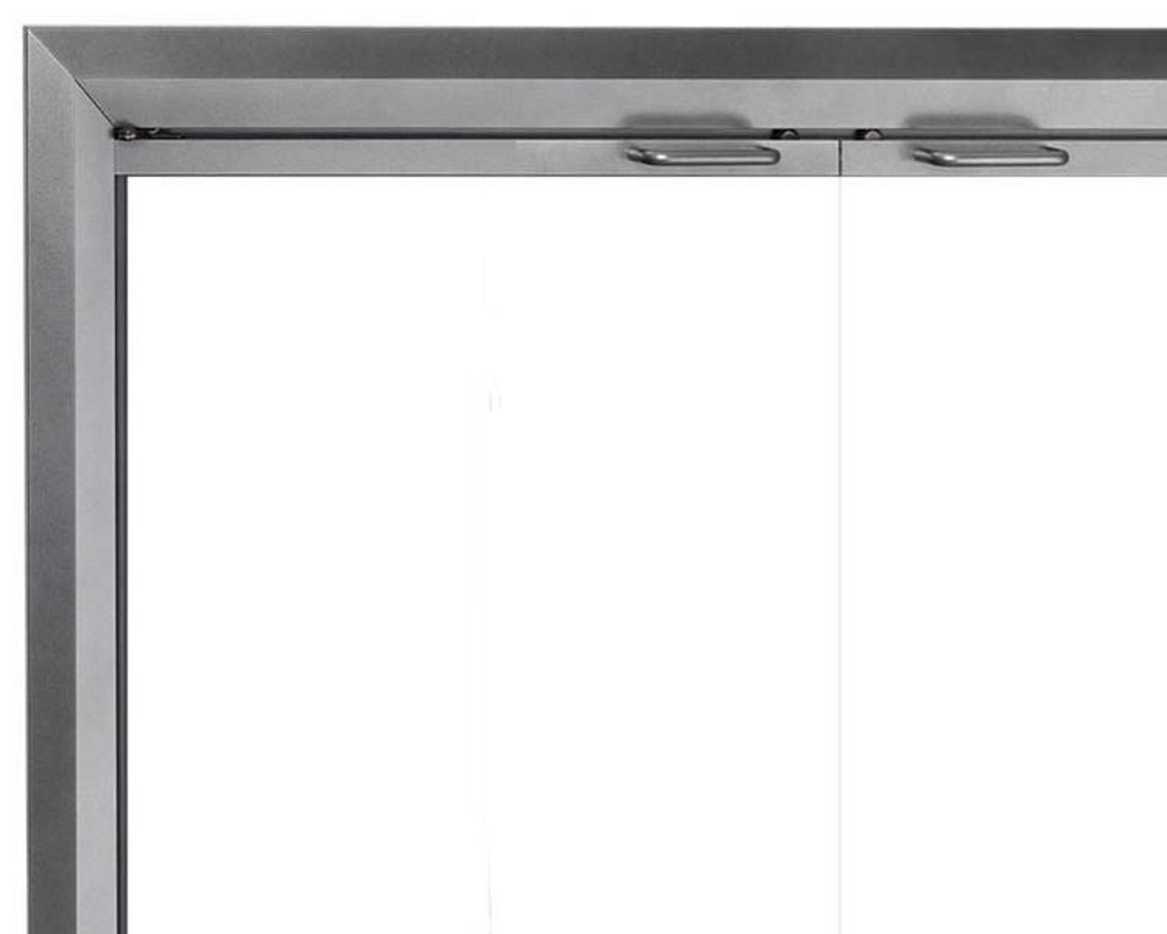

  • The aluminum frame is 2  1/8 inches wide and 3/4 inch deep
  • Check out the videos for the available door finishes
  • 1/4 inch thick tempered safety glass can be tinted grey, clear, bronze, or black
  • Optional spark protection
  • 2 handle styles include simplicity, square
  • Hidden damper not available for outdoor fireplaces doors
  • Fully assembled door includes all mounting hardware
  • Stainless steel hardware and hinges
  • Spark protection are available as upgrades for exterior installation



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Apex Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry
  • Door Fit: 4 Sided Overlap Fit
  • Material: 2 1/8" Wide x 3/4" Deep Extruded Aluminum Frame
  • Hinges: Stainless Steel
  • Approximate Overlap: 1 1/2"
  • Recessed Depth: 7/8" - The portion of the door that fits inside the opening when installed as an overlap fit - Does NOT apply to Sliding Mesh And Gate Mesh Doors
  • Door Type: Cabinet Doors
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tint: Grey | Clear | Bronze | Black
  • Ceramic Glass: N/A
  • Mesh Screens: Not Included
  • Handle Style: Simplicity | Square
  • Damper: No Damper
  • Airtight Option: N/A
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
