20" See-Thru Evening Campfire Logs - Build Your Gas Log Set

Starting at:
$623.00
Short description:

Please Note:
Starting Price Is For LOGS ONLY!
BURNER | VALVE | ACCESSORIES ARE OPTIONAL



    Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-6 Weeks Question | Why Buy From Us?

This product has a wood fuel variation, see under the Wood Fire Pit category.
Available
+

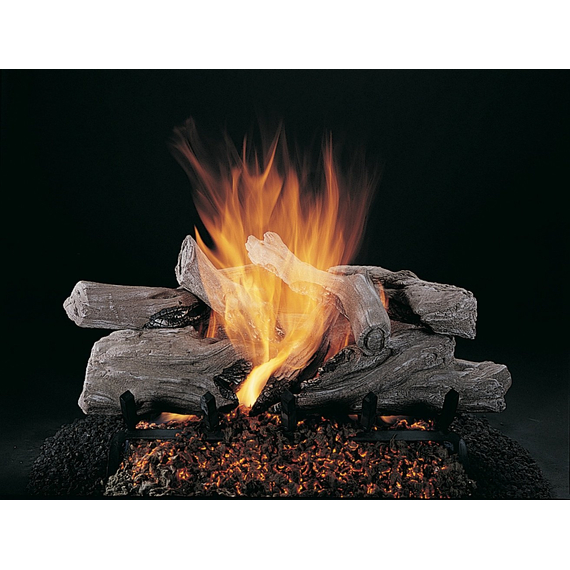

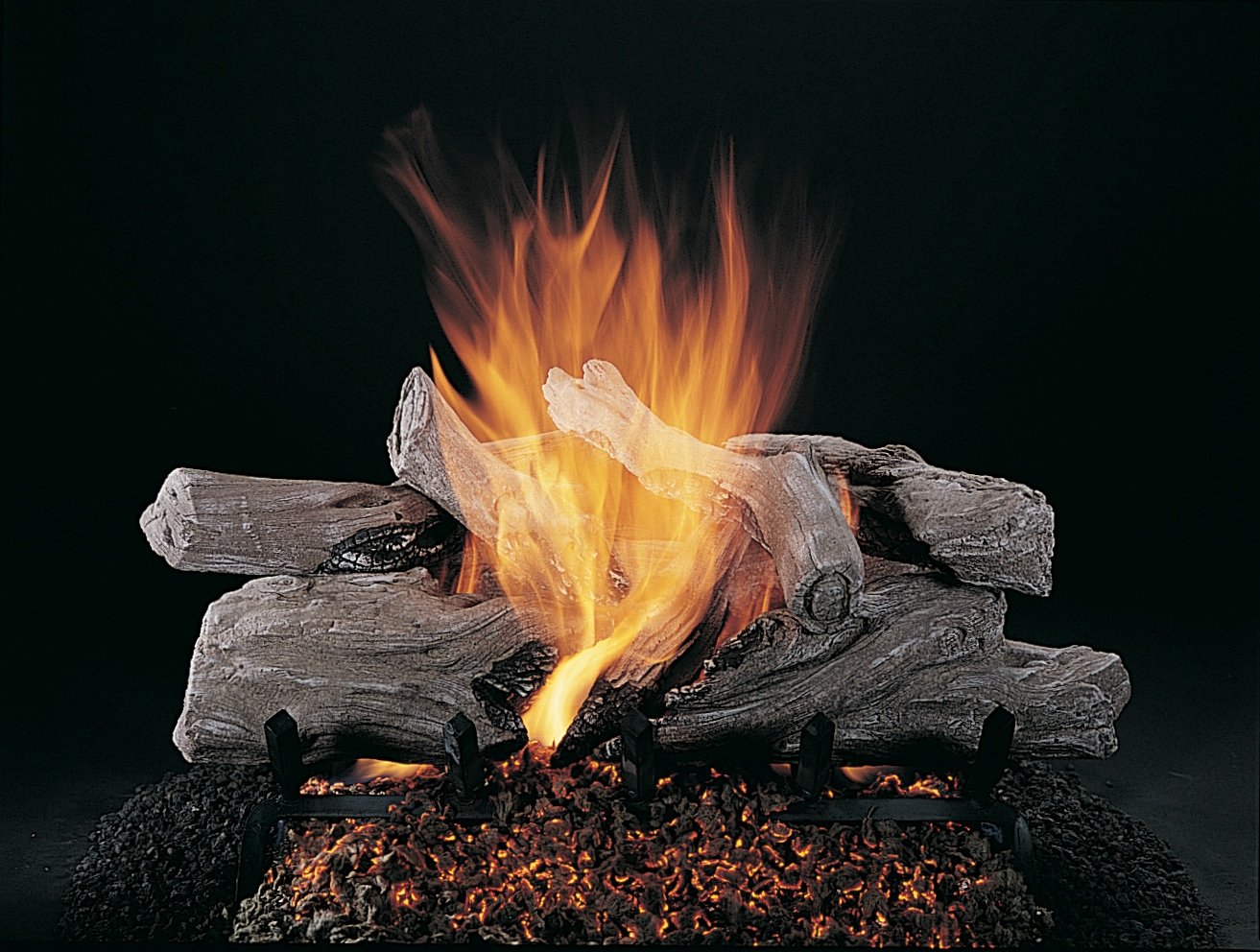

The 20 inch Evening Campfire see through logs with optional burner & valve will add a rustic, outdoorsy flair to your home decor! These Rasmussen vented gas log sets feature gnarled driftwood with special charring on the bark to create a weathered, natural look. Modeled from samples of real trees, Rasmussen Gas Logs create extremely realistic, refractory ceramic molds that boast incredibly detailed grain patterns and bark texture. We offer two different burners with varying ember beds and viewing platforms so you can customize the full effect to perfectly suit your fireplace. For a fire that lights with a remote-control or electronic ignition, check out our selection of easy-to-use ignition systems!

Please Note: Vented gas logs must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate air flow. For your safety, the burner pan and valve must be assembled by a certified gas professional.


Evening Campfire Vented Gas Log Set Specifications Product Specifications:

  • Log Set Type: Vented Indoor
  • Log Set Style: Evening Campfire
  • Fuel Type: Natural Gas | Propane
  • Log Set Width: 20 Inch
  • Number of Logs: 8 Pieces
  • Material: Steel Rod Reinforced Refractory Ceramic
  • Burner Type: CS Burner | DF-CF Burner
  • Burner Material: Heavy16-Gauge Steel | 1/2" Schedule-40 Main Burner Pipe | 1/4" Steel Tubing For Ember Booster
  • Includes: Log Grate | White Sand Pan Filler (Natural Gas Only) | Volcanic Ash Pan Filler (Propane Only) | Ember Magic | Flexible Stainless Steel Non-Whistling Connector Kit | Damper Clamp

VALVES & CONTROLS:

  • Basic Manual On/Off Control (SPK1) Standing Pilot = Turn the valve knob to light the main burner and adjust the flame height. Is not upgradable to remote control
  • Remote Ready (RPK3E+SR-2R) Standing Pilot = Latching solenoid system with ON/OFF Remote
  • Remote Ready (RPK3E+THR-2R) Standing Pilot = Latching solenoid system with ON/OFF/THERMOSTAT Remote
  • Variable Flame Height Remote Control (RMC1E) Standing Pilot = Light the burner and control the flame height with the hand-held wireless remote control (included)
  • SPK1 | RPK3 | RMCE controls have standing pilots that consume 300 BTU/hour (1 therm of natural gas everyday, or 1 gallon of propane every 12.7 days).
  • Millivolt Switch/Remote Ready (RPK3+SR-MV1) Standing Pilot = Light the burner with the included wired wall switch & ON/OFF Remote
  • Millivolt Switch/Remote Ready (RPK3+THR-MV1) Standing Pilot = Light the burner with the included wired wall switch  & ON/OFF/THERMOSTAT/Count Down Timer Remote
    Millivolt Valves have a standing pilot that consumes 575 BTU/hour (1 therm of natural gas every 7.2 days, or 1 gallon of propane every 6.6 days). They have an installed switch for ON/OFF control and may also use  SR-MV1 and THR-MV1 remote controls, or with a wired wall switch, wired wall timer, or a home automation system
  • EIS-RS150 Spark To Pilot = Battery powered. Variable Flame Height Remote Control. Includes Remote. 24-inch pilot leads to install within 18-inches of burner inside the firebox.

Evening Campfire Vented Gas Log Set Features Product Features:

  • Available in different sizes including: 20 inch | 24 Inch | 30 Inch
  • Available as a natural gas or propane burning log set for indoor vented fireboxes only
  • Please see burner manual for log placement!
  • Beautifully hand crafted and hand painted
  • Made from steel rod reinforced refractory ceramic
  • To ensure years of enjoyment the materials are guaranteed to withstand high temperatures
  • Steel CS and DF-CF burner comes complete with sand or volcano ash (depending on fuel type) and glowing embers to create a real ember bed look
  • Burner options include:
    • CS Burner - Rectangular-shaped full-pan burner. Single pipe with Ember Boosters or Baffle to distribute gas. Logs, FireBalls, etc. sit in the pan – no Grate is used. 4.25” high with the legs, 2” high without the legs. Use in Single, Double and Multi-sided fireplaces.
    • DF-CF Burner - Burner style provides flame and embers for see-through fireplaces with ease of installation
  • Burner distributes up to a MAX 110,000 BTUs with the larger sizes.
  • Flexible stainless steel non-whistling connector kit and damper clamps are all included for easy installation
Fireplace Sizing Requirements:

Fireplace
Dimension

Front

Rear

Depth

Opening
Height

Chimney
Diameter
20" Log Set CS Burner 27 in 22 in 14 in 16 in 7 in
20" Log Set DF-CF Burner 26 in 26 in 18 in 16 in 7 in
Gas Log Set BTUs:

Gas Log Set

Natural Gas
BTUs

Propane
BTUs
20" Log Set CS Burner 76,000 35,000
20" Log Set DF-CF Burner 75,000 50,000

Manufacturer's Warranty

VENTED GAS LOGS and VENTED ALTERNA

For Residential Single-Family Indoors (Non-Commercial, Non-Multi-Tenant or Non-Hospitality):
Rasmussen warrants against defects in manufacturing and materials:
- Logs (loss of both cementitious and ceramic bonds, evidenced by crumbling) for the
lifetime of the original purchaser in the original installation.
- Burners and grates for
two years against defects in materials or workmanship.
- Safety Lighting Controls for
one year against defects in materials or workmanship.

For all Outdoors and Commercial, Multi-Tenant and Hospitality:
- Logs (loss of both cementitious and ceramic bonds, evidenced by crumbling) for
one year.
- Burners and grates for one year against defects in materials or workmanship.
- Safety Lighting Controls one year, except no warranty for Outdoors, as they are not intended for outdoor installations.



Cracks in Logs

Mere cracking is not grounds for warranty replacement of a log, as all logs will experience cracking at some time.  The logs are subjected to uneven heating, which relieves itself through cracking.  Such cracks are most evident in smooth faced logs like split face, manzanita and birch.  We reinforce the logs with steel rods to hold together the log (which is much more rigid and effective than other means used by competitors, such as metal shards, mesh, plastic threads or none at all).
