The 2 Pilot Burner 24VAC all-weather electronic ignition system (AWEIS) is a favorite among customers and contractors alike! This Natural Gas outdoor electronic ignition is compact enough to fit into smaller fire features. Use it confidently in breezy or misty conditions. The AWEIS comes with a smaller electrical box compared to our commercial grade devices, but performs with the same dependability. A maximum output of 290,000 BTUs per hour allows you to debut an astonishing performance in your shallow fire bowl or other fire display. The AWEIS comes with a heat shield and its use is optional.

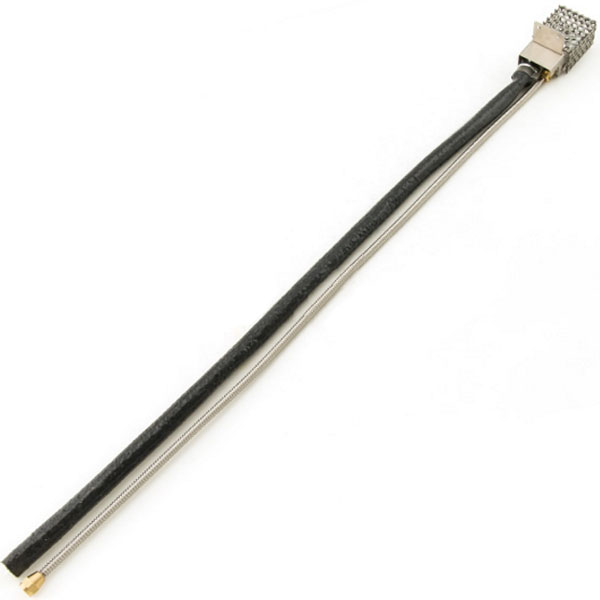

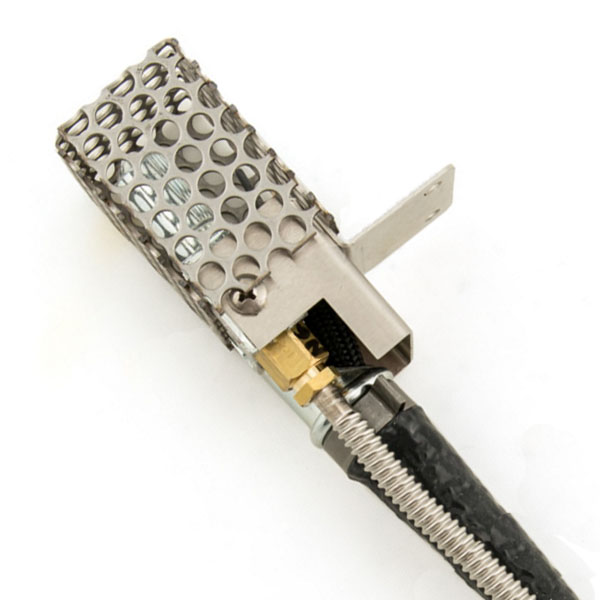

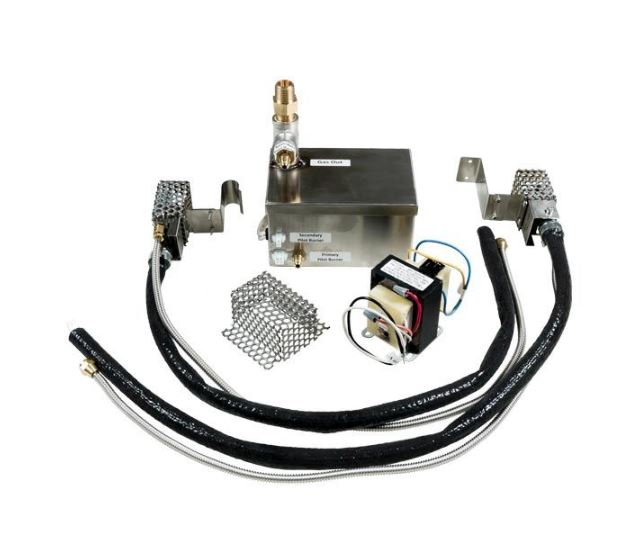

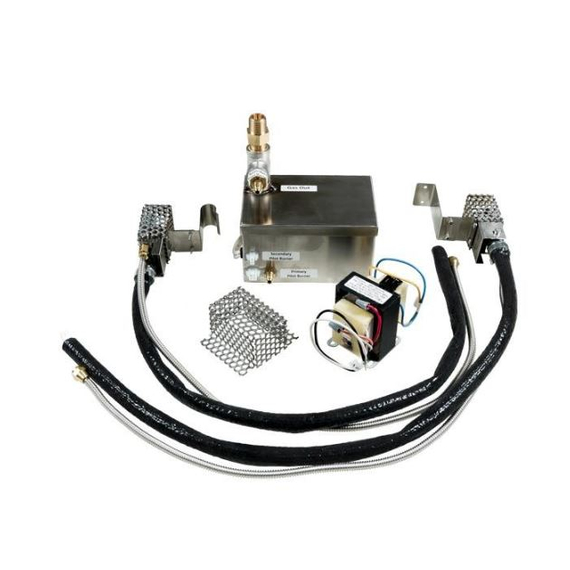

AWEIS Standard Capacity with (2) 18" Pilot Burners / Natural Gas. Includes 24 volt AC Transformer, Pilot Burner Assembly, Ignition Control Module, Heat Deflector Shield and Install Instructions. (Inlet Size: 1/2" FIP Outlet Size: 1/2" FIP) - 290K BTU's. (Pilot Burner sizes available upon request - 12"/18"/24"/30" // Extensions available after the sizes listed here.) - (4 Pin Molex)
WHATS THE DIFFERENCE BETWEEN 30 VDC and 24 VDC
The 30 VDC AWEIS was developed specifically for fire features near Swimming Pools and Spas (within 5' according to the code). The 24 Volt AC version of the AWEIS can be used anywhere OUTSIDE of 5' from the pool
AWEIS Residential Mini
Heat Shield Diagram
AWEIS Troubleshooting Guide
Automated Fire 101
All Field Serviceable AWEIS and SUBEIS systems are warranted for (1) year from date of purchase for Commercial Applications and (3) years from date of purchase for Residential Applications provided the product has not been modified, abused, misused or improperly installed, maintained or repaired during such period. Manufacturer will at its discretion, either repair or replace the defective product. If one of the Field Serviceable parts of an AWEIS or SUBEIS fails a replacement part will be provided at no charge to the customer. Shipping & Labor cost to replace the failed field serviceable is not covered under this warranty.
