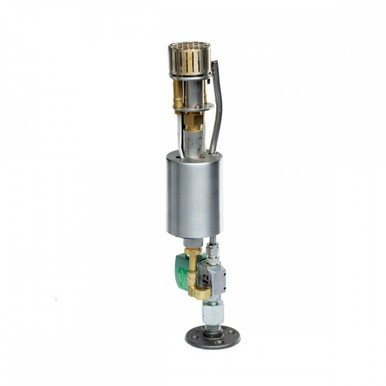

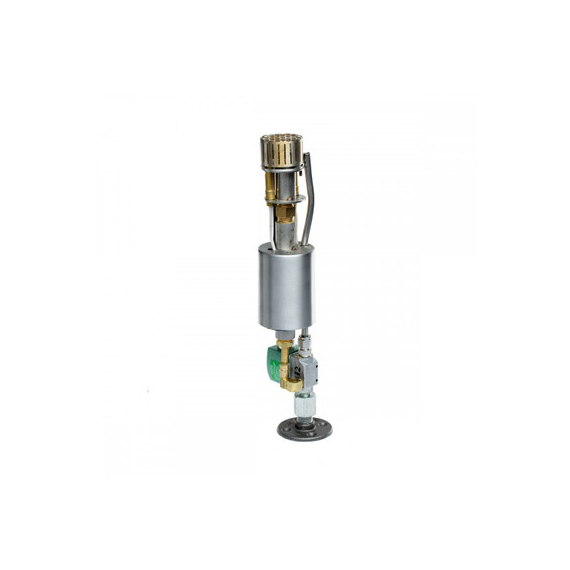

The Vulcan with Burst Feature Electronic Gas Fire Pit Module provides a high-quality component that can be used to complete a DIY fire pit project. The Vulcan Fire Module is the smallest electronic ignition system on the market today. Featuring a blend of technology and components, it offers a simple, quick, and reliable way to ignite a gas fireplace. Despite extreme weather conditions, the 316 marine-grade stainless steel control box is designed to maintain safety and protect the electronic components. The unit operates on 24V AC power to start the hot surface igniter, which ignites the pilot light. After the pilot is lit, the thermocouple senses heat and transfers an electrical signal to open the main gas valve. Available for both Propane and Natural Gas, this ignition system is powerful and convenient and sure to warm you and your guests during your evenings outdoors. This unit offers an ideal ignition system for smaller fire features and torches.
Features:
- Made in the USA
- Material: 316 Marine Grade Stainless Steel
- Natural Gas or Liquid Propane Compatible
- Electronic Ignition
- Hot Surface Ignition (Glow Plug) with Intermittent Pilot
- Flame/Heat Sensing Thermopile
- Compatible with Various Remote (Sold Separately)
Specifications:
| Material: | 316 Stainless Steel |
| Finish: | Stainless Steel |
| Fuel Type: | Natural Gas or Liquid Propane |
| Max BTUs/Hour: | 25,000 |
| Ignition Type: | Hot Surface Ignition (Glow Plug) |
| Ignition Sequence: | Intermittent |
| Ignition Source: | Pilot |
| Flame/Heat Sense: | Thermopile |
| Voltage: | 24VAC |
| Valve Dimensions: | 2.5" x 8" |
| Inlet Size: | 1/2 Inch FIP |
| Outlet Size: | 1/2 Inch FIP |
| PSI Required: | 2 psi |
| Certifications: | ANSI Z21.97-2014 | CSA 2.41-2014 | CSA C22.2 No. 3-M1998 (R2014) |
| Includes: | 24VAC Transformer | Installation Instructions |
