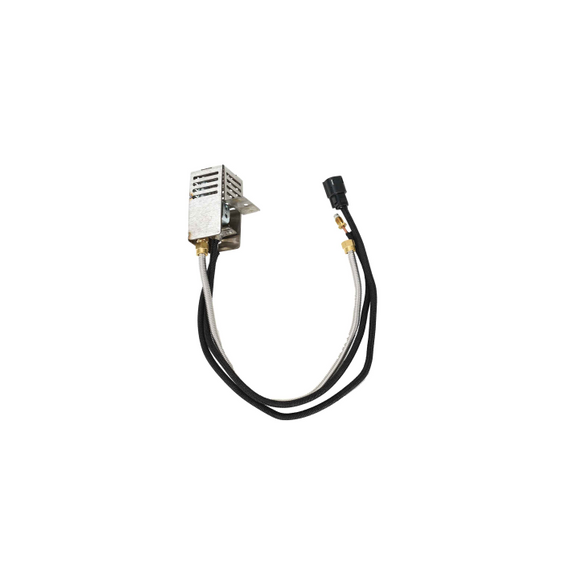

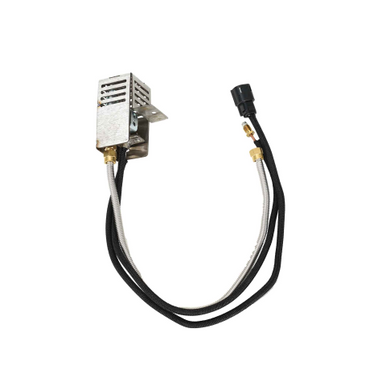

Pilot Igniter Assembly for 12V or 110V Electronic Ignition System - TOP-500PI

The Outdoor Plus Pilot Igniter is a high-quality product engineered for both reliable performance and longevity. This product comes in two variants, the standard model (SKU: OPT-PIR) and the commercial-grade model (SKU: OPT-PIRCG), allowing customers to choose the best model for their specific needs. Boasting a considerable length of 18 inches, this igniter is designed to suit various outdoor applications. Whether for standard or commercial-grade applications, trust only The Outdoor Plus Pilot Igniter for your needs.

The Pilot Igniter Assembly parts are designed to function optimally with both 12V and 110V Electronic Ignition Systems.

The below-mentioned compatible parts are derivatives of the main part number:

TOP-500EIS-007-008.
Mini Capacity Parts (Typically used on bowls, maximum 190k BTU, 3/8" Thread)

• TOP-500EIS-100-12: This is a low voltage part and used for hard-wired units.
• TOP-500EIS-100-110: This part is designed for plug and play systems.
  Standard Capacity Parts (Commonly used on fire pits, maximum 290k BTU, 1/2" Thread)
• TOP-500EIS-200-12: This low voltage part is ideal for hard-wired units.
• TOP-500EIS-200-110: This part is suitable for plug and play systems.
  High Capacity Parts (Typically used on larger installations, maximum 510k BTU, 3/4" Thread)
• TOP-500EIS-300-12: This is a low voltage part for hard-wired units.
• TOP-500EIS-300-110: This is a plug and play part.

Please note, it is essential that you use the right part for optimal performance and to prevent any damage to your installation. If you're unsure, please contact our customer service team for guidance.
