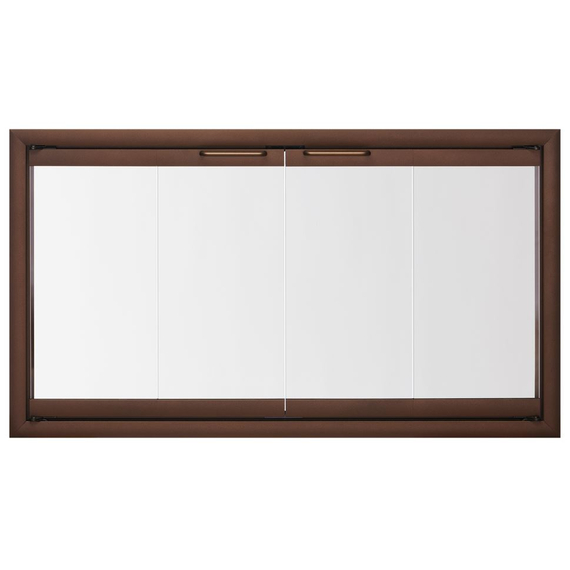

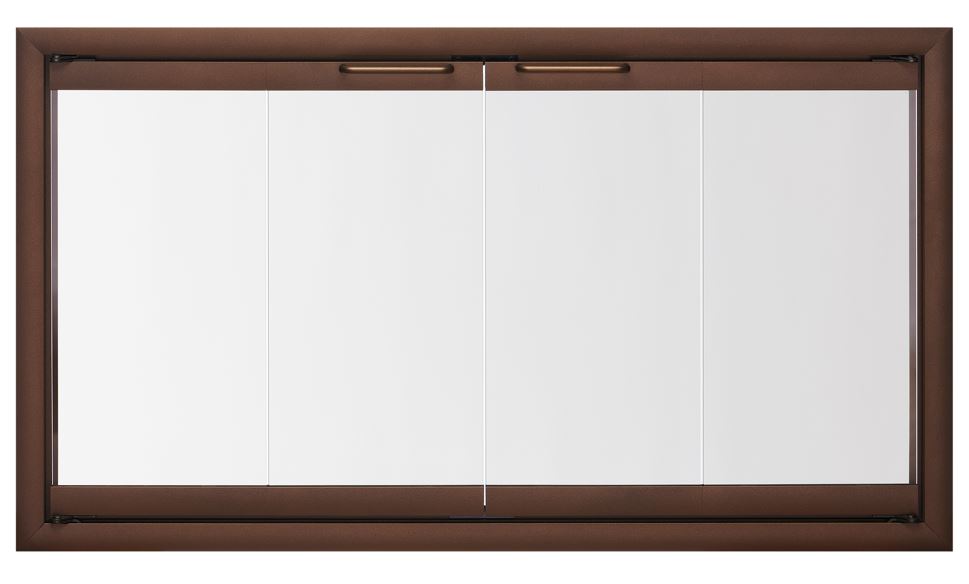

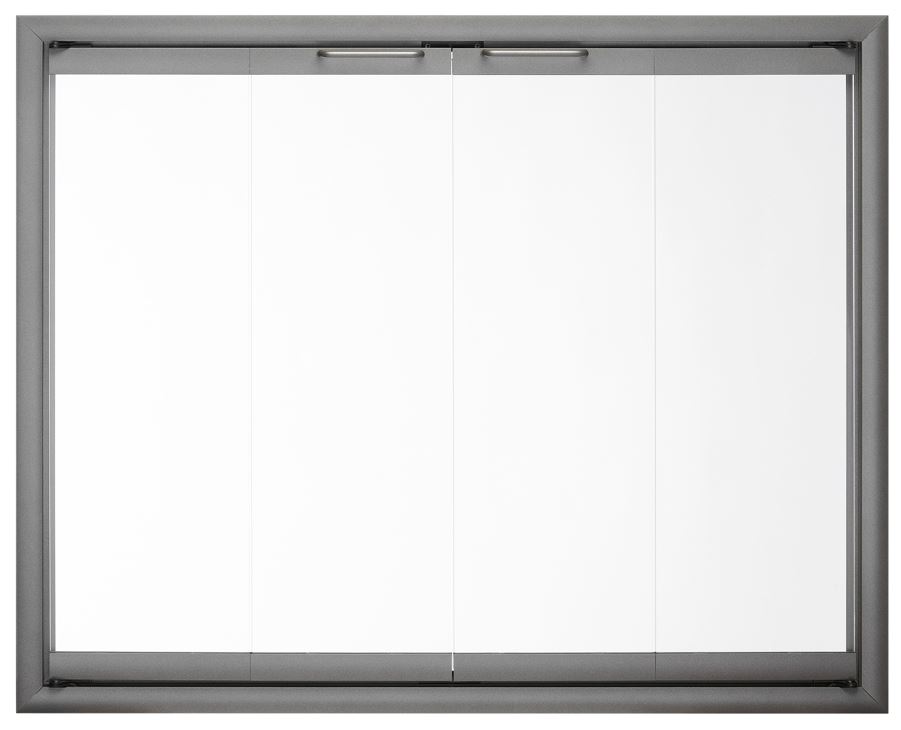

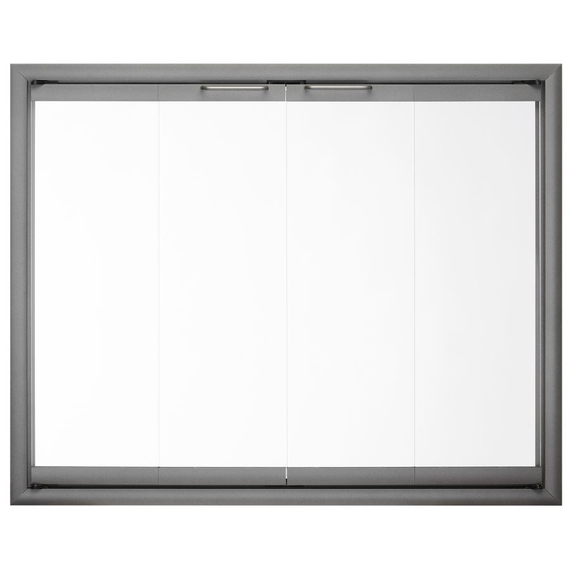

The Aurora zero clearance fireplace glass door for Marco fireplaces comes with your choice of finish, glass colors and door pane styles. Easy to clean full fold doors open 180° for enhanced viewing and are available in trackless bi-fold or cabinet styles. Between each glass pane is a 1/4 inch gap that will ensure the appropriate air flow for this fireplace glass door so it can be safely installed on your prefab fireplace. Clear tempered glass is standard. However, grey and bronze tints are also available. Choose from several beautiful finish colors for the anodized aluminum frame. We offer satin nickel, polished brass, or the striking powdercoat finishes. The slanted, square frame fits snugly inside your firebox for a perfect fit!
Installation: H for Hope You Are Handy!

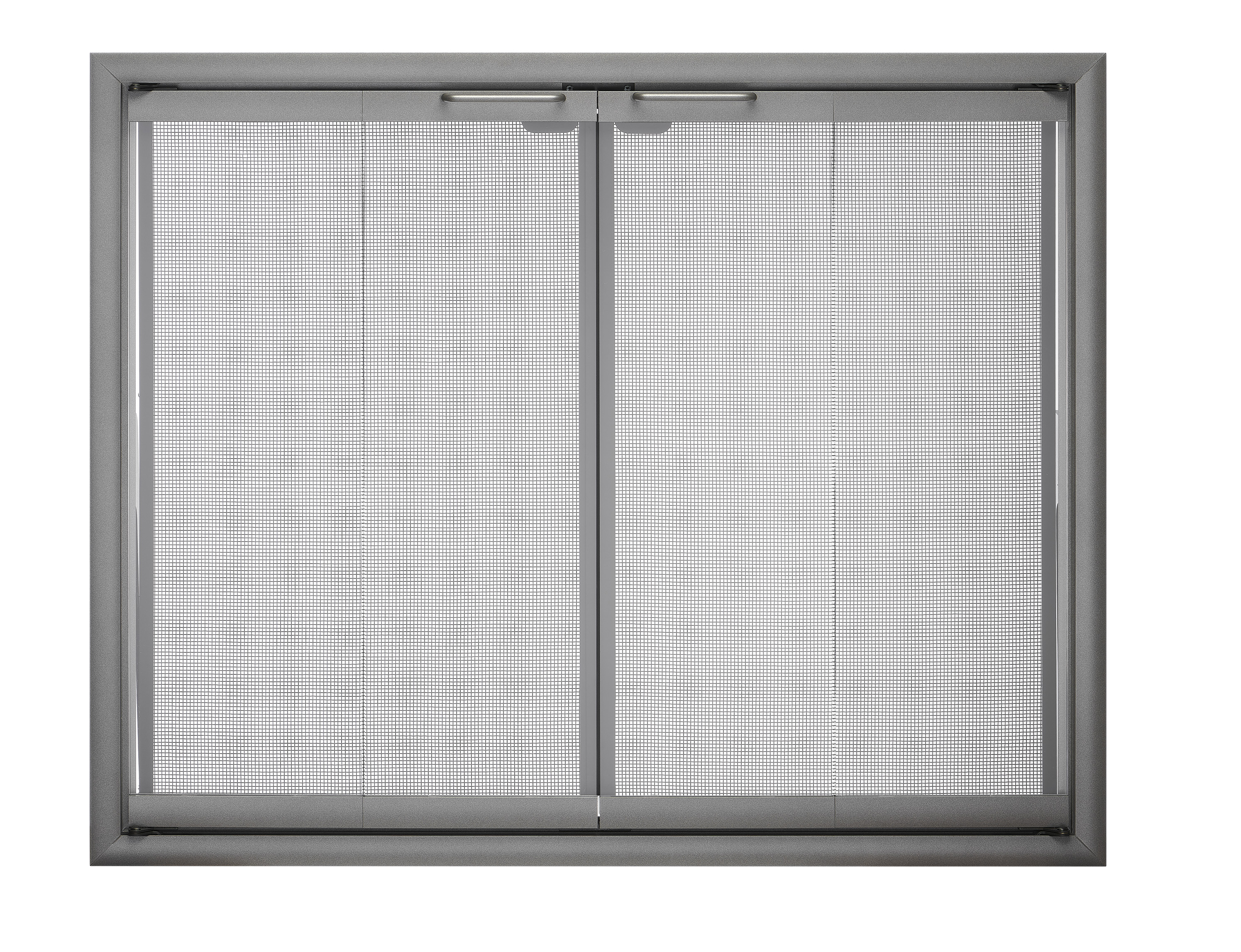

PLEASE NOTE: Spark protection is available as an option.
If your model is NOT listed in our chart, fill out our snapshot quote form and we will help you find a door for your prefab fireplace
|MARCO MODEL #||FIREBOX WIDTH||FIREBOX HEIGHT|
B36CF - 792774/E
B36CFI - 792779/E
BM36HC - 792777
BM36HCD - 792778
B36HC - 792775/E
B36HCI - 792776/E
|36 inches||20 9/16 inches|
C36CF - 792856
|36 inches||22 1/4 inches
21 5/8 Inches
|D36CF - 792807
D36CFI - 792808
D36HC - 792809
D36HCI - 792810
D36TCF - 792805
D36TCFI - 792806
D36THC - 792811
D36THCI - 792812
|36 Inches||20 1/4 Inches|
|C41CF - 792848
C41HC - 792849
C41HCD - 792850
|41 inches||22 3/4 Inches|
|B41CF - 792851/62
B41HC - 792847/63
B41HCI - 792857/64
|41 inches||22 1/4 inches|
|41 Inches||22 1/4 Inches|
|41 1/4 inches||25 inches|
|Architect A46||46 inches||28 1/4 inches|

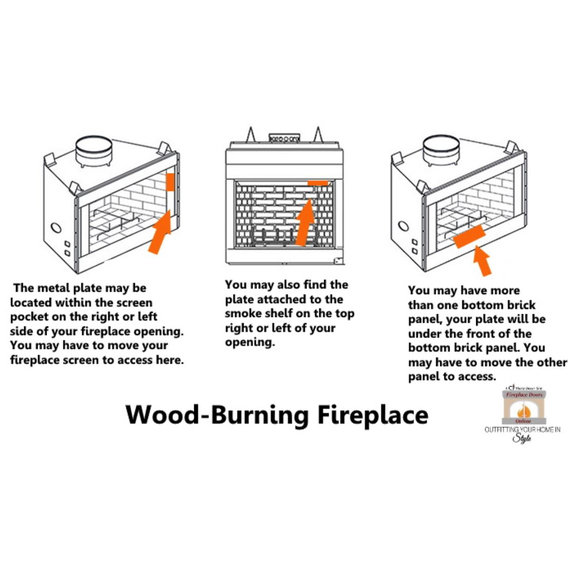

Try to find the manufacturer name and model number of the your current firebox. Where do I find that you ask. The manufacturer usually hides the metal tag inside the opening, above the refractory panels or behind the mesh curtain or inset return. Why do I need to do that? This will help us and you find the correct size door.
All our doors are aftermarket doors based on customers measurements. Even if we have the brand and model number we sill need to have the opening size. Manufactures changed openings and sizes but not the model numbers. So we want to make sure you receive the correct door.
You may need to remove the track that is there that guides your door.

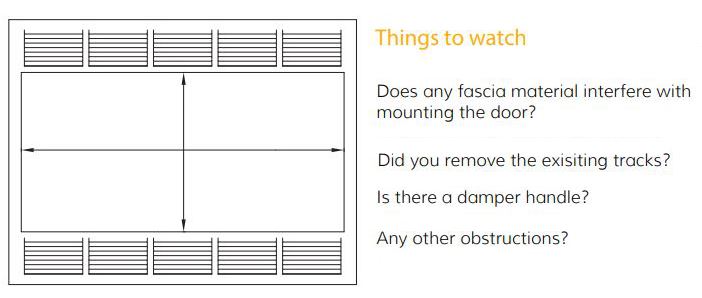

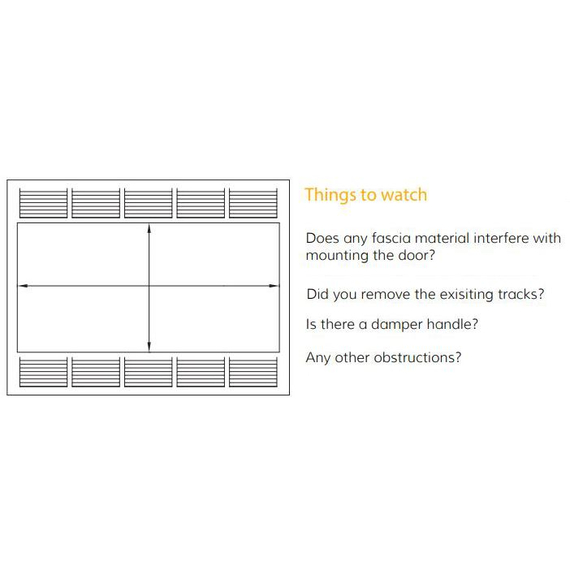

Use steel measuring tape and measure to the nearest 1/16". Now measure the width and height of the steel opening where the new full frame enclosure will fit. This has to be the same place as when you would install an original manufacturers enclosure. Measure accordingly if the exiting track can be removed or not
Never measure the finish material in front of your firebox: Brick, Stone, Marble, Granite, Tile, Slate, etc.
Very important is as well, never remove or change any other components of the fireplace, like take entire steel facing off.
Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.
MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners. The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
