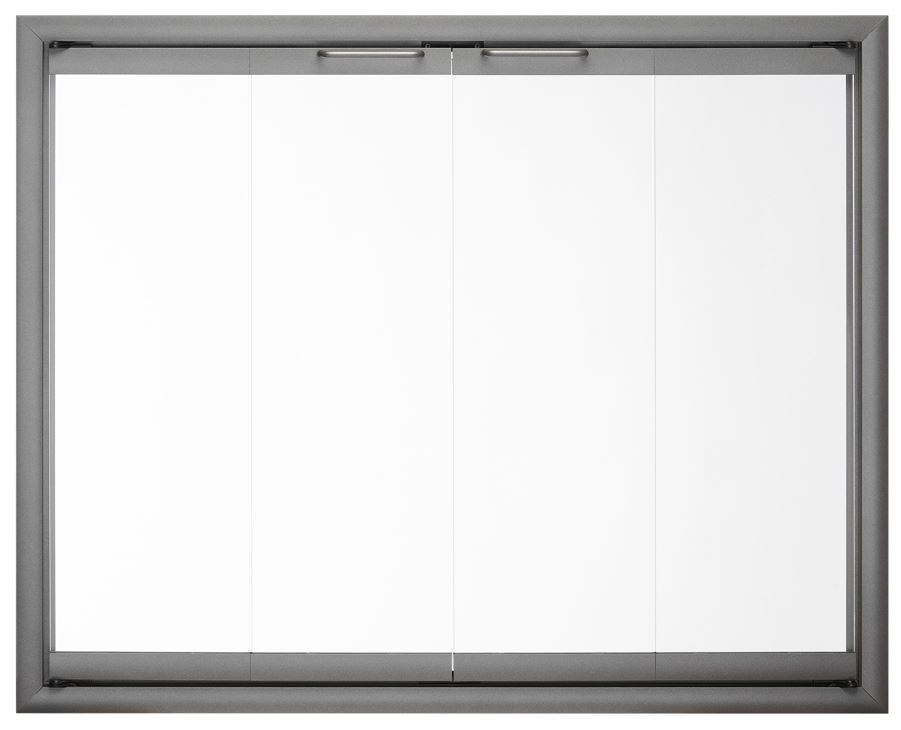

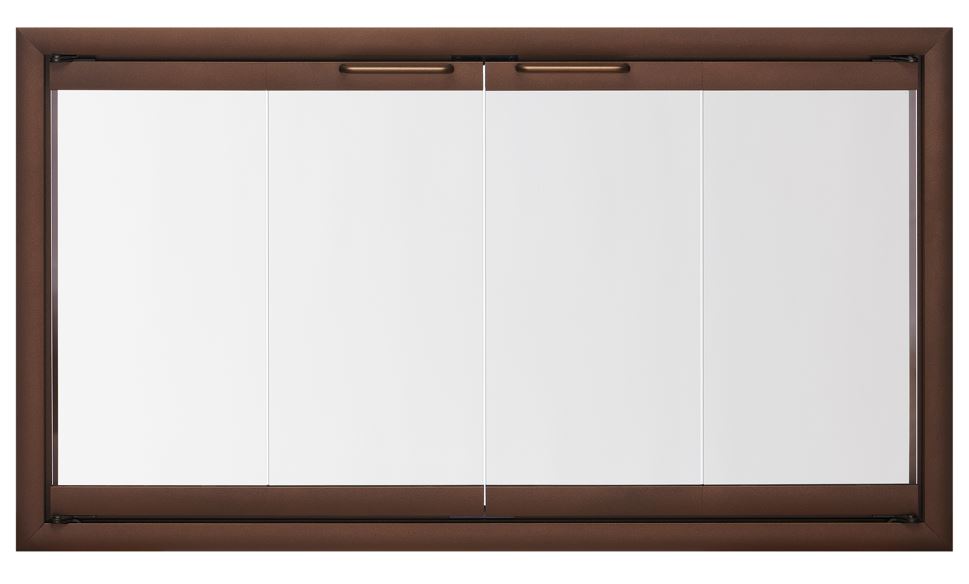

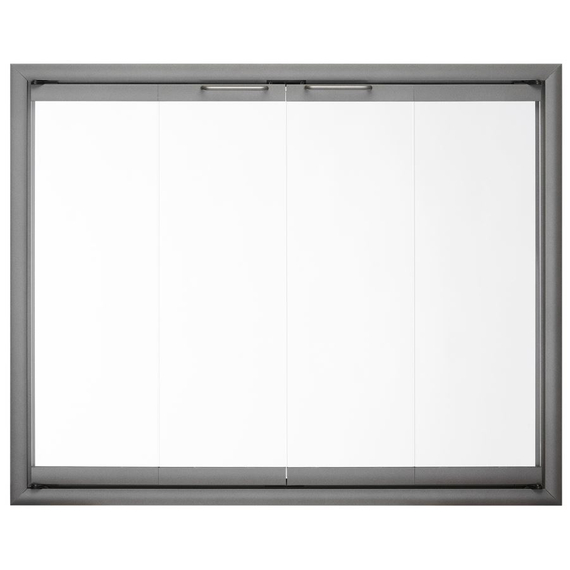

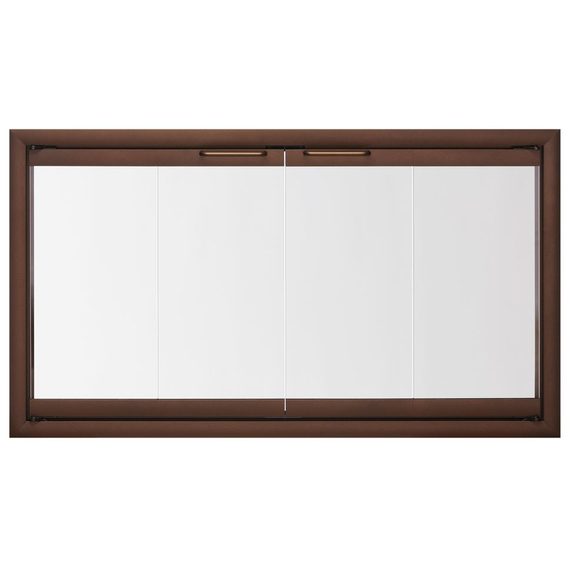

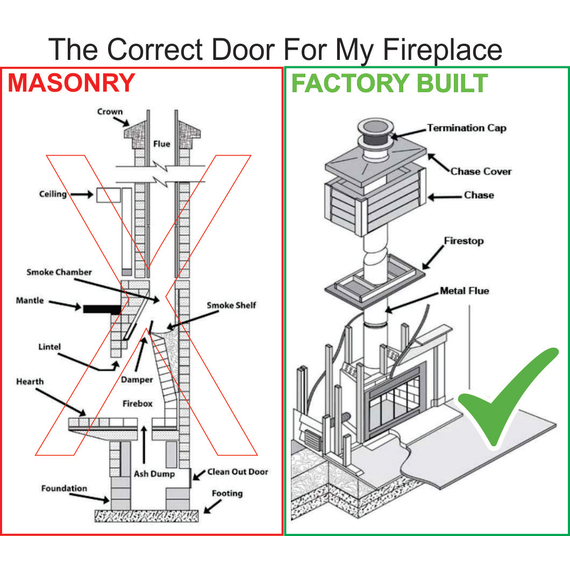

The Aurora zero clearance fireplace glass door for Majestic fireplaces comes with your choice of finish, glass colors and door pane styles. Easy to clean full fold doors open 180° for enhanced viewing and are available in trackless bi-fold or cabinet styles. Between each glass pane is a 1/4 inch gap that will ensure the appropriate air flow for this fireplace glass door so it can be safely installed on your prefab fireplace. Clear tempered glass is standard. However, grey and bronze tints are also available. Choose from several beautiful finish colors for the anodized aluminum frame. We offer satin nickel, polished brass, or the striking powdercoat finishes. The slanted, square frame fits snugly inside your firebox for a perfect fit!
Installation: H for Hope You Are Handy!
- Fireplace door installation requires power tools. You will need a pencil, 1/16” Drill Bit, Power Drill and a Phillips head Screwdriver.
- Place new door carefully into fireplace opening and use the pencil to mark hole location through inside of the door frame.
- Remove door from opening and use the power drill and 1/16” drill bit to drill holes through the sheet metal of the metal firebox.
- Place door back into fireplace opening and use screws and screwdriver to finish installation. DON'T forget to peel off protective plastic.
- Self tapping screws are provided and eliminates the need for pre-drilling. Be careful when using a power drill, to avoid slipping of the screw heads and damaging the fireplace door!
PLEASE NOTE: Spark protection is available as an option.
Product Specifications:
- Fireplace door ships for free; please allow 4-5 weeks for production and transit time
- 5 year warranty on door frame; 1 year warranty on tempered glass

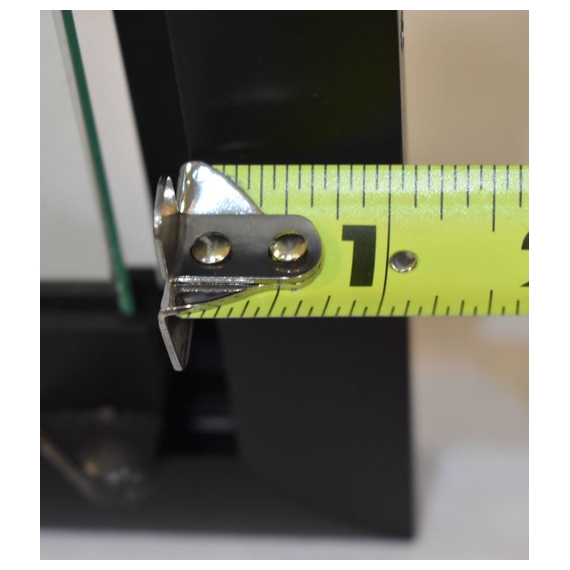

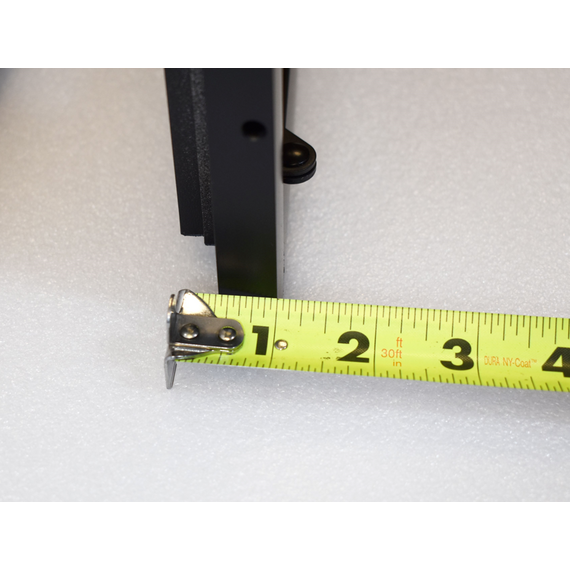

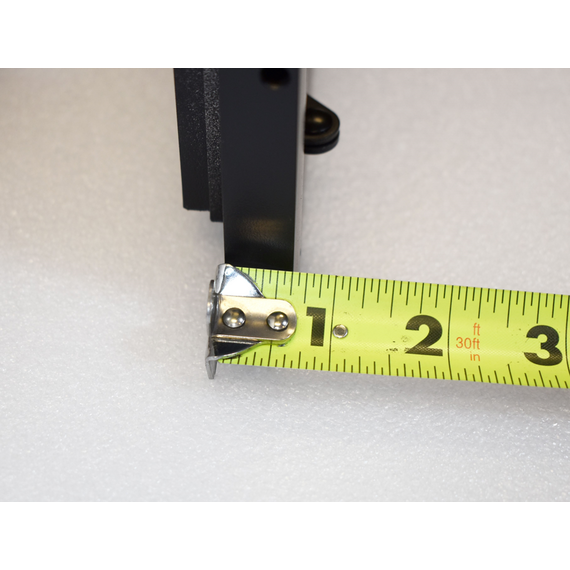

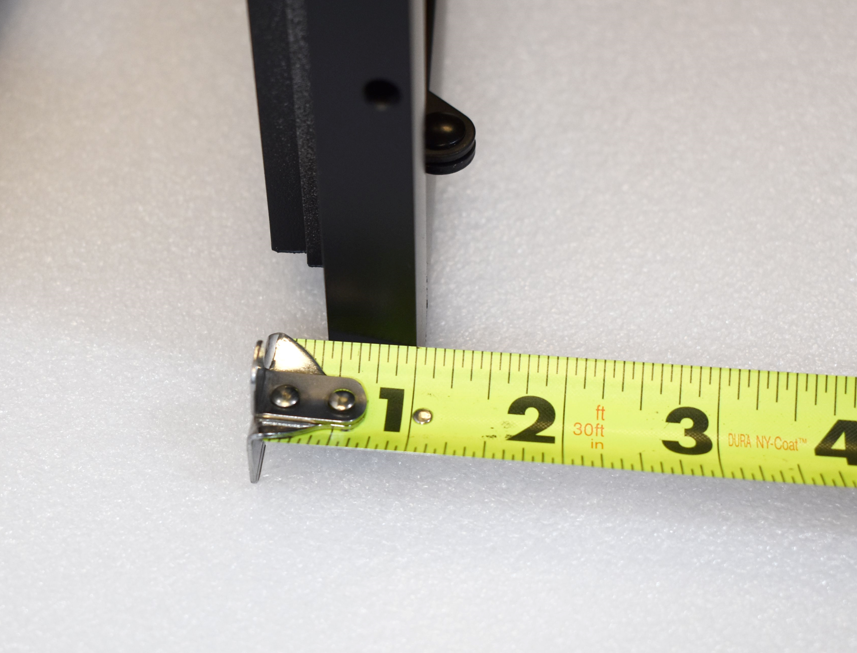

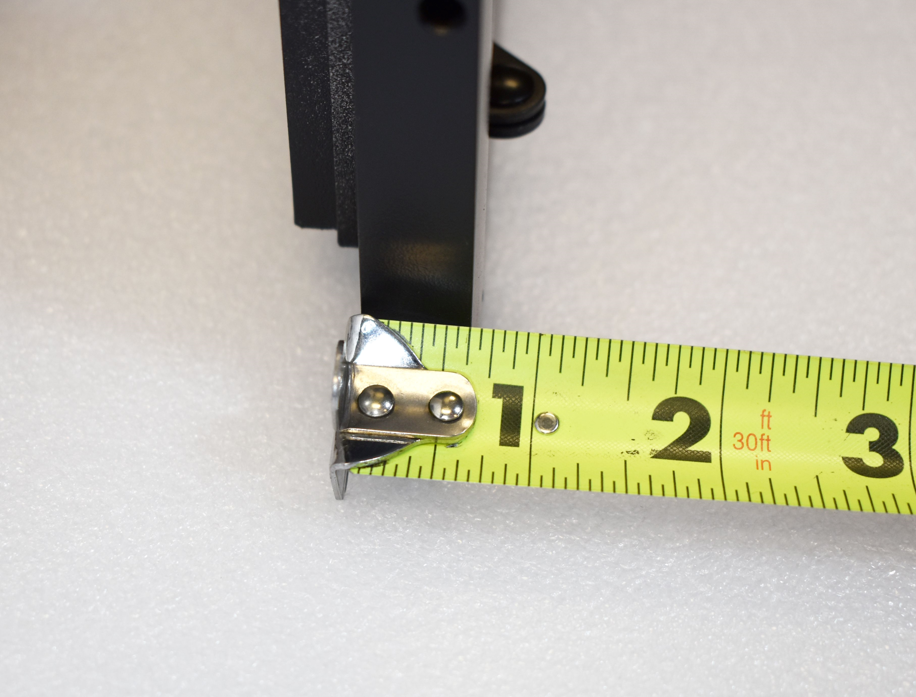

- Anodized aluminum frame is 1 inch wide by 1 inch deep

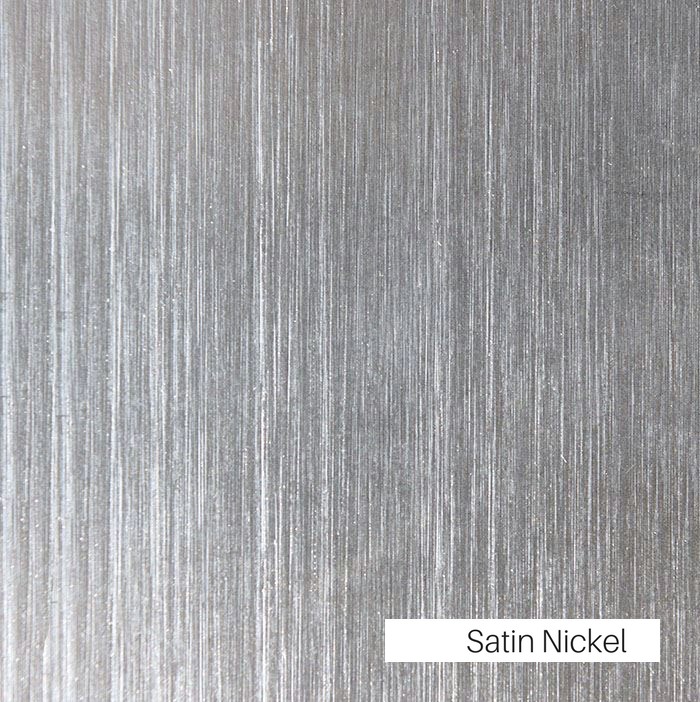

- Choose from several finish colors, including black, nickel, chrome and 2 shades of brass
- Comfort grip simplicity handles included
- Your choice of cabinet style (twin doors) or trackless bi-fold doors that open 180°
- Choose clear, grey or bronze 3/16 inch thick tempered glass

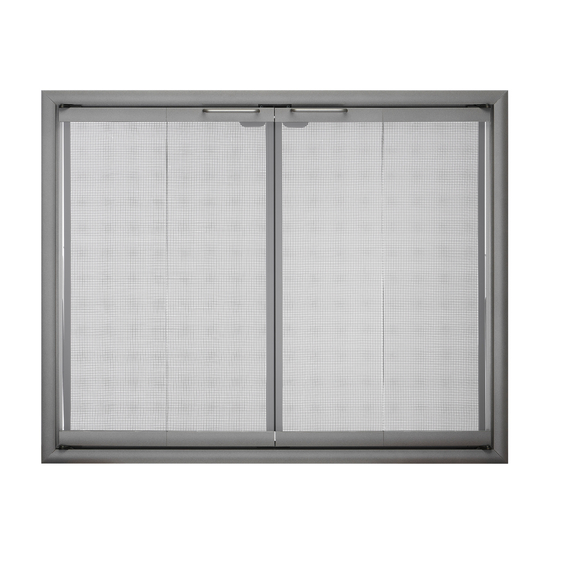

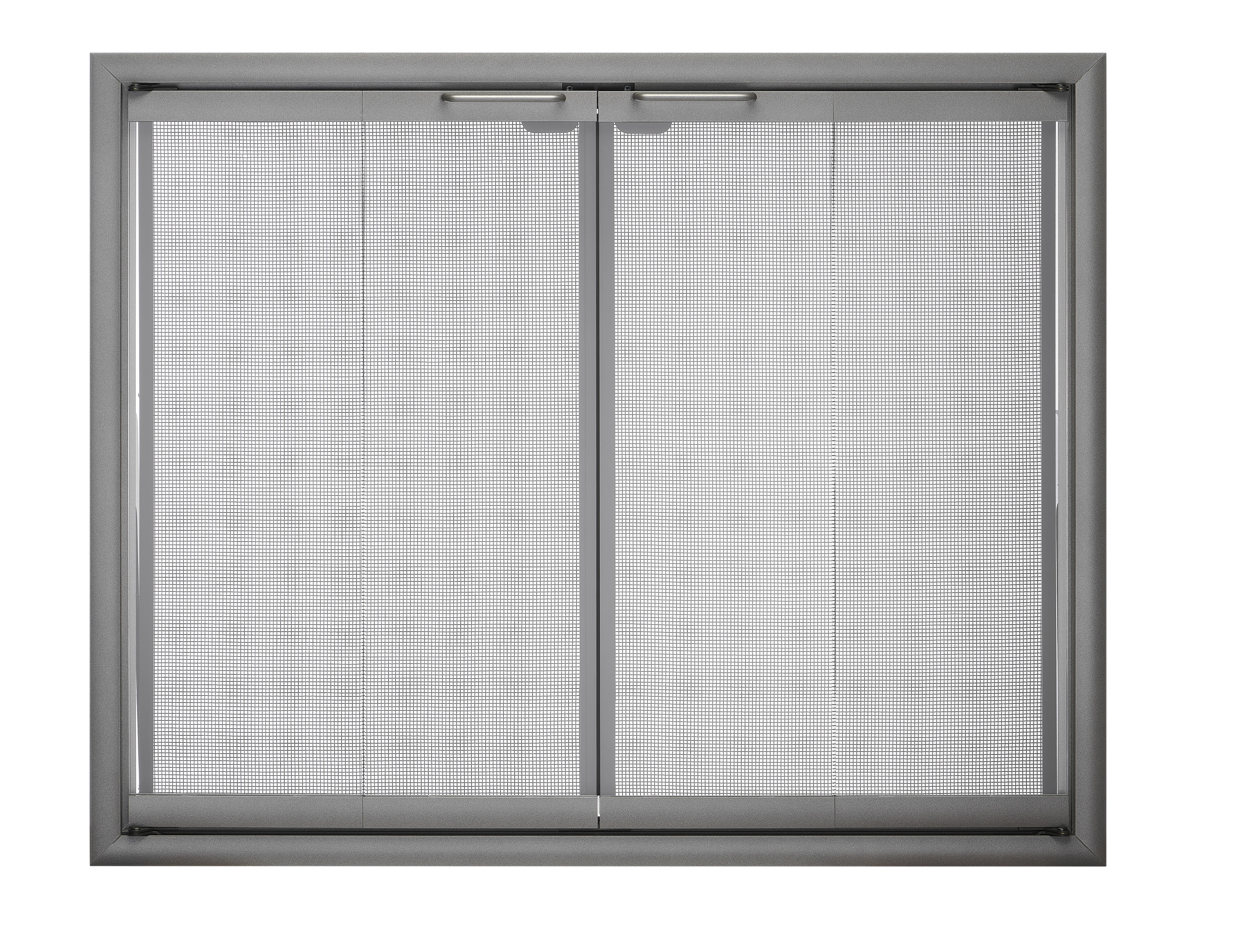

- Spark protection available as option
- Comes fully assembled and ready to install with mounting hardware
Majestic Fireplace Door Cross Reference Table
If your model is NOT listed in our chart, fill out our snapshot quote form and we will help you find a door for your prefab fireplace
If your screen cuts off the whole table - *Slide table right to left to read more*
| MAJESTIC MODEL # |
FIREBOX WIDTH |
FIREBOX HEIGHT |
| LST36 |
31 1/2 inches |
20 inches |
| STR33 |
33 inches |
21 inches |
MBC36
MBC36A |
36 inches |
20 inches |
BC36
BFC36
BR36
SC36
SC36A
SR36
SR36A
STR36
NVBC36
NVBR36 |
36 inches |
21 inches |
| WMC36 |
36 inches |
21 inches |
MSF36
MST36 |
36 inches |
21 7/16 inches |
36ST
CR36R
MBU36
MBU36I
MBUC36
MBUC36I
R36
RC36 |
36 inches |
21 7/16 inches |
BT836
BT836I
G450 |
36 inches |
21 1/2 inches |
SHR36**
L36
L36A
L36B
L36S
M36
MD36
SC36A
SH36
SR36A |
36 inches |
24 inches |
** = OVERLAP FIT ONLY! PLEASE CALL 1-888-986-1535
If your screen cuts off the whole table - *Slide table right to left to read more*
| MAJESTIC MODEL # |
FIREBOX WIDTH |
FIREBOX HEIGHT |
BR42
SC42
SR42
STR42
WMC42
BC42
NVBC42
NVSC42
NVSR42 |
42 inches |
21 inches |
|
42ST
MBC42
MBCU42/F
MBU42
MBU42I
MBUC42
MBUC42I
MR42
MRC42
MR42A
MRC42A
|
42 inches |
21 7/16 inches |
BT842
BT842I
G490 |
42 inches |
21 1/2 inches |
SC42A
SH42
SHR42**
SR42
SR42A NEW Models
MSF42 NEW Models
M42
MD42
MSF42 |
42 inches |
24 inches |
| SHR42A** |
42 inches |
28 1/2 inches |
SH48
SHR48** |
48 inches |
28 1/2 inches |
| SHR52** |
52 inches |
33 inches |
** = OVERLAP FIT ONLY! PLEASE CALL 1-888-986-1535

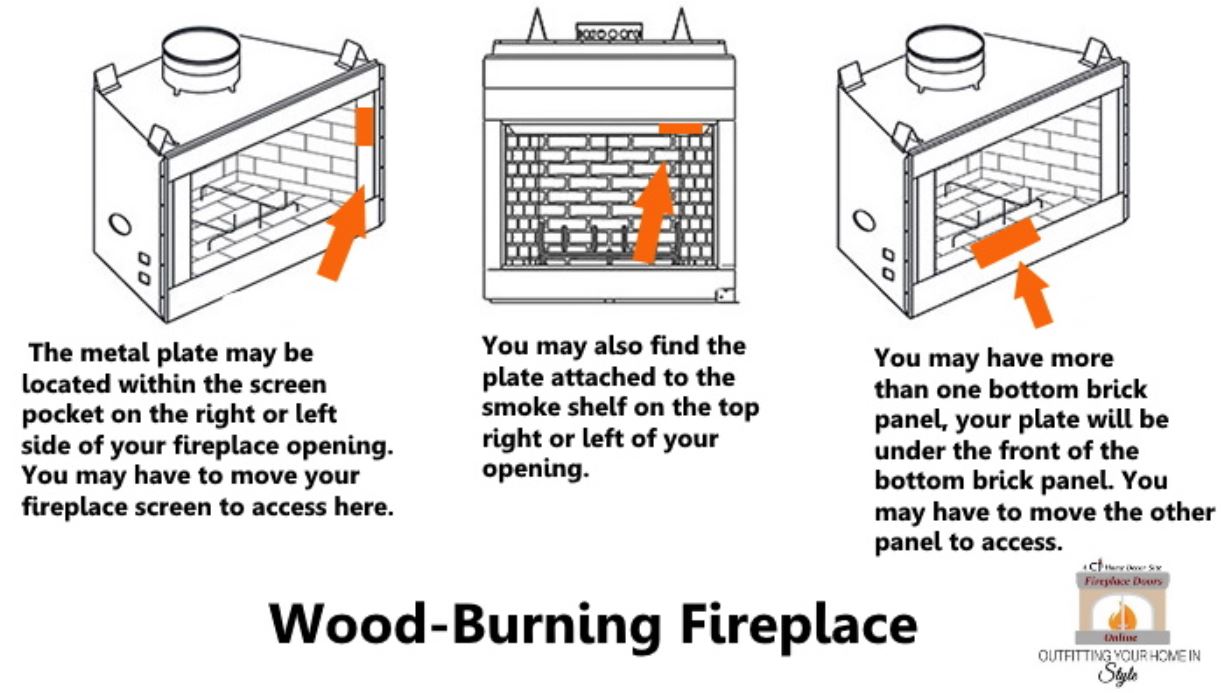

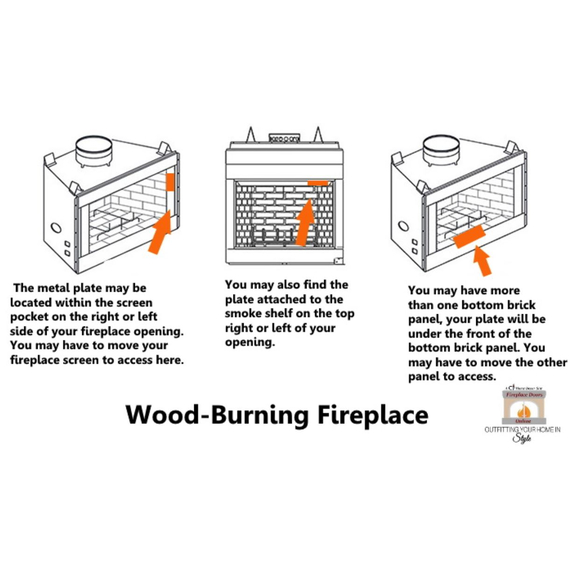

Try to find the manufacturer name and model number of the your current firebox. Where do I find that you ask. The manufacturer usually hides the metal tag inside the opening, above the refractory panels or behind the mesh curtain or inset return. Why do I need to do that? This will help us and you find the correct size door.
All our doors are aftermarket doors based on customers measurements. Even if we have the brand and model number we sill need to have the opening size. Manufactures changed openings and sizes but not the model numbers. So we want to make sure you receive the correct door.

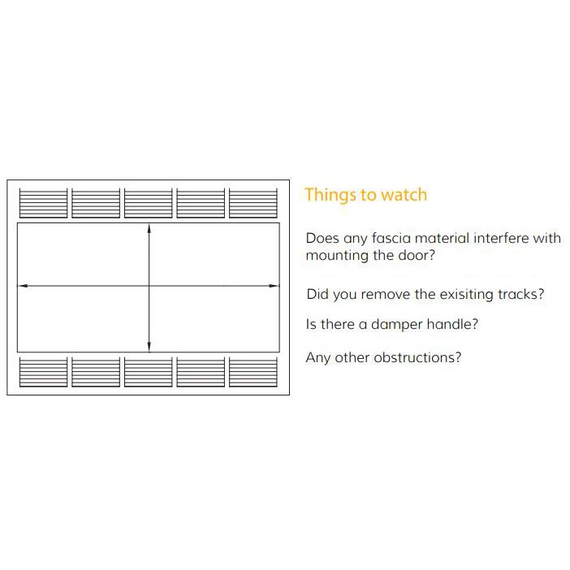

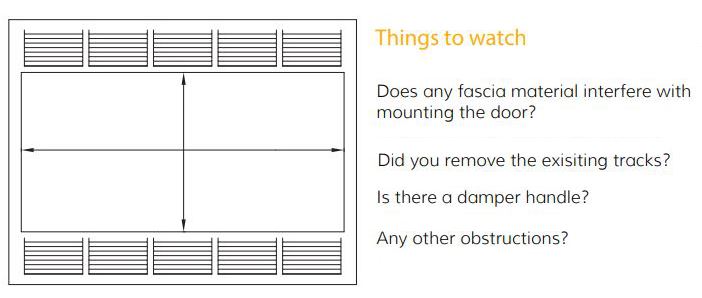

You may need to remove the track that is there that guides your door.

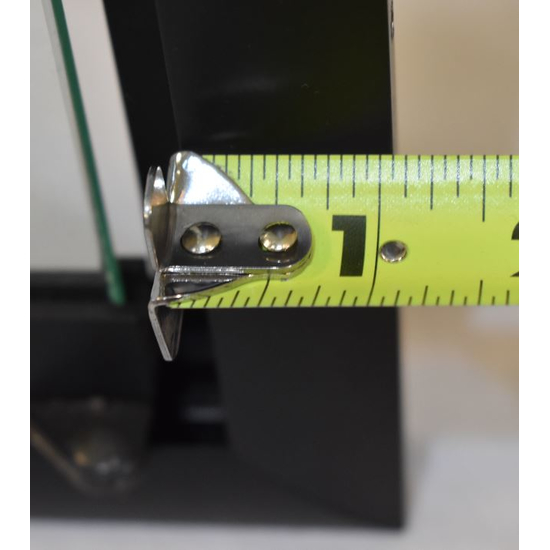

Use steel measuring tape and measure to the nearest 1/16". Now measure the width and height of the steel opening where the new full frame enclosure will fit. This has to be the same place as when you would install an original manufacturers enclosure. Measure accordingly if the exiting track can be removed or not
Never measure the finish material in front of your firebox: Brick, Stone, Marble, Granite, Tile, Slate, etc.
Very important is as well, never remove or change any other components of the fireplace, like take entire steel facing off.
Manufacturer's Warranty
Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.
MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners. The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.
DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.
PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
