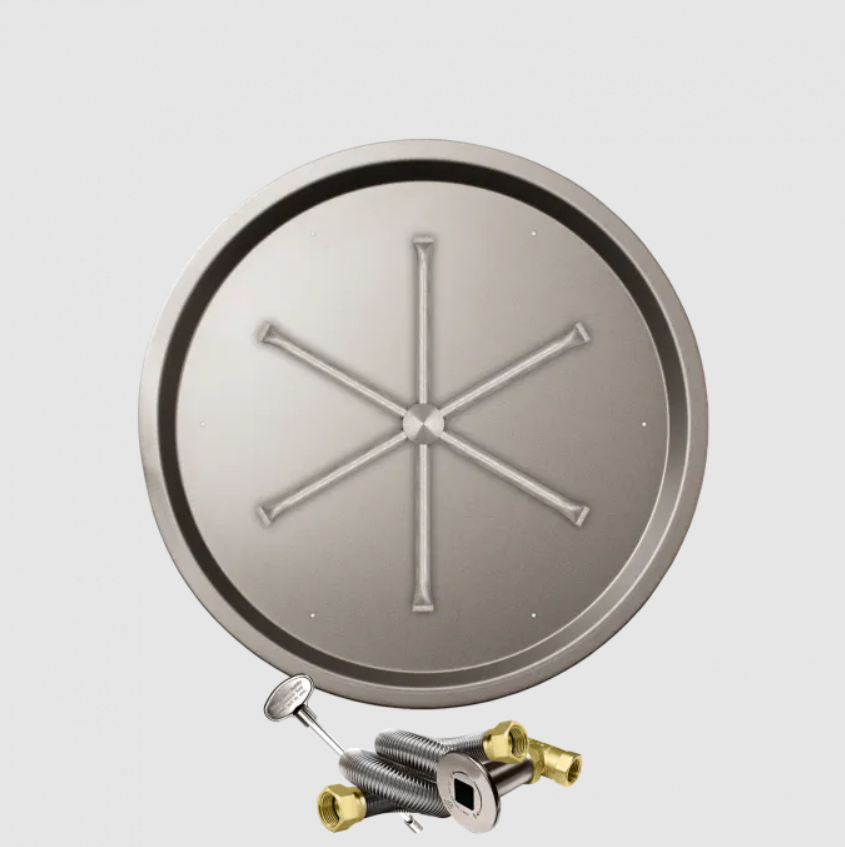

Round Drop-In Stainless Steel Burner Systems

Firegear's Stainless Steel Burner Systems, the epitome of sophistication and functionality in outdoor fire pit design. Crafted with precision engineering and enduring durability, these burner systems redefine the art of outdoor ambiance, offering a seamless blend of style and performance.

Imagine evenings spent under the stars, gathered around the flickering flames of your perfectly customized fire pit. With Firegear's stainless steel burner systems, this vision becomes a reality. Whether you're hosting a casual gathering with friends or seeking a serene retreat in your backyard oasis, our burner systems set the stage for unforgettable moments.

Versatility is at the core of our design philosophy. Choose from an array of ignition options to suit your preferences and lifestyle. Opt for the classic match throw system for simplicity and nostalgia, or elevate your experience with the safety ignition feature for added convenience and peace of mind. For the ultimate in control and customization, embrace the Advanced Wireless System (AWS), allowing effortless management of your fire pit from the palm of your hand.

But customization doesn't stop there. Our stainless steel burner systems come in a variety of sizes and formats, including round, square, or linear configurations, ensuring seamless integration with any outdoor space. Whether you prefer a sleek and modern aesthetic or a rustic charm, Firegear has the perfect solution to complement your style.

Crafted from premium stainless steel, our burner systems are built to withstand the elements and provide years of reliable performance. Designed with meticulous attention to detail, each component is engineered for maximum efficiency and longevity, ensuring that your fire pit remains a focal point of enjoyment for years to come.

Experience the warmth, style, and innovation of Firegear's stainless steel burner systems and elevate your outdoor living space to new heights. Create magical moments, ignite unforgettable memories, and bask in the glow of a fire pit that's as exceptional as you are. Discover the difference that Firegear can make in your outdoor oasis today.

Features:

Available in 19", 25", 29", and 33"
Available with Pro Brass or Stainless Steel Burner Systems
Available Pan Shapes: Round, Square, Linear
Available Pan Types: Drop-In, Flat

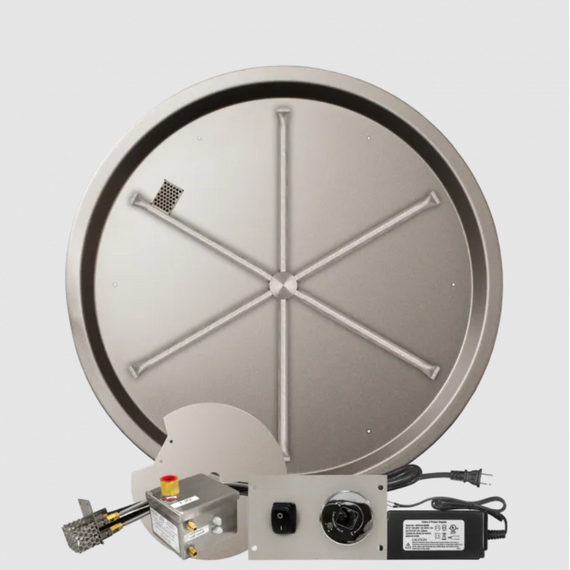

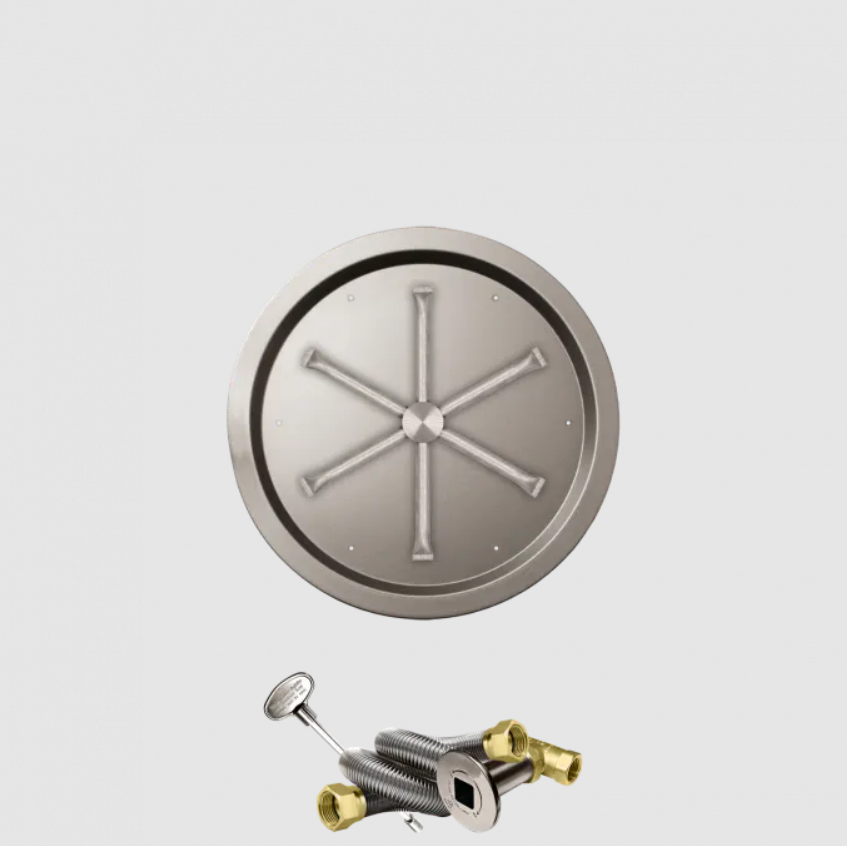

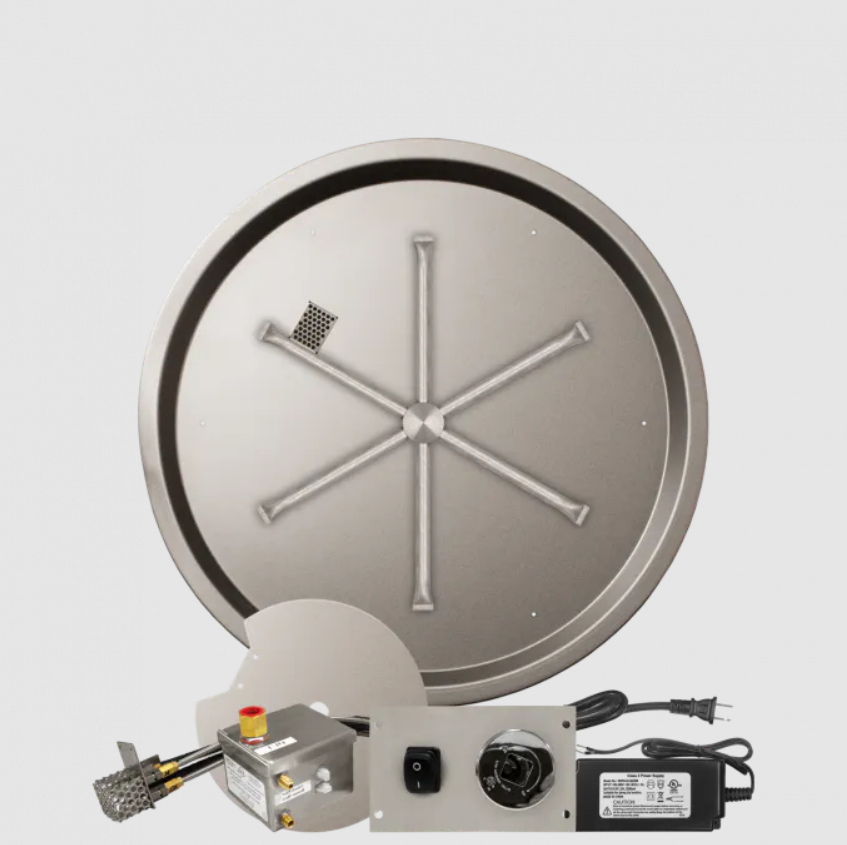

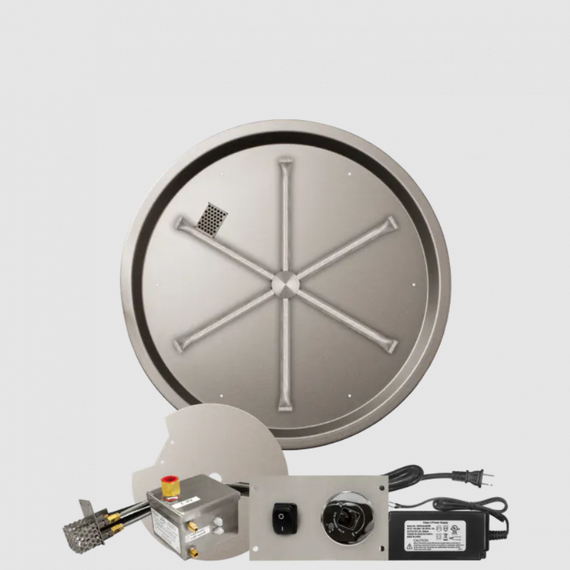

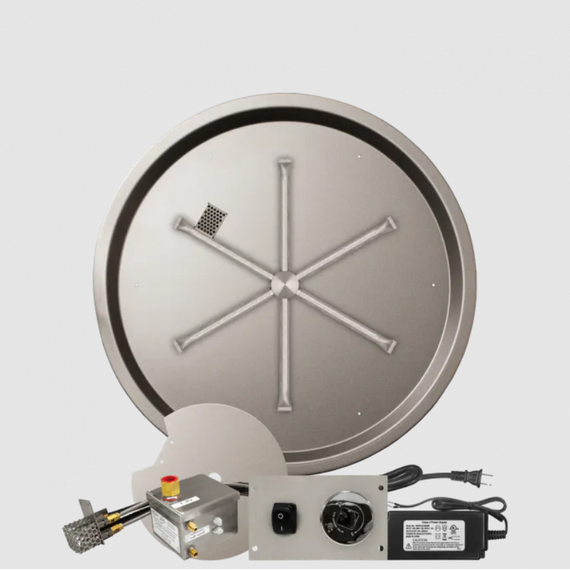

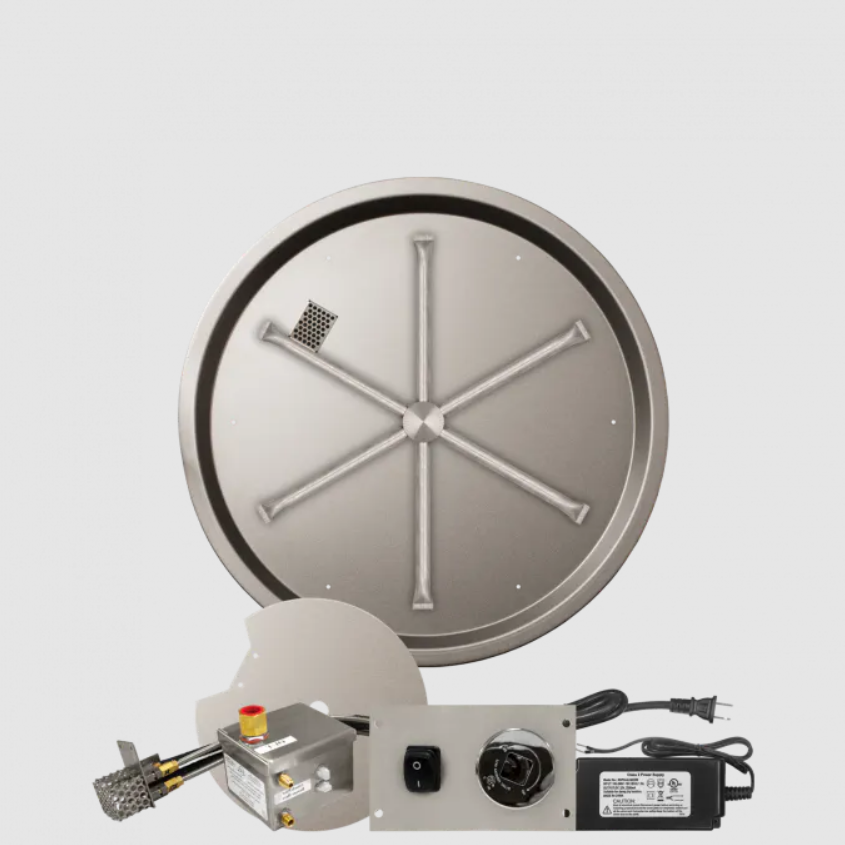

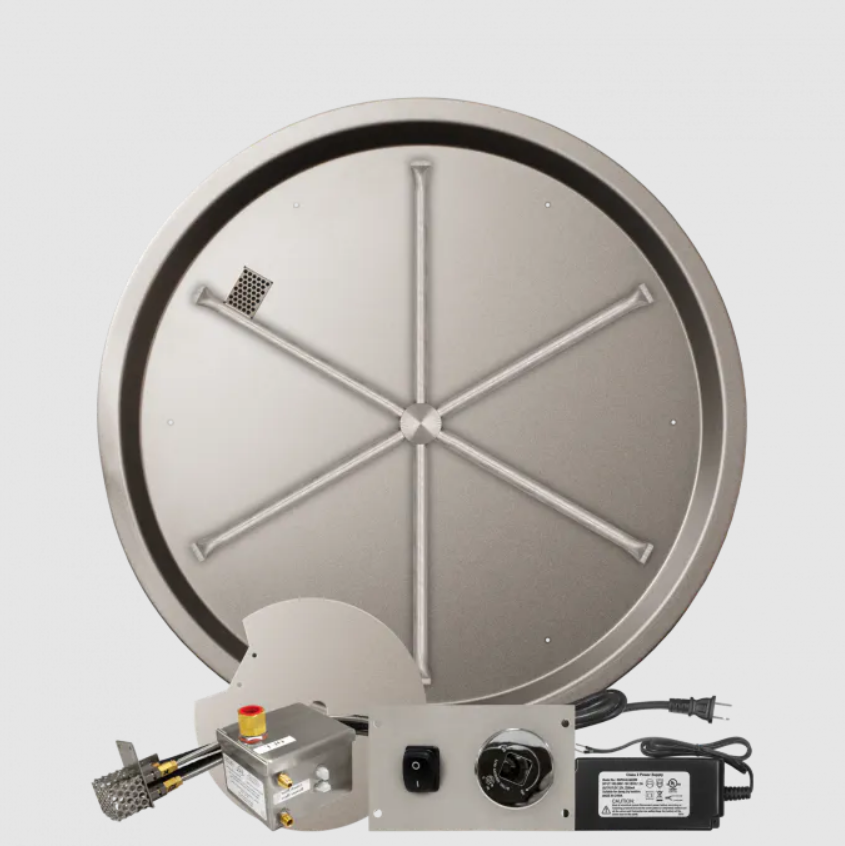

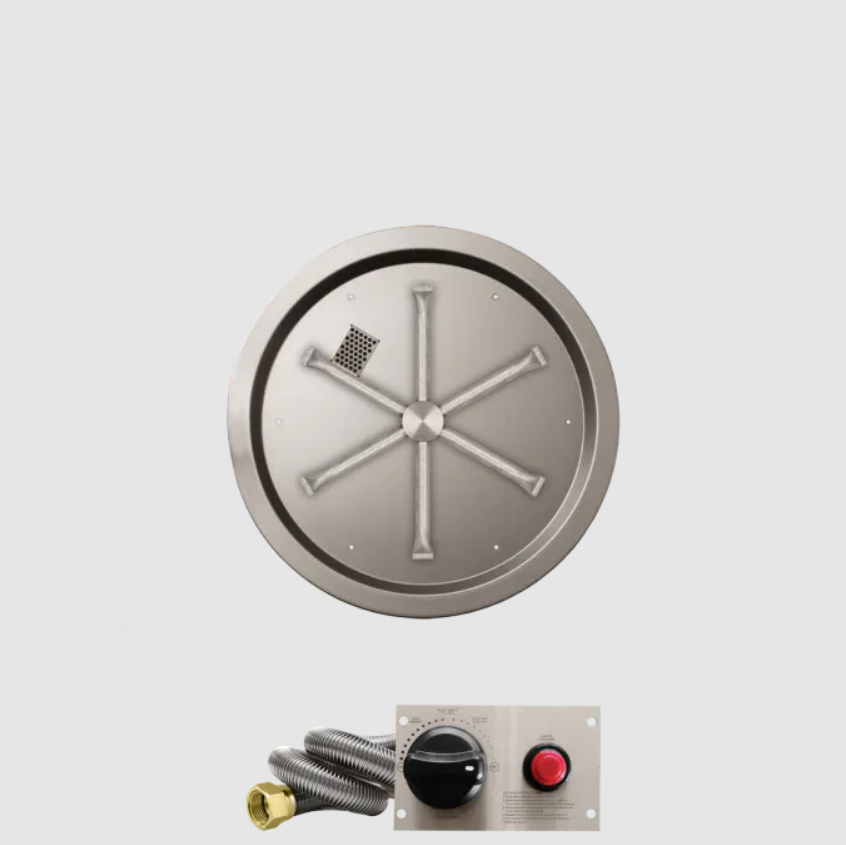

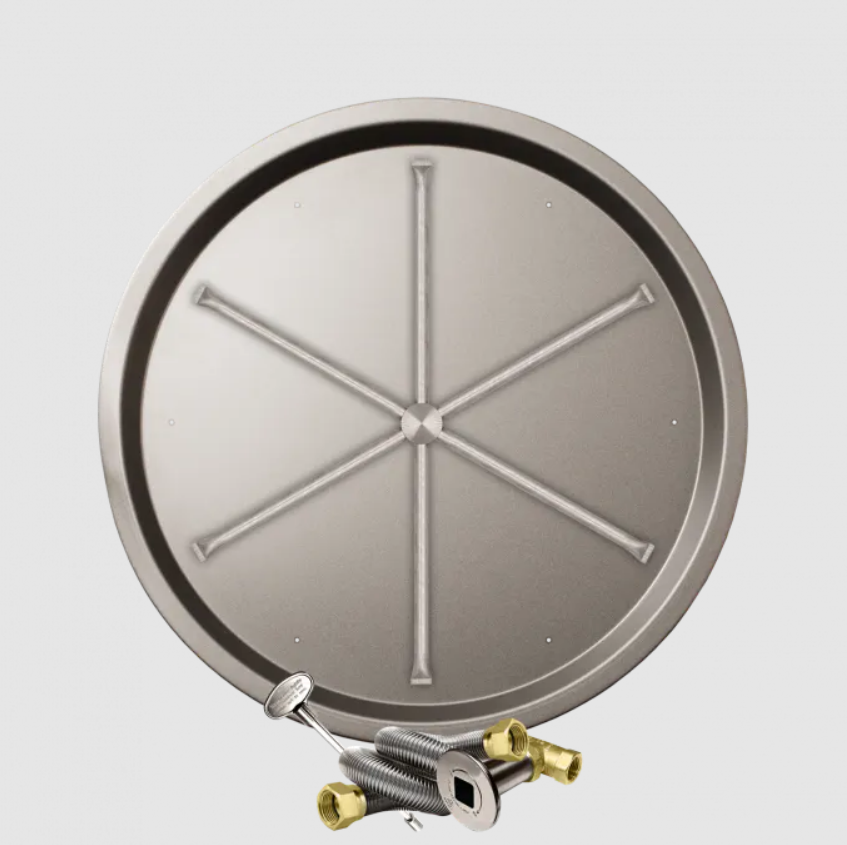

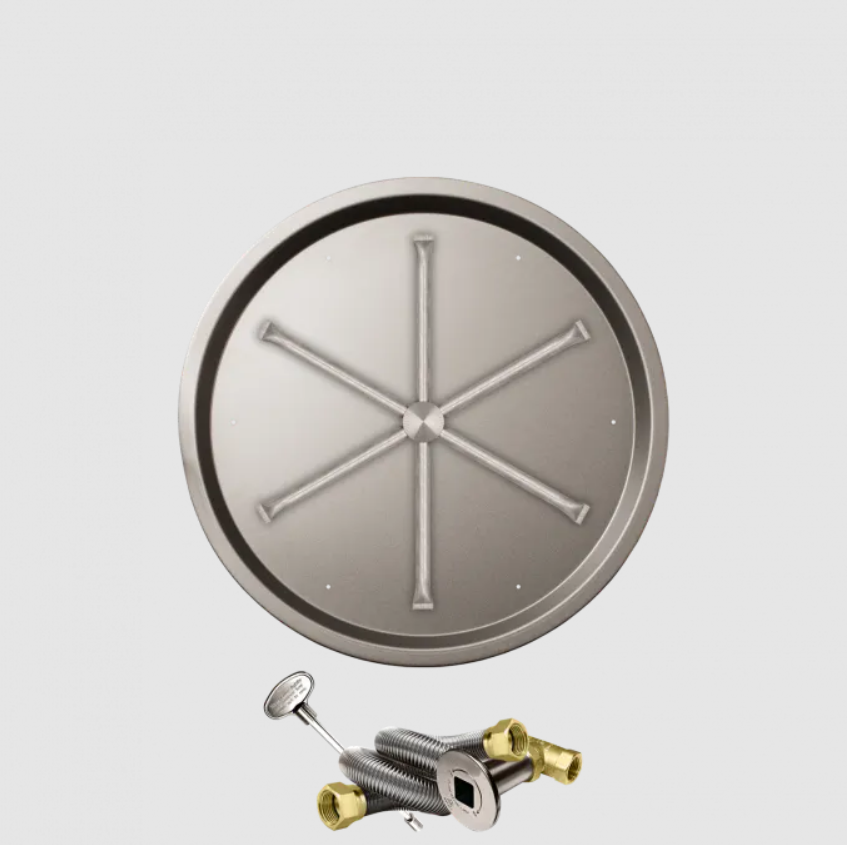

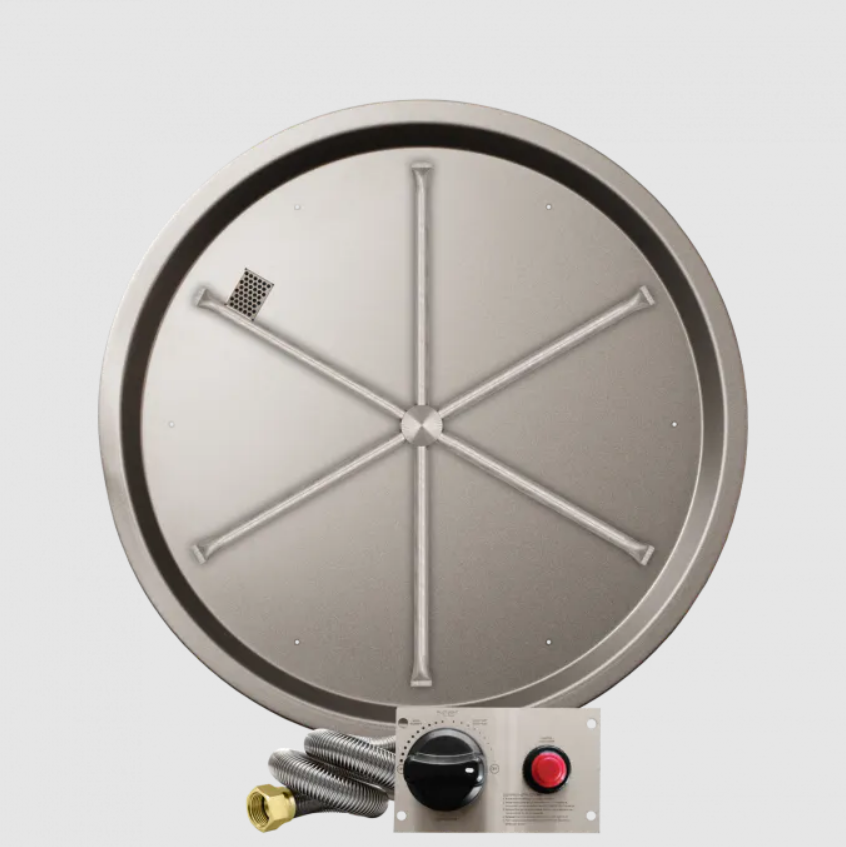

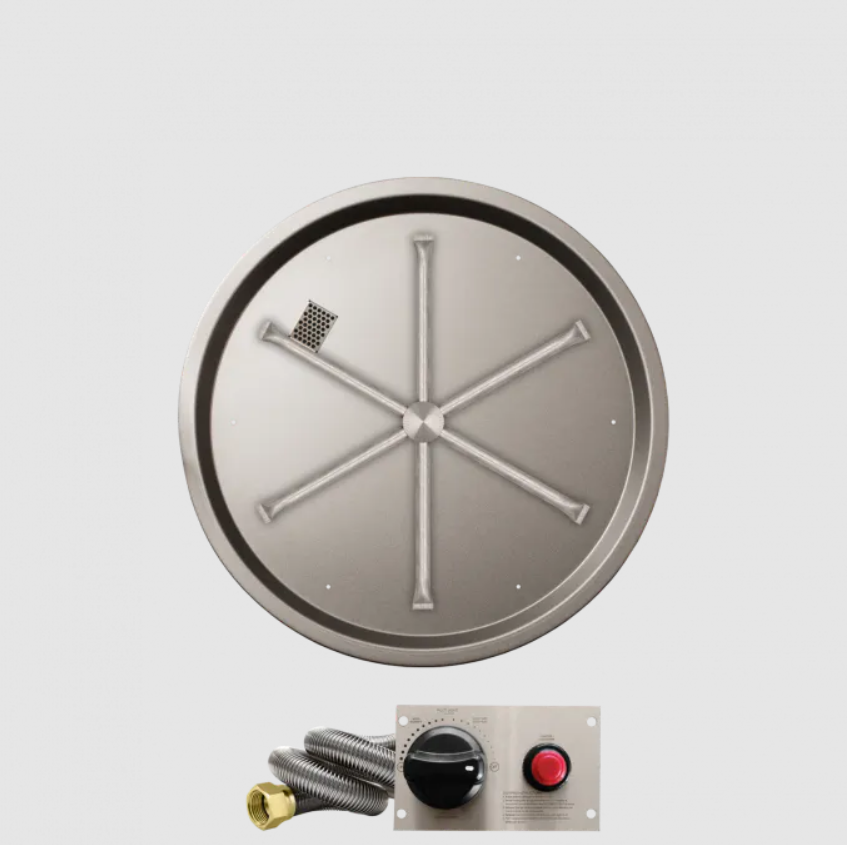

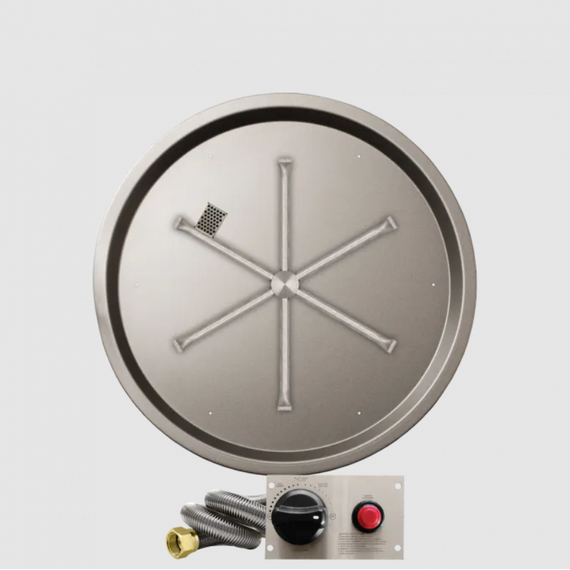

Available Ignition Systems: AWS Electronic Ignition System, TPSI (Thermocouple Piloted Safety Ignition), MT (Match Throw)
Available Burner Types: Snowflake, Burning Spur, H Burner, T Burner

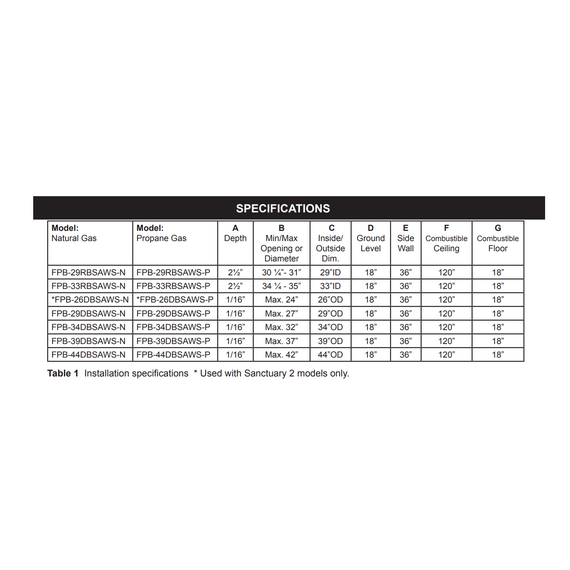

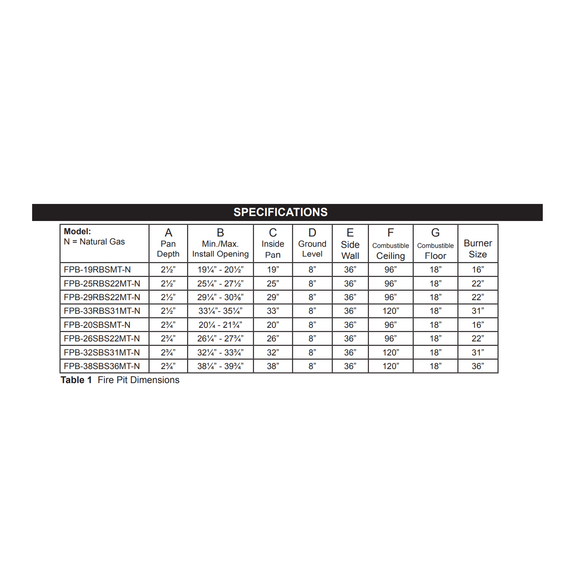

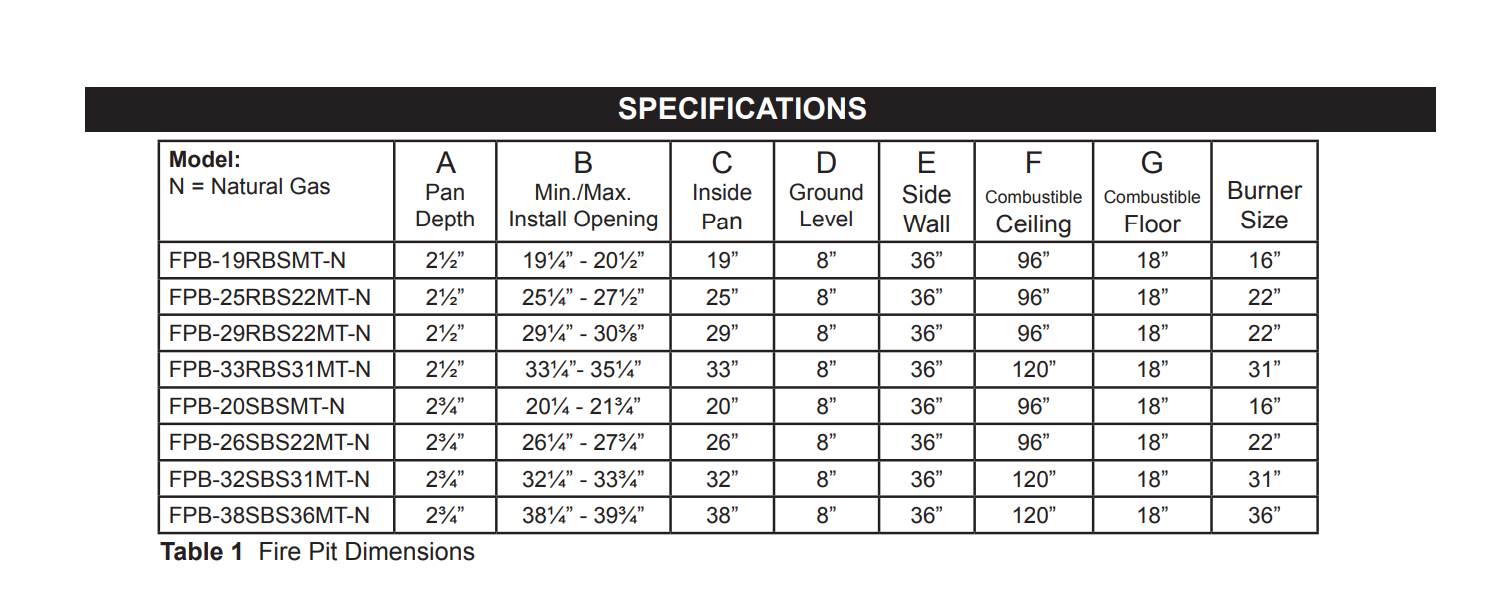

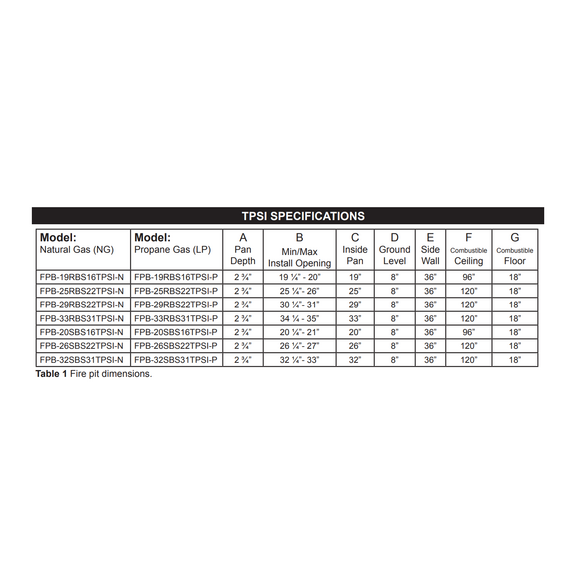

Specifications:

Manufacturer: Firegear
Model: Stainless Steel Series Round Drop-In Burner Systems
Gas Type: NG (Natural Gas) | LP (Liquid Propane)
BTU: [NG: 19" 75,000 BTU, 25" 125,000 BTU, 29" 125,000 BTU, 33" 175,000 BTU] | [LP: 19" 75,000 BTU, 25" 125,000 BTU, 29" 125,000 BTU, 33" 175,000 BTU]
Depth: AWS: 2½” | TPSI: 2 ¾” | MT: 2½”
Min/Max Opening or Diameter: 19" 19 ¼” - 20” | 25" 25 ¼”- 26” | 29" 30 ¼”- 31” | 33" 34 ¼ - 35”
Ground Level: AWS: 18” | TPSI: 8” | MT: 8”
Side Wall: 36”
Combustible Ceiling: 120”
Combustible Floor: 18”
Manufacturer Part Number(s): FPB-25RBSAWS-N | FPB-29RBSAWS-N | FPB-33RBSAWS-N | FPB-25RBSAWS-P | FPB-29RBSAWS-P | FPB-33RBSAWS-P | FPB-19RBS16TPSI-N | FPB-25RBS22TPSI-N | FPB-29RBS22TPSI-N | FPB-33RBS31TPSI-N | FPB-19RBS16TPSI-P | FPB-25RBS22TPSI-P | FPB-29RBS22TPSI-P | FPB-33RBS31TPSI-P | FPB-19RBSMT-N | FPB-25RBS22MT-N | FPB-29RBS22MT-N | FPB-33RBS31MT-N

*Each Pro Series Burner System is designed to be Natural Gas or Propane from the Factory

**You can purchase an NG to LP Conversion Kit

***All AWS NG to LP Conversion Kits come with the orifice and a Pilot Orifice > FG-AWS-PBO

Downloads:

Enhance Your Outdoor Ambiance with Firegear Round Drop-In Stainless Steel Burner Systems

Creating an inviting outdoor space often involves a harmonious combination of aesthetics and functionality. One element that can significantly elevate the ambiance of any outdoor setting is a fire feature. Among the diverse array of fire features available, Firegear Round Drop-In Stainless Steel Burner Systems stand out for their sleek design, reliability, and ease of installation. In this article, we'll delve into the features and benefits of these burner systems and explore how they can enhance your outdoor experience.

Sleek Design and Durability

Firegear Round Drop-In Stainless Steel Burner Systems are crafted with precision-engineered stainless steel, ensuring both durability and aesthetic appeal. The sleek, modern design seamlessly integrates into various outdoor settings, whether it's a cozy backyard patio or a sprawling entertainment area. The corrosion-resistant stainless steel construction ensures longevity, even in harsh outdoor environments, making it a worthwhile investment for years to come.

Versatility and Customization

One of the standout features of Firegear Round Drop-In Stainless Steel Burner Systems is their versatility. Available in various sizes ranging from 12 inches to 30 inches in diameter, these burner systems can accommodate different fire pit dimensions and design preferences. Whether you prefer a small, intimate fire pit or a larger focal point for gatherings, there's a size option to suit your needs.

Additionally, Firegear offers compatibility with both natural gas and propane fuel sources, providing flexibility based on your preferences and existing infrastructure. This versatility allows homeowners and designers to customize their outdoor spaces without constraints, creating a truly personalized experience.

Efficient and Reliable Performance

Beyond their aesthetic appeal, Firegear Round Drop-In Stainless Steel Burner Systems are engineered for efficient and reliable performance. The precision-drilled burner ports ensure an even flame distribution, resulting in a mesmerizing and consistent fire display. Whether you're using your fire feature for warmth, ambiance, or cooking, you can rely on consistent heat output and flame patterns.

Furthermore, these burner systems incorporate innovative safety features such as flame sensing technology and manual flame height adjustments, providing peace of mind and convenience. With simple ignition systems and intuitive controls, operating your fire feature is hassle-free, allowing you to focus on enjoying your outdoor space.

Easy Installation and Maintenance

Another advantage of Firegear Round Drop-In Stainless Steel Burner Systems is their straightforward installation process. Designed for drop-in installation, these burner systems can be easily integrated into new or existing fire pits with minimal effort. Clear installation instructions and compatibility with standard fire pit construction materials simplify the process, reducing installation time and costs.

In terms of maintenance, Firegear's commitment to quality extends to ease of care. The stainless steel construction is inherently resistant to rust and corrosion, requiring minimal upkeep. Routine cleaning and inspection ensure optimal performance and longevity, allowing you to enjoy your fire feature with minimal maintenance demands.

Firegear Round Drop-In Stainless Steel Burner Systems offer a winning combination of style, performance, and convenience for enhancing outdoor spaces. With their sleek design, versatility, and reliable operation, these burner systems serve as focal points for gatherings, adding warmth and ambiance to any setting. Whether you're revamping your backyard oasis or designing a new outdoor retreat, Firegear burner systems provide a compelling solution for creating unforgettable outdoor experiences.

Manufacturer's Warranty

FIREGEAR LIMITED WARRANTY - 2022 / 2023

Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period:

CONSUMER RESIDENTIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019

BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
LIFETIME WARRANTY - STAINLESS STEEL BURNERS AND PANS
LIFETIME WARRANTY - BRASS BURNERS
FIVE (5) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
FIVE (5) YEAR WARRANTY - AWS ELECTRONIC IGNITION SYSTEMS (24VAC, 30 VDC)
FIVE (5) YEAR WARRANTY - TFS/TMSI/TPSI ELECTRONIC COMPONENTS
FIVE (5) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
FIVE (5) YEAR WARRANTY - REFRACTORY GAS LOG SETS
FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
FIVE (5) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS

OUTDOOR FIREPLACE – KALEA BAY

LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
FIVE (5) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
FIVE (5) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS

SANCTUARY SERIES – GFRC FIRE FEATURES

THREE (3) YEAR WARRANTY - GFRC STRUCTURE
REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANT: WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY WARRANTY.

READY TO FINISH/ANF ENCLOSURES

• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER

DEFECTS ACCESSORIES

LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019

BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES

TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS
TWO (2) YEAR WARRANTY - BRASS BURNERS
TWO (2) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
TWO (2) YEAR WARRANTY - AWS ELECTRONIC IGNITION SYSTEMS (24VAC, 30 VDC)
TWO (2) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
TWO (2) YEAR WARRANTY - REFRACTORY GAS LOG SETS
FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
TWO (2) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS

OUTDOOR FIREPLACE – KALEA BAY

LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
TWO (2) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
TWO (2) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS

SANCTUARY SERIES – GFRC FIRE FEATURES

THREE (3) YEAR WARRANTY - GFRC STRUCTURE
REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY: WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY WARRANTY

READY TO FINISH/ANF ENCLOSURES

FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER

DEFECTS ACCESSORIES

LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

The end-user must provide a bill of sale, canceled check, or payment record to verify the purchase date and to establish the warranty period. This Limited Warranty shall be valid and limited to the original purchaser only.

WARNING: Any modification to the product will void the warranty. This Limited Warranty shall be limited to the repair and/or replacement of parts that have been proven to be defective under normal use and service. All warranty claims must be made by the OEM/Distributor/Dealer account on behalf of the end-user. You may contact Technical Support at 800-966-8126.

Our Technical Service Department must confirm all approved defects. If a defect is confirmed and we approve the claim, we will replace such parts without charge. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.

Please check with your local building code department or governing agency for proper approvals before purchasing. Firegear Outdoors is not responsible for any violation of local codes.

Travel, diagnostic cost, service labor to repair the defect on warranty parts to and from the factory will be the responsibility of the owner. We will not be responsible for labor charges and/or damage incurred in installation, repair, and replacement. Firegear is not responsible for Issues related to gas or electrical installation.

The Limited Warranty is voided if not assembled, installed, and operated as intended. This Limited Warranty does not cover any defects due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, removal from the original location, or re-installation into another location, or failure to perform normal and routine maintenance.

Damage due to severe weather conditions such as hail, hurricanes, earthquakes, tornadoes, discoloration due to overheating, exposure to chemicals (including chlorine and salt), either directly or in the atmosphere, or very high humidity, is not covered by this Limited Warranty. Coastal, humid and/or salt environments are subject to manufacturer review. All out-of-box claims must be made within 30 days of purchase and must be made prior to installation. Any product installed damaged will be considered damaged during installation and not covered under warranty.

There are no other express warranties except as set forth herein. For consumer applications, any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this Limited Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

For Commercial Applications, the liability of Firegear Outdoors is limited to the express terms of this warranty. We expressly disclaim any and all implied warranties, including any warranties of fitness for a particular purpose or merchantability.

We are not liable for any special, indirect or consequential damages. Our maximum liability is limited to the purchase price of the purchased units. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding.
