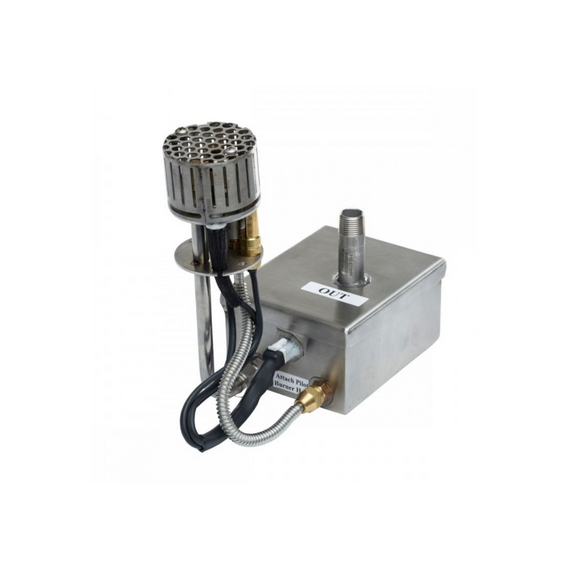

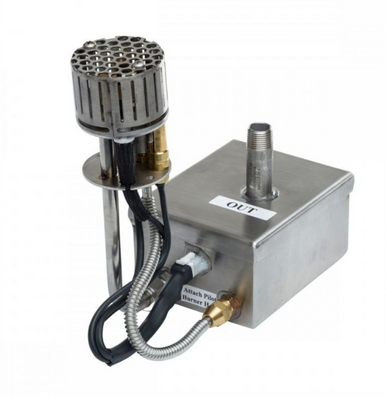

Fire By Design 30VDC Dual-Pilot SUBEIS Standard Capacity Electronic Ignition System

Starting at:
$2,874.32
MSRP: $3,025.60
Short description:

Free Shipping on All Orders Continental United States!  Free Shipping | Ships Out Within 1-2 Weeks

Available
+

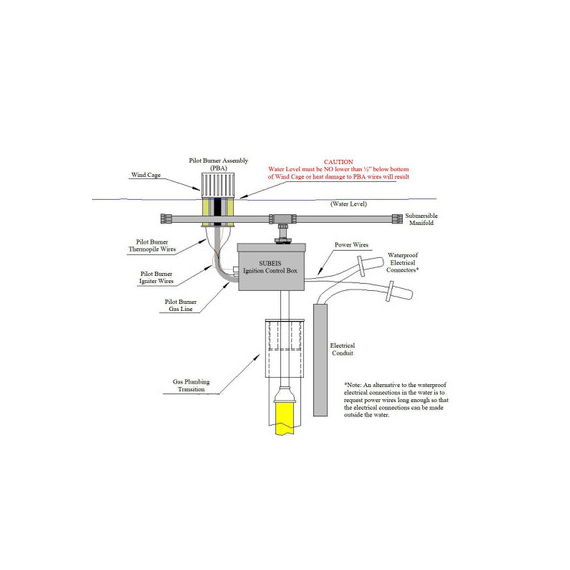

The Submersible 30VDC Electronic Gas Fire Pit Ignition System (SUBEIS) provides a high-quality component for use in any DIY fire pit project. The first-ever electronic ignition designed specifically for use on water surfaces, the Submersible Electronic Ignition System (SUBEIS) features a reliable blend of technology and components. The 316 marine-grade stainless steel control box protects the electronic components against the elements and submersion. The unit operates on either 24 VAC or 30 VDC power to start the hot surface igniter, which ignites the pilot light. After the pilot is lit, the thermocouple senses heat and transfers an electrical signal to open the main gas valve.  The stainless steel unit is designed to be a fully submersible fire manifold.  When installed with a SUBEIS, should the flame go out, the system will try to relight 3-4 times.  If unsuccessful, the unit will automatically shut down.  The stainless steel construction of the underwater fire manifolds is rated for freshwater use only.

Please Note:


Features:

  • Made in the USA
  • Natural Gas or Liquid Propane Compatible
  • Material: 316 Marine Grade Stainless Steel
  • Electronic Ignition
  • Fully Submersible Fire Manifold
  • Auto-Reignition/ Auto-Shutoff
  • Hot Surface Ignition (Glow Plug) with Intermittent Pilot
  • Flame/Heat Sensing Thermopile
  • Compatible with Various Remote (Sold Separately)

Specifications:

 Material:  316 Stainless Steel
 Finish:  Stainless Steel
 Fuel Type:  Natural Gas or Liquid Propane
 Max BTUs/Hour:  290,000
 Ignition Type:  Hot Surface Ignition (Glow Plug)
 Ignition Sequence:  Intermittent
 Ignition Source:  Pilot
 Flame/Heat Sense:   Thermopile
 Voltage:   30VDC

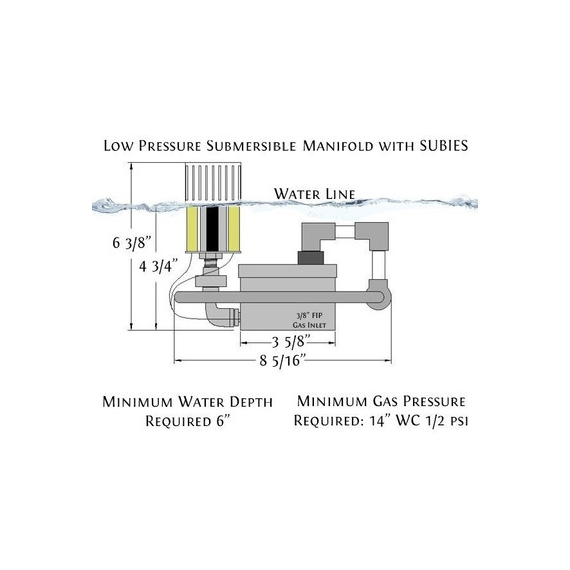

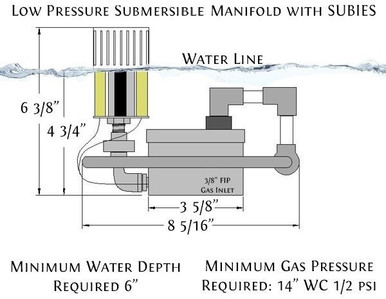

 Control Box Dimensions:  4 1/2" x 5 1/2"
 Inlet Size:  1/2" FIP
 Outlet Size:  1/2" FIP
 PSI:  2
 Certifications:  Lab Tested
 Includes:  24VAC Transformer | (2) Standard Grade Fire ON Water Pilot Burner Assemblies | Submersible Ignition Control Module | Installation Instructions
