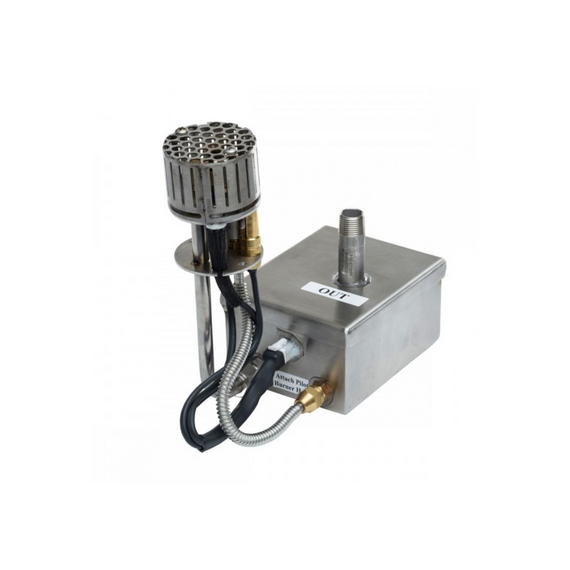

Dual-Pilot SUBEIS High-Capacity Electronic Ignition System - 30VDC

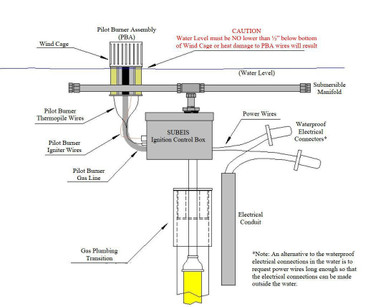

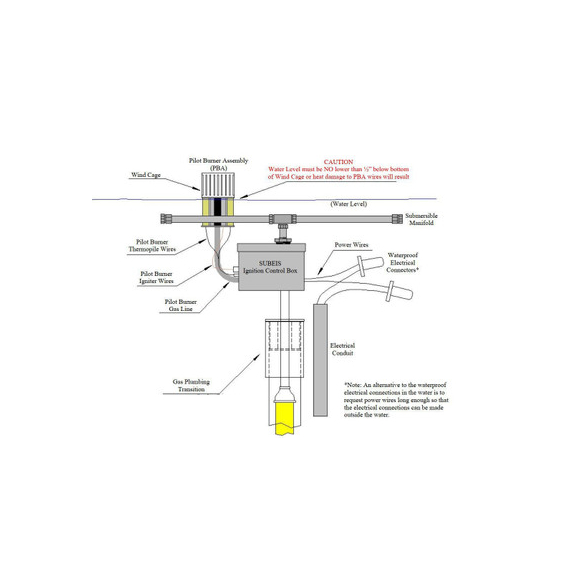

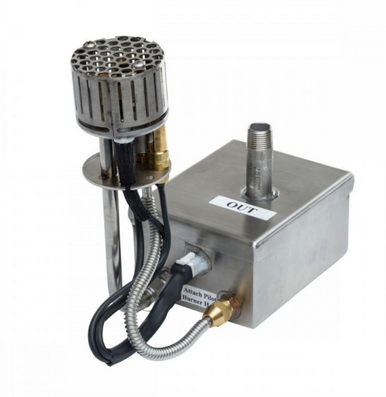

The Submersible 30VDC Electronic Gas Fire Pit Ignition System (SUBEIS) provides a high-quality component for use in any DIY fire pit project. The first-ever electronic ignition designed specifically for use on water surfaces, the Submersible Electronic Ignition System (SUBEIS) features a reliable blend of technology and components. The 316 marine-grade stainless steel control box protects the electronic components against the elements and submersion. The unit operates on either 24 VAC or 30 VDC power to start the hot surface igniter, which ignites the pilot light. After the pilot is lit, the thermocouple senses heat and transfers an electrical signal to open the main gas valve.  The stainless steel unit is designed to be a fully submersible fire manifold.  When installed with a SUBEIS, should the flame go out, the system will try to relight 3-4 times.  If unsuccessful, the unit will automatically shut down.  The stainless steel construction of the underwater fire manifolds is rated for freshwater use only.

Please Note:

• SUBEIS needs dielectric grease inside the holes on the Molex connection to prevent water.
• To get the most out of the SUBEIS do not forget the Submersible Burner!

 Features:

• Made in the USA
• Natural Gas or Liquid Propane Compatible
• Material: 316 Marine Grade Stainless Steel
• Electronic Ignition

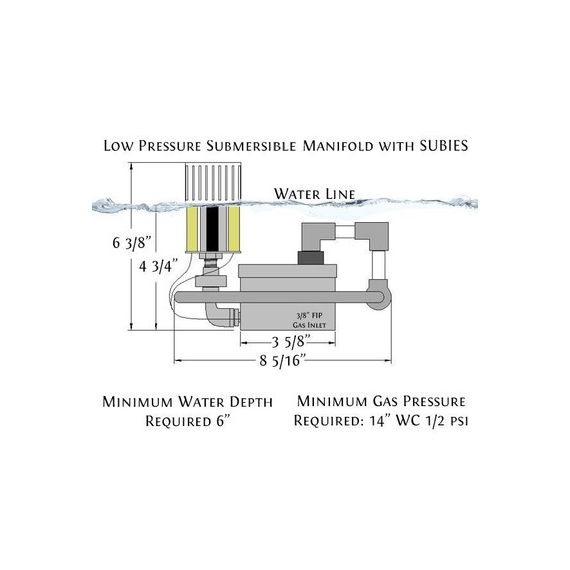

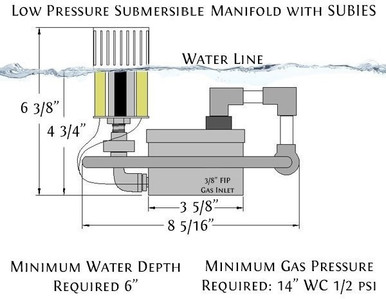

• Fully Submersible Fire Manifold
• Auto-Reignition/ Auto-Shutoff
• Hot Surface Ignition (Glow Plug) with Intermittent Pilot
• Flame/Heat Sensing Thermopile
• Compatible with Various Remote (Sold Separately)

Specifications:

• Material: 316 Stainless Steel
• Finish: Stainless Steel
• Fuel Type: Natural Gas or Liquid Propane
• Max BTUs/Hour: 780,000
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent
• Ignition Source: Pilot
• Flame/Heat Sense: Thermopile
• Voltage: 30VDC
• Control Box Dimensions: 4 1/2" x 5 1/2"
• Inlet Size: 3/4" FIP
• Outlet Size: 3/4" FIP
• PSI: 2
• Certifications: Lab Tested
• Includes: 24VAC Transformer | (2) Standard Grade Fire ON Water Pilot Burner Assemblies | Submersible Ignition Control Module | Installation Instructions

Downloads:

• SUBEIS Electronic Ignition Installation and Operation Manual
