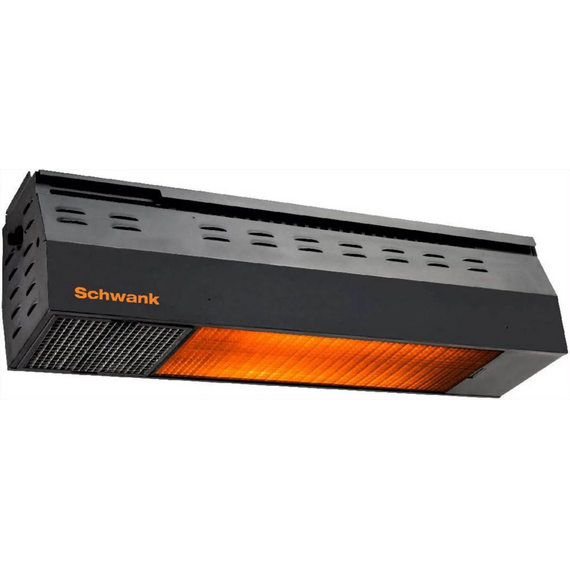

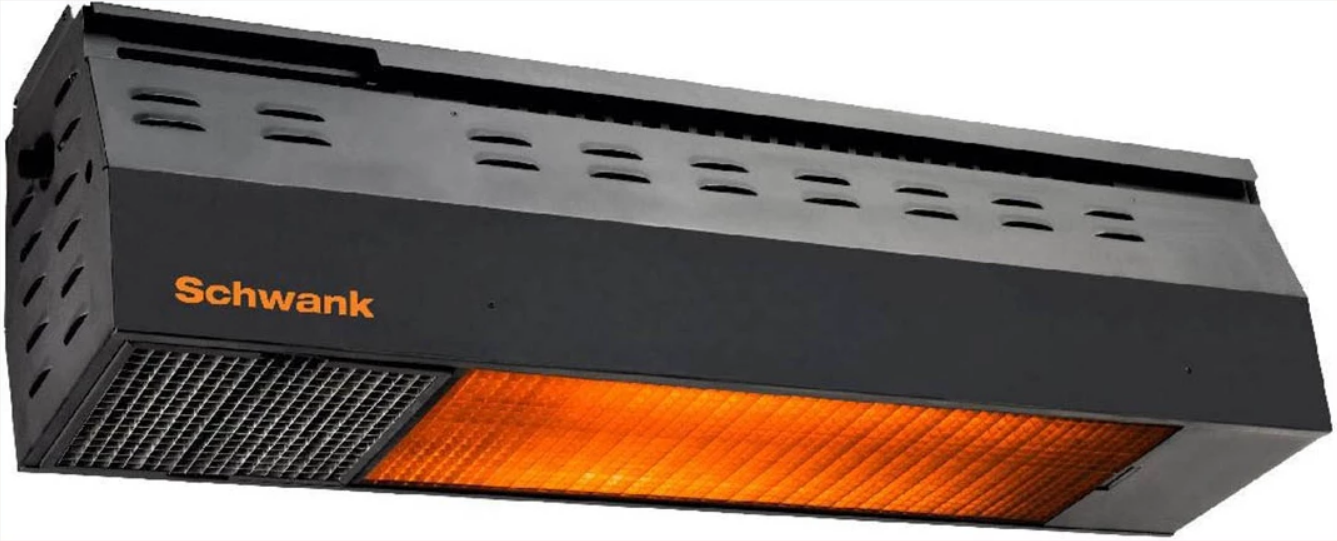

35000 BTU - BistroSchwank 2100 Single Stage Model 2135

Extend the enjoyment of your patio throughout the entire year by ensuring an optimal temperature and comfort level, attracting more customers, and boosting your profits. Our bistroSchwank outdoor heaters are a popular choice among restaurant owners, thanks to its competitive pricing.
The addition of heaters doesn't have to compromise aesthetics. Our stylish heaters come in black and stainless steel options, seamlessly blending with your existing decor.
Choose from the bistroSchwank single-stage mode for consistent heat or the two-stage (high/low) model that allows easy adjustment with a simple switch. Complete flexibility is provided with various mounting bracket options.

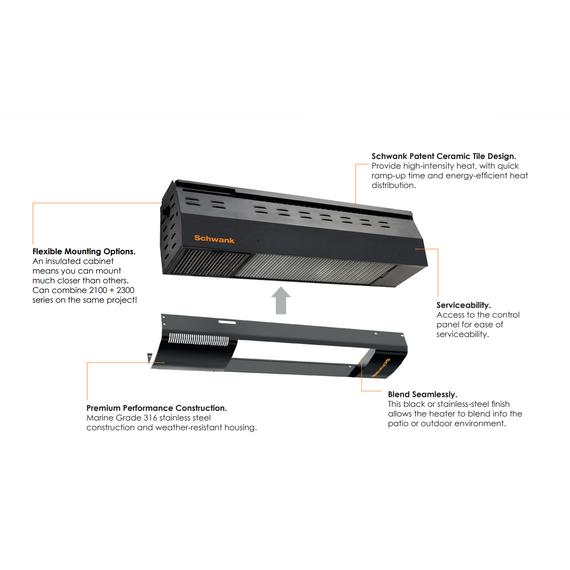

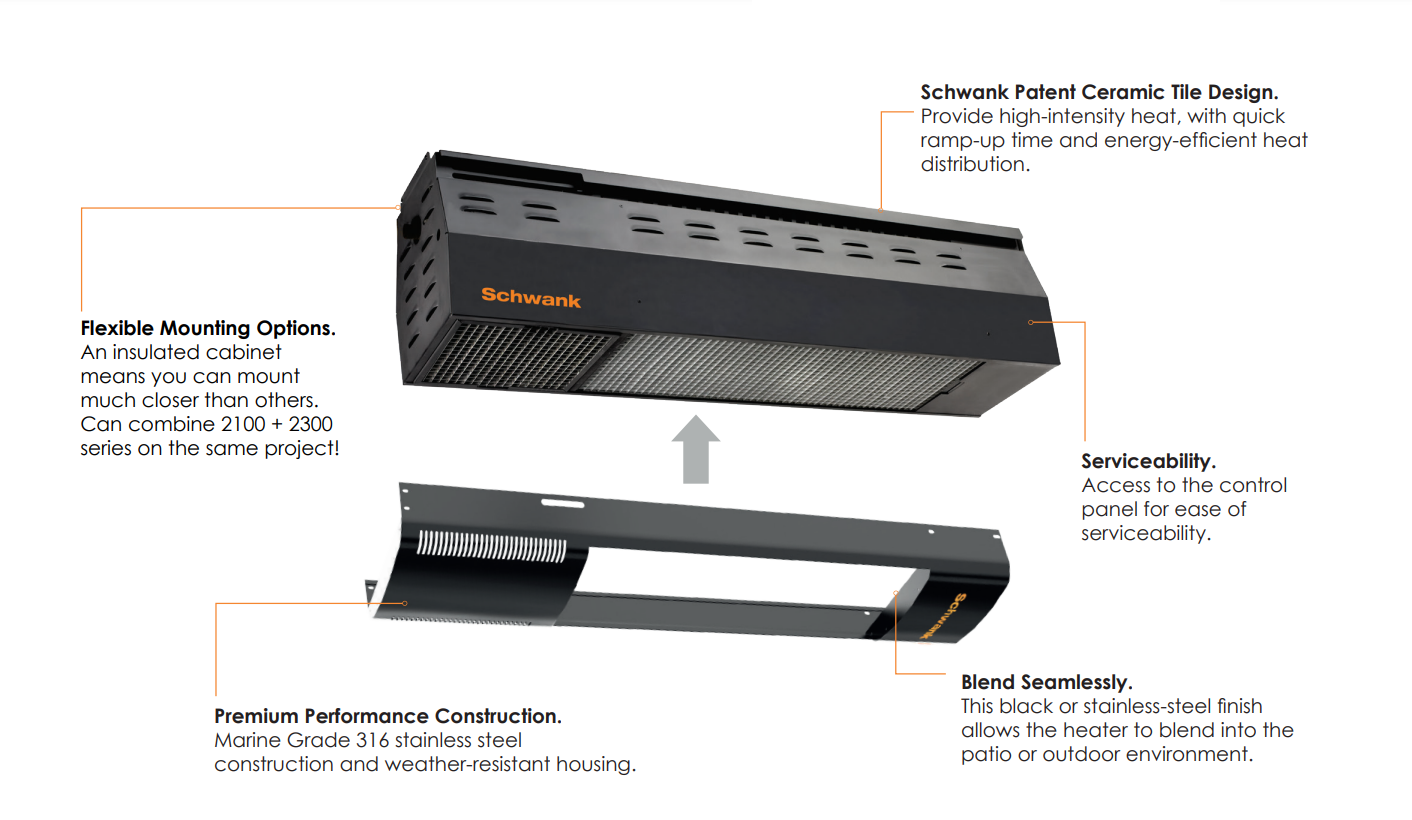

Features:

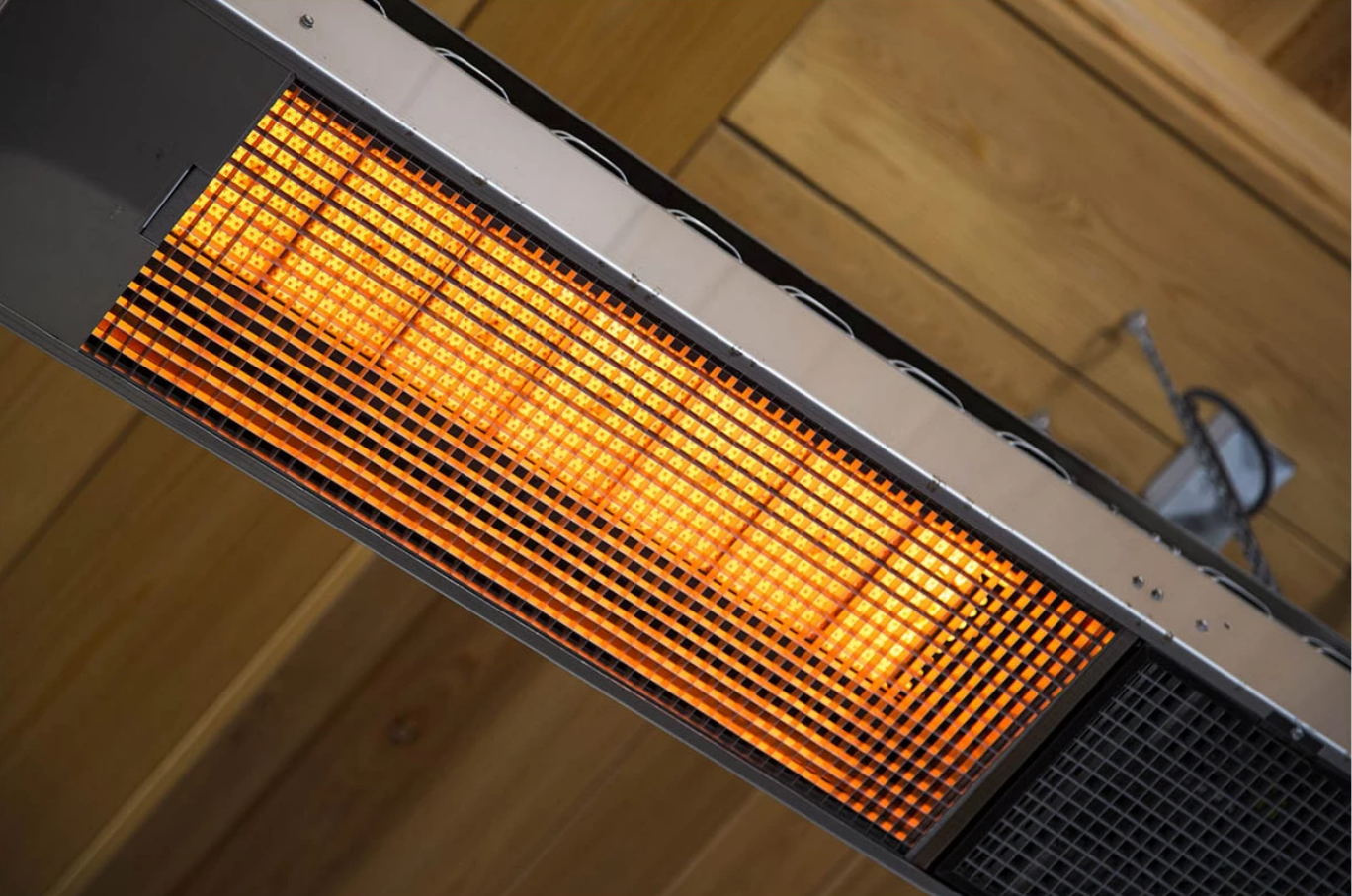

• Schwank Patent Ceramic Tile Design: Provide high-intensity heat, with quick ramp-up time and energy-efficient heat distribution.
• Flexible Mounting Options: An insulated cabinet means you can mount much closer than others. Can combine 2100 + 2300 series on the same project!
• Serviceability: Access to the control panel for ease of serviceability.
• Premium Performance Construction: Marine Grade 316 stainless steel construction and weather-resistant housing.
• Blend Seamlessly: This black or stainless-steel finish allows the heater to blend into the patio or outdoor environment.
• 35,000-50,000 input BTU/hr
• 44” Heater Length
• Available in Single-Stage and 2-Stage

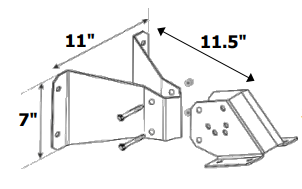

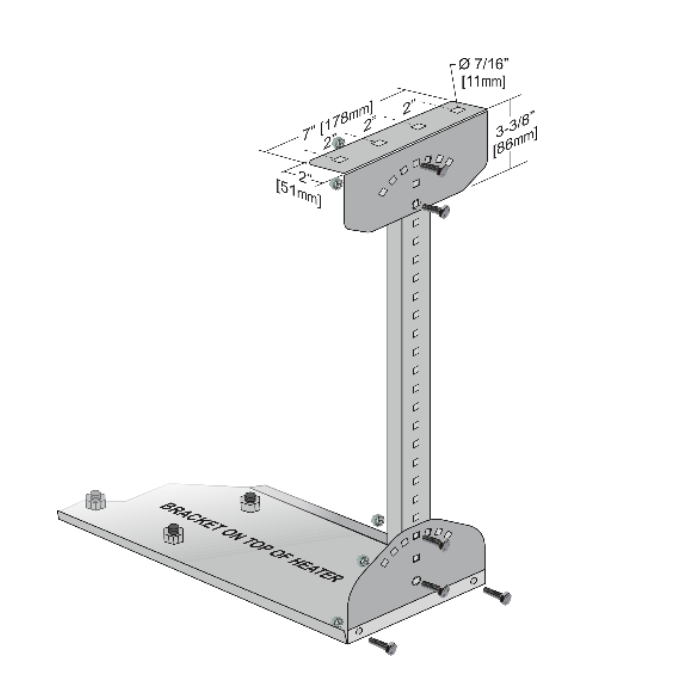

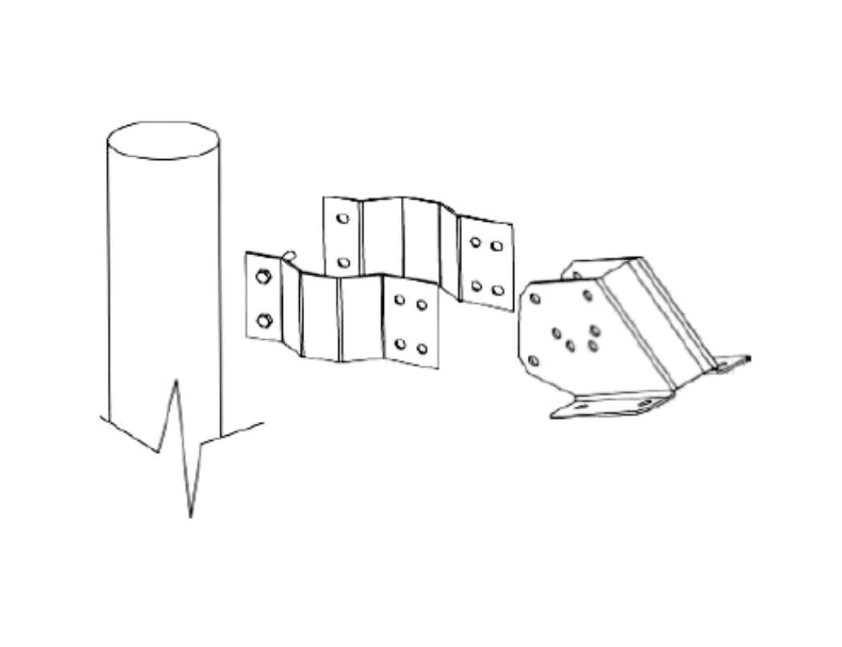

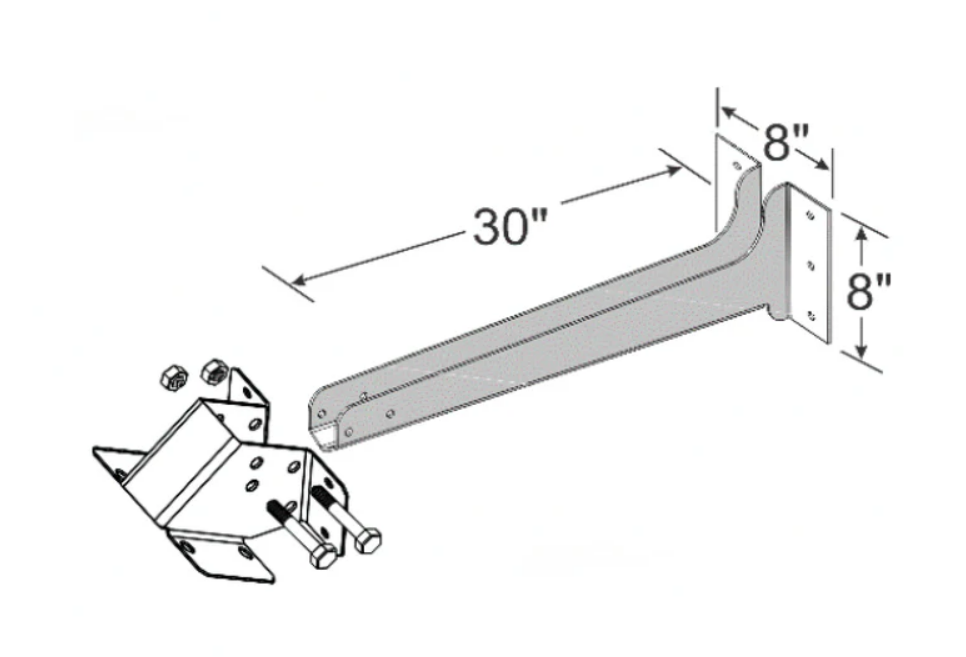

• Mounting Options include Wall, Ceiling and Post-Mount
• 9 ft and Up Mounting Heights
• Control Options Include Single/Double/Triple Switch, Patio Panel, and Remote
• Attractive Black or Stainless-Steel Finish

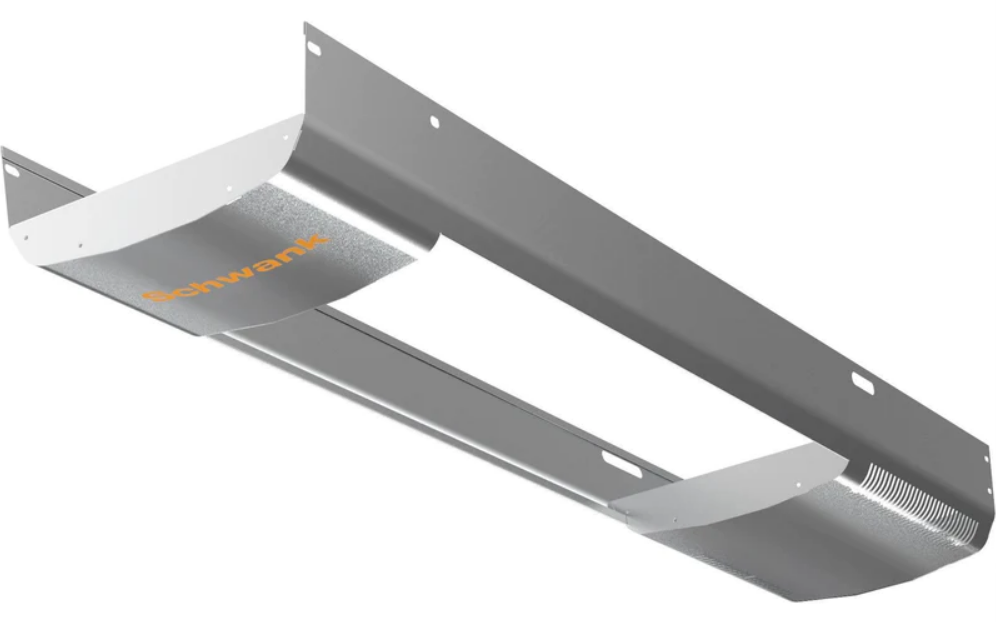

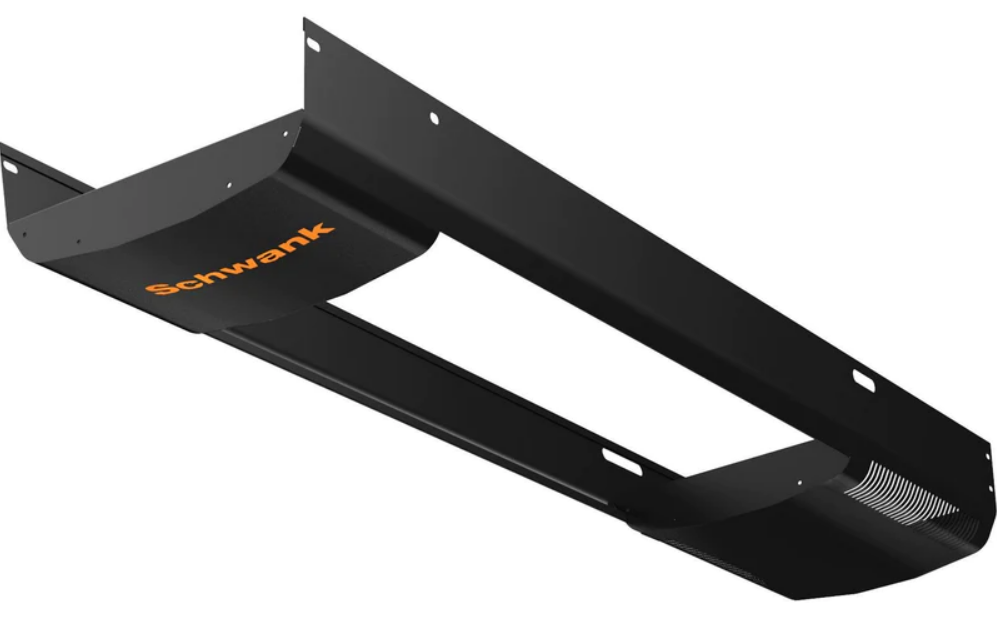

• Optional Faceplate to Add a Modern Design
• Made with 316 Marine Grade Stainless Steel
• Perfect for Restaurant, Hospitality, Retail Applications
• Applications: Commercial  Patios, Restaurants, Terraces
• UL Certified for North America

Control Features:

Remote Control Receiver Kit field installs in burner

• Order one for each heater - High Intensity or Tube Type
• Includes receiver, wires, instructions

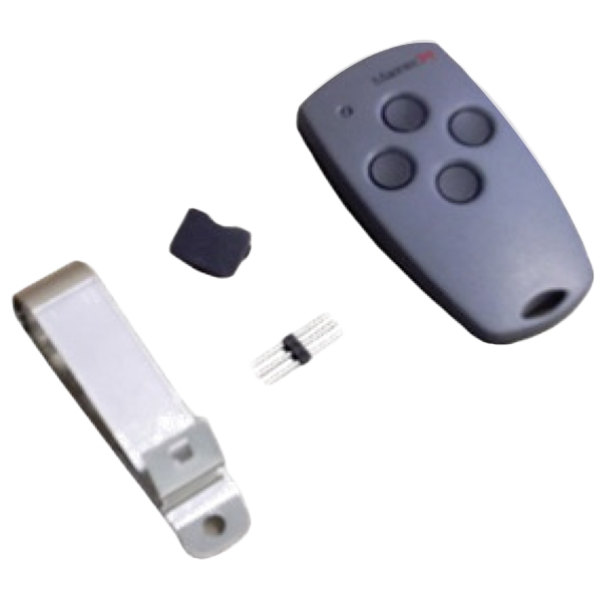

Hand Set Control [Four On/Off Buttons]

• Order one for every four zones: a Zone is 1 or more heaters
• Control up to 4 individual heaters or up to 4 zones with multiple heaters in each zone
• At least one hand set is always required for master programming of receiver or Keypad
• Schwank recommends ordering two hand sets for each control area [4 heaters or zones] so that a back-up hand-set is always available if one is misplaced…
• Order one master hand set and Keypad Transmitter [below] for each 4 zones

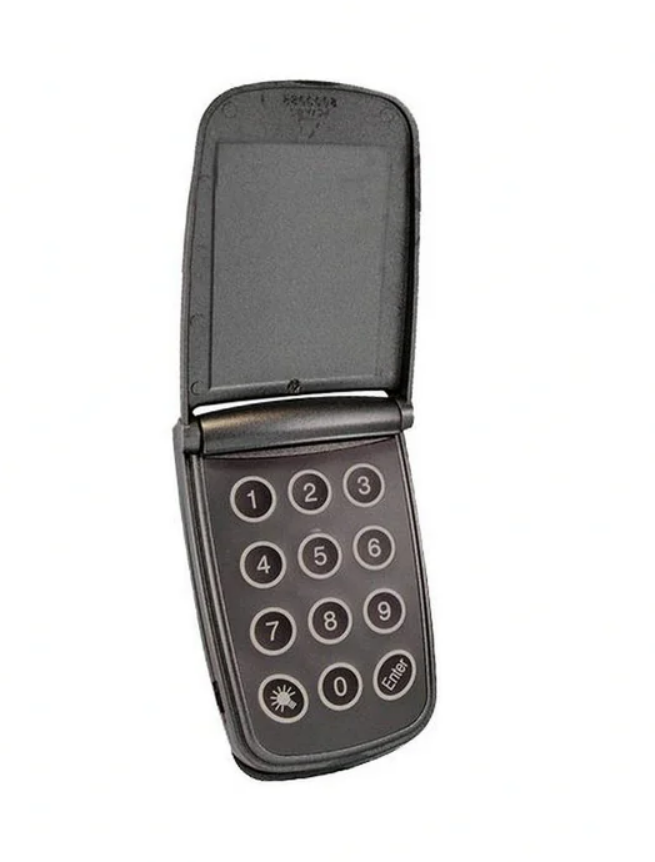

Wireless Remote Control Keypad Transmitter

[Note: Above Hand Set Control is required for Master Code programming]

• Control up to four patio zones: 3 Zones with unique 4 digit PIN & Plus 1 zone with direct push button
• Weather resistant: Outdoor or indoor installation
• No more misplaced hand sets

24 Volt Control Guidelines

• Size 24V transformer 40VA for 1st heater + 20 VA for each additional heater

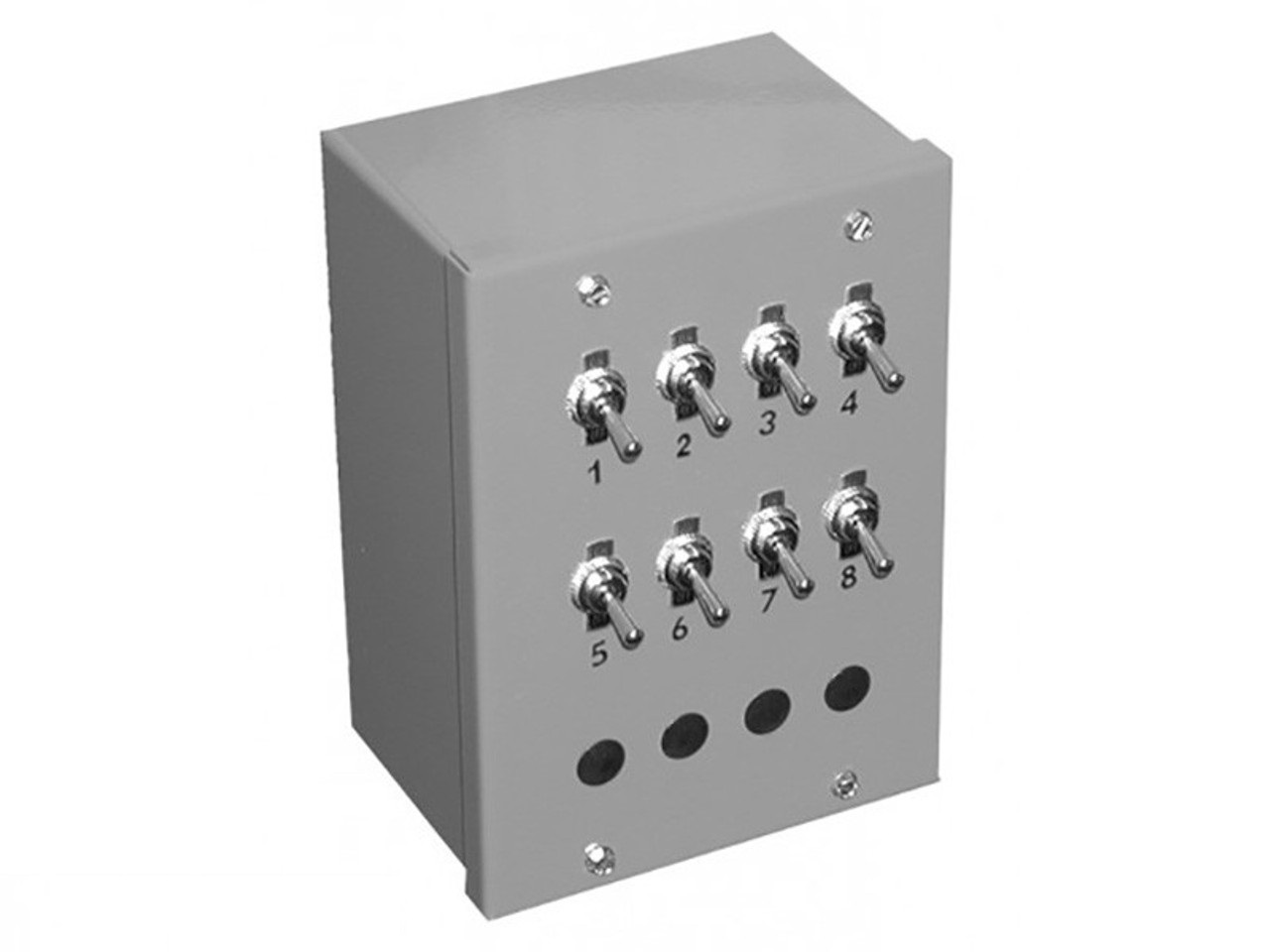

• PatioPanel and switches are 24 Volt capacity
• PatioPanel: Size a transformer for ALL heaters controlled by each individual panel
• For best comfort control, assign one heater to each patioPanel switch
• At most two 2100/2300 heaters can be assigned to each patioPanel switch
• Remote Control: Size transformer[s] for ALL heaters installed on the patio

Specifications:

• Model: 2135
• Input: 35,000 BTU
• Finish: BLACK - High Temperature
• Gas: Natural Gas | Liquid Propane
• Part #: MO-2135-NG | MO-2135-LP
• Weight LBS: 39

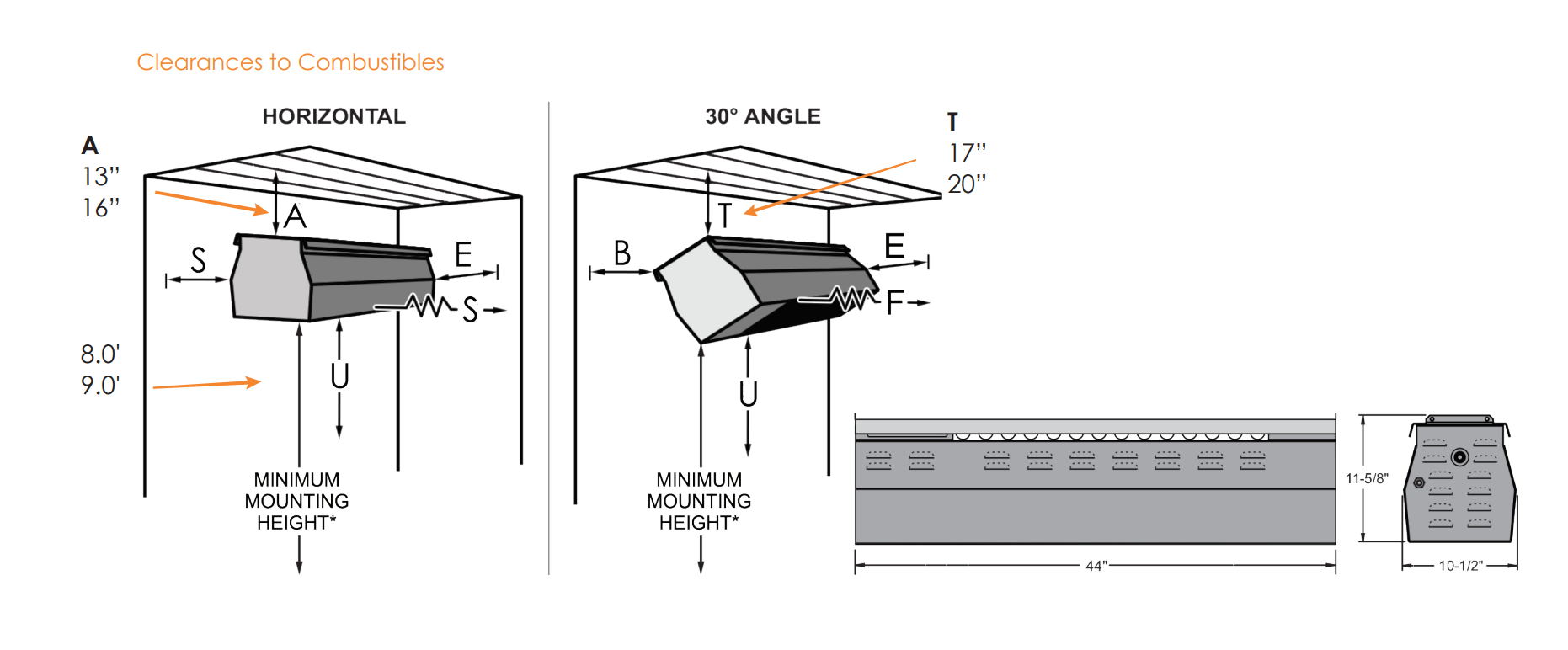

• Heater Length [A]: 44"
• Minimum Mounting Height: 8.0'

Downloads:

• BistroSchwank Series Manual
• BistroSchwank – 2100 Series Tech Specifications
• BistroSchwank – 2100 Series Brochure
• PatioSchwank Brochure
• Instruction Submittal
• Patio Heater Faceplate Brochure
• 2100 Series Guideline Specs

Embracing the Warmth: The Beauty of Using Patio Heaters

As the sun sets and temperatures drop, the allure of outdoor spaces can wane. However, the introduction of patio heaters has transformed the outdoor experience, extending the joy of al fresco living well into the cooler seasons. These devices not only provide practical warmth but also add a touch of elegance to any patio or garden setting. In this article, we explore the beauty of using patio heaters and how they enhance the overall outdoor experience.

Year-Round Enjoyment:

Patio heaters have revolutionized the way we utilize our outdoor spaces. No longer confined to warm summer evenings, patios equipped with heaters become versatile havens for relaxation and socialization throughout the year. Whether it's a crisp fall evening or a chilly winter night, the comforting warmth radiating from these devices ensures that outdoor gatherings remain a year-round possibility.

Aesthetic Appeal:

Modern patio heaters come in a variety of designs and styles, adding a touch of sophistication to any outdoor setting. From sleek, minimalist models to more ornate and decorative options, these heaters can be seamlessly integrated into the overall aesthetic of your patio or garden. Some even mimic the appearance of traditional fire pits, contributing to a cozy and inviting ambiance.

Versatility in Design:

The beauty of patio heaters lies not only in their functionality but also in their versatility. They are available in various forms, including freestanding units, wall-mounted heaters, and tabletop models. This diversity allows users to choose a heater that complements their specific space and meets their design preferences. The flexibility in placement and installation ensures that these heaters can be seamlessly incorporated into any outdoor environment.

Enhancing Social Interaction:

The warmth provided by patio heaters extends beyond physical comfort; it fosters a sense of coziness and intimacy. Whether gathered around a table for a family dinner, enjoying a conversation with friends, or stargazing on a quiet night, the radiant heat from the patio heater becomes a central element, encouraging people to linger and enjoy each other's company for longer periods.

Energy Efficiency:

Modern patio heaters are designed with energy efficiency in mind, using various fuel sources such as propane, natural gas, or electricity. Many models feature adjustable settings, allowing users to control the intensity of the heat emitted. This not only ensures optimal comfort but also contributes to eco-friendly practices by minimizing energy consumption.

Alleviating Health Concerns:

In the midst of a global emphasis on outdoor activities and the importance of fresh air, patio heaters play a crucial role. They enable individuals to enjoy outdoor spaces without compromising their health during colder months. The warmth provided by these heaters can be particularly beneficial for those seeking relief from seasonal discomforts or simply wanting to spend more time outdoors.

Patio heaters have emerged as essential elements in creating a welcoming and functional outdoor space. Their ability to provide warmth, enhance aesthetics, and foster social interaction makes them invaluable additions to any patio or garden setting. As we embrace the beauty of using patio heaters, we redefine the possibilities of outdoor living, transforming our patios into year-round havens of comfort and enjoyment.
