6 Tube Spitfire Fireplace Heat Grate with Blower Unit

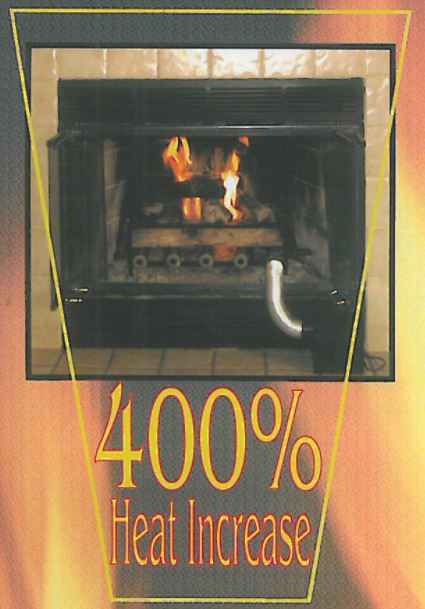

The 6-tube Spitfire fireplace grate heater is a low-profile, easy-to-install solution ideal for zone heating in wood or gas-burning fireplaces. This efficient unit draws heat from the hottest part of the fire and delivers it directly into your room. The heating tubes also function as a fireplace heat grate, eliminating the need for an additional accessory.
Please note: DO NOT install this unit with a fireplace door. Instead, select a grate heater with a bottom bar so that your doors can safely rest on top of the extension.
How the 6-Tube Spitfire fireplace heat exchanger works:
-
Wood burning: The titanium alloy exchanger tube can be placed on a log grate, allowing you to build a fire directly on top.
-
Gas burning: The heat-resistant exchanger tube replaces the backlog on your gas log set, efficiently transferring heat into your space.
Specifications:
- Grate Heater Material: Steel | 16 Gauge Aluminized Metal Tubing
- Flex Tube Material: Aluminum
- Flex Tube Length: 18"
- Front Width: 27 1/8 Inches
- Rear Width: 24 3/4 Inches
- Depth: 17 Inches
- Height Underneath Tube: 1/2 Inches
- Front Log Holder Height: 7 Inches
- Rear Log Holder Height: 6 Inches
- Blowerbox Size: 5-1/2" Wide x 5-5/8"
- BTUs Per Hour: 40,000
- CFMs: 30 Low | 50 High
- Fuel Compatibility: Gas | Wood
- Motor: Two-speed
- Cord Length: 8 Feet
- Watts: 50W
- Amp: 0.5A
- Motor & Cord Location: Left | Right
Features:
- Designed for use with wood or gas fireplaces
- Fireplace grate heater is made in the USA and ships for free
- 3-year warranty on exchanger tube; 1-year warranty on housing and thermal protection device
- 6 exchanger tubes
- 27 1/8 inch front width
- 24 3/4 inch rear width
- 7-inch front and rear height
- 17 inches deep
- Fits fireplaces larger than 28 inches wide
- Produces 40,000 BTUs for generous zone heating
- For optimal heat production, always use a unit with the blower
- Exchanger tubes are approximately 18 inches long and act as a fireplace grate
- The electrical cord is 8 feet long
- Two-speed blower produces 30 to 50 CFM.
Product Manual: 6 Tube Spitfire Fireplace Heater with Blower Unit
