Gate Mesh Fireplace Door With Window Pane Design - No Glass For Prefab

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.


3-SIDED OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to the top of the firebox opening


4-SIDED OVERLAP FIT (for suspended openings)
When the fireplace door is larger than the opening on ALL 4-SIDES of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the firebox floor to the top of the firebox opening.  We need the exact minimum height. Make sure there is enough space for the frame to overlap on all sides of your fireplace opening! We need the exact minimum height.


INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to the top of the firebox opening. We need the exact minimum height.


DO NOT make adjustments to sizes, we need the EXACT OPENING size


Size Range For Pricing: Up To 36"W and Up To 36"H


Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-6 Weeks Question | Why Buy From Us?

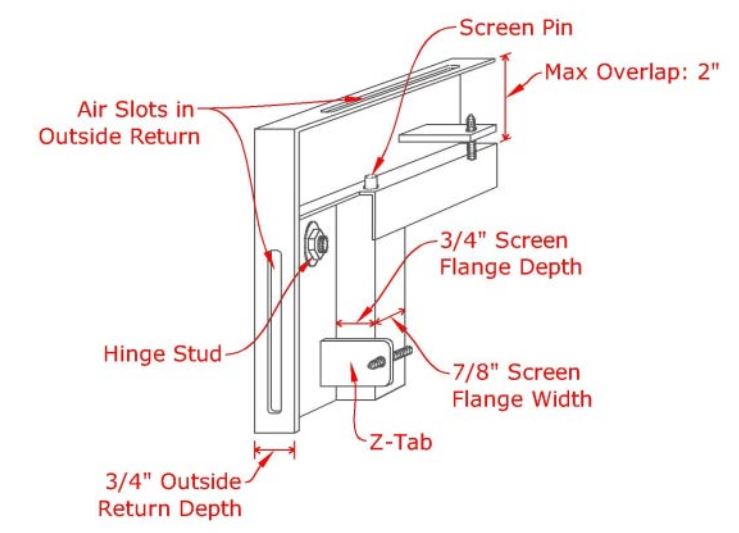

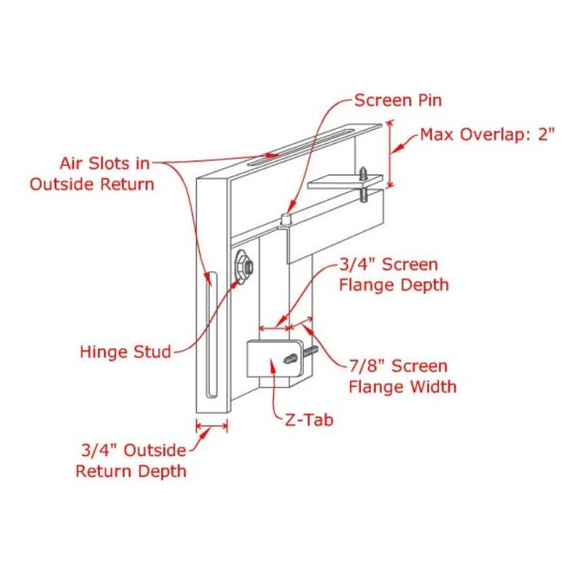

Zero Clearance Doors Inlcude Z-Tabs
Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable. Flanges are recommended for rough or irregular fireplaces!
The door or screen should be sized to fit under the leading edge of any hood that comes with the unit. There should be open space under the hood to the top of the door to allow heat to leave the unit.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].

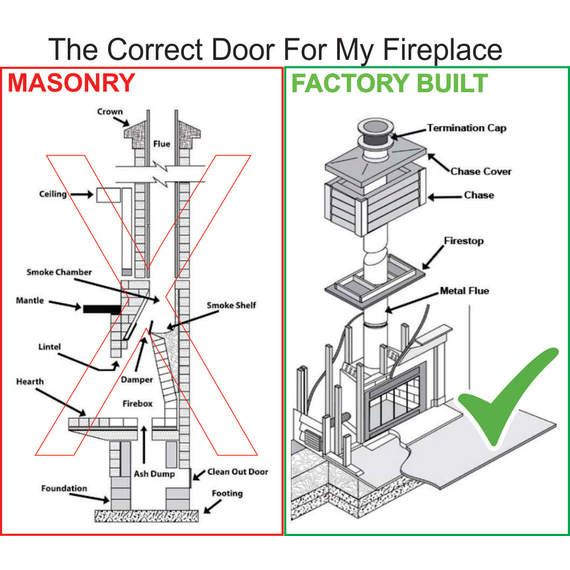

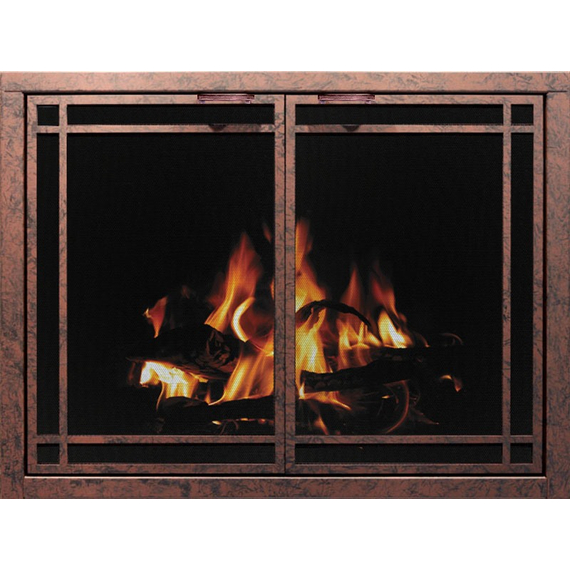

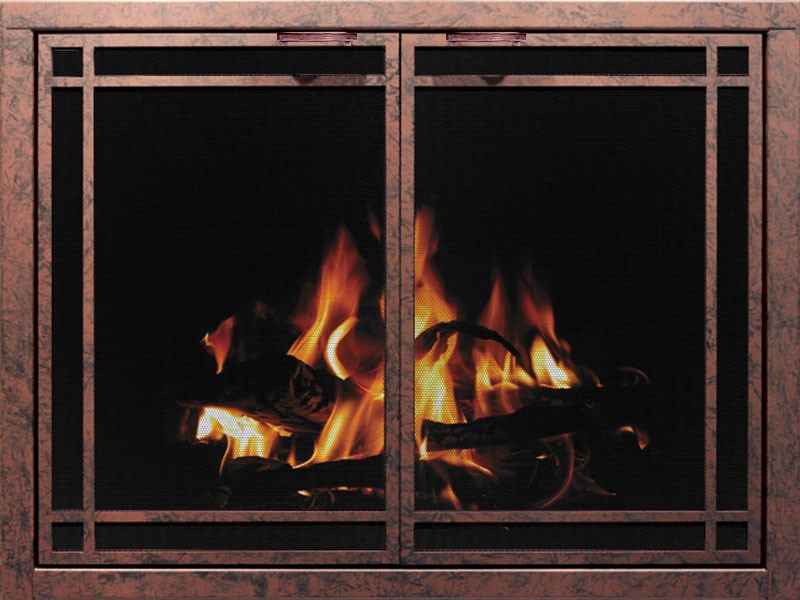

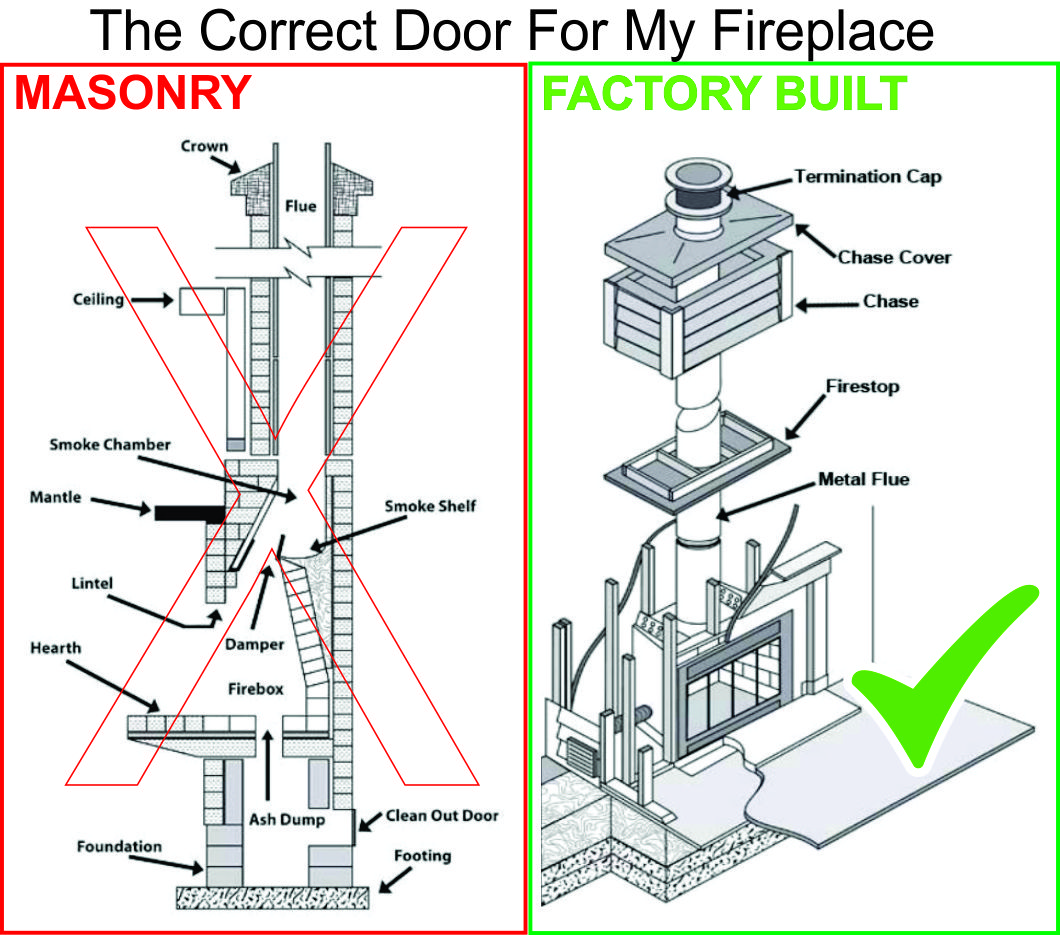

Our Prefab Gate Mesh Fireplace Door with Window Pane Design – a stylish and secure solution crafted exclusively for prefab fireplaces. With a mission-style window pane design, these mesh doors bring a touch of sophistication to your fireplace, allowing you to enjoy the warmth while keeping the doors closed. The cabinet mesh, thoughtfully installed into the door stiles instead of glass, ensures a safe and worry-free experience, protecting your home and loved ones from sparks and embers.


  • Exclusively for Prefab Fireplaces: Specifically designed for prefab fireplaces, ensuring a perfect fit and optimal safety.
  • Free Shipping: Enjoy complimentary shipping on this product, with a production time of 4 to 6 weeks.
  • 5-Year Warranty: Rest easy with a 5-year warranty covering the frame and workmanship.
  • Customizable Fit: Tailor the doors to your fireplace opening dimensions by choosing between an overlap or inside fit enclosure.

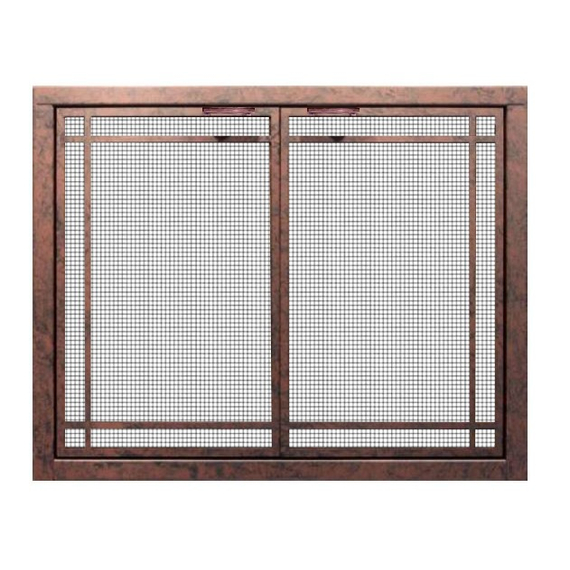

  • Decorative Window Pane Design: Twin cabinet-style mesh doors with a mission-style window pane design for added elegance.
  • Durable Construction: Crafted from 14-gauge steel, the frame is 2 inches wide and 3/4 inch deep, ensuring longevity and sturdiness.
  • Finish Options: Choose from a variety of beautiful powder coat finishes, including the rustic Rust Patina as shown in the main picture, or opt for a brilliant overlay appearance to match your style.
  • Handle Options: Enjoy the flexibility of two handle styles – square and contemporary – for easy opening and closing of the cabinet doors.
  • Fully Assembled: The door comes fully assembled with mounting hardware included, ensuring a hassle-free installation process.
  • Perfect for Gas Logs: These mesh doors are the ideal addition to fireplaces with gas logs, providing access while prioritizing spark protection.

Elevate your prefab fireplace experience with our Prefab Gate Mesh Fireplace Door – where style meets safety seamlessly. Browse our available finishes through informative videos and choose the perfect combination for your home. Keep warm, stay secure, and add a touch of elegance to your living space with these meticulously crafted mesh doors.

In adherence to UL Code 127, our doors are designed for Zero Clearance (ZC), and pre-manufactured fireboxes are equipped with air-gaps and spacers. These safety features are implemented to facilitate airflow in case the doors inadvertently close during operation, preventing potential overheating of the firebox. Any attempt to tamper with or obstruct the designated air-flow is considered a homeowner's acceptance of full liability and responsibility for any potential fire hazards that may arise.


  • Fireplace Type: Prefab Wood Fireplaces | Prefab Wood Fireplaces Converted To Vented Gas Logs or Ventless | Ventfree Fireboxes
  • Door Fit: Overlap | Inside
  • Door Type: Cabinet (Twin) Doors
  • Door Design: Window Pane
  • Frame Material: 14 Gauge Steel Frame
  • Frame Panel Width: 2"
  • Frame Depth: 3/4"
  • Approximate Overlap: 0.5"
  • Mesh: Cabinet Mesh Doors
  • Glass: N/A
  • Handle Style: Square | Contemporary
  • Airtight Option: N/A
  • Assembly: Fully Assembled
  • Damper: N/A
  • Mounting: Hardware Included

Installing mesh doors or Refresh products on vent-free fireplaces may result in the doors or screens becoming excessively hot. These doors are constructed with screens instead of glass. It is crucial to ensure that the door or screen is appropriately sized to fit beneath the leading edge of the unit's hood. Adequate open space under the hood, extending to the top of the door, is necessary to facilitate the dissipation of heat from the unit. Please note that due to the extreme temperatures involved, we cannot guarantee the durability of finishes on products used for vent-free applications.



Operation & Maintenance Guidelines for CMC IFireplace Doors

Our CMC fireplace doors are meticulously designed to enhance your fireplace experience. To ensure optimal performance and longevity, please adhere to the following operation and maintenance guidelines:

1. Glass Doors Open During Operation:

  • Keep the glass doors open when the fireplace is in use.
  • Excessive heat, such as that generated by a very hot wood or gas fire, hot coals, embers, ashes, or logs in contact with the back of the enclosure, can lead to damage or loss of temper in the glass, resulting in breakage.
  • Discoloration or serious damage to the enclosure finishes caused by overheating is considered abuse and is not covered under warranty.

2. Wood Burning Considerations:

  • If burning wood, avoid closing the glass doors while the fire is dying down, as this can result in smoke residue or soot accumulation on the glass.
  • Regular cleaning with a glass cleaner or a mild household cleaner can remove staining. For heavier stains, consult your local fireplace dealer for a suitable wood smoke residue cleaner.

3. Maintenance of Door and Frame Finish:

  • Clean the CMC door and door frame finish using a damp cloth or mild household cleaner.
  • Avoid cleaners containing ammonia or harsh chemicals to prevent damage to the finish.

Warranty Information:

Your CMC fireplace doors are covered by a 5-year limited warranty.

Safety Notice:

This product may expose you to chemicals, including Carbon Black, known to the state of California to cause Cancer. For more information, visit


In compliance with UL Code 127, our doors for Zero Clearance (ZC) and pre-manufactured fireboxes come equipped with air gaps and spacers. Tampering with or closing off the airflow in any way assumes all liability and responsibility for potential fire hazards.

Important Note:

Fireplace Doors Online And CMC Industries do not accept liability associated with burning with the doors closed on pre-manufactured fireboxes and ZC applications.

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
