Hidden Hinges Artisian Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Opening Size: Up To 33"W and Up To 34.5"H

=:

$2,634.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

Click the image to enlarge for a closer, detailed view of the product.
INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Available
+

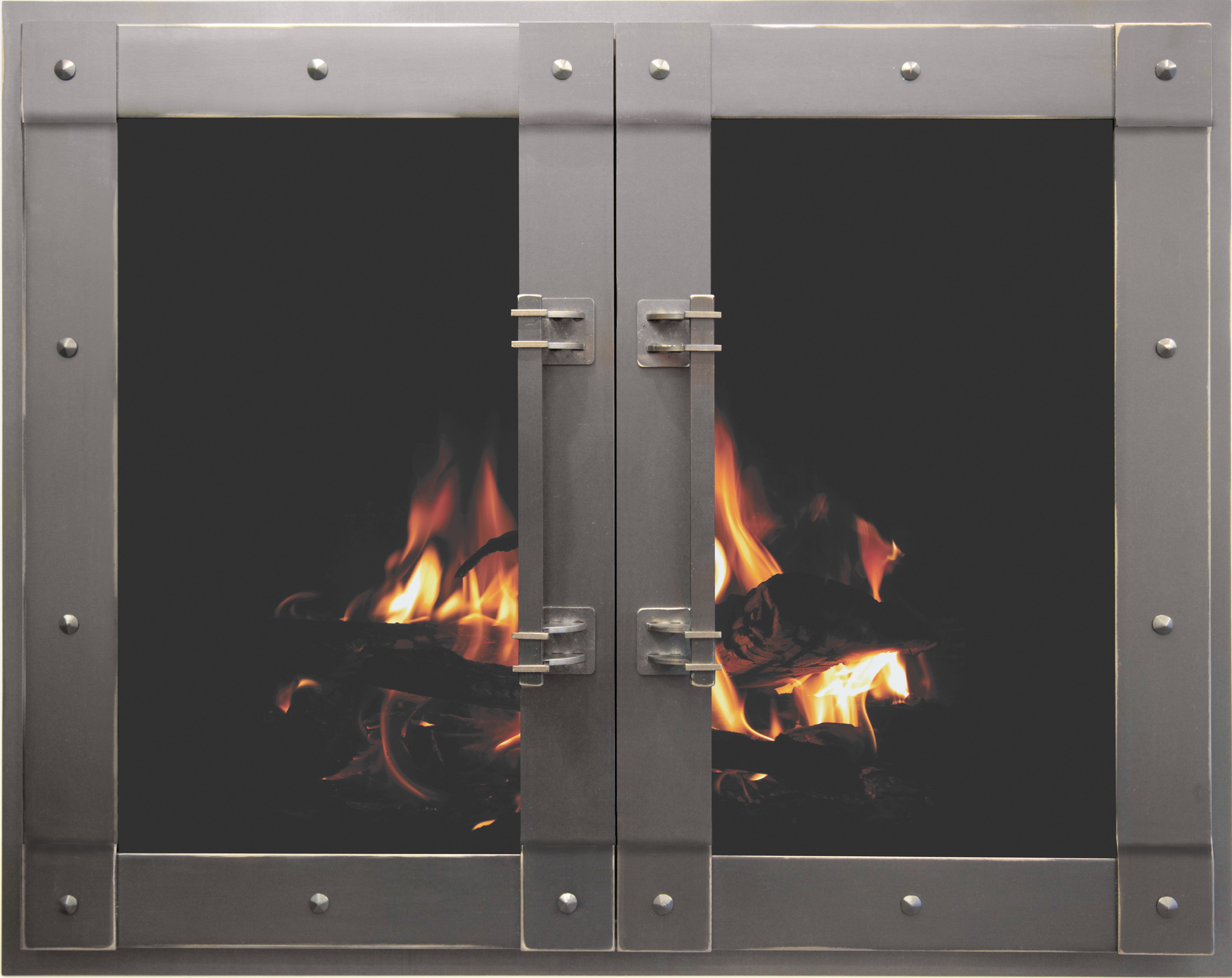

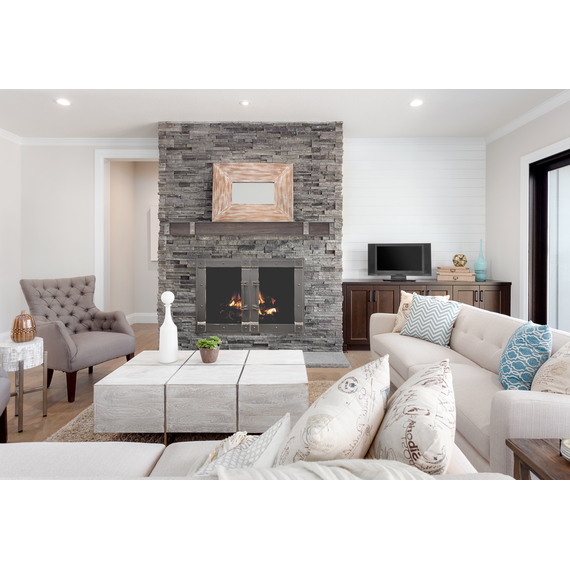

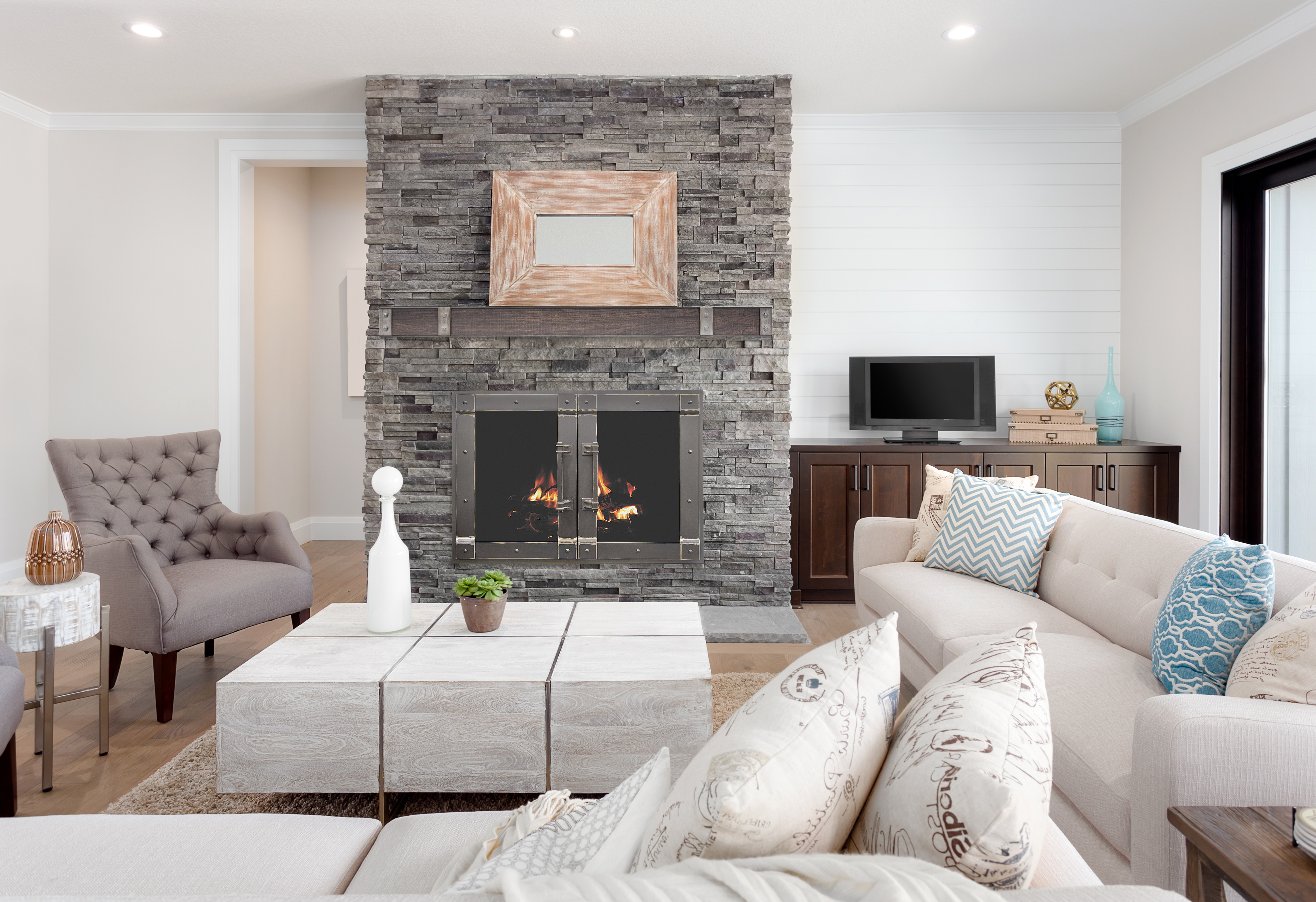

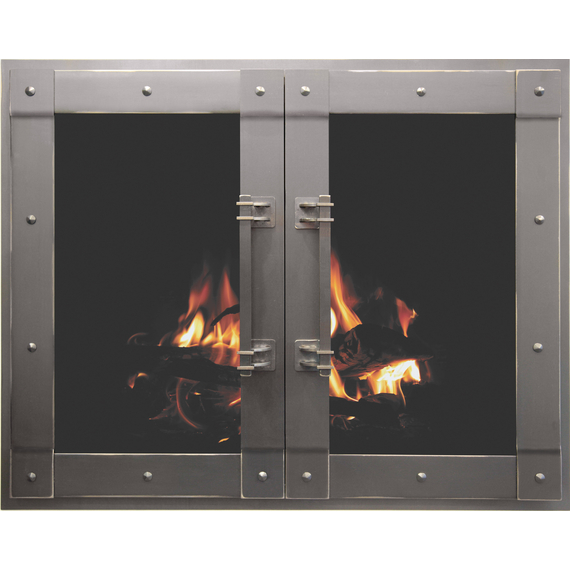

Transform your ordinary masonry fireplace into a stylish centerpiece with the Artisian Masonry Fireplace Glass Door. This sleek glass door is available in three tempered glass options: clear, grey, or bronze. The door is constructed with a durable 4" main frame and a 3" door frame with simple joints, made from 7 gauge steel bar stock. For added convenience, the door hinges are concealed from view, with large rustic handles for easy access. The simple frame design is accentuated with custom rivets and thickened joints, bringing a touch of rustic charm to your living space. The Artisian Masonry Fireplace Glass Door is the perfect addition to any modern or traditional decor.


Edison Masonry Fireplace Door Features Product Features:

  • 5-year warranty on workmanship and material only; 1-year glass warranty
  • The main frame reveal is reduced by 1 inch as the doors overlap the main frame by the same measurement
  • The center bar of this door comes equipped with rustic handles.
  • If you want Pyro Ceramic Glass, you can only get it on cabinet center bar doors

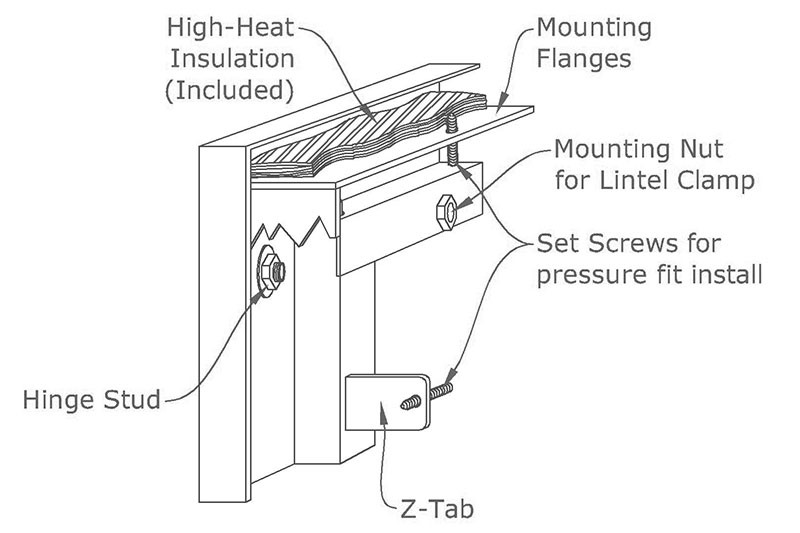

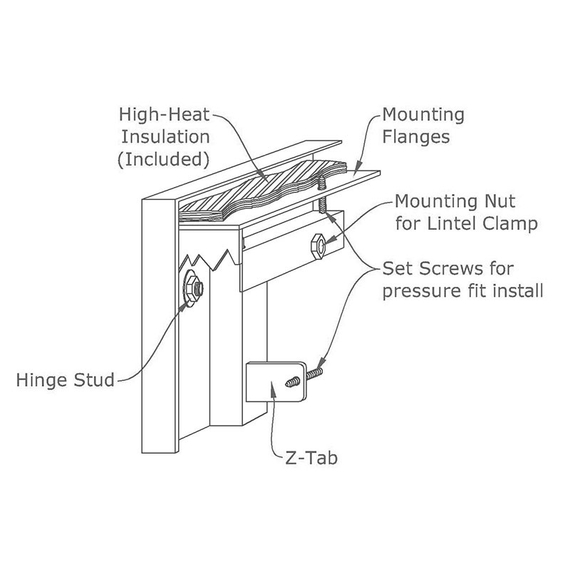

  • The Inside Fit variant comes with 2 inches flanges on the top and sides
  • For Inside Fit doors, the size will be 1/8 inch less than the opening on each side
  • The size of the frame panels can be modified on all four sides
  • Inside Fit doors are typically equipped with 2-inch flanges on the top and sides
  • Unless specified otherwise, Inside Fit doors will be 1/8 inch smaller than the opening on each side
  • No visible hinges give the Artisian door a sleek look

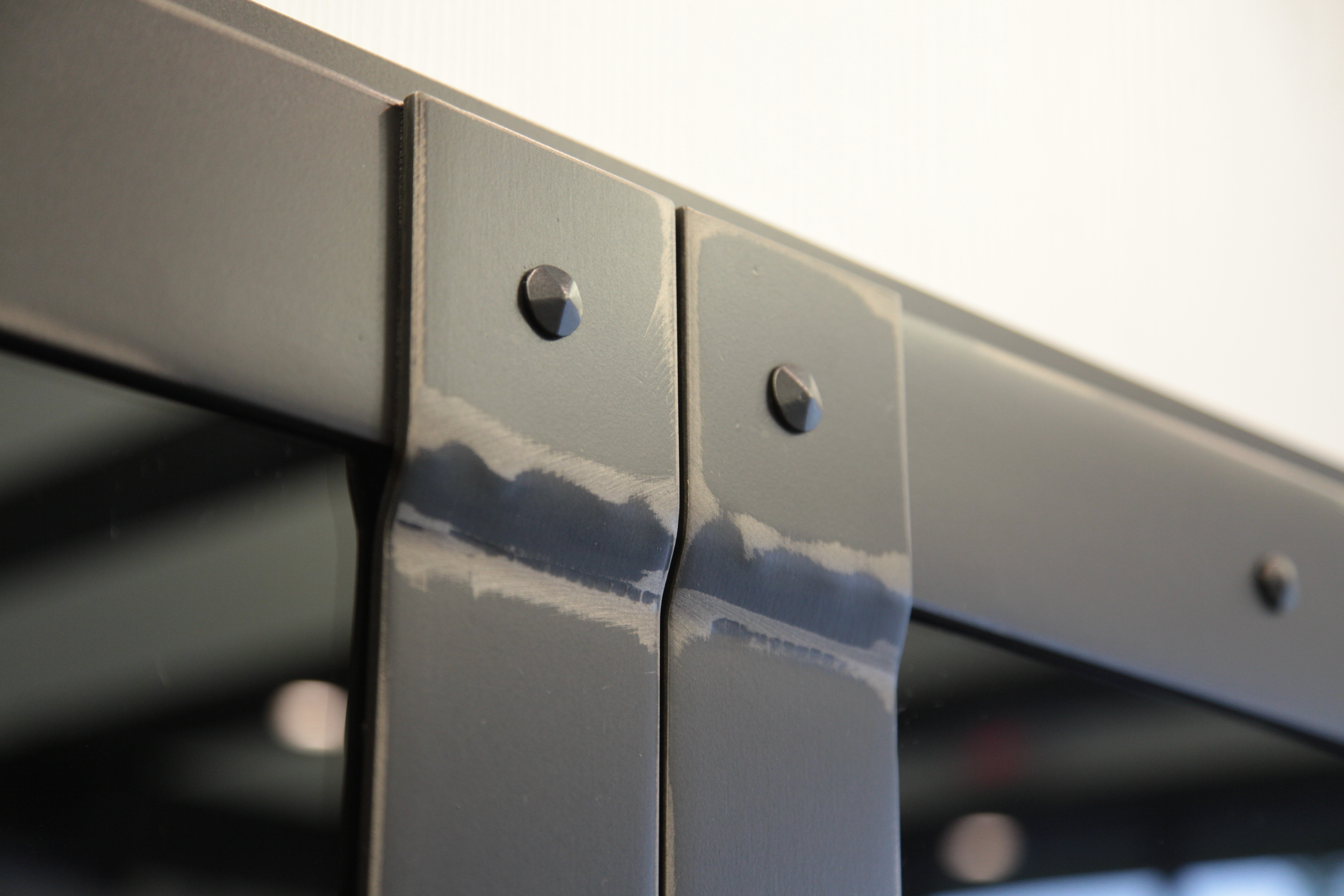

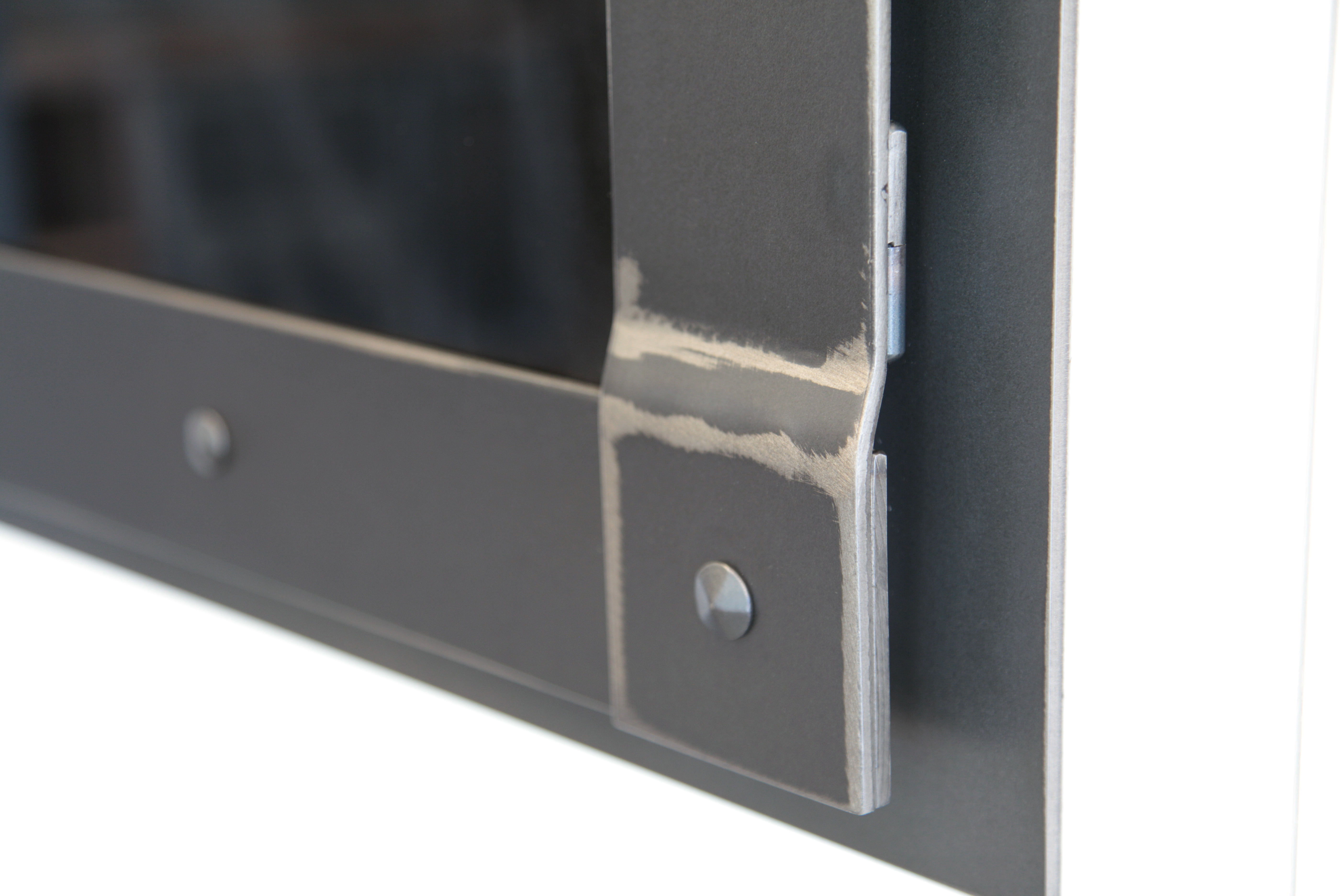

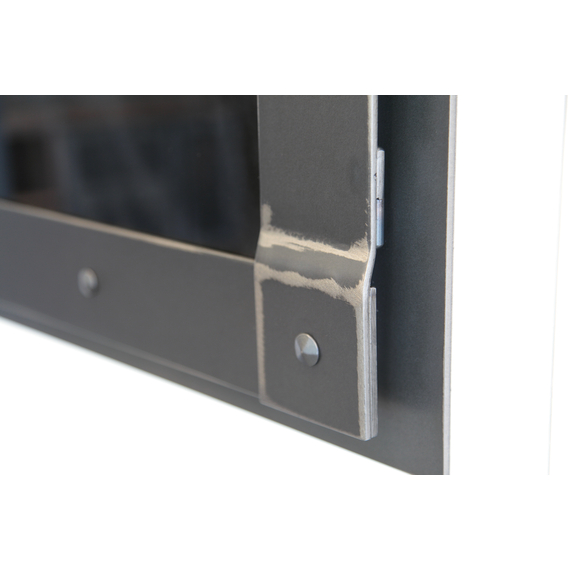

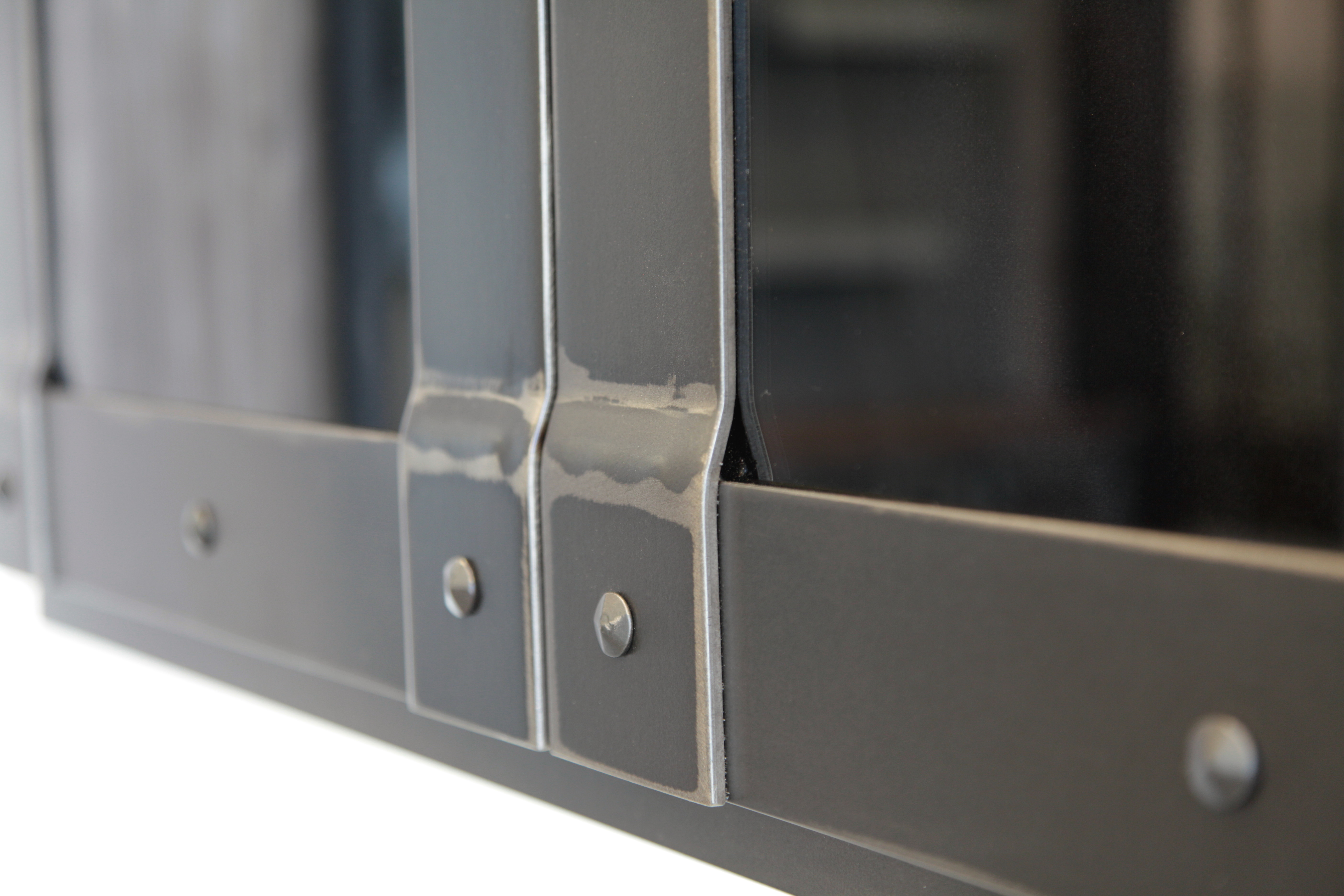

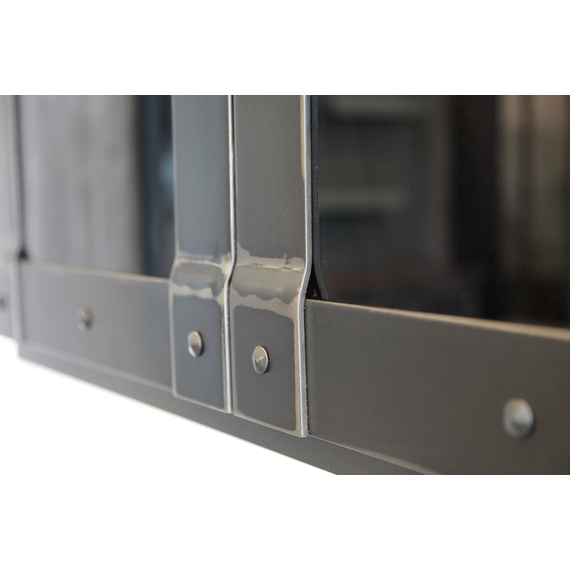

  • Handcrafted rivets add to the old-world flair



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Edison Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap | Inside
  • Approximate Overlap: 3"
  • Door Type: Cabinet Doors with Center Bar
  • Material: 7 Gauge Steel
  • Frame Width: 4"
  • Door Frame Width: 3"
  • Approximate Overlap: 3.5"
  • Glass: 1/4" Tempered Glass
  • Tempered Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: Upgrade Available
  • Mesh Protection: Optional
  • Draft Assembly: Optional
  • Airseal Option: Upgrade Available
  • Handle Style: Large Rustic | Center Bar Mounted
  • Hinge Type: Hidden
  • Mounting: Hardware Included

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
